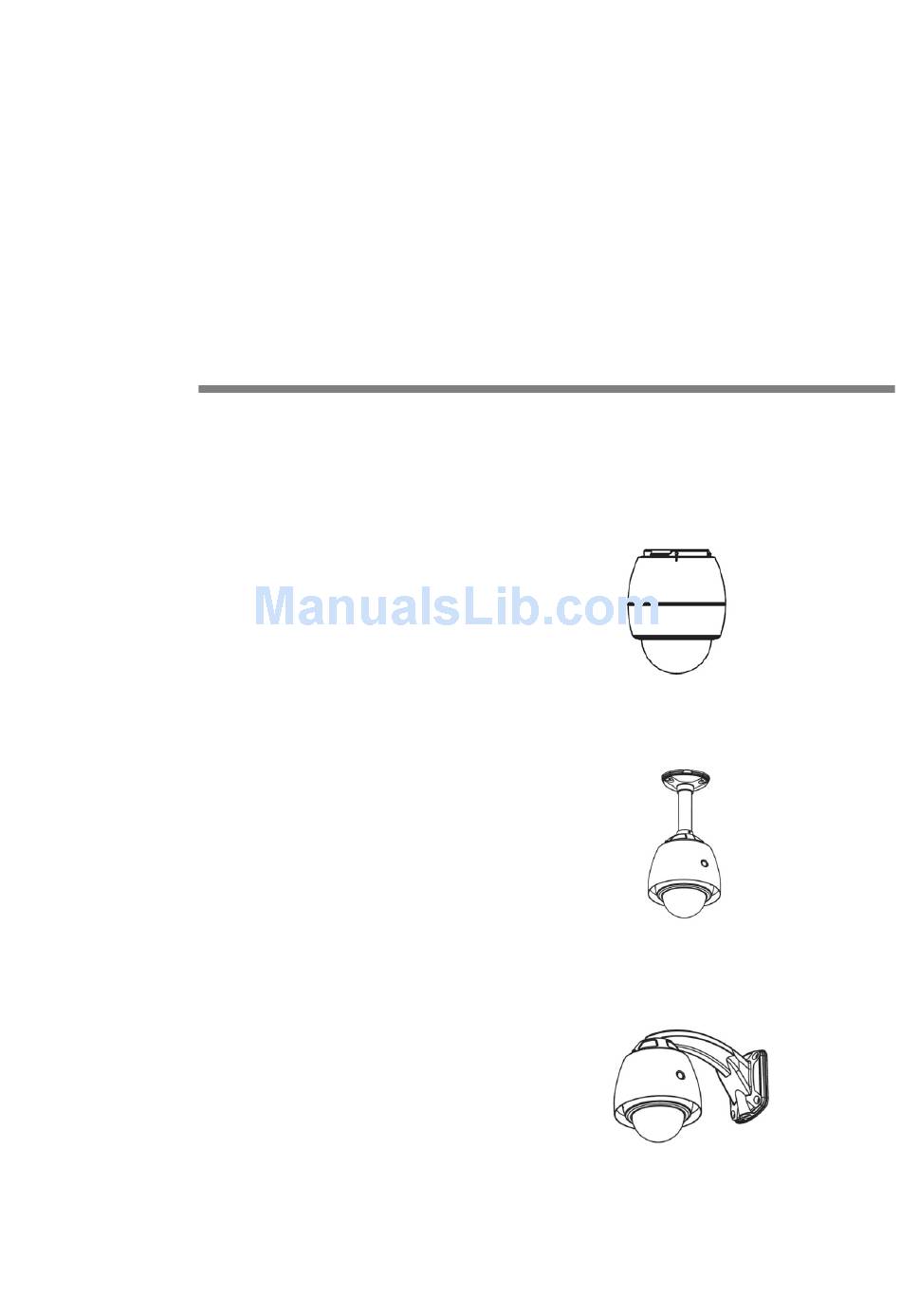

- Page 1 www.cnbtec.com XPEED Outdoor Series Ver 1.0 INSTALLATION AND OPERATION MANUAL (3810-0250A_110119)
-
Page 2: Important Safety Instructions
XPEED Outdoor Series WWW.CNBTEC.COM This lightning flash with arrowhead symbol is intended to alert The user to the presence of un-insulated “dangerous voltage” Within the product’s enclosure that may be of sufficient magnitude To constitute a risk of electric shock to persons. This exclamation point symbol is intended to alert the user to The presence of important operating and maintenance (servicing) instructions in the literature accom panying the appliance. -
Page 3: Table Of Contents
XPEED Outdoor Series WWW.CNBTEC.COM Table of Contents 1. Introduction Features Product & Accessories Parts Name & Functions 2. Installation Dip Switch Setup Installation Using the Wall Mount Installation Using the Pendant Mount Wire Connections 3. Operation Check Points before Operation Preset and Pattern Function Pre-Check Starting OSD Menu Reserved Preset... -
Page 4: Introduction
XPEED Outdoor Series WWW.CNBTEC.COM 1. Introduction Features Camera Specifications • Image Pick-up Device: 1/4" Interline Transfer CCD • Zoom Magnification: 26x Optical Zoom, 12x Digital Zoom (Max. 312x Zoom) → Model S2465N(P)X 27x Optical Zoom, 10x Digital Zoom (Max. 270x Zoom) → Model SCN-22Z27F /SCN-23Z27F 36x Optical Zoom, 12x Digital Zoom (Max. -
Page 5: Reserved Presets For Special Purpose
XPEED Outdoor Series WWW.CNBTEC.COM OSD(On Screen Display) Menu • OSD menu is provided to display the status of camera and to configure the functions interactively. • The information such as Camera ID, Pan/Tilt Angle, Alarm I/O and Preset can be displayed on screen. Alarm I/O Functions •... -
Page 6: Product & Accessories
XPEED Outdoor Series WWW.CNBTEC.COM 1. Introduction ⊙ Product & Accessories ■ Basic Components ■ Other Components (available to be ordered separately) -
Page 7: Parts Name & Functions
XPEED Outdoor Series WWW.CNBTEC.COM Introduction ⊙ Parts Name & Functions ① Dome Cover Do not detach protection vinyl from dome cover before finishing all installation process to protect dome cover from scratches or dust. Sets up camera ID and protocol. ②... -
Page 8: Installation
XPEED Outdoor Series WWW.CNBTEC.COM 2. Installation Before installing the camera, you should set the DIP switches to configure the camera ID, communication protocol. Do not use the system upgrade terminal. DIP Switch Setup ■ Camera ID Setup • ID number of camera is set using binary number. The example is shown bellow. -
Page 9: Communication Protocol Setup
XPEED Outdoor Series WWW.CNBTEC.COM 2. Installation ■ Communication Protocol Setup • Select the appropriate Protocol With DIP switch combination. Switch state Protocol/Baud rate P0 (Pin 1) P1(Pin 2) P2(Pin 3) PELCO-D, 2400bps PELCO-D, 9600bps PELCO-P, 4800bps PELCO-P, 9600bps SAMSUNG, 4800bps PANASONIC, 9600bps Others Reserved... -
Page 10: Termination Switch Setting
XPEED Outdoor Series WWW.CNBTEC.COM ■ Termination Switch Setting Termination switch (Pin 4) is used in cases listed below. • Long-distance communication between the controller and the camera (1-to-1 connection) When the connection distance between the two units is especially long, communication errors may occur due to the impedance of transmission cable. -
Page 11: Installation Using The Wall Mount
XPEED Outdoor Series WWW.CNBTEC.COM 2. Installation ⊙ Installation Using the Wall Mount... -
Page 12: Installation Using The Pendant Mount
XPEED Outdoor Series WWW.CNBTEC.COM 2. Installation ⊙ Installation Using the Pendant Mount... -
Page 13: Wire Connections
XPEED Outdoor Series WWW.CNBTEC.COM 2. Installation ⊙ Wire Connections ■ Power Connection • The standard power for the system is 24VAC / 2A. Please, check the voltage and current capacity of rated power carefully. ■ Video Connection • Connect With BNC coaxial cable. ■... - Page 14 XPEED Outdoor Series WWW.CNBTEC.COM 2. Installation ■ Sensor Input/Relay Output • Sensor input connection Before connecting sensors, check driving voltage and output signal type of the sensor. Since output signal types of the sensors are divided into Open Collector and Voltage Output type in general, the cabling must be done properly after considering these types.
-
Page 15: Operation
XPEED Outdoor Series WWW.CNBTEC.COM 3. Operation ⊙ Check Points before Operation • Before power is applied, please check the cables carefully. • The camera ID of the controller must be identical to that of the target camera. The camera ID can be checked by reading DIP switches of the camera. •... -
Page 16: Preset
XPEED Outdoor Series WWW.CNBTEC.COM 3. Operation ⊙ Preset • Function Max. 127 positions can be stored as Preset position. The Preset number can be assigned from 1 to 128, but 95 is reserved for starting OSD menu. Camera characteristics (i.e. White Balance, Auto Exposure) can be set up independently for each preset. Label should be blank and Relay Outputs should be set to OFF as default. -
Page 17: Group
XPEED Outdoor Series WWW.CNBTEC.COM 3. Operation ⊙ Group • Function The group function allows running sequence of Presets, Pattern and/or Swings. Max. 8 group can be stored. Each group can have max. 20 action entities which can be preset, pattern or swing. Preset speed can be set up and the repeat number of pattern &... -
Page 18: Osd Menu
XPEED Outdoor Series WWW.CNBTEC.COM 4. OSD Menu ⊙ OSD Display of Main Screen • P/T/Z Information Current Pan/Tilt angle in degree, zoom magnification and a compass direction. • Camera ID Current Camera ID (Address). • Action Title Followings are possible Action Titles and their meaning. “SET PRESET xxx”... -
Page 19: General Rules Of Key Operation For Menu
XPEED Outdoor Series WWW.CNBTEC.COM 4. OSD Menu ⊙ General Rules of key Operation for Menu • The menu items surrounded with < > always has its sub menu. • For all menu level, to go into sub menu, press NEAR key. •... -
Page 20: Privacy Zone Mask Setup ( 26X (S2465N(P)X), 36X (S2965N(P)X) Exview 27X(Scn-22Z27F /Scn-23Z27F) (Option) Models Only )
XPEED Outdoor Series WWW.CNBTEC.COM 4. OSD Menu ⊙ Privacy Zone Mask Setup (Models S2465N(P)X, S2965N(P)X, SCN-22Z27F /SCN-23Z27F (Option) Only) Select area in image to mask. • MASK NO [1~8] Select Mask number. If the selected mask has already data, camera moves as it was set. -
Page 21: Camera Setup (27X (Scn-22Z27F /Scn-23Z27F Models)
XPEED Outdoor Series WWW.CNBTEC.COM 4. OSD Menu ⊙ Camera Setup ( Model SCN-22Z27F /SCN-23Z27F) Setup the general functions of 27x optical zoom camera module. • FOCUS MODE [AUTO/MANUAL/SEMIAUTO] Sets camera focus mode. • MAX ZOOM [x1 ~ x270] Sets the maximum zoom magnification. •... - Page 22 XPEED Outdoor Series WWW.CNBTEC.COM 4. OSD Menu ■ AUTO EXPOSURE SETUP • BACKLIGHT [OFF/C1/C2/L1/L2/U1/U2/D1/D2/R1/R2] Sets Backlight Compensation. The reference position and the level of BLC are selectable. Refer to the table below. Note1) • DAY/NIGHT [AUTO/DAY/NIGHT] • SLOW SHOUTTER [OFF/2~128 Field] Activates SLOW SHUTTER function when luminance of image(signal) is too dark.
-
Page 23: Camera Setup (26X (S2465N(P)X), 36X (S2965N(P)X ) Exview Models)
XPEED Outdoor Series WWW.CNBTEC.COM 4. OSD Menu ⊙ Camera Setup ( Models S2465N(P)X, S2965N(P)X) Setup the general functions of 26x / 36x optical zoom modules. • FOCUS MODE [AUTO/MANUAL/SEMIAUTO] Sets camera focus mode. • DIGITAL ZOOM [ON/OFF] Sets digital zoom on or off. •... - Page 24 XPEED Outdoor Series WWW.CNBTEC.COM 4. OSD Menu ■ AUTO EXPOSURE SETUP • BACKLIGHT [ON/OFF] Sets Backlight Compensation. • DAY/NIGHT [AUTO/DAY/NIGHT] • AE MODE [AUTO/SHUTTER/IRIS/GAIN/BRIGHT/MANUAL] Selects automatic exposure mode. Each mode appears with adjustable values. When Flickeress mode is ON, AE mode is automatically in SHUTTER SPEED mode.
-
Page 25: Motion Setup
XPEED Outdoor Series WWW.CNBTEC.COM 4. OSD Menu ⊙ Motion Setup Setup the general functions of Pan/Tilt motions. • MOTION LOCK [ON/OFF] If Motion Lock is set to ON, it is impossible to set up and delete Preset Swing, Pattern and Group. It is possible only to run those functions. -
Page 26: Preset Setup
XPEED Outdoor Series WWW.CNBTEC.COM 4. OSD Menu ■ ALARM ACTION SETUP Sets the preset to move to when the alarm is input. • ALARM N ACT [NOT USED/PRESET 1~128] Assign counteraction Preset position to each Alarm input ⊙ Preset Setup •... -
Page 27: Edit Preset Scene
XPEED Outdoor Series WWW.CNBTEC.COM 4. OSD Menu ■ EDIT PRESET SCENE ① Using Joystick, move camera to desired position. ② By pressing NEAR key, save current PTZ data. ③ Press FAR key to cancel. ■ EDIT PRESET LABEL ① Edits label to show on monitor when camera arrives at presets. In Edit label menu, a reverse rectangular is cursor. -
Page 28: Swing Setup
XPEED Outdoor Series WWW.CNBTEC.COM 4. OSD Menu ⊙ Swing Setup • SWING NO. [1~8] Selects Swing number to edit. If a selected Swing has not defined, “NOT USED” is displayed in 1st Position and 2nd Position. • 1ST POS. [PRESET 1~128] 2ND POS. -
Page 29: Pattern Setup
XPEED Outdoor Series WWW.CNBTEC.COM 4. OSD Menu ⊙ Pattern setup • PATTERN NO. [1~4] Selects Pattern number to edit. If a selected pattern number is not defined, “UNDEFINED” will be displayed under selected pattern number. • CLR PATTERN [CANCEL/OK] Deletes data in current pattern. •... -
Page 30: Group Setup
XPEED Outdoor Series WWW.CNBTEC.COM 4. OSD Menu ⊙ Group Setup • GROUP NO. [1~8] Selects a group number. If the selected number is not set, “UNDEFINED” will be displayed selected Group number. • CLEAR GROUP [CANCEL/OK] Clears the current setting of a group. •... - Page 31 XPEED Outdoor Series WWW.CNBTEC.COM 4. OSD Menu ④ Set up items such as Action, ###, Dwell and OPT ⑤ After finishing setting up a Action, press NEAR key to one-upper-Level Menu(Step②). Move cursor Up/Down to select Action Number and repeat Step ②~ Step ④ to edit selected Group.
-
Page 32: System Initialize
XPEED Outdoor Series WWW.CNBTEC.COM 4. OSD Menu ⊙ System Initialize • CLEAR ALL DATA Deletes all configuration data such as display, camera, motion setup and so on. • CLR DISPLAY SET Initializes Display Configuration. • CLR CAMERA SET Initializes camera Configuration. •... -
Page 33: Specifications
XPEED Outdoor Series WWW.CNBTEC.COM 5. Specifications 26x EXview Models S2465NX / S2465PX ■ Types by installation Video Signal NTSC Image Pick-up Device 1/4” EXview HAD CCD Effective Pixels 768(H) x 494(V) 380K 752(H) x 582(V) 440K Horizontal Resolution 470 TV Lines 460 TV Lines S/N Ratio More than 50 db... -
Page 34: Scn-22Z27F/Scn-23Z27F) Models
XPEED Outdoor Series WWW.CNBTEC.COM 5. Specifications 27x Models SCN-22Z27F /SCN-23Z27F ■ Types by installation Video Signal NTSC Image Pick-up Device 1/4” IT CCD Effective Pixels 811(H) x 508(V) 410K 795(H) x 596(V) 470K Horizontal Resolution 768(H) x 494(V) 380K 752(H) x 582(V) 440K Resolution 580 TV Lines (BW 600 TV Lines), Sharpness Max. -
Page 35: S2965N(P)X) Exview Models
XPEED Outdoor Series WWW.CNBTEC.COM 5. Specifications ⊙ 36x EXview Models S2965NX /S2965PX ■ Types by installation Video Signal NTSC Image Pick-up Device 1/4” EXview HAD CCD Effective Pixels 768(H) x 494(V) 380K 752(H) x 582(V) 440K Horizontal Resolution 530 TV Lines S/N Ratio 50 dB (Weight ON) Zoom... -
Page 36: Dimensional Drawings
XPEED Outdoor Series WWW.CNBTEC.COM 5. Specifications ⊙ Dimensional Drawings Unit (mm) - Page 37 XPEED Outdoor Series WWW.CNBTEC.COM 5. Specifications ⊙ Dimensional Drawings Unit (mm)
-
Page 38: System Models And Related Accessories
XPEED Outdoor Series WWW.CNBTEC.COM 6. System Models & Related Accessories ⊙ System Model Numbers 26x Day/Night(ICR) 27x Day/Night(ICR) 36x Day/Night(ICR) 타입 / 이미지 EX view HAD CCD Super HAD CCD Ⅱ EX view HAD CCD S2465NXW SCN-22Z27FW S2965NXW S2465PXW SCN-23Z27FW S2965PXW S2465NXP SCN-22Z27FP... - Page 39 XPEED Outdoor Series WWW.CNBTEC.COM MEMO...
