CNB LKC1050IR Manual

Network pancake dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LKC1050IR
Network Pancake Dome Camera

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LKC1050IR and is the answer not in the manual?

Questions and answers

Related Manuals for CNB LKC1050IR

Summary of Contents for CNB LKC1050IR

  • Page 1 LKC1050IR Network Pancake Dome Camera...
  • Page 2 Directions Be careful not to cause any physical damage by dropping or throwing LKC1050IR. Especially keep the device out of reach from children. Do not disassemble LKC1050IR. No After Service is assumed when disassembled. Use only the power adapter provided with LKC1050IR.

  • Page 3: Table Of Contents

    4.2. Quick Installation Guide ........................12 4.2.1. Connect PC and LKC1050IR to network.................. 12 4.2.2. Install IP installer and set IP parameters on LKC1050IR ............13 4.2.3. Remote video connection to LKC1050IR ................. 16 4.2.4. Additional settings through connection to the Admin Page ............17 Trouble Shooting ...........................

  • Page 4: Introduction

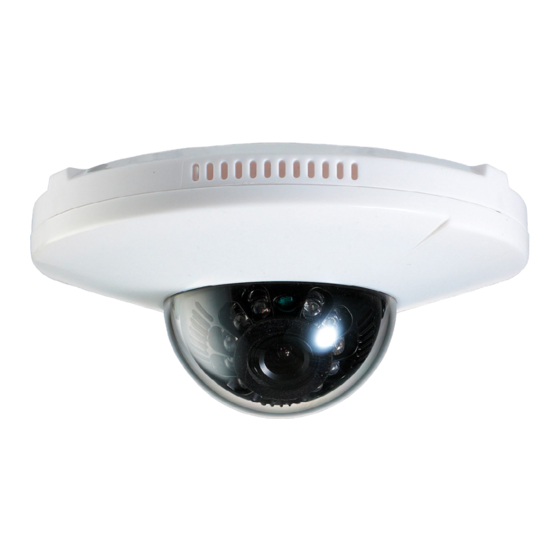

    LKC1050IR is multi-codec (H.264, MJPEG) IP camera (or network camera) built with embedded software and hardware technology in pancake housing. It enables real time transmission of video of up to 1080P. Remote clients can connect to LKC1050IR for the real time video data through various client solutions running on PC or smart device.

  • Page 5: Specification

    1.2. Specification Camera Image sensor Progressive scan 1/2.9 inch CMOS 2.0M pixels Full resolution 1,920 x 1,080 pixels (Full HD) Min. illumination 0.2Lux (Color, DSS On), 0.00 Lux (IR LED On) S/N Ratio 50dB or more White Balance Auto Supported Off/ON Lens Built-in Fixed Lens f=3.7mm F2.5...

  • Page 6: Applications Of Lkc1050Ir

    Alternate Power Standard PoE IEEE802.3af Supported Alarm & Event Intelligent Video Motion Detection Alarm Triggers Intelligent Video Alarm Events video file upload(FTP), still Image(Email) Alarm Buffer (Video) configurable Pre-alarm (5~10 sec) & Post-alarm (10~30 sec) Client Software NVR2 64ch@D1 (free of charge) Mobile App.

  • Page 7: Product Description

    2. Product Description 2.1. Contents The product package contains followings : Contents Description Remarks LKC1050IR IP camera LKC1050IR main unit Software & User’s Guide Accessory Wall Anchors 3ea, Screw 3ea 2.2. Product Preview LKC1050IR IP-Installer CMS Software (NVR2) PC software to view and record the...

  • Page 8: Physical Description

    2.3. Physical description Figure 2-1. External view of LKC1050IR Figure 2-2. Dimension Rev.1.1 (Sep. 2014)

  • Page 9: Inside

     Network (LAN) 100Mbps Ethernet connector (RJ-45) with PoE standard (802.3af). LED on the Ethernet connector shows the status of LKC1050IR as the followings: - Status LED (It will be lit in green or red depending on the status) ① Green : Green color indicates that the camera is in normal operation mode. Continuous green indicates that data transmission is possible.

  • Page 10: External Connector

    Network (LAN) Figure 2-5. External Connector  Power : Power input for supplying 12V DC power. Caution : If LKC1050IR is powered by PoE, do not plug in DC Jack with active DC power into DC power connector.  Network (LAN) 100Mbps Ethernet connector (RJ-45) with PoE standard (802.3af).

  • Page 11: On Site Installation

    3. On Site Installation Use cables and conduits that are suitable for the installation. Particular attention should be paid in the installation so that no moisture is allowed to penetrate into the unit through the cables or conduits during the life time of the product.

  • Page 12: Getting Started

    1. Prepare a PC to run programs for the installation and video connection (PC is needed to assign IP address to LKC1050IR) 2. Connect LKC1050IR as shown in dotted line in Figure 4-1. The DC power through DC adaptor is no need to connect if LAN switch supports PoE (IEEE802.3af).

  • Page 13: Install Ip Installer And Set Ip Parameters On Lkc1050Ir

    4.2.2. Install IP installer and set IP parameters on LKC1050IR 1. Please insert the Setup CD into your CD-ROM drive, and then please setup Figure 4-2-1. IP Installer Setup 1 2. Please click ‘Install’ button to begin the Installation. Figure 4-2-2. IP Installer Setup 2 3.
  • Page 14 4. XNET IP Installer program is automatically launched like below right after the program installation. Please double click XNET camera on the list. Figure 4-3. IP Installer Start box 5. Select the camera of which you wish to change the IP address and click (Set IP Address) button to bring up the following box in Figure 4-4.
  • Page 15 When you enter the IP address and click Set button, the box shown in Figure 4-4 will appear. Figure 4-5. Select Network Adapter Box 7. Select the adapter and click select button to change the IP address of the camera. Rev.1.1 (Sep.

  • Page 16: Remote Video Connection To Lkc1050Ir

    4.2.3. Remote video connection to LKC1050IR 1. Connection through Web Viewer Web Viewer offers simplest way of video connection to LKC1050IR. For video connection, enter the IP address of LKC1050IR in the URL window of Internet Explorer as: Can be omitted the [e.g.] Port 80...

  • Page 17: Additional Settings Through Connection To The Admin Page

    2. Connection through NVR2 NVR2 is a multi-channel CMS program for to IP camera or Video server. Install NVR2 on remote PC to connect to these products. It is needed to assign connection information to NVR2 program before connection. Details for the NVR2 can be found in [NVR2 User’s Guide]. Figure 4-7.

  • Page 18: Trouble Shooting

    5. Trouble Shooting 5.1. No power is applied  In case of Standard PoE (Power over Ethernet) Power supply through standard PoE is possible only when the following conditions are met. 1. Standard PoE is supported on the product. 2. The LAN switch supports standard PoE. Make sure that both the IP camera and the LAN switch support standard PoE (IEEE 802.3af) ...

  • Page 19: Cannot Connect To The Video

    5.2. Cannot connect to the Video Check the status of the network connection through PING test. Try the following on your PC : Start > Run > Cmd > Ping IP address (Ex : Ping 172.16.42.51) If “Reply from ~” message is returned (① in the figure below), the network connection is in normal state.

  • Page 20: Windows Vista Or Windows 7

    5.3. Windows Vista or Windows 7 Windows Vista and Windows 7 users need to configure UAC (User Access Control) and Privilege Level for proper recording and still video capture in NVR2 and Web Viewer. <Windows Vista> 1. UAC (User Access Control) configuration 1) Double-click “User Accounts”...
  • Page 21 <Windows 7> 1. UAC (User Access Control) configuration 1) Double-click “User Accounts” in control panel 2) Double-click “Change User Account Control setting” 3) Set to “Never notify” Rev.1.1 (Sep. 2014)
  • Page 22 2. Privilege Level Control 1) Select “NVR” icon on the desktop 2) Click right mouse button and select “properties” 3) Check “Privilege Level” in “Compatibility” tab Rev.1.1 (Sep. 2014)

  • Page 23: Technical Assistance

    5.4. Technical Assistance If you need any technical assistance, please contact your dealer. For immediate service please provide the following information. 1. Model name 2. MAC address and Registration number 3. Purchase date 4. Description of the problem 5. Error message Rev.1.1 (Sep.
