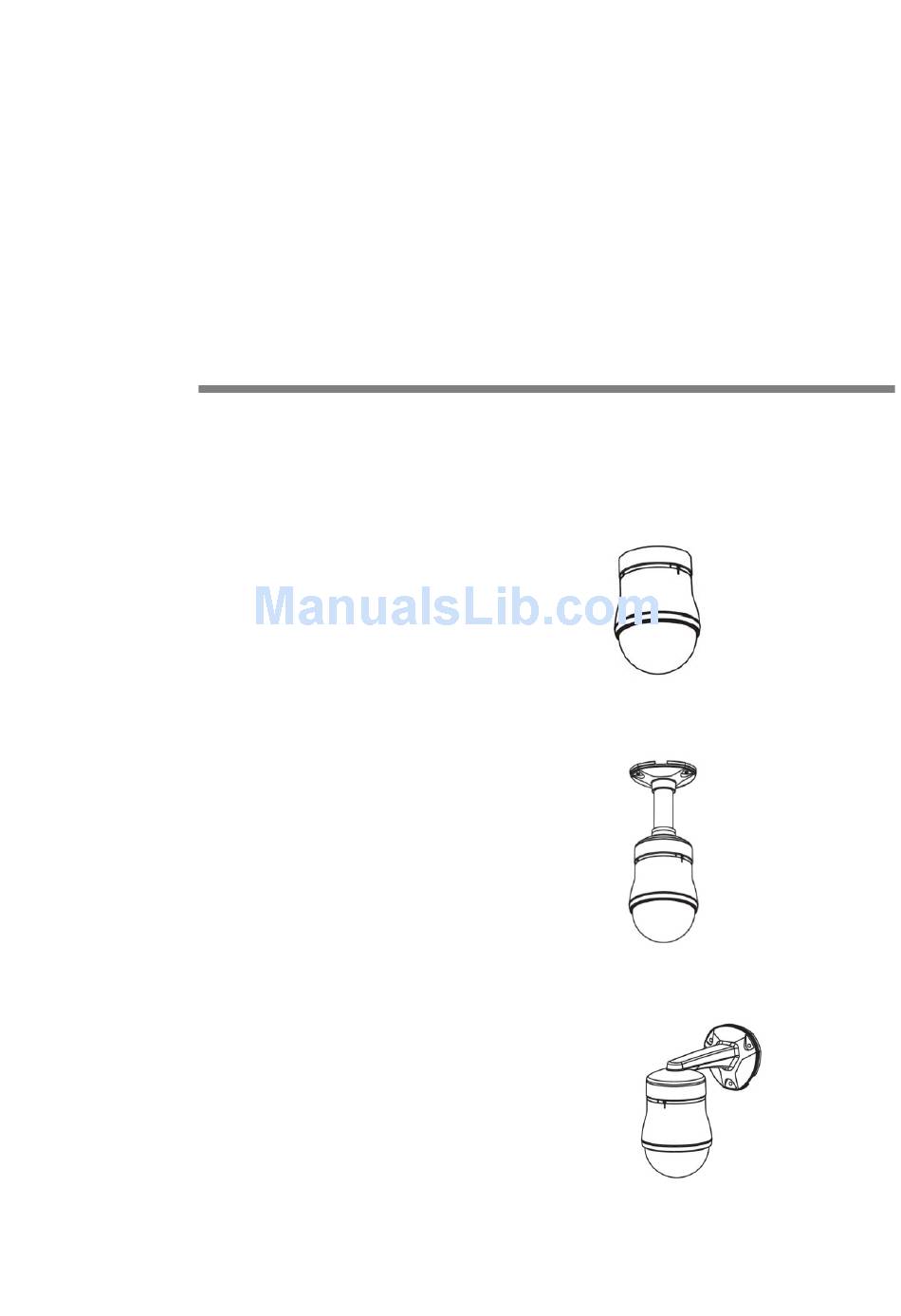

- Page 1 XPEED Indoor Series Ver 1.0 INSTALLATION AND OPERATION MANUAL (3810-0251A_110119)
-
Page 2: Important Safety Instructions
XPEED Indoor Series WWW.CNBTEC.COM This lightning flash with arrowhead symbol is intended to alert The user to the presence of un-insulated “dangerous voltage” Within the product’s enclosure that may be of sufficient magnitude To constitute a risk of electric shock to persons. -
Page 3: Table Of Contents
XPEED Indoor Series WWW.CNBTEC.COM Table of Contents 1. Introduction Features Product & Accessories Parts Name & Functions 2. Installation Dip Switch Setup Installation Using the Wall Mount Installation Using the Pendant Mount Wire Connections 3. Operation Check Points before Operation... -
Page 4: Introduction
XPEED Indoor Series WWW.CNBTEC.COM 1. Introduction Features Camera Specifications • Image Pick-up Device: 1/4" Interline Transfer CCD • Zoom Magnification: 26x Optical Zoom, 12x Digital Zoom (Max. 312x Zoom) → Model S1465N(P)X 27x Optical Zoom, 10x Digital Zoom (Max. 270x Zoom) → Model SBN-22Z27F /SBN-23Z27F 36x Optical Zoom, 12x Digital Zoom (Max. -
Page 5: Product & Accessories
XPEED Indoor Series WWW.CNBTEC.COM 1. Introduction ⊙ Product & Accessories ■ Basic Components ■ Other Components (available to be ordered separately) -
Page 6: Parts Name & Functions
XPEED Indoor Series WWW.CNBTEC.COM 1. Introduction ⊙ Parts Name & Functions ① Bubble If the bubble is damaged or soiled by scratching or foreign matters, the damaged/dirty part will be visible on the screen. Therefore, do not undo the protective cover until the installation is complete. - Page 7 XPEED Indoor Series WWW.CNBTEC.COM 1. Introduction ⊙ Disassembling the Mounting Base ⊙ Assembling the Mounting Base...
-
Page 8: Installation
XPEED Indoor Series WWW.CNBTEC.COM 2. Installation Before installing the camera, you should set the DIP switches to configure the camera ID, communication protocol. Do not use the system upgrade terminal. DIP Switch Setup ■ Camera ID Setup • ID number of camera is set using binary number. -
Page 9: Termination Switch Setting
XPEED Indoor Series WWW.CNBTEC.COM • If you want to control using DVR or P/T controller, their protocol must be identical to camera. Otherwise, you can not control the camera. • It you changed camera protocol by changing DIP S/W, the change will be effective after you reboot the camera. -
Page 10: Installation Using The Wall Mount
XPEED Indoor Series WWW.CNBTEC.COM 2. Installation ⊙ Installation Using the Wall Mount... -
Page 11: Installation Using The Pendant Mount
XPEED Indoor Series WWW.CNBTEC.COM 2. Installation ⊙ Installation Using the Pendant Mount... - Page 12 XPEED Indoor Series WWW.CNBTEC.COM 2. Installation ⊙ Installation using the Pendant Mount...
- Page 13 XPEED Indoor Series WWW.CNBTEC.COM 2. Installation ⊙ Installation using the Wall Mount...
-
Page 14: Wire Connections
XPEED Indoor Series WWW.CNBTEC.COM 2. Installation ⊙ Wire Connections ■ Power Connection • The standard power for the system is 24VAC / 2A. Please, check the voltage and current capacity of rated power carefully. ■ Video Connection • Connect With BNC coaxial cable. - Page 15 XPEED Indoor Series WWW.CNBTEC.COM 2. Installation ■ Sensor Input/Relay Output • Sensor input connection Before connecting sensors, check driving voltage and output signal type of the sensor. Since output signal types of the sensors are divided into Open Collector and Voltage Output type in general, the cabling must be done properly after considering these types.
-
Page 16: Operation
XPEED Indoor Series WWW.CNBTEC.COM 3. Operation ⊙ Check Points before Operation • Before power is applied, please check the cables carefully. • The camera ID of the controller must be identical to that of the target camera. The camera ID can be checked by reading DIP switches of the camera. -
Page 17: Preset
XPEED Indoor Series WWW.CNBTEC.COM 3. Operation ⊙ Preset • Function Max. 127 positions can be stored as Preset position. The Preset number can be assigned from 1 to 128, but 95 is reserved for starting OSD menu. Camera characteristics (i.e. White Balance, Auto Exposure) can be set up independently for each preset. Label should be blank and Relay Outputs should be set to OFF as default. -
Page 18: Group
XPEED Indoor Series WWW.CNBTEC.COM 3. Operation ⊙ Group • Function The group function allows running sequence of Presets, Pattern and/or Swings. Max. 8 group can be stored. Each group can have max. 20 action entities which can be preset, pattern or swing. Preset speed can be set up and the repeat number of pattern &... -
Page 19: Osd Menu
XPEED Indoor Series WWW.CNBTEC.COM 4. OSD Menu ⊙ OSD Display of Main Screen • P/T/Z Information Current Pan/Tilt angle in degree, zoom magnification and a compass direction. • Camera ID Current Camera ID (Address). • Action Title Followings are possible Action Titles and their meaning. -
Page 20: General Rules Of Key Operation For Menu
XPEED Indoor Series WWW.CNBTEC.COM 4. OSD Menu ⊙ General Rules of key Operation for Menu • The menu items surrounded with < > always has its sub menu. • For all menu level, to go into sub menu, press NEAR key. -
Page 21: Privacy Zone Mask Setup ( 26X (S1465N(P)X), 36X (S1965N(P)X) Exview 27X(Sbn-22Z27F /Sbn-23Z27F) (Option) Models Only )
XPEED Indoor Series WWW.CNBTEC.COM 4. OSD Menu ⊙ Privacy Zone Mask Setup (Models S1465N(P)X, S1965N(P)X, SBN-22Z27F /SBN-23Z27F(Option) Only) Select area in image to mask. • MASK NO [1~8] Select Mask number. If the selected mask has already data, camera moves as it was set. -
Page 22: Camera Setup (27X (Sbn-22Z27F /Sbn-23Z27F(P) Models)
XPEED Indoor Series WWW.CNBTEC.COM 4. OSD Menu ⊙ Camera Setup ( Model SBN-22Z27F /SBN-23Z27F) Setup the general functions of 27x optical zoom camera module. • FOCUS MODE [AUTO/MANUAL/SEMIAUTO] Sets camera focus mode. • MAX ZOOM [x1 ~ x270] Sets the maximum zoom magnification. - Page 23 XPEED Indoor Series WWW.CNBTEC.COM 4. OSD Menu ■ AUTO EXPOSURE SETUP • BACKLIGHT [OFF/C1/C2/L1/L2/U1/U2/D1/D2/R1/R2] Sets Backlight Compensation. The reference position and the level of BLC are selectable. Refer to the table below. Note1) • DAY/NIGHT [AUTO/DAY/NIGHT] • SLOW SHOUTTER [OFF/2~128 Field] Activates SLOW SHUTTER function when luminance of image(signal) is too dark.
-
Page 24: Camera Setup (26X (S1465N(P)X), 36X (S1965N(P)X ) Exview Models)
XPEED Indoor Series WWW.CNBTEC.COM 4. OSD Menu ⊙ Camera Setup ( Models S1465N(P)X, S1965N(P)X) Setup the general functions of 26x / 36x optical zoom modules. • FOCUS MODE [AUTO/MANUAL/SEMIAUTO] Sets camera focus mode. • DIGITAL ZOOM [ON/OFF] Sets digital zoom on or off. - Page 25 XPEED Indoor Series WWW.CNBTEC.COM 4. OSD Menu ■ AUTO EXPOSURE SETUP • BACKLIGHT [ON/OFF] Sets Backlight Compensation. • DAY/NIGHT [AUTO/DAY/NIGHT] • AE MODE [AUTO/SHUTTER/IRIS/GAIN/BRIGHT/MANUAL] Selects automatic exposure mode. Each mode appears with adjustable values. When Flickeress mode is ON, AE mode is automatically in SHUTTER SPEED mode.
-
Page 26: Motion Setup
XPEED Indoor Series WWW.CNBTEC.COM 4. OSD Menu ⊙ Motion Setup Setup the general functions of Pan/Tilt motions. • MOTION LOCK [ON/OFF] If Motion Lock is set to ON, it is impossible to set up and delete Preset Swing, Pattern and Group. -
Page 27: Preset Setup
XPEED Indoor Series WWW.CNBTEC.COM 4. OSD Menu ■ ALARM ACTION SETUP Sets the preset to move to when the alarm is input. • ALARM N ACT [NOT USED/PRESET 1~128] Assign counteraction Preset position to each Alarm input ⊙ Preset Setup •... -
Page 28: Edit Preset Scene
XPEED Indoor Series WWW.CNBTEC.COM 4. OSD Menu ■ EDIT PRESET SCENE ① Using Joystick, move camera to desired position. ② By pressing NEAR key, save current PTZ data. ③ Press FAR key to cancel. ■ EDIT PRESET LABEL ① Edits label to show on monitor when camera arrives at presets. -
Page 29: Swing Setup
XPEED Indoor Series WWW.CNBTEC.COM 4. OSD Menu ⊙ Swing Setup • SWING NO. [1~8] Selects Swing number to edit. If a selected Swing has not defined, “NOT USED” is displayed in 1st Position and 2nd Position. • 1ST POS. [PRESET 1~128] 2ND POS. -
Page 30: Pattern Setup
XPEED Indoor Series WWW.CNBTEC.COM 4. OSD Menu ⊙ Pattern setup • PATTERN NO. [1~4] Selects Pattern number to edit. If a selected pattern number is not defined, “UNDEFINED” will be displayed under selected pattern number. • CLR PATTERN [CANCEL/OK] Deletes data in current pattern. -
Page 31: Group Setup
XPEED Indoor Series WWW.CNBTEC.COM 4. OSD Menu ⊙ Group Setup • GROUP NO. [1~8] Selects a group number. If the selected number is not set, “UNDEFINED” will be displayed selected Group number. • CLEAR GROUP [CANCEL/OK] Clears the current setting of a group. - Page 32 XPEED Indoor Series WWW.CNBTEC.COM 4. OSD Menu ④ Set up items such as Action, ###, Dwell and OPT ⑤ After finishing setting up a Action, press NEAR key to one-upper-Level Menu(Step②). Move cursor Up/Down to select Action Number and repeat Step ②~ Step ④ to edit selected Group.
-
Page 33: System Initialize
XPEED Indoor Series WWW.CNBTEC.COM 4. OSD Menu ⊙ System Initialize • CLEAR ALL DATA Deletes all configuration data such as display, camera, motion setup and so on. • CLR DISPLAY SET Initializes Display Configuration. • CLR CAMERA SET Initializes camera Configuration. -
Page 34: Specifications
XPEED Indoor Series WWW.CNBTEC.COM 5. Specifications 26x EXview Models S1465NX / S1465PX ■ Types by installation Video Signal NTSC Image Pick-up Device 1/4” EXview HAD CCD Effective Pixels 768(H) x 494(V) 380K 752(H) x 582(V) 440K Horizontal Resolution 470 TV Lines... -
Page 35: Sbn-22Z27F/Sbn-23Z27F) Models
XPEED Indoor Series WWW.CNBTEC.COM 5. Specifications 27x Models SBN-22Z27F /SBN-23Z27F ■ Types by installation Video Signal NTSC Image Pick-up Device 1/4” IT CCD Effective Pixels 811(H) x 508(V) 410K 795(H) x 596(V) 470K Horizontal Resolution 768(H) x 494(V) 380K 752(H) x 582(V) 440K Resolution 580 TV Lines (BW 600 TV Lines), Sharpness Max. -
Page 36: S1965N(P)X) Exview Models
XPEED Indoor Series WWW.CNBTEC.COM 5. Specifications ⊙ 36x EXview Models S1965NX/S1965PX ■ Types by installation Video Signal NTSC Image Pick-up Device 1/4” EXview HAD CCD Effective Pixels 768(H) x 494(V) 380K 752(H) x 582(V) 440K Horizontal Resolution 530 TV Lines... -
Page 37: Dimensional Drawings
XPEED Indoor Series WWW.CNBTEC.COM 5. Specifications ⊙ Dimensional Drawings Unit (mm) - Page 38 XPEED Indoor Series WWW.CNBTEC.COM 5. Specifications ⊙ Dimensional Drawings Unit (mm)
- Page 39 XPEED Indoor Series WWW.CNBTEC.COM MEMO...
