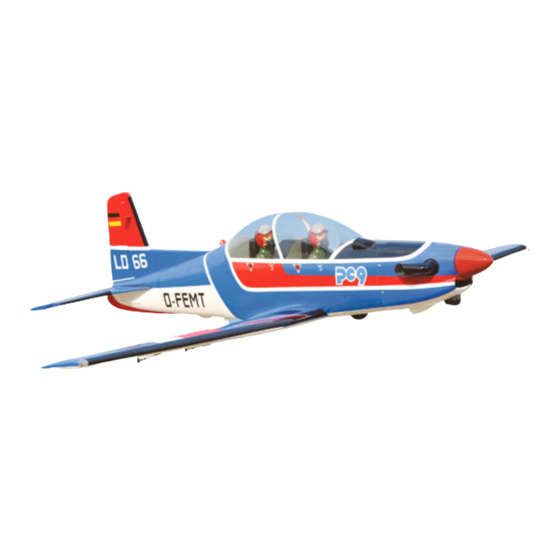

Black horse model pc-9 arf bh79 model aircraft
Hide thumbs
Table of Contents

Advertisement

Quick Links

Instruction Manual book
SPECIFICATION
     Wingspan :
     Length
     Weight
     Radio
     Servo
     Engine
1,550 mm
:
1,580 mm
:
4,0 kg
:
06 channels.
:
08 servos.
:
61
91
4 stroke.
Item code: BH79.
61.02 in.
62.20 in.
8.80 Lbs.
2 stroke.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC-9 ARF BH79 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Horse Model PC-9 ARF BH79

Summary of Contents for Black Horse Model PC-9 ARF BH79

  • Page 1 Instruction Manual book Item code: BH79. SPECIFICATION      Wingspan : 1,550 mm 61.02 in.      Length 1,580 mm 62.20 in.      Weight 4,0 kg 8.80 Lbs.      Radio 06 channels.

  • Page 2: Parts List

    PC-9 Instruction Manual. Item code: BH79. This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your P.C-9. Use the parts listing below to identify all parts. WARNING Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is capable of causing injury to people or property.

  • Page 3: Safety Precaution

    PC-9 Instruction Manual. Item code: BH79. Caution: this model is not a toy! SAFETY PRECAUTION. If you are a beginner to this type of powered + This is not a toy model, please ask an experienced model flyer + Be sure that no other flyers are using your for help and support.

  • Page 4: Installing The Aileron Servos

    PC-9 Instruction Manual. Item code: BH79. Aileron Flap Bottom side 1. Air retracts (Main gear). 2. Air retract (Nose gear). 3. Wheels. 4. Valve control. C/A glue 5. Air line sets. 6. Valve one way. 7. 3 way connector. Bottom side 8.
  • Page 5 PC-9 Instruction Manual. Item code: BH79. C/A glue Bottom side  2) Using a modeling knife, remove the cov- ering at possition show below. Remove covering C/A glue C/A glue C/A glue Secure Aileron Flap Bottom side...
  • Page 6 PC-9 Instruction Manual. Item code: BH79.  3) Using the thread as a guide and using 2.INSTALLING THE AILERON CONTROL HORN. masking tape, tape the servo lead to the end of the thread: carefully pull the thread out. When you have pulled the servo lead out, re- move the masking tape and the servo lead from the thread.

  • Page 7: Installing The Aileron Linkages

    PC-9 Instruction Manual. Item code: BH79. Repeat the procedure for the other wing half. INSTALLING THE AILERON LINKAGES. Installing the aileron linkages as pictures below. M3 lock nut 70mm C/A glue C/A glue Elevator control horn...
  • Page 8 PC-9 Instruction Manual. Item code: BH79. INSTALLING THE FLAP SERVO . Bottom side Thread Electric way 2x10mm. Secure Flap control horn.
  • Page 9 PC-9 Instruction Manual. Item code: BH79. Repeat the procedure for the other wing half. INSTALLING THE FLAP LINKAGES. Installing the flap linkages as pictures below. Remove covering M3 lock nut 70mm Bottom of left wing. Bottom of right wing. C/A glue Repeat the procedure for the other wing half.
  • Page 10 PC-9 Instruction Manual. Item code: BH79. Mark point Secure Secure 3 x 15mm...

  • Page 11: Wing Attachment

    PC-9 Instruction Manual. Item code: BH79. Top side WING ATTACHMENT. Locate the aluminium wing dihedral brace. *** Test fit the aluminium tube dihedral brace into each wing haft. The brace should slide in easily. If not, use 220 grit sand around the edges and ends of the brace until it fits prop- erly.

  • Page 12: Installing The Engine Mount

    PC-9 Instruction Manual. Item code: BH79. Secure Drill a hole 3mm diameter 4 x 30mm INSTALLING THE ENGINE MOUNT. See pictures below: Secure 4 x 30mm 4 x 30mm Drill a hole 3mm diameter...

  • Page 13: Installing The Stopper Assembly

    PC-9 Instruction Manual. Item code: BH79. Drill a hole 2mm diameter When the stopper assembly is installed in the tank, the top of the vent tube should rest just below the top surface of the tank. It should not touch the top of the tank. 5.

  • Page 14: Installing The Engine

    PC-9 Instruction Manual. Item code: BH79. 6. When satisfied with the alignment of the  stopper assembly tighten the 3mm x 20mm machine screw until the rubber stopper ex- pands and seals the tank opening. Do not over tighten the assembly as this could cause the Fuel tank.
  • Page 15 PC-9 Instruction Manual. Item code: BH79. 4 x 30mm Secure Mark point Drill a hole 4mm diameter. Left side Pushrod wire...
  • Page 16 PC-9 Instruction Manual. Item code: BH79. Right side Bottom side Trim and cut COWLING. Left side  1. Slide the fiberglass cowl over the en- gine and line up the back edge of the cowl with the marks you made on the fuselage. ...

  • Page 17: Installing The Spinner

    PC-9 Instruction Manual. Item code: BH79. Machine screw. Bottom side INSTALLING THE THROTTLE PUSHROD. Install one adjustable metal connector  through the third hole out from the center of one servo arm, enlarge the hole in the servo arm using a 2mm drill bit to accommodate the servo connector.

  • Page 18: Horizontal Stabilizer

    PC-9 Instruction Manual. Item code: BH79. ELEVATOR INSTALLATION. SERVO INSTALLATION. 1. Install the rubber grommets and brass  collets into the elevator servo. Test fit the servo into the servo tray. 2. Mount the servo to the tray using the ...
  • Page 19 PC-9 Instruction Manual. Item code: BH79. Remove covering C/A glue  3. Mark the shape of the vertical on the left and right sides onto the horizontal stabilizer C/A glue using a left-tip pen. C/A glue 1. Draw a center line onto the horizontal ...
  • Page 20 PC-9 Instruction Manual. Item code: BH79. Remove covering C/A glue Check to mark sure the wing and stabi- lizer are paralell. If they are not, lightly sand C/A glue the opening in the fuselage for the stabilizer until the stabilizer is paralell to the wing. Epoxy glue...
  • Page 21 PC-9 Instruction Manual. Item code: BH79. ELEVATOR AND RUDDER PUSHROD INSTALLATION. Elevator and rudder pushrod install as same  as the way of aileron pushrod. Remove covering 3 x 40mm. Nilon control clasp. M3 lock nut. Remove covering...

  • Page 22: Vertical Installation

    PC-9 Instruction Manual. Item code: BH79. M2 lock nut. Elevator servo VERTICAL INSTALLATION. Rudder servo install as same as method of elevator servo. See picture below:...
  • Page 23 PC-9 Instruction Manual. Item code: BH79.  1. Put the rudder into the fuselage as same as picture below. 2. Mark the shape of the vertical on the left  and right side of the rudder on to the horizon- tal stabilizer using a felt-tip pen.
  • Page 24 PC-9 Instruction Manual. Item code: BH79. Remove covering C/A glue Top side 5) When you are sure that everything is a  aligned correctly, mix up a generous amount of 30 minute epoxy. Apply a thin layer to the slot in the mounting platform and to the verti- cal stabilizer mounting area.
  • Page 25 PC-9 Instruction Manual. Item code: BH79. C/A glue C/A glue Epoxy glue...
  • Page 26 PC-9 Instruction Manual. Item code: BH79. C/A glue Secure...
  • Page 27 PC-9 Instruction Manual. Item code: BH79. INSTALLING RETRACTABLE NOSE GEAR. 3 x 15mm Secure...
  • Page 28 PC-9 Instruction Manual. Item code: BH79. INSTALLING SERVO USING FOR VALVE CONTROL Secure Valve control Elevator servo Throttle servo Nose gear servo Servo valve control. Secure...
  • Page 29 PC-9 Instruction Manual. Item code: BH79. Secure 3 way Valve one way conector 4 w a y conector 3 way conector Air tank Air supply Valve one way Nose gear 4 way conector 4 way conector Left main Right main gear wing gear wing Valve control...

  • Page 30: Installing The Switch

    PC-9 Instruction Manual. Item code: BH79. Do not permanently secure the receiver and battery until after balancing the model. 4. Using a 2mm drill bit, drill a hole through       the side of the fuselage, near the receiver , for the antenna to exit.
  • Page 31 PC-9 Instruction Manual. Item code: BH79.
  • Page 32 PC-9 Instruction Manual. Item code: BH79. WING ATTACHMENT. See picture wing attach to fuselage. Installing the fuselage hatch as same as pic- ture below. Remove covering Bottom side Plastic parts bottom side of fuselage.
  • Page 33 PC-9 Instruction Manual. Item code: BH79. C/A glue Remove covering Mark line Remove covering C/A glue...
  • Page 34 PC-9 Instruction Manual. Item code: BH79. Plastic parts top side of fuselage. Mark line Remove covering Marrk line C/A glue...
  • Page 35 PC-9 Instruction Manual. Item code: BH79. Remove covering Remove covering C/A glue C/A glue Mark point Remove covering...

  • Page 36: Control Throws

    PC-9 Instruction Manual. Item code: BH79. Accurately mark the balance point on the top of the wing on both sides of the fuselage. The balance point is located 70mm back from the leading edge. This is the balance point at which your model should balance for your first flights.

  • Page 37: Pre-Flight Check

    PC-9 Instruction Manual. Item code: BH79. Ailerons : 10mm up 10mm down Flap 30mm down Elevator : 10mm right 10mm left Rudder : 10mm right 10mm left 10mm 10mm 30mm 10mm 10mm 10mm 10mm PRE-FLIGHT CHECK. 1) Completely charge your transmitter and ...
