DMX-controlled operation

You can control the projectors individually via your DMX-controller. Every DMX-channel has a different
occupation with different features. In order to call up the different features, you first have to ignite the lamp
(control channel 4, DMX-value 6-63).

DMX-protocol

Control channel 1 - Horizontal mirror movement (Pan) (within 130°)
Push slider up in order to move the mirror horizontally (PAN).
Gradual mirror adjustment from one end of the slider to the other (0-255, 128-center). The mirror can be
stopped at any position you wish.
Control channel 2 - Vertical mirror movement (Tilt) (within 90°)
Push slider up in order to move the mirror vertically (TILT).
Gradual mirror adjustment from one end of the slider to the other (0-255, 128-center). The mirror can be
stopped at any position you wish.
Control channel 3 - Colour-wheel
Linear colour change following the movement of the slider. In this way you can stop the colour-wheel in any
position.
DMX-value Feature
0-15 White
16-31 Purple
32-47 Green
48-63 Yellow
64-79 Red
80-95 Pink
96-111 Orange
112-127 Dark blue
128-255 White
Control channel 4 - Gobo-wheel
DMX-value Feature
0-5 Lamp off
6-63 Open
64-127 Strobe-effect from slow to fast
(max. 5 flashes/second)
128-132 Closed
133-135 Reset
136-143 Open
144-141 Closed
152-159 Gobo 1
160-167 Gobo 2
168-175 Gobo 3
176-183 Gobo 4
184-191 Gobo 5
192-199 Gobo 6
200-207 Gobo 7
208-215 Gobo 8
216-231 Gobo 9
232-255 Gobo 10 (Multicolour yellow/magenta)

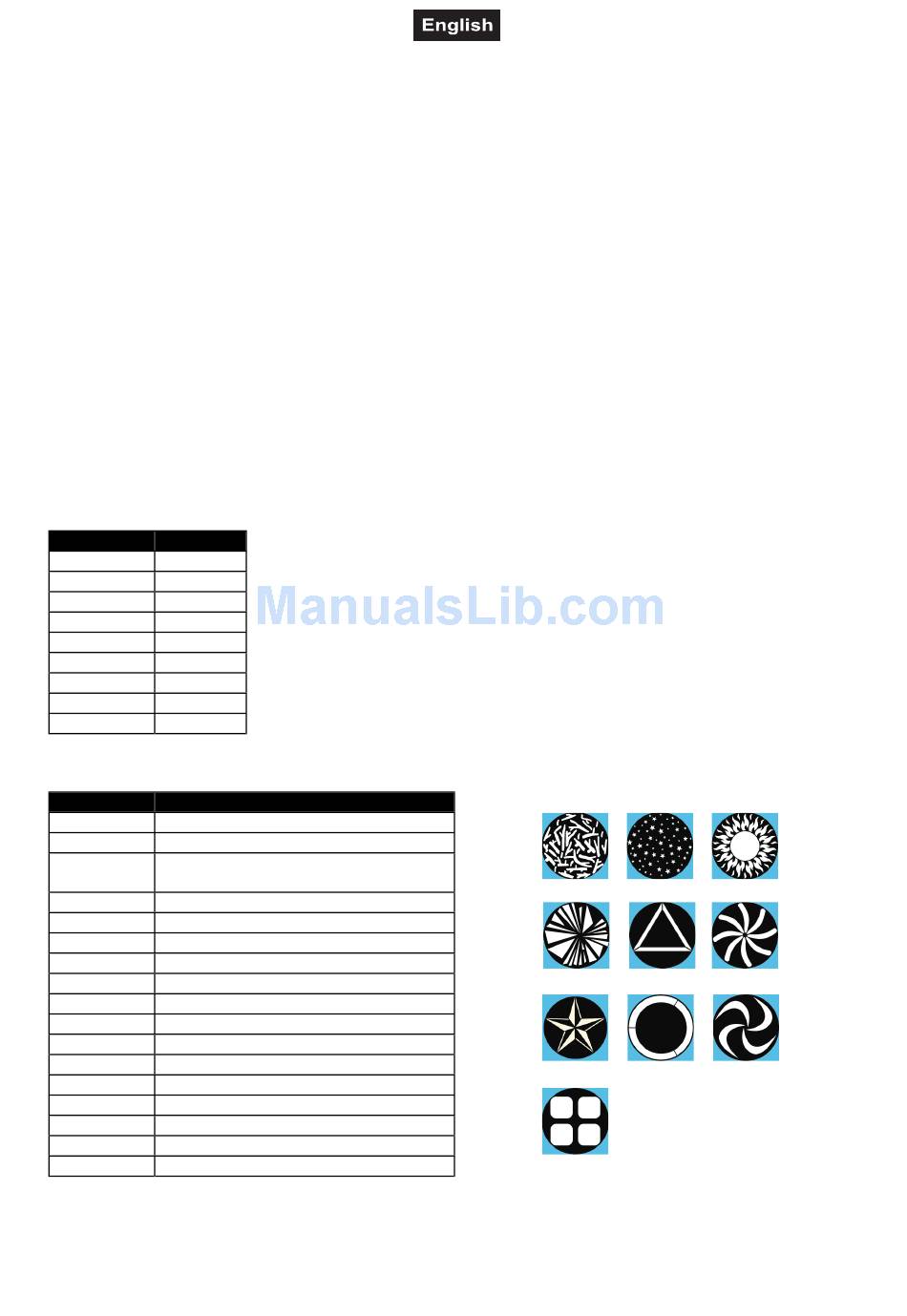

Gobo-selection:
Gobo 1
Gobo 4
Gobo 7
Gobo 10
21
Gobo 2 Gobo 3
Gobo 5
Gobo 6
Gobo 8 Gobo 9
