10
11
12
Blackout

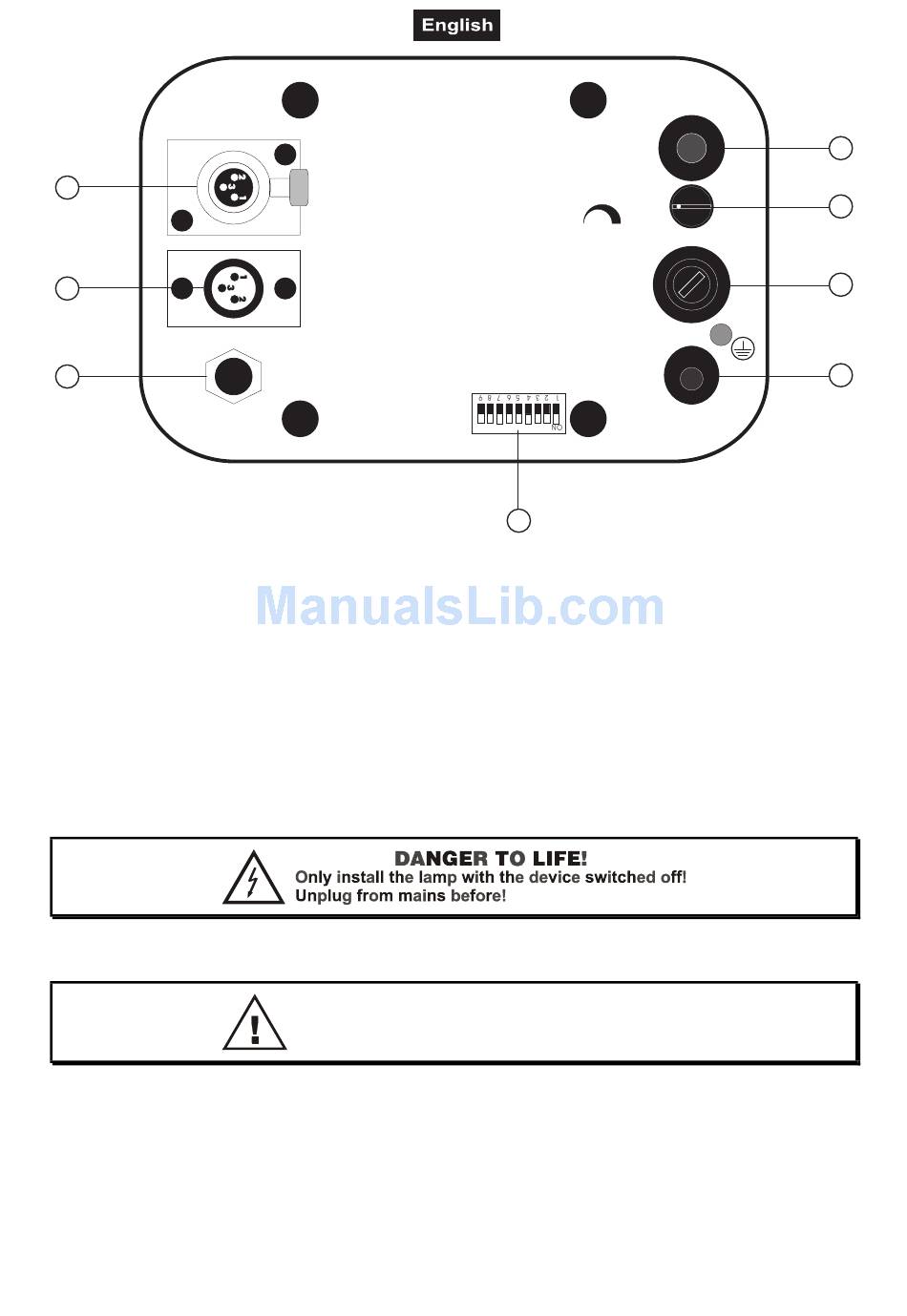

(10) DMX-Out socket
(11) DMX-In socket
(12) Blackout-socket
(13) Microphone
(14) Sensitivity-control
(15) Fuseholder
(16) Power supply
(17) DIP-switches
INSTALLATION
Installing/Replacing the lamp
For the installation, you need one EFR 15 V/150 W GZ-6,35 lamp.
During the operation, the lamp reaches temperatures of up to 600° C.
Before replacing the lamp, unplug mains lead and let the lamp cool down (approx. 5 minutes).
During the installation do not touch the glass-bulbs bare-handed! Please follow the lamp manufacturer's
notes!
LIGHTING CONTROL
PROTOCOL DMX-512
DMX Out
XLR occupation:
1: Ground
2: Signal (–)
3: Signal (+)
DMX In
For setting the DMX
starting address see
projector head.
CAUTION!
The lam p has to be replaced when it is dam aged
17
Microphone
Sensitivity
Fuse:
T 2 A, 250 V
Power supply:
230 V AC, 50 Hz ~
17
13
14
15
16
