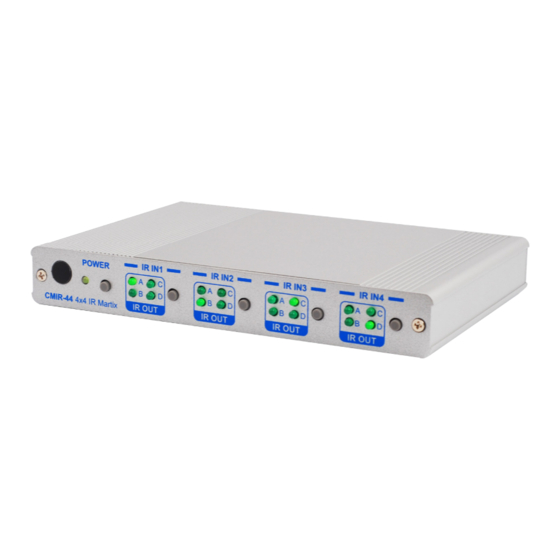

- Page 1 CMIR-44 4 by 4 Infrared Matrix Operation Manual CMIR-44...
- Page 2 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
-
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction…………………………………………………..………. Applications……………………..…………………………....…. Package Contents…………………………..…………….....… System Requirements……...…………………..….…………..……. Features……………………………………………..……..……… Specifications..………………………………………...………...…. Hardware Description………………...……..….....…… Front Panel ................Rear Panel …………………………………………..…….… IR Cable Pin Definitions………………...……..….....…… IR Receiver................IR Blaster………………..…………………………..…….… 8.3 IR Functioning Chart………………………………………………... Remote Control …….………....…………..…..…..…... 10. Connection and Installation....…………..…..…..…... Acronyms …….………....…………..…..…...…... -
Page 5: Introduction
1. Introduction The Infrared 4 by 4 Matrix is designed to control your source devices from be- side your display/receiver. Using the original remote, you can control DVD/ Blu Ray players, satellite and set-top-boxes and with a cross matrix design this device gives anyone the ability to send infrared signals from anywhere, any place. -
Page 6: Specifications
6. Specifications IR Frequency 20KHz to 70KHz Input port 4 x independent IR Blasters; 1 x total IR blaster control Output port 4 x independent IR Receiver; 1 x total IR receiver control Power Supply 5VDC/1A (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ±... -
Page 7: Hardware Description
7. Hardware Description The following sections describe the hardware components of the unit. 7.1 Front Panel IR sensor: To control the system. POWER Button & LED: Press to turn the unit on or again to put it into ② standby. When the system is on the LED will be green, press again to enter STANDBY mode, the LED will then be red. -
Page 8: Rear Panel
7.2 Rear panel IR OUT ALL: This slot is where you connect the IR blaster cable included in the package. Place it in a way so that all sources and devices are able to receive the infrared signal. IR OUT A~D: These slots are where you connect the included IR blaster ②... -
Page 9: Ir Cable Pin Definitions
8. IR Cable Pin Definitions 8.1 IR Receiver 8.2 IR Blaster IR Receiver IR Blaster ① Power 5V ① IR signal ② NC ② Power 5V ③ IR blaster signal ③ Grounding ① ② ③ ① ② ③ Note: Both the IR Receiver & Blaster can support a frequency of 20~70KHz. -
Page 10: Remote Control
9. Remote Control 1. Power: Press the button to turn on/ standby the unit. 2. IR input 1: Select for IR OUT A~D: Press A, B, C or D to select the desired IR out for sending a signal. 3. IR input 2: Select for IR OUT A~D: Press A, B, C or D to select the desired IR out for sending a signal. -
Page 11: Connection And Installation
IR Emitters B IR Emitters A ► extend 3.5mm ST female to male ear phone jack cable up to 10M CMIR-44 ► extend 3.5mm ST female to male ear phone jack cable up to 10M IR Receiver 4 IR Receiver 2... -
Page 12: Acronyms
Acronyms Acronym Complete Term Infrared CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20100204 MPM-CMIR44...
