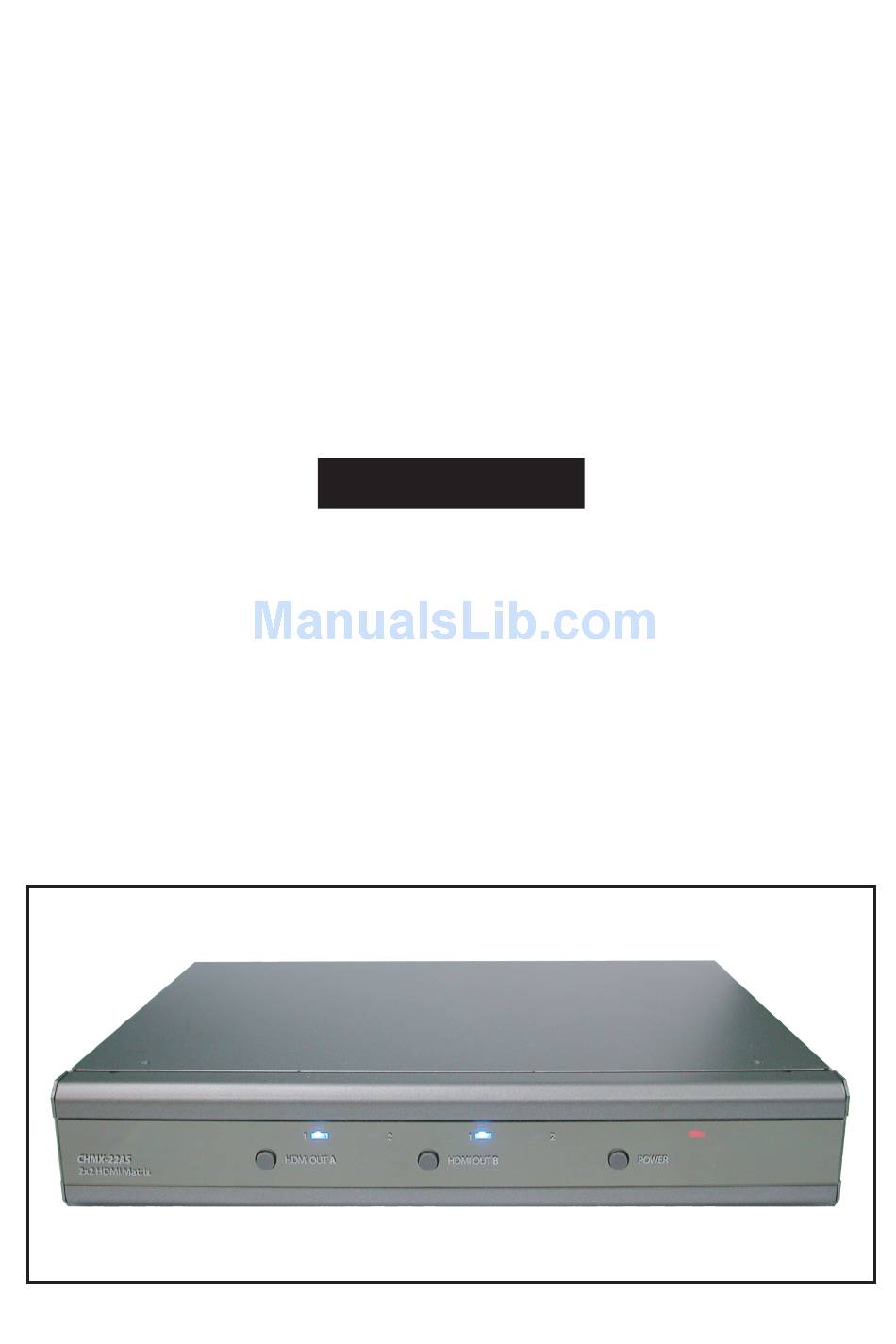

- Page 1 HDMI 2x2 Matrix Operation Manual CHMX-22AS...
- Page 2 TABLE OF CONTENTS 1. Introduction................1 2. Features..................1 3. Package Contents..............1 4. Operation Controls and Functions........... 2 4.1 Front Panel................2 4.2 Rear Panel................2 4.3 Remote Control..............3 5. Specifications................3 5.1 General Specification............3 5.2 Support Resolution.............. 3 6.
-
Page 3: Package Contents
HDMI sources and displays to connect together. Each of the two HDMI sources can be directed to any one of the two outputs, so two displays can show 2 identical or 2 different sources at the same time. CHMX-22AS provides a maximum of 4 possible connection scenarios between sources and displays. -
Page 4: Operation Controls And Functions
4. Operation Controls and Functions 4.1 Front Panel HDMI OUT A HDMI OUT B POWER CHMX-22AS 2x2 HDMI Matrix 1. Remote control sensor. 2. Input Select/Indicators (A): Press the "HDMI OUT A" button repeatedly to switch to your desired source, and the LED will illuminate to indicate which input source is being selected, and routed to HDMI A display. -
Page 5: Specifications
4.3 Remote Control 1. Power: POWER Press the button to turn on/ff the unit. OUTPUT 2. Input Select for HDMI OUT A: OUTPUT Press 1 or 2 to select the desired input source for HDMI OUT A. OUTPUT 3. Input Select for HDMI OUT B: OUTPUT Press 1 or 2 to select the desired input source for HDMI OUT B. -
Page 6: Connection And Installation
6. Connection and Installation LCD TV LCD TV... - Page 8 Description CHMX-22 2x2 HDMI Matrix CHMX-24 2x4 HDMI Matrix CHMX-42 4x2 HDMI Matrix CHMX-44 4x4 HDMI Matrix CHMX-22AS 2x2 HDMI Matrix CCMX-42 4x2 Component Matrix w/audio CCMX-44 4x4 Component Matrix w/audio CYPRESS TECHNOLOGY CO., LTD. 2007.7.9 MPM-CHMX22AS Home page: http://www.cypress.com.tw...
