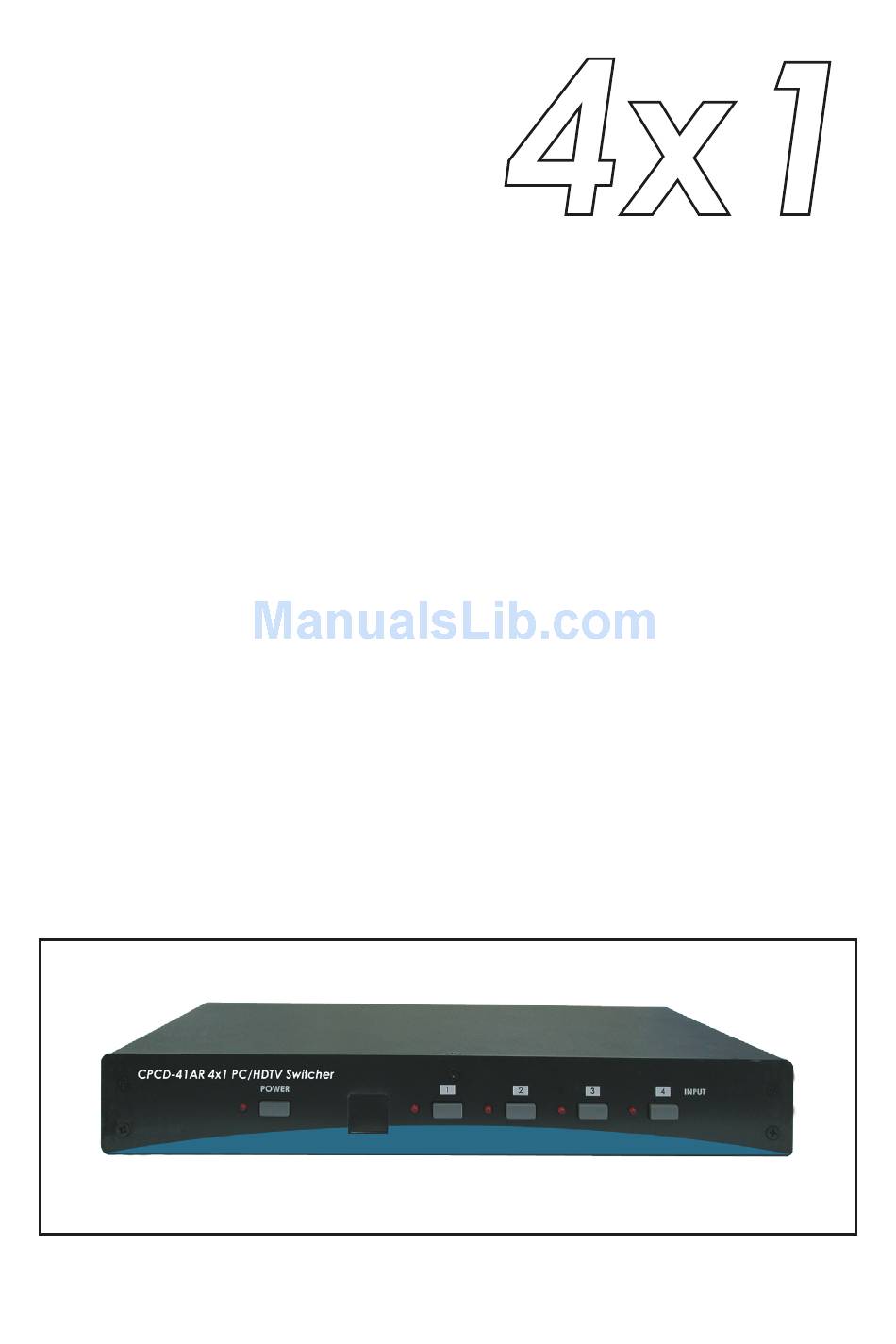

- Page 1 PC/HDTV Switcher Operation Manual CPCD-41AR...
- Page 2 Applications: Cypress CPCD-41AR PC/HDTV is perfect solution for switching between various PC/HDTV sources such as PCs, DVD... to share one display monitor, TV or projector with resolution up to WUXGA/1080p. Features: - LED indicators - IR remote control. - Supports high resolution input: PC: VGA, SVGA, XGA, SXGA,UXGA(1600x 1200) and WUXGA(1920x1200),&...
-
Page 3: Front Panel
Operation Controls and Functions Front Panel CPCD-41AR 4x1 PC/HDTV Switcher POWER INPUT 10 11 1. Power indicator LED. 2. Power ON/OFF switch: Push the button to turn ON/OFF the power. 3. IR sensor: Infrared remote control sensor. 4. Input 1 indicator LED . -
Page 4: Remote Control
Remote Control 1. Power: Switch between power ON and Standby. 2. Press button 1 to select source 1. 3. Press button 2 to select source 2. 4. Press button 3 to select source 3. 5. Press button 4 to select source 4. Note: Replacement battery can be found at a local electronic retail store. - Page 5 Installation and Connection 1. 4 x PC input, 1x PC output RS-232 OUTPUT INPUT 4 INPUT 3 INPUT 2 INPUT 1 PC/YPbPr PC 4/YPbPr 4 PC 3/YPbPr 3 PC 2/YPbPr 2 PC 1/YPbPr 1 DC 5V AUDIO OUTPUT INPUT PC input 4 PC input 3 PC input 2 PC input 1...
- Page 6 CPCD-41AR RS-232 Remote Control Protocol * The connection between CPCD-41AR and remote controller with RS-232 modem cable. Pins definition of modem cable CPCD-41AR Remote Controller Definition Definition T xD R xD R x D T x D * RS-232 transmission format:...
