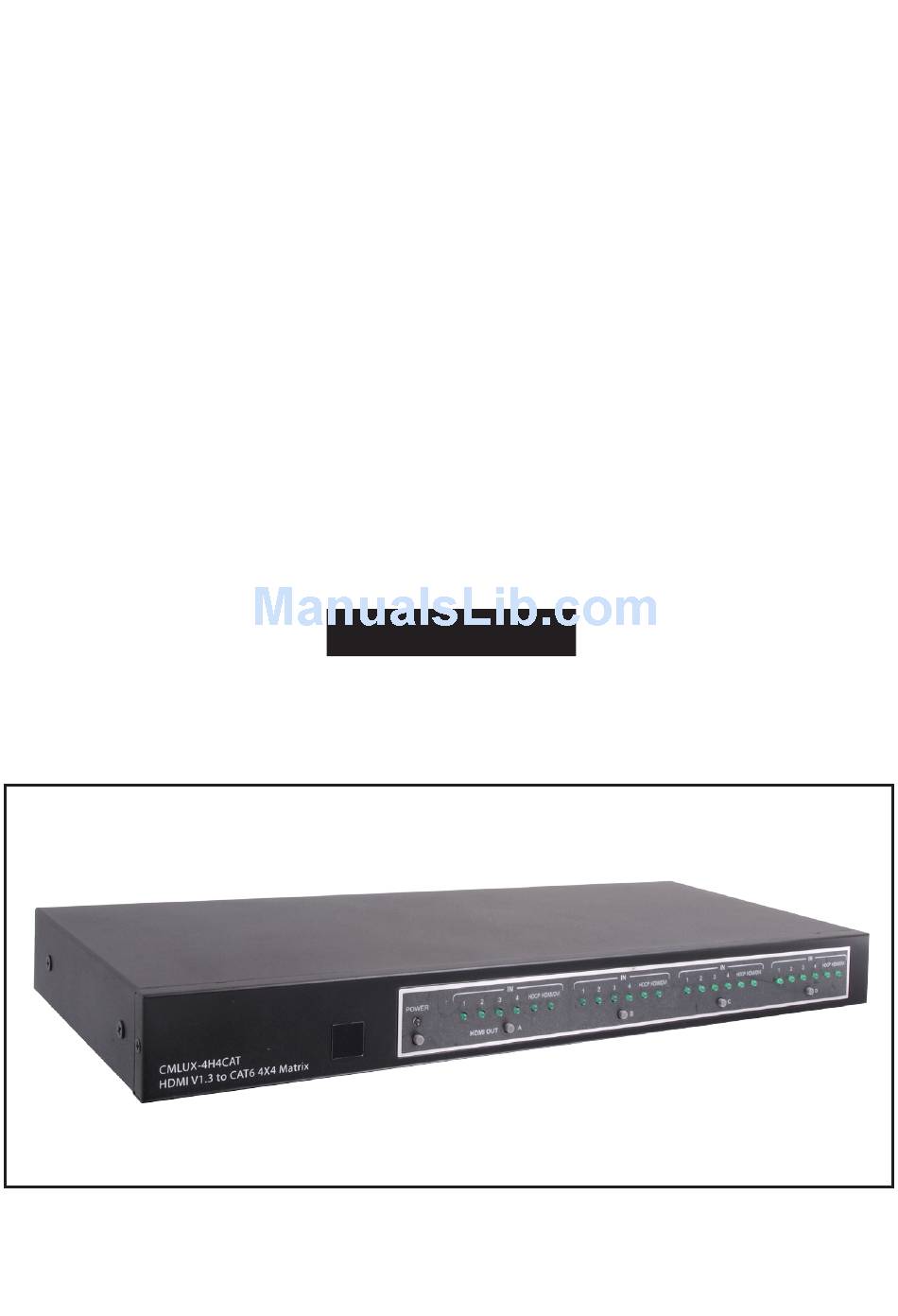

- Page 1 CMLUX-4H4CAT 4 by 4 HDMI V1.3 over CAT6 Matrix with IR Return Control Operation Manual CMLUX-4H4CAT...
-
Page 2: Copyright Notice
Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document. -
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents 1. Introduction..……………………..…………………........ 2. Applications......…..……………………………………..… 3. Package Contents......……………………………….……. 4. System Requirements......……………………………..…… 5. Features........…..…………………………………...……….. 6. Specifications..................7. Operation Controls and Functions.....……...……...………….. 7.1. Front Panel......…………………………………...………….. 7.2. Rear Panel.......…………………………………...………….. 8. Remote Control.......…..……………………………...………….. 9. RS-232 Protocol.......…………..……………………...………….. 9.1 Pin Definitions....…………..……………...……...………..….. 9.2 Commands....…………………….……………...………..….. 9.3. IR Cable Pin Definitions....………….……………...……..….. 10. -
Page 5: Introduction
1. Introduction The CMLUX-4H4CAT is a 4 x 4 HDMI over CAT6 Matrix that is a high performance device, boasting features such as a remote control, IR blaster and IR receiver. Compatible with Deep Color Video and high definition digital audio, this device has the ability to direct any of its four HDMI sources to any of the four HDMI displays, with each display showing a different source. -
Page 6: Features
5. Features HDCP 1.1 and DVI 1.0 compliant. Supports HDMI with Deep Color Video of up to 36 bits (12bits/ color) and high definition (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio. When the HDMI signal passes through this device it is compensated, ... -
Page 7: Specifications
6. Specifications Video Bandwidth 2.25 MHz/6.75Gbps Input Ports 4 x HDMI female ports, Output Ports 4 x Video/DDC CAT 6 ports EDID Standard, TV/Moving Port 1 ESD Protection Human body model: ± 10kV (air-gap discharge) ± 6kV (contact discharge) HDMI Audio Output PCM2, PCM5.1, PCM7.1, Dolby5.1, DTS5.1, DD+, D-TrueHD, and DTS-HD HDMI Cable In... -
Page 8: Operation Controls And Functions
7. Operation Controls and Functions 7.1 Front Panel POWER HDCP HDMI/DVI HDCP HDMI/DVI HDCP HDMI/DVI HDCP HDMI/DVI CMLUX-4H4CAT HDMI OUT HDMI V1.3 to CAT6 4X4 Matrix ① ② ③ ④⑤ ① . Remote control sensor. ② . Power switch & LED Indicator: This LED will illuminate when the power is turned on. - Page 9 ② . RS-232: This slot is where you connect a D-Sub 9 pin cable to the PC COM port when controlling the device over RS-232. Detailed specifications are listed in section 9. ③ . Video/DDC CAT6 outputs: These slots are where you connect two CAT6 cables to a receiver box that has HDMI output and through the HDMI output it can be connect to TV.
-
Page 10: Remote Control
HDMI OUT C. 5. Input Select for HDMI OUT D: Press 1, 2, 3 or 4 to select the desired input source for HDMI OUT D. 9. RS-232 Protocol 9.1 Pin Definitions CMLUX-4H4CAT Remote Control Console Definitions Definitions →... -
Page 11: Commands
9.2 Commands COMMAND ACTION POWER 00 Power Off (standby) POWER 01 Power On PORT 11 Output A select Input1 PORT 12 Output A select Input2 PORT 13 Output A select Input3 PORT 14 Output A select Input4 PORT 21 Output B select Input1 PORT 22 Output B select Input2 PORT 23... -
Page 12: Ir Cable Pin Definitions
9.3. IR Cable Pin Definitions IR Blaster IR Receiver ① Power 5V ① IR signal ② IR blaster signal ② Power 5V ③ NC ③ Grounding ① ② ③ ① ② ③ Note: The frequency on IR Receiver can support 30~50KHz. 10. -
Page 13: Connection And Installation
11. Connection and Installation POWER Receiver OUTPUT OUTPUT OUTPUT OUTPUT CR-33 IR Blaster for all players For Play A Play A CAT6 Cable For Play B Play B For Play C Play C HDMI Cable For Play D Play D CLUX-22HC CLUX-1CAT4H CLUX-1CAT8H... -
Page 14: Acronyms
Acronyms Acronym Complete Term CAT6 Catergory 6 Cable Digital Theater Systems Digital Visual Interface EDID Extended Display Identification Data HDCP High-Bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface Infrared UXGA Ultra Extended Graphics Array Video Graphics Array... - Page 16 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20090703 MPM-CMLUX4H4CAT...
