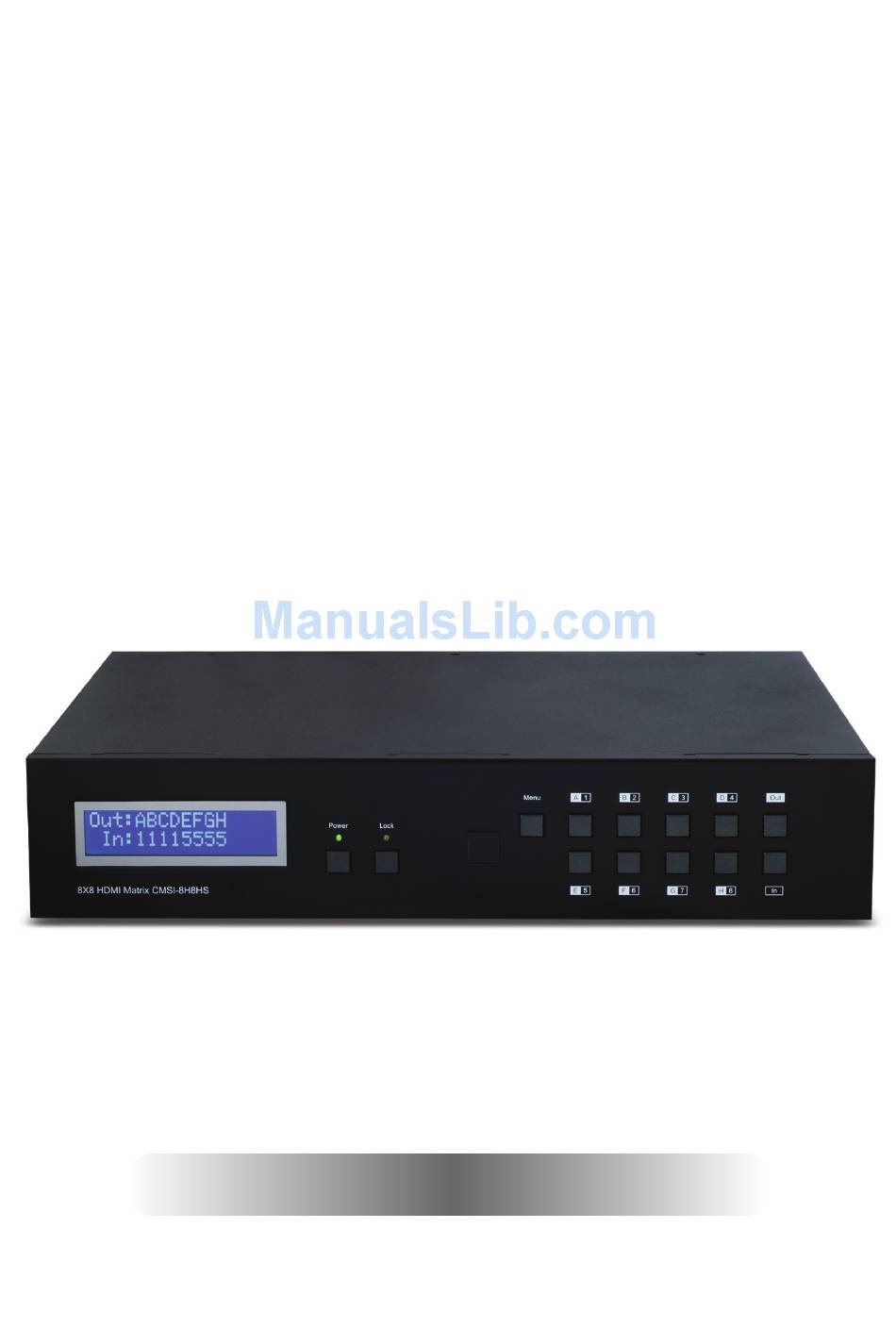

- Page 1 CMSI-8H8HS 8×8 HDMI Matrix Operation Manual Operation Manual...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 3: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Side Panel .........5 6.4 Remote Control ........5 6.5 RS-232 Pin Assignment .....6 6.6 RS-232 and Telnet Commands ..7... -
Page 4: Introduction
1. INTRODUCTION The 8×8 HDMI Matrix supports the transmission of Video (up to 1080p Full HD/1920×1200@60 Hz) with multichannel digital audio from up to eight high definition sources to up to eight HDMI outputs and allowing any source to be independently displayed on any monitor. Also, the unit can be controlled via IR, RS-232, Telnet or the front panel button controls. -
Page 5: Features
5. FEATURES • HDMI, HDCP 1.1 and DVI compliant • Supports HDMI features including 3D • Supports audio sampling rate up to 192 kHz • Supports resolutions VGA~WUXGA and 480i~1080p dependent upon the output display’s EDID settings • Supports 3D signal display dependent upon the output display's EDID settings •... -
Page 6: Operation Controls And Functions
6.1 Front Panel MENU POWER LOCK 8X8 HDMI MATRIX CMSI-8H8HS Displays the setting information of each input and output setting. POWER: Press this button to power the device on/off. The LED will illuminate green when the power is on, red when it is in 'Standby' mode. -
Page 7: Rear Panel
RS-232 commands. IR IN: Connect to the supplied IR extenders for IR signal reception from the remote control of the Matrix. Ensure that the remote is within the direct line-of-sight of the IR extender when used. -
Page 8: Side Panel
6.3 Side Panel FFan Ventilator: These are air ventilation areas, DO NOT block these areas or cover it with any object. Please allow adequate space around the unit for air circulation. 6.4 Remote Control POWER: Press this button to switch on the device or set it to standby mode. -
Page 9: Rs-232 Pin Assignment
6.5 RS-232 Pin Assignment CMSI-8H8HS Remote Control Console Assignment Assignment Baud Rate: 19200 bps Data Bit: 8-bit Parity: None Stop Bit: 1-bit Flow Control: None... -
Page 10: Rs-232 And Telnet Commands
Display the current IP confi g Power Off Power On I1~I8 Switch all the output to 1~8 Display the current matrix state and fi rmware version System Reset to H8 Setting EDID MODE. 1-STD 2-TV. Display all available commands QUIT... -
Page 11: Telnet Control
Matrix (via the 'LAN /CONTROL' port) and the PC/Laptop are connected to active networks. Note: Please do not connect both the Matrix and the PC/Laptop with a single CAT5e/6 cable as it will not access the telnet function. To access the telnet control in Windows 7, click on the 'Start' menu and type "cmd"... - Page 12 IP address of the unit you wish to control, a space and "23", then hit enter. Note: The IP address of the Matrix can be displayed on the device's LCM monitor by pressing the Menu button twice. This will bring us into the device which we wish to control. Type "HELP"...
-
Page 13: Connection Diagram
CONTROL HDMI Out HDMI Out HDMI Out HDMI Out HDMI Out HDMI Out HDMI Out HDMI Out RS-232 Equipped Matrix PC or Notebook DC 24V HDMI In HDMI In HDMI In HDMI In HDMI In HDMI In HDMI In HDMI In... -
Page 14: Specifications
8. SPECIFICATIONS Video Bandwidth 255 MHZ/6.75 GBPS Input Ports 8×HDMI, 1×RS-232, 1×IR Receiver, 1×Mini USB Type B (For firmware update only), 1×RJ-45 Output Ports 8×HDMI HDMI Input Cable Distance 15m/8-bit, 10m/12-bit HDMI Output Cable Distance 15m/8-bit ,15m/12-bit ESD Protection Human-body Model: ±... -
Page 15: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Theater System Digital Theater System EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High Definition Television Liquid Crystal Module Universal Serial Bus Video Graphics Array WUXGA Widescreen Ultra Extended Graphics Array...
