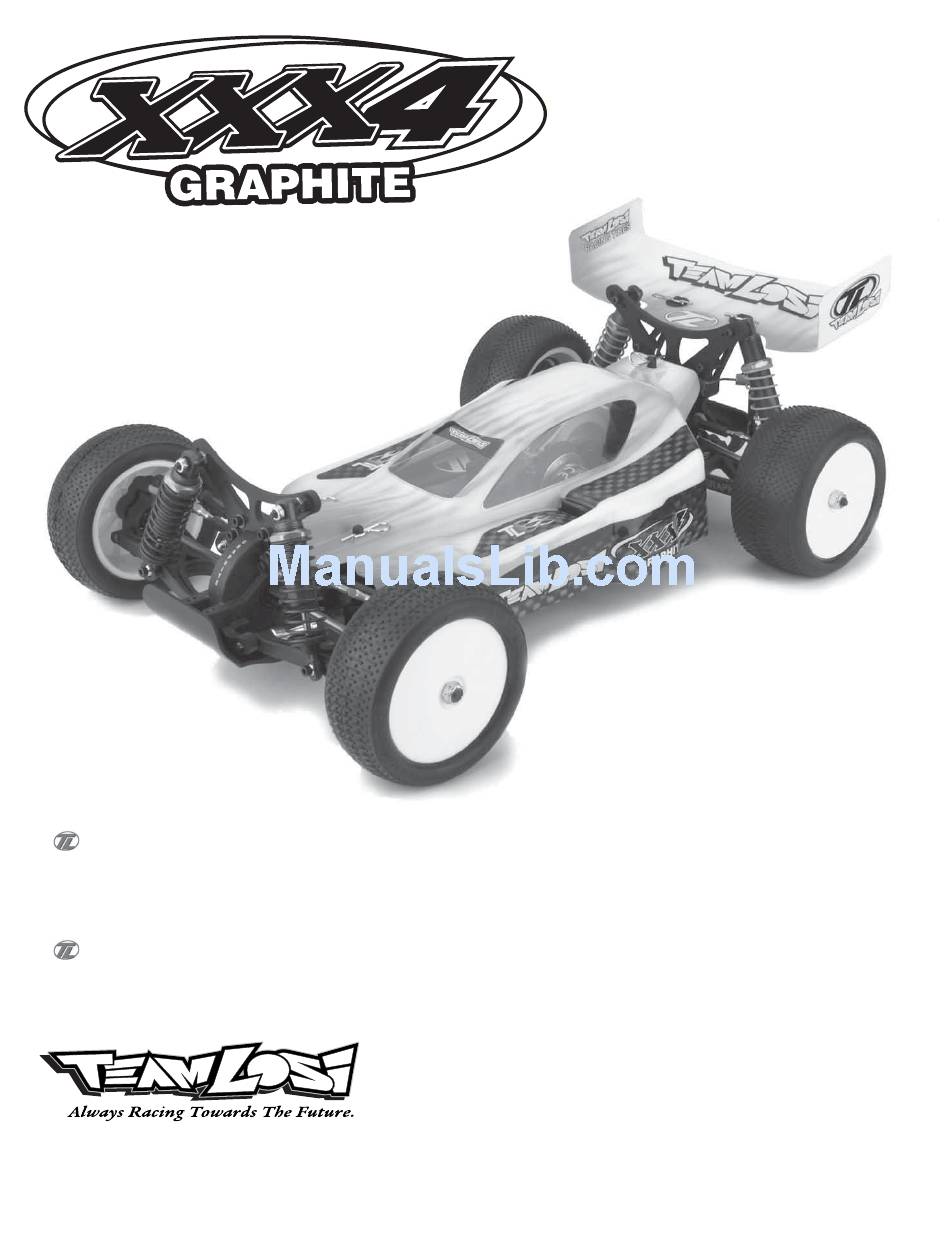

OWNER'S
MANUAL
Carefully read through all instructions to familiarize yourself with the parts, construction techniques, and
tuning tips outlined in this manual. Being able to grasp the overall design of your new XXX-4 Graphite
Plus Buggy before beginning the construction process will ensure a smooth assembly.
Take your time and pay close attention to detail. Keep this manual for future reference.
Team losi, Division of Horizon Hobby inc.,
4710 Gausti Rd., Ontario CA 91761
P/N 800-0208
Phone: (909) 390-9595 / Fax: (909) 390-5356
10/01/2003
www.TeamLosi.com / feedback@TeamLosi.com
MADE IN THE UNITED STATES OF AMERICA
JAC/RWW

Advertisement

Table of Contents
loading

Related Manuals for Team Losi XXX4 Graphite Plus

Summary of Contents for Team Losi XXX4 Graphite Plus

  • Page 1 Plus Buggy before beginning the construction process will ensure a smooth assembly. Take your time and pay close attention to detail. Keep this manual for future reference. Team losi, Division of Horizon Hobby inc., 4710 Gausti Rd., Ontario CA 91761...

  • Page 2: Introduction

    Welcome Team Losi XXX-4 Owner! Thank you for selecting Team Losi and the XXX-4 Graphite Plus as your new racing buggy. As you will see, we have made every effort to design and produce a kit that is not only the most competitve, but easy to build and maintain. The simple bag-by-bag assembly sequence and unmatched easy to follow instructions, combined with Team Losi's world famous quality- fitting parts, should make building your new XXX-4 Graphite Plus a most enjoyable project.

  • Page 3: Table Of Contents

    2. BAG A ....................1-7 3. BAG B ....................8-11 Team Losi is continually changing and improving designs; therefore, the actual part may appear slightly different than the illustrated part. Illustrations of parts and assemblies may be slightly distorted to enhance pertinent details.

  • Page 4: Bag A

    BAG A STOP! There are two, complete Differential assemblies in the XXX-4 G+ kit. The Front - Plastic Differential, shown in steps A- 1 thru A-9 and The Rear - Steel Differential, shown in steps A-10 thru A-19. The XXX-4 G+ kit was designed using the stock 42T Drive Pulleys in the front and rear of the car.
  • Page 5 BAG A (Continued) Step A-5 Diff Pulley: 1. Insert a 5mm x 8mm Bearing (117) into the center of the 42T Diff Pulley (42). Figure 5 2. Press a 3/32" Diff Ball (82) into each of the twelve small holes in the Diff Pulley as indicated in Figure 5.
  • Page 6 BAG A (Continued) Bearing to Female Outdrive: Step A-7 1. Press a 5mm x 8mm Bearing (117) into the center area of the Female Plastic Outdrive/Diff Half (20) as indicated. The edge of the Bearing should be flush with the front of the Outdrive. 2.
  • Page 7 BAG A (Continued) Step A-10 Diff Nut Carrier: Locate the Diff Nut (27). Figure 10 Diff Tube Assembly: Step A-11 Figure 11A 1. Locate the 1/16" Allen Wrench (125) supplied with the kit. Place the Diff Nut (27), "T" side first, over the Allen Wrench towards the "L-end."...
  • Page 8 BAG A (Continued) Diff Pulley: Step A-14 1. Insert a 5mm x 8mm Bearing (117) into the center of the 42T Diff Pulley (42). 2. Press a 3/32" Diff Ball (82) into each of the small holes in the Diff Pulley as indicated in Figure 14. Figure 14 Step A-15 Diff Pulley to Diff Tube:...
  • Page 9 BAG A (Continued) Step A-16 Female Outdrive Bearing Install: 1. Insert a 5mm x 8mm Bearing (117) into the second Outdrive/ Diff Half (87). Make sure that the Bearing is pushed all the way into the Outdrive. A pencil or the handle of a hobby knife can be used to push the Bearing into place.
  • Page 10 BAG A (Continued) Step A-18 Diff Drive Ring to Female Outdrive: SMALL AMOUNT OF CLEAR DIFF GREASE (172) 1. Locate the smallest of the Allen Wrenches, 0.050 (128), and place it through the slot in the Outdrive/Diff Half (87) containing the Diff Screw (91).

  • Page 11: Bag B

    Step B-2 *NEVER PINCH THE BELT* NEVER OVER TIGHTEN THE SCREWS IN THE CHASSIS - Team Losi has designed interlocking features into the XXX-4 G+ Chassis. Only tighten the Screws to the point of being snug, so the parts are held firmly in place.
  • Page 12 BAG B (Continued) Step B-3 Front Diff Install: SIDE WITH DIFF NUT (27) Note:Use the Plastic Diff assembly for the Front of the XXX-4 G+. There is a short Thread-Cutting Screw included in the Wrench bag. This Screw can be used to tap threads in the holes in the Main Chassis and the bottom of the Diff Covers.
  • Page 13 BAG B (Continued) Slipper Clutch Assembly: Step B-5 Tighten 1. Press a 3/16" x 5/16" Bearing (119) into the Slipper Hub (103) from the outside/large face. Slide the Top Shaft (99) through the Bear- ing in the Slipper Hub. 2. Place the Spur Gear (71) onto the Slipper Hub and place all six of the Slipper Pucks (156) into the holes in the Spur Gear.
  • Page 14 BAG B (Continued) Tensioner Arm Installation: Step B-7 1. Slide the Tensioner Arm assembly (110) down over the Belt (77) and connect the slot in the Tensioner Arm with the Slipper Clutch assembly's Belt Tensioner Bushing (96) as indicated in Figure 26A. 2.

  • Page 15: Bag C

    BAG C Steering Bellcrank Assembly: Step C-1 1. Thread a 3/16" Ball Stud (81), from the top side, into each of the Left (30) and Right (31) Bellcranks. 2. Insert a 5mm x 8mm Bearing (117) into the top and bottom of the Left and Right Bellcranks.
  • Page 16 BAG C (Continued) Front Body Mount Install: StepC-3 Figure 30 1. Thread a 4-40 x 5/8" Set Screw (137) into a Front Body Mount (64) until it bottoms out in the hole. 2. Thread the Body Mount into the left Steering Post (97), tighten until snug and the cross hole is positioned lengthwise with the Chas- sis.
  • Page 17 BAG C (Continued) REQUIRED SERVO TYPE OFFSET SERVO ARM AIRTRONICS NARROW FUTABA S131, S131SH, S148, 23001, S3003, 25101, S9101, WIDE WIDE S9201, S9304, S9401, S9403 FUTABA NARROW S3401, S9402, S9404, S9450 HiTech NARROW NES-507, NES-513, NES-517, NES-901, NES-4000, NARROW NARROW NES-4131, NES-4721, NES-4735, NES-9021, DS- WIDE Z4750, Z8450...
  • Page 18 BAG C (Continued) Step C-6 Servo Install: Figure 33 1. Install the servo onto the Chassis (46). The pins from both Servo Mounting Posts (34), (35) should fit into the holes and sit flat against the Chassis. 2. Secure the servo to the Chassis with two 4-40 x 3/8" Flat Head Screws (134).

  • Page 19: Bag D

    BAG D Step D-1 Front Inner Pivot Install 1. Install the front left Inner Pivot Block (47) by threading two 4-40 x 3/8" Flat Head Screws (134) through the bottom of the Chassis (46) into the Pivot Block as indicated in Figure 36. Repeat for the right front Inner Pivot Block (48).
  • Page 20 BAG D (Continued) Step D-3 Front Shock Tower Figure 38 1. Insert a 4-40 x 3/4" Cap Head Screw (130) on either side of the Shock Tower (52) through the middle hole on the top of the Shock Tower. Secure the Screws to the Tower by threading a 4-40 Zinc Nut (182) over each Screw and tightening.
  • Page 21 BAG D (Continued) MIP CVD TABLE MIP CVD KIT FRONT XXX-4 G+ PART # NAME PART # NAME *NOTE: See Table 40 for part numbers and names of all items 114A Coupling 114F Bearing Spacer referred to in the MIP CVD kit for the front of the XXX-4 G+. 114B Solid Pin 114G...
  • Page 22 BAG D (Continued) Spindle Carrier Assembly Step D-7 1. Attatch the Spindle (16) to the Spindle Carrier (18) by sliding 114E the CVD Bone (114E) through the Spindle Carrier as illustrated in Figure 43. Line up the holes in the Spindle and the Spindle Carrier and thread a Kingpin Screw (140) through the Spindle and into the Spindle Figure 43 Carrier from the top and bottom.
  • Page 23 BAG D (Continued) Step D-10 Front Camber Tierod Install Figure 46 1. Place a "Foam Thing" (185) over the Ball Stud (80) located in the top of the left Spindle Carrier (18). Place another "Foam Thing" over the Ball Stud (107) located in the Shock Tower (52). Assure that the drive end of the CVD Bone is inserted in the Outdrive before attatching the Tierod.

  • Page 24: Bag E

    BAG E Step E-1 Rear Inner Pivot Install Figure 49 1. Install the left rear Inner Pivot Block (54) by threading two 4-40 x 1/2" Flat Head Screws (135) through the bottom of the Chassis (46) into the Pivot Block as indicated in Figure 49. Repeat for the right rear Inner Pivot Block (55).
  • Page 25 BAG E (Continued) Step E-3 Rear Shock Tower and Swaybar Assembly 1. Put a 3/8" Short Head Ball Stud (33) on each side of the rear Figure 51 Shock Tower into the middle of the lowest set of holes and secure it with a 4-40 Mini Nut (183).
  • Page 26 BAG E (Continued) Step E-5 Rear Hub Assembly 1. Thread a Short Head Ball Stud (107) into the inside hole ("A") Figure 53 of the rear Hub Carrier (23) as indicated in Figure 53. 2. Insert a 3/16" x 3/8" Bearing (116) with the teflon seal facing out, into the back-side of the Hub Carrier (23).
  • Page 27 BAG E (Continued) Step E-7 CVD Dogbone/Axle to Rear Hub 113F 113F 1. Slide the CVD Axle (113D) through the 3/16" x 3/8" Bearing (116) from the backside of the Hub Carrier (23) until the shoulder of 113D the Axle stops at the Bearing. Slide the Axle Washer (90) over the Axle up against the outside Bearing.
  • Page 28 BAG E (Continued) Swaybar Link Assembly Step E-10 Figure 59A 1. Thread a Plastic Rod End (4) onto each end of a 4-40 x 5/8" Set Screw (137). Tighten both sides equally until the Rod is the same Figure 59B length as the one shown in Figure 59B.

  • Page 29: Bag F

    BAG F Step F-1 Cartridge Assembly: 1. Place one Shock O-ring (73) into the Cartridge Body (5), mak- ing sure that the O-ring sits flat in the bottom of the Cartridge Body. 2. Insert the Cartridge Spacer (7) into the Cartridge Body fol- lowed by a second O-ring.
  • Page 30 BAG F (Continued) Filling the Shocks: Step F-4 Figure 65 1. Match the short, front Shock Bodies (84) to the short front Shafts (79), and the long, rear Shock Bodies (85) to the long rear Shafts (83). 2. Fill the front Shock Body (84) with 30wt. Shock Fluid (189) up to the bottom of the threads inside the Shock Body.
  • Page 31 BAG F (Continued) Rear Shock Install Step F-6 Figure 67 1. Position the bottom of an assembled rear Shock in front of the Shock mounting area on the left rear suspension Arm (11) as shown in Figure 67. Align the hole in the Shock Mount Ball (78) with the inside hole in the Arm.

  • Page 32: Bag G

    Apply a thin bead of glue between the Tire bead and the Wheel all the way around, wait for this side to dry and do the same to the other side until the tire is firmly adhered to the wheel. Allow the glue to dry thoroughly before continuing. Team Losi Tread Lock Tire Glue (A-7880 "Thick", A-7881 "Thin") is the best glue available for gluing R/C car Tires.

  • Page 33: Bag H

    BAG H Step H-1 Front Bumper Install Figure 70 1. Holding the car upside-down, install the front Bumper (59) by lining up the holes in the fork of the front Bumper with the holes in the Chassis (46). It should rest on the front Diff Cover (62). Secure the front Bumper by threading two 4-40 x 1/4"...
  • Page 34 BAG H (Continued) Motor Plate Install Step H-3 Figure 72 1. Place the Motor Mounting Plate (93) against the motor (not included) so that the shaft on the motor is centered in the large hole in the Motor Mount and the flat surface of the Motor Mount rests against the motor.
  • Page 35 BAG H (Continued) Step H-5 Battery Strap Install The Battery Strap (28) can be mounted in one of two ways to accommodate different styles of batteries. If you will be running matched-type cells (individual cells laid out side-by-side) the TL logo should be facing up as shown in Figure 74 "B".
  • Page 36 BAG H (Continued) Step H-7 Gear Cover Installation Figure 76B Figure 76A 1. Locate the Gear Cover (191) and cut the bottom side of it along the trim line as shown in gray in Figure 76B. Drill three 1/8" mounting holes in the Gear Cover at the three locations marked with dimples.
  • Page 37 BAG H (Continued) Step H-9 Wing Installation 1. Make two 3/16" diameter holes in the Wing (192) where the dimples are located. 2. Align the holes in the Rear wing with the Wing Mounts on the rear Shock Tower. 3. Secure the Wing to the Wing Mounts by first placing the Wing on the Mounts followed by a Wing Washer (67) on top of each Mount, and then inserting a Body Clip (124) in each hole.

  • Page 38: Checklist Before Your First Run

    If the change you made works adversely or doesn't address your need, return to the stock position and try something else. Team Losi's development team has put hundreds of hours on the XXX-4 Graphite Plus to arrive at the set-up we put in the instruction manual.
  • Page 39 Front End: Shock Location: Leaning the shocks in (mounting them closer to the center of the tower) will give a smoother transition as you enter into turns and improve consistency but will yield less total steering and give a slower reaction. This might be helpful on high bite surfaces.
  • Page 40 We are sure that you will find the XXX-4 G+ Buggy to be the most versatile and easiest car to drive fast with great consistency. We at Team Losi hope this information helps you to enjoy your XXX-4 G+ Buggy and racing as much as we do. For the latest in setup and accessory parts information, visit the Team Losi website at: www.TeamLosi.com and go to the "Meet the Team"...

  • Page 41: Spare Parts List

    SPARE PARTS LIST KEY # KIT/PART DESCRIPTION PART NO. SPARE PARTS DESCRIPTION ALUMINUM SHOCK NUT A-5049 Aluminum Shock Collar/Adjusters SHOCK END A-5023 Spring Clamps & Cups SHOCK CUP A-5023 Spring Clamps & Cups ROD-ENDS ADJUSTABLE/30 A-6005 H.D. 30 Degree Plastic Rod Ends SHOCK CARTRIDGE BODY/SNAP A-5015 Double O-Ring Shock Cartridge...
  • Page 42 SPARE PARTS LIST KEY # KIT/PART DESCRIPTION PART NO. SPARE PARTS DESCRIPTION REAR SHOCK TOWER A-2206 Rear Shock Tower XXX-4 G+ FRONT BUMPER A-4219 Front & Rear Bumper Set XXX-4 REAR BUMPER A-4219 Front & Rear Bumper Set XXX-4 BOTTOM CHASSIS COVER, GRAPHITE A-9895 Graphite Bottom Cover &...
  • Page 43 SPARE PARTS LIST KIT/PART DESCRIPTION PART NO. SPARE PARTS DESCRIPTION KEY # CVD KIT FRONT A-9967 Aluminum CVD Set-Front XXX-4 8-32 Locknut A-6310 8-32 Aluminum Locknuts 114J E-CLIP, 1/8" A-6100 1/8" E-Clips 3/16 X 3/8 BEARING A-6903 3/16 X 3/8 Bearings w/Seals 5M X 8M X 2.5M BEARING A-6907 5 X 8mm Ball Bearings...
  • Page 44 SPARE PARTS LIST KIT/PART DESCRIPTION PART NO. SPARE PARTS DESCRIPTION KEY # FOAM, BUGGY REAR-FIRM A-7398 R Buggy Liner,Firm FOAM INSERT WIDE BUGGY FR A-7297 Front FWD & Extra Wide Foam Tire Liners SILICONE SHOCK FLUID A-5224 Silicone Shock Oil, 30Wt, 2oz. GEAR COVER A-4209 Gear Cover &...
