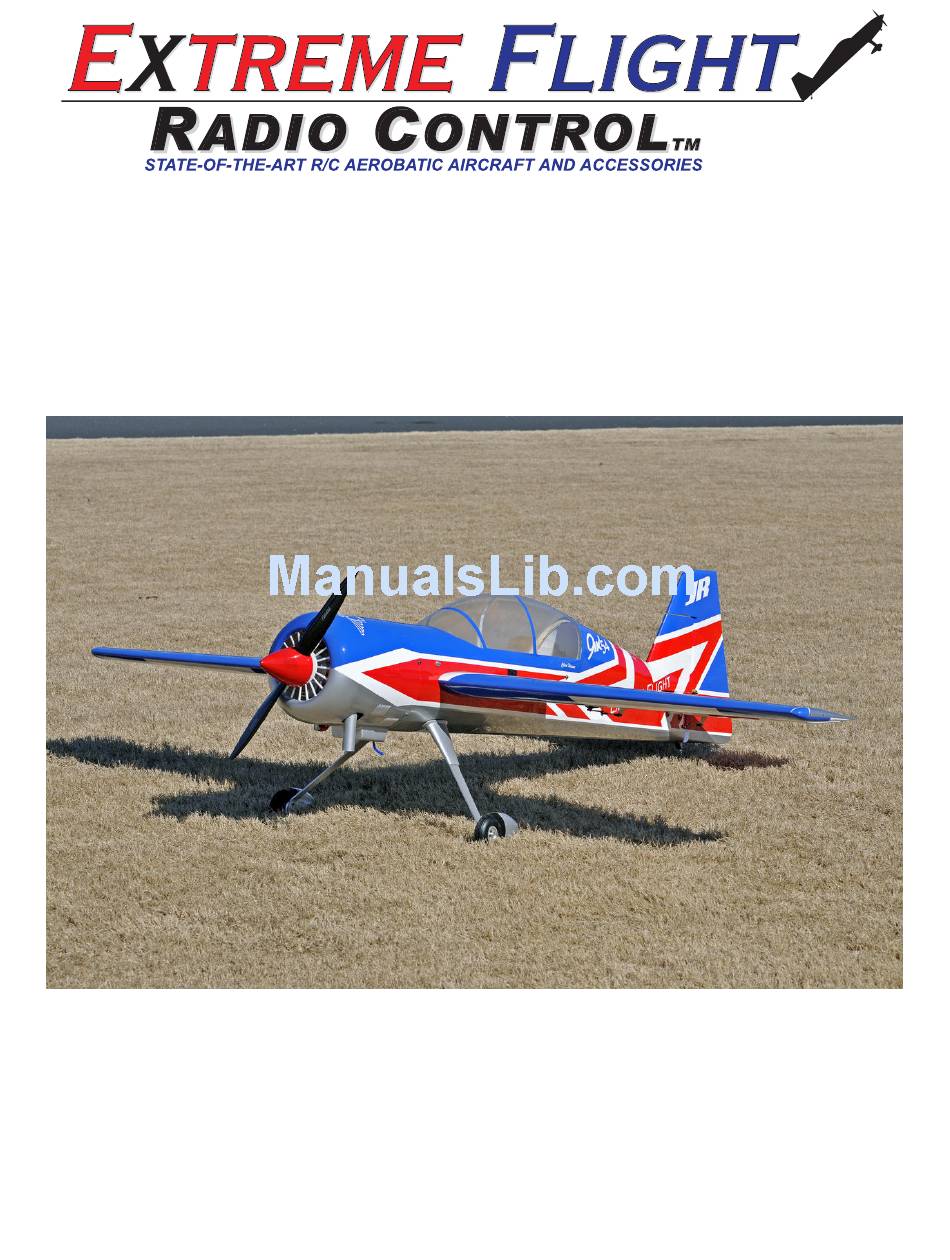

91" Yak-54 ARF
Assembly Manual
Copyright 2013 Extreme Flight RC
1


Advertisement

loading
Need help?

Need help?

Do you have a question about the 91" Yak-54 ARF and is the answer not in the manual?

Questions and answers

Related Manuals for Extreme Flight 91" Yak-54 ARF

Summary of Contents for Extreme Flight 91" Yak-54 ARF

  • Page 1   91" Yak-54 ARF Assembly Manual Copyright 2013 Extreme Flight RC 1   ...
  • Page 2 THIS IS NOT A TOY! Serious injury, destruction of property, or even death may result from the misuse of this product. Extreme Flight RC is providing you, the consumer, with a very high quality model aircraft component kit, from which you, the consumer, will assemble a flying model.
  • Page 3 Congratulations on your purchase of the Extreme Flight RC 91 inch Yak-54 EXP ARF! This all new design is the result of applying what we have learned from 10 years of flying the Yak-54 design. Highly refined and thoroughly tested, this new Extreme Flight Yak-54 EXP features weight saving, performance enhancing components.
  • Page 4 Items needed for completion:  Masking tape.  Hobby knife with #11 blades.  Thin and medium CA. We highly recommend Mercury M5T thin and M100XF medium formulas as well as the Mercury glue tips.  30 minute epoxy. Mercury Adhesives Epoxies have worked very well for us. ...
  • Page 5 Tips for Success: 1. Before starting assembly, take a few minutes to read the entire instruction manual to familiarize yourself with the assembly process. 2. Go over all the seams on the aircraft with a covering iron on a medium heat setting. Also, due to climate changes, wrinkles may develop in the covering however;...
  • Page 6 Let's begin! Elevator Assembly 1. Locate the horizontal stabilizer/elevator assemblies as well as the composite control horns and base plates from the elevator hardware package. Use a sharp #11 blade or soldering iron to remove the covering over the 2 slots for the elevator control horns on the bottom of the elevator surface.
  • Page 7 3. Trace around the base plate with a felt tipped marker.  4. Remove the horn assembly and use a #11 blade to remove the covering from inside the ink line you traced around the control horn base. 7   ...
  • Page 8 5. Wipe away the ink line with a cotton cloth or paper towel soaked in denatured alcohol. 6. Use sandpaper to scuff the portion of the horns and base plate that will be inserted into the elevator. 8   ...
  • Page 9 7. Apply 30 minute epoxy to the elevator slots using a zip tie to ensure the slots are filled will epoxy. 8. Also, apply a generous amount of epoxy to the bottom of the G-10 control horns and base plate. 9 ...
  • Page 10 9. Reinsert the assembly into the elevator and wipe away any excess epoxy with a cloth and denatured alcohol. Place a 3mm bolt through the horns to help insure proper alignment and set aside to dry. Repeat for the other elevator half. 10.
  • Page 11 11. Use a cotton swab to apply petroleum jelly ONLY to the knuckle of the hinge. This will keep the epoxy from getting into the hinge which can cause it to bind. 12. Mix a generous batch of 30 minute epoxy. Use a zip tie or an old pushrod to thoroughly coat and fill the hinge holes on the stab with epoxy.
  • Page 12 13. Next, coat one side of all 4 hinges with epoxy and push the hinges into the holes of the horizontal stab. Remember the short hinges go in the two holes closest to the fuse. 14. Make sure the hinge pins are centered in the hinge gap and that they pivot 90 degrees to the stab.
  • Page 13 15. Now coat the other side of the hinges as well as the hinge holes in the elevator with epoxy and install the elevator into the stab. Don’t forget to apply epoxy in the hinge holes on the stab before installing the stab to the elevator. 13 ...
  • Page 14 16. Use denatured alcohol and a cloth to remove all excess epoxy, especially on the hinge pin. Make sure you have full deflection in both directions – once satisfied with the results, set the surface aside to dry. After the hinges have dried thoroughly, pull on them to make sure they are properly installed.
  • Page 15 17. Before installing the elevator servos, temporarily install the servo arms and electronically center the servos. 18. Using the manufacturer supplied mounting hardware, install the elevator servo with the output shaft toward the front of the stab and re-attach the servo arm. 15 ...
  • Page 16 19. Thread 2 of the heavy duty ball links onto one of the 2 longer titanium pushrods. Remember that the ends of the pushrods are reverse-threaded so that they can be adjusted like a turnbuckle without removing the linkage. 20. As shown in the picture below, secure one end of the ball link to the servo arm using a 3mm socket head cap screw, washer and nylon insert locknut.
  • Page 17 21. With the servo arm centered (as described in Step 17), adjust the turn buckle on the control rod until the elevator is in the neutral position. 22. Set the servo endpoints to achieve maximum travel. You may need to enlarge the size of the servo arm exit slot.
  • Page 18 Wing Assembly 23. Locate the wing/aileron assemblies as well as the composite control horns and base plates from the elevator hardware package. Following the same procedure as outlined with the elevator / stabs, install the control horns and hinges for both wings.
  • Page 19 Note: Before moving to the next step – it would be a good time to seal the hinge gap with a strip of Ultracote or Blenderm tape. Be sure to fully deflect the control surface when sealing the gap to allow for full deflection once the gap is sealed. Also, take a few minutes to go over the wings with a trim iron on a medium heat to seal all the trim seams and remove any wrinkles in the covering.
  • Page 20 24. Locate the aileron servo mount and remove the covering from this area. Use a sealing iron to seal the edges of the covering to the sides of the servo opening. Take a few minutes to apply some CA to the joints of the servo rails and the ribs. 25.
  • Page 21 26. Use the recommend 1.50” SWB servo arms and attach 2 ball links onto the titanium turnbuckle pushrod. Secure the pushrod to the control horns and servo arm using the supplied 3mm bolts, washers, and nylon insert locknuts as shown in the picture below.
  • Page 22 Rudder and Tailwheel Assembly 28. Locate the rudder, the rudder control horns and the 2 slotted base plates. Use sandpaper to scuff the bottom of the control arms as well as the side of the base plates that will attach to the rudder. 29.
  • Page 23 30. Mix a generous batch of epoxy and completely fill the two slots as well as the areas on control horns and base plates that will glue into both sides of the rudder. 31. Install the rudder horns and base plates into the rudder one side at a time. Clean any excess epoxy from the rudder, recheck the alignment and set the assembly aside to dry.
  • Page 24 32. Locate a 2mm ball link from the hardware bag. Measure 3 inches back from the leading edge of the rudder and drill a 3/16” hole to accept the shank on the ball link. Scuff the shaft of the ball link and glue the ball link into the hole with epoxy as shown below.
  • Page 25 34. Disassemble the tailwheel assembly and use a rotary tool or a small file to create a flat spot on the tailwheel wire for the set screws in the aluminum cap to seat against. Reassemble the unit and apply Loctite to the threads on the setscrews. Slide the tailwheel onto the wire and secure with the included wheel collars.
  • Page 26 36. Next, install the pull-pull rudder cables. First remove the covering from the exit slots at the rear of the fuselage as shown below. 37. Locate the rudder servo tray in the hardware package. Test fit the tray to the mounting rails then apply 30 minute epoxy to the tray, clamp this assembly to the servo rails and allow to dry.
  • Page 27 38. Install the rudder servo using the supplied hardware with the output shaft toward the front of the plane. Also, install the recommended SWB 4” offset rudder arm and electronically center the servo. 39. Next, install the pull-pull rudder cables. Assemble one end of the linkage by inserting the pull-pull cable into one of the aluminum crimp tube, through the hole in the brass pull-pull fitting and back through the crimp tube.
  • Page 28 40. Insert the bare end of the cable into the slot in the rear of the fuselage and feed it forward into the canopy area. Make the same type of linkage as done previously. Electronically center the servo and secure the linkage at both ends with a 3mm bolt and nylon insert lock nut.

  • Page 29: Fuselage Assembly

    Fuselage Assembly 41. Locate the carbon fiber main landing gear, 4 x 4mm bolts, lock nuts and washers. Place the landing gear onto the landing gear plate with the gear angled towards the front of the fuse and align the 4 holes. Use a long T-Handle allen wrench and insert the 4 x 4mm bolts from inside the fuse.
  • Page 30 42. Attach the landing gear fairings with silicon glue. 43. Locate the 2 axles, 2 locking nuts, 2 washers, 2 wheels, 4 wheel collars and 2 wheel spats. Center the wheel on the spat and drill a hole for the axel. If flying on a grass field you may want to drill the about ¼”...
  • Page 31 44. Insert the threaded portion of axel through the spat, then mount the axel and spat onto the landing gear. Secure the axel to the landing gear with a washer and nylon lock nut. Position the spat as desired and mark the location for the blind nut using the pre-drilled hole in the aluminum gear as a guide.
  • Page 32 46. Next we’ll install the engine. We have made this process very easy. The center and offset marks have been scribed into the front of the firewall with a laser. Print out the engine mounting template for your chosen engine. If using the DA-50 or DA-60, simply drill the firewall at the locations laser scribed on the firewall.
  • Page 33 48. Use the recommended mounting bolts to mount the engine to the firewall making sure to use large washers behind the firewall to distribute the load. Use standoffs to ensure the motor extends 6.32 inches (160mm) from the firewall to the engine thrust washer.
  • Page 34 Note: If you are using a DA-50 or DA-60 you may need to rotate the carburetor 180 degrees so that the throttle arm is facing the bottom of the motor box. Also, it’s a good time to coat the inside of the motor box with thinned epoxy. 50.
  • Page 35 51. Install the tank of your choice-- for our build we used a Dubro 24 oz tank. Make sure to use a gas compatible stopper and tubing for all plumbing. Use Velcro Straps or nylon cable ties to secure the tank to the tank tray. The tank should butt up against the wing tube.
  • Page 36 52. Find a location toward the front of the fuse to install a fuel dot. Here is where we installed ours. 53. Once the throttle linkage is installed and all the plumbing is completed, install the engine box cover with 4 wood screws. You may want to take the time to install some blind nuts and use bolts for this.
  • Page 37 54. Install your switches, batteries and receiver. Please note there are suggested switch mounting locations laser scribed in the fuselage sides visible from the interior of the fuselage. Also, carefully choose the locations to mount your batteries to help achieve correct center of gravity.
  • Page 38 56. Once you’re satisfied with the fit of the cowl, add some thick CA or Epoxy to the intersection of the cowl and plywood cowl ring. Slide the cowl into position and secure with 4 x 3mm bolts and bonded washers through the pre-drilled holes in the cowl.
  • Page 39 58. Attach 36 inch servo extensions to each elevator servo. If you plan to remove the stabs for transport, you will need 48 inch extensions. Slide the stab halves onto the carbon fiber stab tube and secure with a 3mm bolt and washer inserted through the mounting tabs and into the pre-mounted blind nuts.
  • Page 40 Set-up and trimming Besides basic assembly, this is the most important part of preparing your airplane for flight. It can also be the most time consuming, but once your plane is properly dialed in you will agree it was time well spent. One of the most practical ways to check the CG on an aircraft this size is to insert the carbon fiber wing tube into its sleeve in the fuselage and tie a length of rope around the tube on each side of the fuselage, forming a loop that you can pick the aircraft up with.
  • Page 41 I get the planes to look so shiny, this is my secret. You may wish to apply all of your graphics before applying the coat of wax. Thanks again for your purchase of the Extreme Flight RC 91 inch Yak-54 ARF. I hope you enjoy assembling and flying yours as much as I have mine.
