  • Page 1 Visit us online at www.uswatersystems.com US WATER DENTAL OFFICE PURIFICATION SYSTEM Owners Manual Models: 200-SENTRY-IX US Water Systems Corporate Office 1209 Country Club Road Indianapolis, IN 46234 1-800-608-8792 REVISION # info@uswatersystems.com REVISION DATE June 6, 2018...

  • Page 2: Parts Checklist

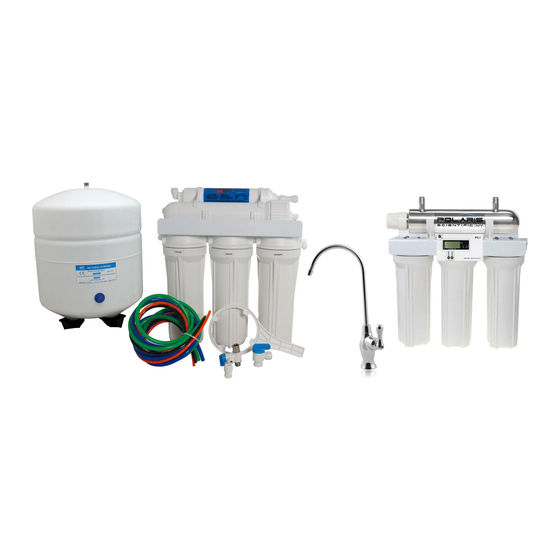

    Parts Check List RO AND DI MODULE RO Module  DI Module, UV and Monitor  Tubing Bundle  Filter Wrench  Drain Saddle  Tank Valve  Angle Stop Feed Valve  Tank and Side Mount Tank  Stand Pre and Post Filters ...

  • Page 3: Post-Filter

    Installation Instructions 200-SENTRY-IX Water Treatment System Components of the RO System PRE-FILTER (sediment filter) removes larger particles such as sand, silt, rust and scale, (activated carbon filters) remove chlorine and chloramine in the feed water to protect the reverse osmosis membrane.

  • Page 4: Storage Tank

    Installation Instructions 200-SENTRY-IX Water Treatment System Tools The following tools may be necessary, depending on each particular installation:  Phillips head and flat blade screwdrivers  Adjustable wrench  Crescent wrench  Teflon tape  Plastic tube cutter Location The RO/DI system may be installed under a sink, in a basement or other location, depending on available space. Do not install unit where temperatures fall below freezing;...

  • Page 5: Feed Water Connection

    Installation Instructions 200-SENTRY-IX Water Treatment System FEED WATER CONNECTION is accomplished with an angle stop feed water valve. This valve will be installed in the cold water line between the sink cold water shutoff valve and the sink faucet tubing. Connect to a potable, cold wa- ter supply line only.

  • Page 6: Mounting The Faucet

    Installation Instructions 200-SENTRY-IX Water Treatment System B. Mounting the faucet 1. Install the faucet as shown in Fig. 1 on the previous page. Assistance may be needed to hold the faucet in place while the nut is tightened. 2. Once the faucet is secure, install the 7/16” UNS x 3/8” QC faucet connector on the threaded nipple.
  • Page 7 Installation Instructions 200-SENTRY-IX Water Treatment System B. Feed Water Angle Stop Valve and Tubing 3. Be sure the blue handle on the angle stop valve is in the Installation closed position (as pictured). Now open the sink shutoff 1. To install the John Guest angle stop valve, turn off the cold valve and check the angle stop connections for leaks.

  • Page 8: Drain Saddle Installation

    Installation Instructions 200-SENTRY-IX Water Treatment System C. Drain Saddle Installation Prior to drain saddle installation it is important to inspect the condition of drain pipes to make sure they are not thin and frail. Drain saddle valves are designed to be installed on standard 1 -1/2”...
  • Page 9 Installation Instructions 200-SENTRY-IX Water Treatment System 3. Once the valve is installed, connect the green 3/8” tubing to the tank valve install the locking clip. Leave the other end of the tubing loose for now, it will be connected later in the installation.
  • Page 10 Installation Instructions 200-SENTRY-IX Water Treatment System 4. Remove the center sump and install the carbon filter 6. Remove the far left sump and install the chloramine in the sump. BE SURE that the rubber gasket is in filter (not pictured/yellow ends) in the sump. BE place on BOTH sides of the carbon filter.

  • Page 11: Membrane Installation

    Installation Instructions 200-SENTRY-IX Water Treatment System F. Membrane Installation 3. Remove membrane from protective packaging and install it in the membrane housing. 1. Remove the 1/4” tubing from the membrane housing cap There are two O-rings on end of the middle by pressing the collet on the elbow fitting toward the fitting.

  • Page 12: Final Tubing Connections

    Installation Instructions 200-SENTRY-IX Water Treatment System G. RO unit installation 5. Lubricate the O-ring on the membrane housing and install the cap hand tight. Tighten the cap an additional 1/8 - 1/4 The RO unit is normally mounted to the sink cabinet sidewall, turn.
  • Page 13 Installation Instructions 200-SENTRY-IX Water Treatment System 2. BE SURE the storage tank shutoff valve is in the closed position. Connect the open end of the green tubing from tank to the inlet tee on the post carbon filter on the RO system.

  • Page 14: System Start-Up

    Installation Instructions 200-SENTRY-IX Water Treatment System System start-up 1. Close the tank valve and the feed water valve and open the distribution valve to relieve the pressure on the system. Prior to start-up 2. Remove the tank tubing from the tank valve and hold it 1.
  • Page 15 Installation Instructions 200-SENTRY-IX Water Treatment System If there are no leaks on the system install the UV light. 1. Install the UV light in the chamber. BE SURE not to touch the UV bulb glass . Wear rubber gloves if possible.

  • Page 16: Maintenance

    Installation Instructions 200-SENTRY-IX Water Treatment System again and allow system to flush for another 10 minutes. Maintenance Shut off inlet supply and open distribution valve to The RO system contains filters and membranes which must depressurize the system. Remove the sumps and be replaced periodically for proper operation.
  • Page 17 Installation Instructions 200-SENTRY-IX Water Treatment System At this point supply line to ice maker connection (optional) may Flushing system and checking operation be opened. To make sure RO system is operating correctly, follow these simple procedures: Once the system has been purged of air and is fully 1.

  • Page 18: Water Production

    Installation Instructions 200-SENTRY-IX Water Treatment System The formula is as follows: Water quality Water quality from an RO system is normally determined with Reject Rate Reject Ratio = a TDS Meter, which measures total dissolved solids in water, Product Rate measuring conductivity.

  • Page 19: Quick Connect Fittings

    Installation Instructions 200-SENTRY-IX Water Treatment System Disconnecting Quick connect fittings Push in Collet and remove tube Many RO systems utilize Quick Connect fittings. These user- friendly fittings provide superior performance and may be provided with this system. Proper use of these push-in fittings is shown below.
  • Page 20 Installation Instructions 200-SENTRY-IX Water Treatment System (Green Tube) Page 20...
  • Page 21 Installation Instructions 200-SENTRY-IX Water Treatment System Page 21...
  • Page 22 Installation Instructions 200-SENTRY-IX Water Treatment System Page 22...
  • Page 23 Installation Instructions 200-SENTRY-IX Water Treatment System Page 23...

  • Page 24: General Provisions
