Page 3: Introduction And Unpacking

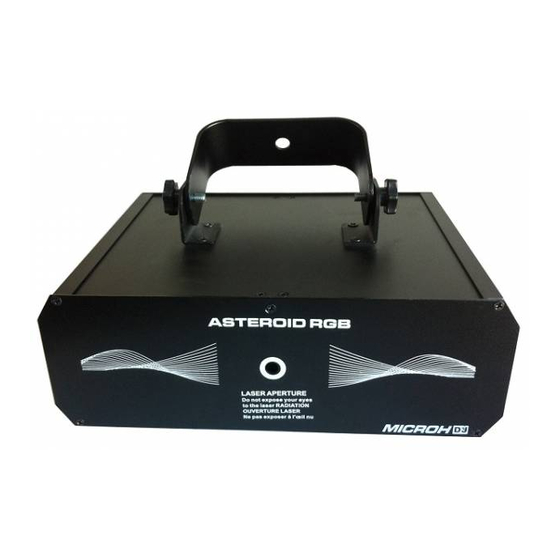

1. INTRODUCTION AND UNPACKING Thank you for purchasing the MICROH ASTEROID RGB laser fixture. For your own safety and knowledge, please read this manual before installing or operating the device. This manual covers the important information on installation and applications. Please install and operate the fixture according to instructions. -
Page 4: Mounting And Installation
Fixtures cannot be installed on or near combustible substances. Keep more than 50cm distance from wall for proper ventilation and air flow. If your fixture is or has become damaged in any way, it shall be exclusively replaced or repaired by the manufacturer to avoid any hazard. 3. - Page 5 Regardless of the rigging option you choose for your MICROH ASTEROID RGB, always be sure to secure your fixture with a safety cable. The fixture provides a built-in rigging point for a safety cable on the hanging bracket as illustrated above.
- Page 6 5 pin DMX connector. Plug in the provided 3 pin XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the MICROH ASTEROID RGB. To connect the units to DMX, you must daisy chain the fixtures together as referred in the diagram below.
- Page 7 5. SETUP MENU DISPLAY D001 AUDI SOUND MODE AUTO MACRO 6. DMX CHANNEL MODES CHANNEL MODE VALUE DESCRIPTION 0-69 LASER OFF 70-139 SOUND MODE CONTROL 140-209 AUTO 210-255 DMX CONTROL 0-127 COUNTER CLOCKWISE ROTATION 128-255 CLOCKWISE DIRECTION 0-255 SLOW - FAST ROTATION SPEED 0-29 30-59...
-
Page 8: Technical Specifications
7. TECHNICAL SPECIFICATIONS DIMENSIONS, WEIGHT and POWER Dimension 293mm X 172mm X 103mm Net Weight 2.2Kgs Gross Weight 2.7Kgs Power input Switched Range 120V 6Hz Rated Power Fuse LASER DIODE 650nm - 50mw Green 532nm - 150 mw Blue 450nm - 300mw CONTROL Modes Sound - Auto - DMX - MASTER/SLAVE... - Page 9 There are no serviceable parts inside the device. Please refer to the instructions under “Installation instructions”. Should you need any spare parts, please order genuine MICROH parts from your local dealer. IF YOU SHOULD EXPERIENCE ANY PROBLEMS OR ISSUES PLEASE CONTACT MICROH PROFESSIONAL PRODUCTS BY EMAIL AT info@microhdj.com...
- Page 10 Notes:...
