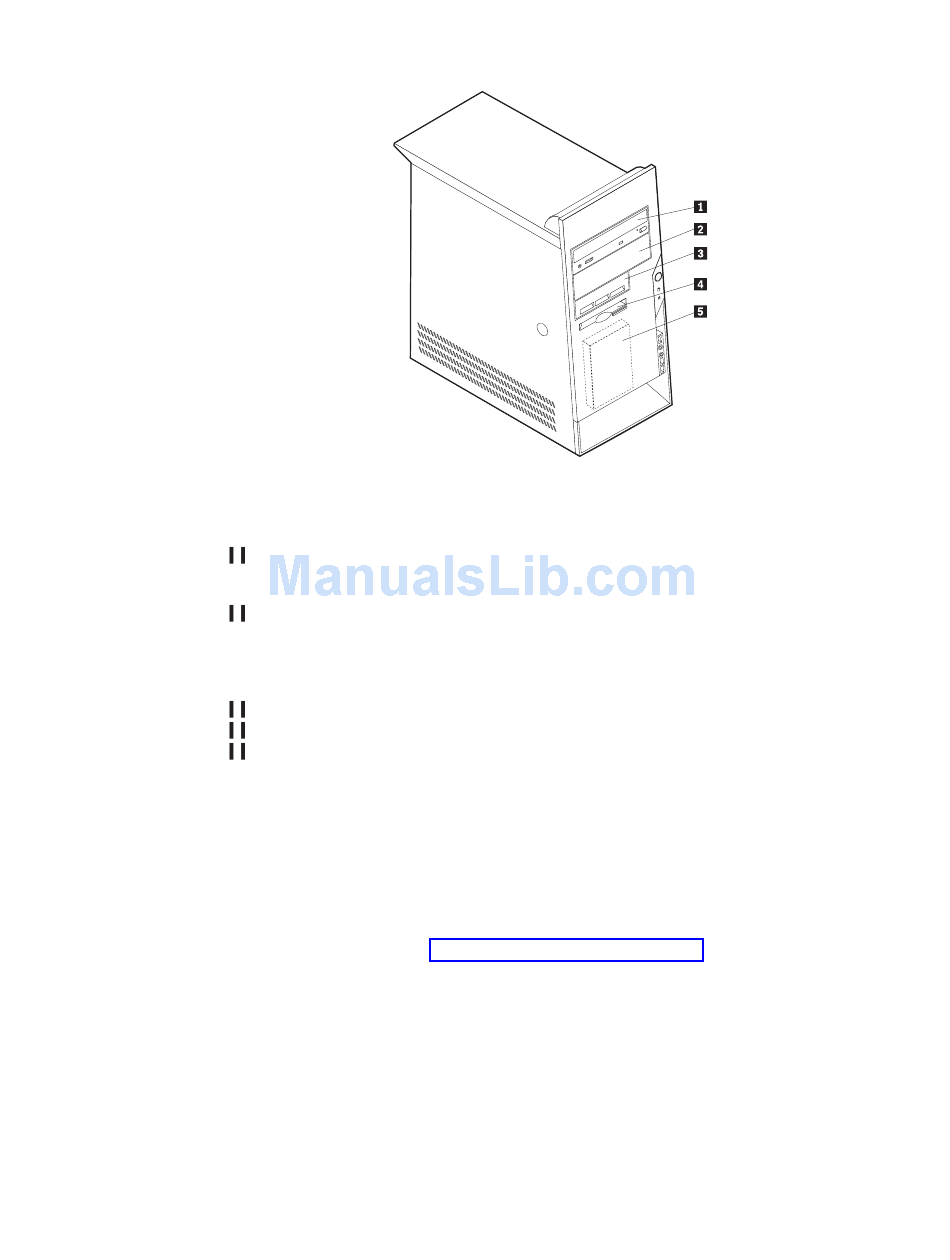

The following illustration shows the locations of the drive bays.
The following list describes some of the drives you can install in each bay and
their height requirements:
Notes:
1. Drives that are greater than 43.0 mm (1.7 in.) high cannot be installed.
2. Install removable media (tape or CD) drives in the accessible bays (bay 1 or 2).

Installing a drive

To install an internal drive, follow these steps:
1. Remove the cover. See "Removing the cover" on page 60.
2. If your computer has a CD drive or DVD drive, you might need to remove the
3. Remove the bay panel from the drive bay by inserting a flat-blade screwdriver
66
User Guide
1 Bay 1 - Maximum height: 43.0 mm (1.7 in.)
2 Bay 2 - Maximum height: 43.0 mm (1.7 in.)
3 Bay 3 - Maximum height: 25.8 mm (1.0 in.)
4 Bay 4 - Maximum height: 25.8 mm (1.0 in.)
5 Bay 5 - Maximum height: 25.8 mm (1.0 in.)
signal and power cables from the drive.
at the end and gently prying it loose.
CD drive or DVD drive (preinstalled in
some models)
5.25-inch hard disk drive
5.25-inch hard disk drive
3.5-inch hard disk drive (requires a
mounting bracket)
CD drive
DVD drive
3.5-inch hard disk drive
3.5-inch diskette drive (preinstalled)
Hard disk drive (preinstalled)
