Infinova V1242-36A Instruction Manual

V1242 Series
Day/Night Zoom Camera
INSTRUCTION MANUAL
1. Description
Thank you very much for purchasing our product.

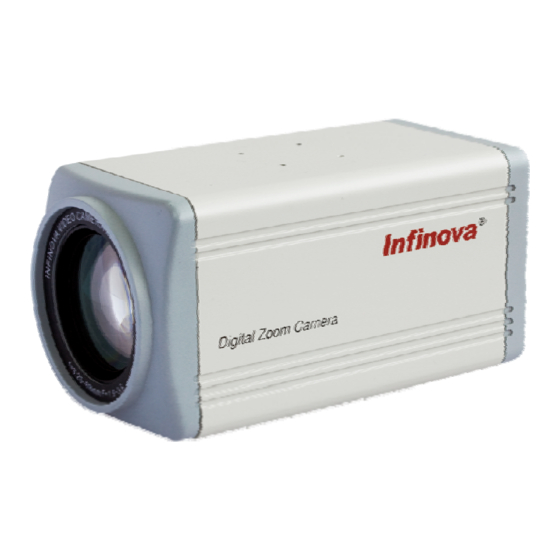

Infinova's V1242 series zoom camera employs high resolution CCD and
Digital Signal Processor (DSP) chip-set for image control, which provides
clear high-resolution images and perfect function. Focal length and focusing
are adjustable via the buttons on the back panel of the camera. And custom
function settings, such as exposure and gain setting, white balance setting,
image adjusting and day/night switching can be performed via the menu.
The lens control input interface is built in the camera to be used with decoder
and matrix switcher. It is also compatible with INFINOVA, PELCO-P/D
protocols. With their compact structure and user-friendly design, the cameras
are suited for many important security/ surveillance environments.
2. Features
Excellent structure, technique and metallic shield
1/4" SONY CCD
23X/36X optical zoom, digital zoom available
High sensitivity, high resolution, and high S/N ratio
Auto/Manual Electronic Shutter (AES), Auto/Manual Gain Control,
Auto/Manual Iris and Auto/Manual Focus
Multiple White Balance modes
Backlight Compensation (BLC)/Highlight Compensation (HLC) and
WDR
Image adjusting settings, such as brightness, contrast, saturation,
sharpness and noise reduction
Motion detection, privacy mask, CCD bad pixel correction
Supports RS485 remote control and program updating, with protocol and
baudrate auto-sensing
English/ Chinese OSD menu optional
Supports multiple reset methods, and supports remote power reset
12VDC/24VAC dual power supply
1
CONTENTS
1. Description ............................................................................................... 1
2. Features .................................................................................................... 1

3. Handling Precautions .............................................................................. 2

4. Installation Precautions .......................................................................... 2

5. Introduction Of Back Panel .................................................................... 3
6. Installation ............................................................................................... 5
7. Operation Instruction ............................................................................. 7
7.1 System Set ......................................................................................... 9
7.1.1 Sync Set .................................................................................... 9
7.1.2 Camera Title Set ..................................................................... 10
7.1.3 RS485 Set ............................................................................... 11
7.1.4 Osd Set ................................................................................... 12
7.1.5 Reset ....................................................................................... 13
7.1.6 INFO Disp .............................................................................. 14
7.2 Zoom Focus Set ............................................................................... 14
7.3 Exposure Set .................................................................................... 15
7.4 Image Set ......................................................................................... 17
7.5 Wb Set ............................................................................................. 19
7.6 Assist Set ......................................................................................... 20
7.6.1 Io Set ...................................................................................... 20
7.6.2 Md Set .................................................................................... 21
7.6.3 Mask Set ................................................................................. 21
7.6.4 Dn Set ..................................................................................... 23
8. Specifications ......................................................................................... 24
Appendix Cable Diameter Calculation and Lightning & Surge
Protection ................................................................................................... 26
3. Handling Precautions
Never let any water or liquid flow into this equipment.
(1)
(2) If it is necessary to clean the lens, use a soft cloth moistened with
alcohol to wipe off any dust.
(3) If any abnormality occurs, make sure to unplug the unit and contact
Infinova or your local dealer.
4. Installation Precautions
(1) Do not drop the camera or subject it to strong knock.
Do not point the camera lens toward the sun or other strong light.
(2)
Do not install the camera in the places where the temperatures raises
(3)
above or fall below the acceptable range (from -10°C to 50°C), or high
humidity and/or direct rainfall, frequent vibrations, or shocks occur.
Add with auxiliary illumination device in case of low illumination to
(4)
avoid poor image quality.
Cap with the lens cover to protect the CCD sensor when the camera is
(5)
not in use.
2
