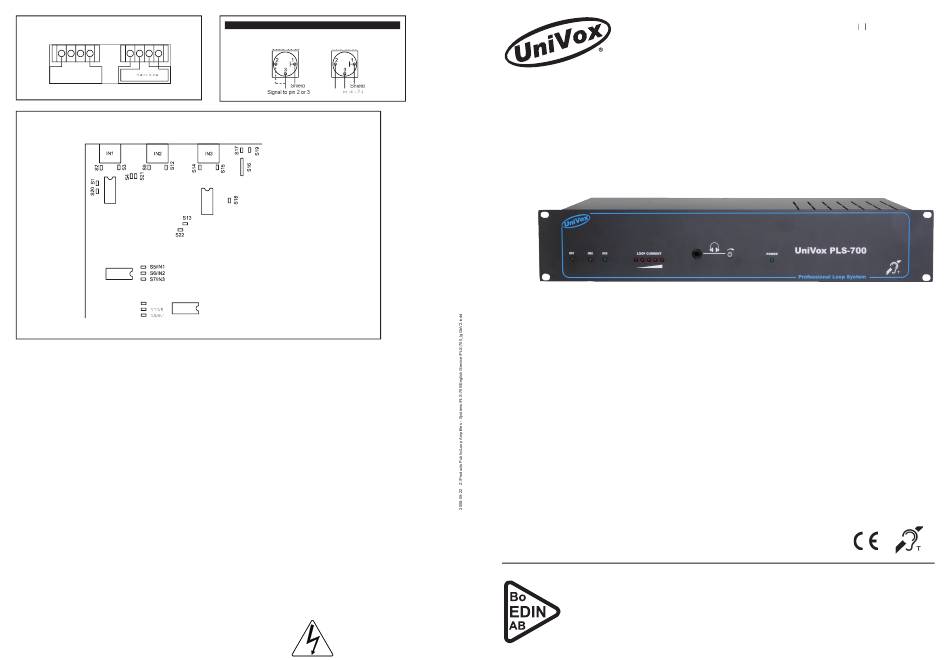

Univox PLS-700 Installation Manual

How to connect a 1-turn / 2-turn loop
1-turn loop 2-turn loop
Strap settings for Inputs 1-3 and for the AGC-function
S11/IN1
S10/IN2
S8/IN3
Disconnect the mains power before removing the cover!
IN1
Phantom power on (Default): S2 & S3 closed. Phantom power off: S2 & S3 open.
Microphone sensitivity (Default): S1 & S20 open. Line sensitivity: S1 & S20 closed.
IN2
Phantom power on: S9 & S12 closed. Phantom power off (Default): S9 & S12 open.
Microphone sensitivity: S4 & S21 open. Line sensitivity (Default): S4 & S21 closed.
IN3
Phantom power on: S14 & S15 closed. Phantom power off (Default): S14 & S15 open.
Microphone sensitivity: S13 & S22 open. Line sensitivity (Default): S13 & S22 closed.
AGC
AGC on (Default): S18 closed. AGC off: S18 open.
Priority
Closing of the following jumpers is used to determine which inputs are going to muffl e the other inputs: S11 (IN1,
Default), S10 (IN2) & S8 (IN3).
Closing of the following jumpers is used to determine which inputs can be muffl ed by other inputs: S5 (IN1), S6
(IN2) & S7 (IN3, Default).
If jumper S5 (IN1), S6 (IN2) or S7 (IN3) is left open the input cannot be muffl ed regardless of the setting of S11,
S10 & S8.
ATTENTION! Jumpers S16, S17 & S19 shall NOT be changed!
4
How to connect unbalanced / balanced input
Unbalanced Balanced
Signal to pin 2 and 3 Signal to pin 2 and 3
WARNING!
Live terminals enclosed!
Installation Guide
Cover area 650 m² (free fi eld, square loop)
Bo EDIN AB • Stockby Hantverksby 3 • 181 75 Lidingö
Tel 08-7671818 • Fax 08-7671820 • www.edin.se • info@edin.se

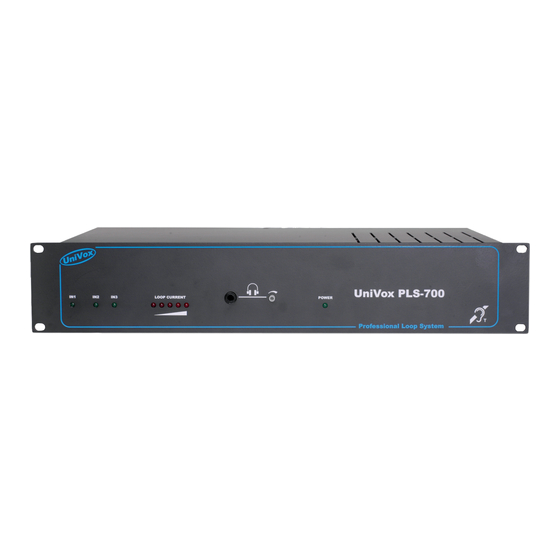

UniVox PLS-700 UniVox UniVox PLS-700
® ® ® ®
Loop amplifi er
according to IEC 60118-4:2006
2008-05-22
