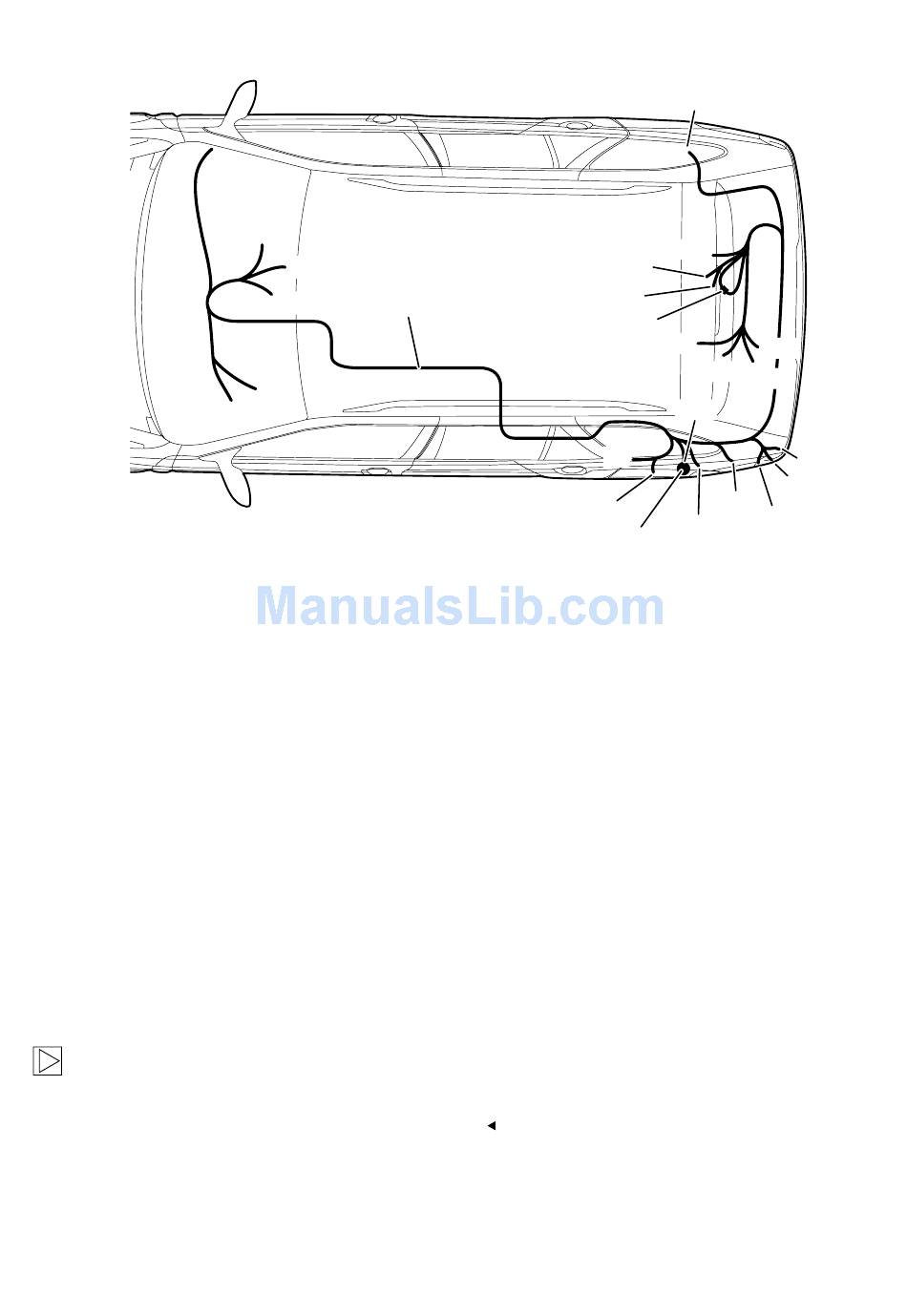

5. Installation diagram for the on-board monitor wiring harness

A11
A4
A3
A16
A19
A2
A20
A
A1
A17+A18
A12
A15
A13
A14
A6
A10
A5
A7
A22
A23
A21
A9
A24
A8
X13016
F 53 0715 B
The on-board monitor wiring harness A is to be laid along the audio or main wiring harness
and secured with cable ties as shown in the figure.
When installing the on-board monitoring wiring harness A start at the earth post X13016
above the left wheel arch.
Screw branch A10 to the earth post X13016 above the left wheel arch
Lay branch A8 to the intended installation site for the left TV amplifier above the left wheel arch
and tie it back (only to be connected if you are also installing a video module and the TV
amplifier)
Branch A21 to the installation site of the telephone in the rear left side section
Branches A22 to A24 to the installation site of the navigation computer in the rear left side
section
Branches A11 to A20 along the closing panel from the left-hand side of the car to the right-
hand side of the car
Lay branch A11 to the intended installation site for the right TV amplifier above the right wheel arch
and tie it back (only to be connected if you are also installing a video module and the TV amplifier)
Lay branches A16 to A20 to the intended installation site for the video module in the multi-
functional tray under the spare wheel and tie it back (only to be connected if you are also
installing a video module and the TV amplifier)
Branches A12 to A15 to the installation site of the on-board monitor radio in the multi-functional
tray under the spare wheel
Branches A7 and A9 to the aerial amplifier above the left wheel arch
The on-board monitor wiring harness A runs along the main wiring harness in front of the
rear seat bench to the cardan tunnel and is installed from there to the left of the cardan tunnel
towards the front behind the I-panel to the installation location of the on-board monitor and
fastened with cable straps or textile adhesive strip.
Branch cable A1 to A3 to the installation location of the on-board monitor in the I-panel
Branch cable A4 to the installation location of the light module in the A-pillar, lower right
Branch cable A5 and A6 to the installation location of the instrument cluster in the I-panel.
Tie back any excess lengths.
EN/9
Retrofit/Installation kit No. 65 90 0 025 169 Issue date: 10.2001
Installation instructions No. 01 29 0 030 090
