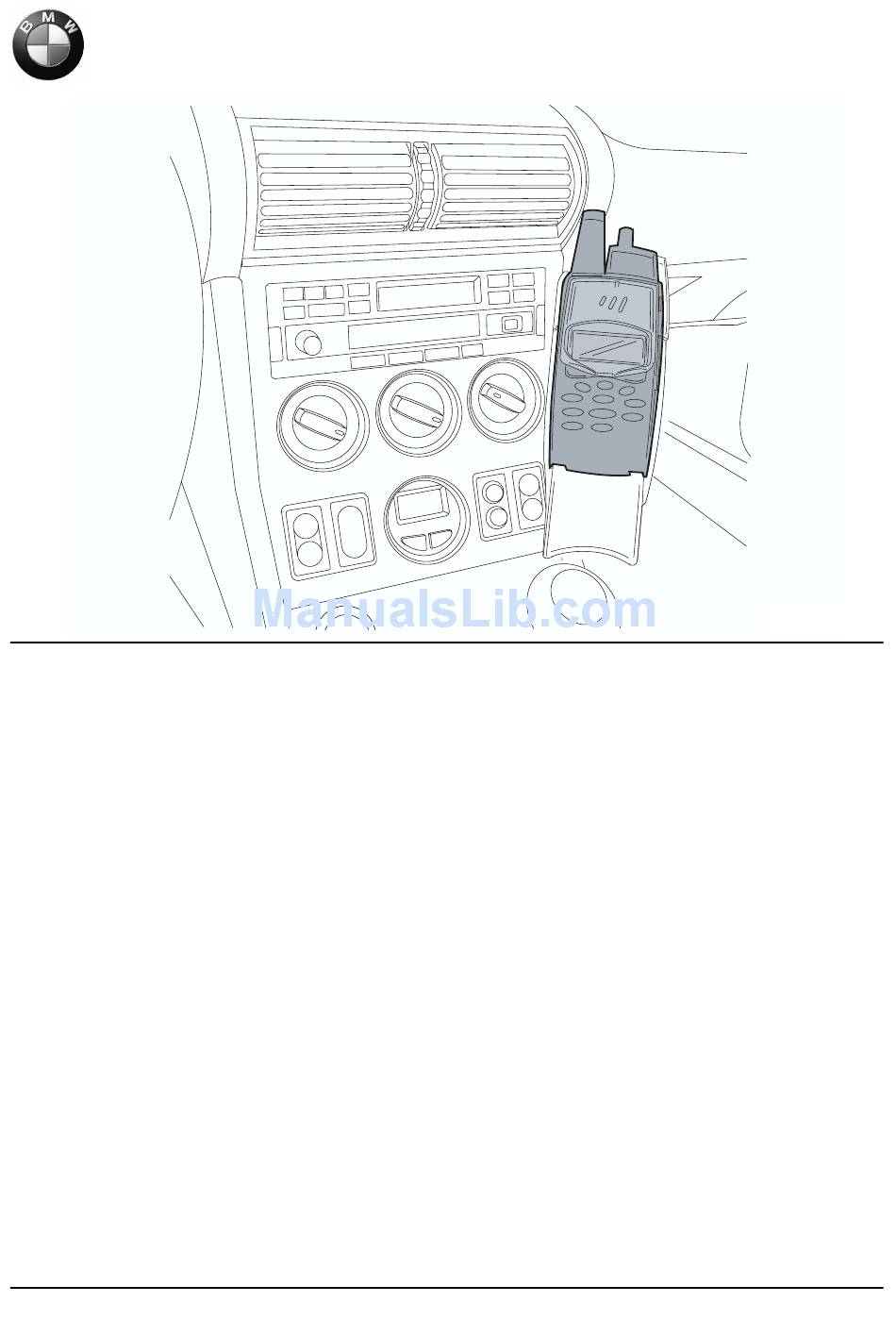

036 0086 Z Retrofit hands-free kit for Ericsson mobile phones Series T39 BMW Z3 (E 36/7) roadster and coupé The installation time is approx. 2 hours, but this may vary depending on the condition of the car and the equipment in it.
Ensure that the cables/lines are not kinked or damaged as you install them in the car. Target group The target group for these installation instructions is specialist personnel trained on BMW cars with the appropriate specialist knowledge. All work must be completed using the latest BMW repair manuals, circuit diagrams, servicing manuals and work instructions in a rational order using the prescribed tools (special tools) and observing current health and safety regulations.
Preparations TIS instruction No. Conduct a brief test Disconnect the negative pole of the battery 12 00 ... The following components must be removed first of all: Glove box on the right 51 16 360 Sun visors, left and right 51 16 104 Interior rear-view mirror 51 60 063...
Parts list 036 0087 Z Legend Power supply wiring harness Mute circuit wiring harness Mobile phone holder Adhesive windscreen aerial Speaker Hands-free control module Hands-free control module holder Hands-free microphone Velcro tape Retaining plate for the mobile phone holder Telephone console, top section Telephone console, bottom section Plug contact (3x) Plug casing (3x)
Hands-free kit connection overview 036 0088 Z Cable colour / Item Description Signal Connection location in the car Abbreviation / Slot Cross-section Power supply wiring harness Cable branch Earth With enclosed socket and plug contact on X18126 0.75 mm radio plug PIN 15 Cable branch Terminal...
To install and connect the wiring harness Lay branches A1 – A2 and B1 to the radio plug X18126 . A1-A2 X18126 036 0089 Z Connect branches A1 – A2 as follows to the cables in plug X18126 : X18126 - A1 , SW cable, to BR cable PIN 15 - A2 , RT cable, to RT/GN cable PIN 9 A1-A2...
To install the speaker Unscrew both knurled-head bolts (1) and remove the holder (2) from the speaker E . Place speed nuts S on the holder (2). 036 0100 Z Position the holder (2) on to the bottom trim (1) as shown and mark it.
To install the hands-free microphone and adhesive windscreen aerial File out the cable passage hole (1) near the interior light with a round file in the windscreen panel trim (2). 036 0029 Z Clean the windscreen in the area where the aerial is to be affixed, see “Important information”.
To install the telephone console and hands-free control module Connect the bottom section of the telephone console L to the top section K . Drill holes with a 3 mm twist drill and connect the bottom section L and the top section K using Philips screws Q . 036 0094 Z Drill the cable passage (1) for the mobile phone holder in the bottom section of the telephone console L as shown...
Page 12
To install the telephone console and hands-free control module Place the retaining plate J on the top section of the telephone console L and mark the fixing holes. Drill the holes with a 3 mm twist drill and secure the retaining plate J with Philips screws (1).
Page 13
To install the telephone console and hands-free control module Secure the hands-free control module and holder G to the retaining screw (1). Connect the aerial cable from the mobile phone holder (2) and adhesive windscreen aerial (3). 036 0103 Z Do not damage the cable as you secure the telephone console.
Concluding work - Connect battery - Conduct a brief test - Conduct a function test - Re-assemble the car EN/14 Retrofit kit No. 84 64 0 147 581 Installation Instructions No. 01 29 0 147 585 Issue date: 02.2002...
Page 16
10. Hands-free kit circuit diagram Legend Hands-free control module Hands-free microphone Speaker Mobile phone holder SW 2-pin pawl plug SW 2-pin pawl plug SW 10-pin plug WS 5-pin plug SW 2-pin plug Twin-lead terminal Twin-lead terminal Twin-lead terminal X18126 Radio plug To standard wiring harness All designations with an asterisk (*) only apply to these installation instructions and these circuit diagrams.
