BMW Parts and Accessories

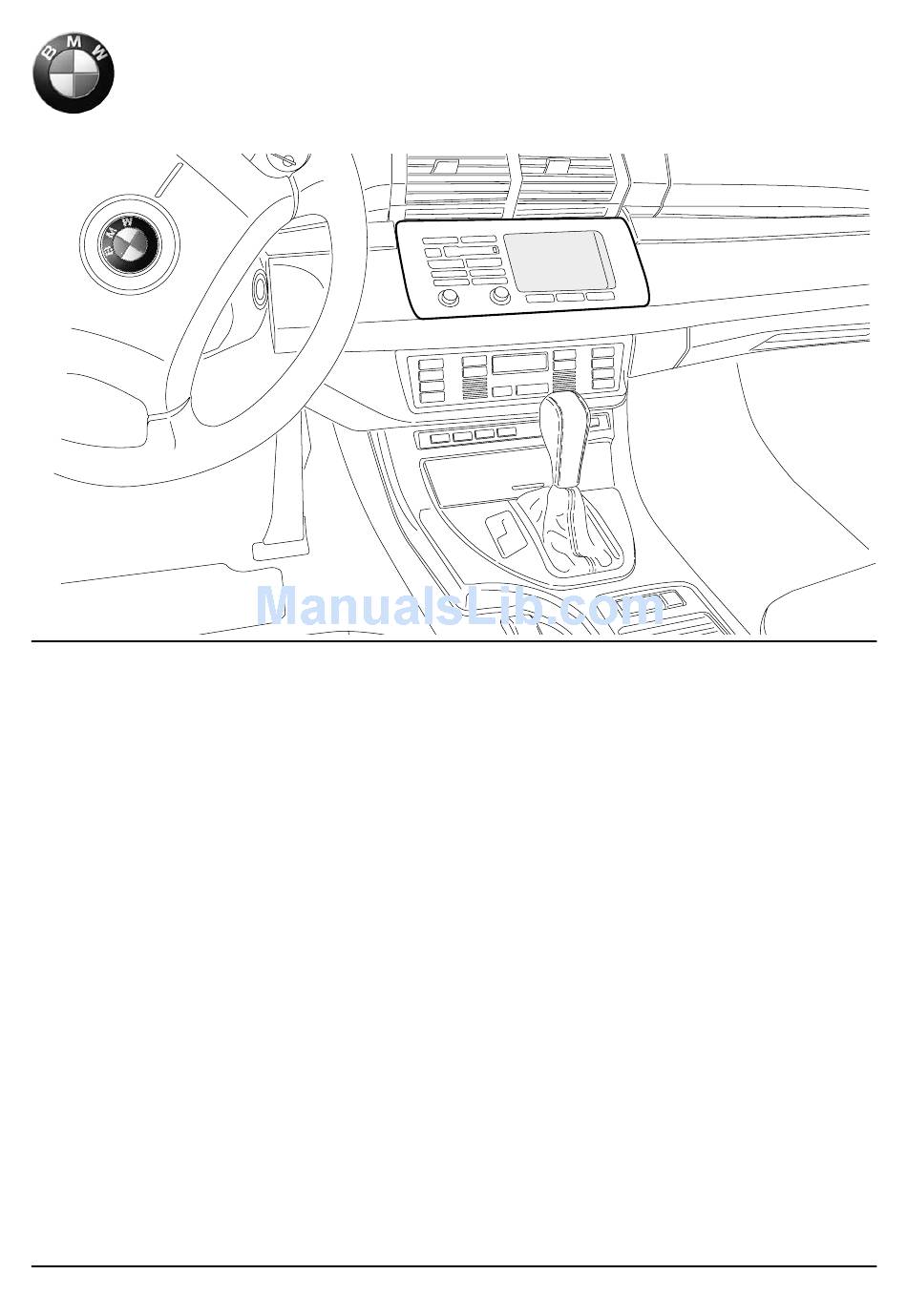

Installation Instructions
On-board monitor and navigation system retrofit kit
BMW X5 (E 53) LHD
These installation instructions are only valid for LHD cars, prior to production date 10/00,
which are equipped with SA 555 high on-board computer.
Specialist and electrical knowledge required.
The installation time is 7 hours, but this may vary depending on the condition of the car and
the equipment in it.
Retrofit/Installation kit No. 65 90 0 025 169
Retrofit/Installation kit No. 65 90 0 025 169
Installation instructions No. 01 29 0 030 090
Issue date: 10.2001
F 53 0711 B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X5 (E53) LHD and is the answer not in the manual?

Questions and answers

Summary of Contents for BMW X5 (E53) LHD

  • Page 1 Installation Instructions F 53 0711 B On-board monitor and navigation system retrofit kit BMW X5 (E 53) LHD These installation instructions are only valid for LHD cars, prior to production date 10/00, which are equipped with SA 555 high on-board computer.
  • Page 2: Table Of Contents

    Contents Section Page 1. Important information on installing the on-board monitor and the navigation system ..................1 2. Preparations ........................ 2 3. Parts overview......................4 4. Connection overview....................6 5. Installation diagram for the on-board monitor wiring harness ........9 6.
  • Page 3: Important Information On Installing The On-Board Monitor And The Navigation System

    Important information on installing the on-board monitor and the navigation system Only for use in the BMW dealer organisation. The on-board monitor and navigation system may only be installed by a specialist workshop that has the required special tools and manuals (servicing, repair, diagnostics, etc.).
  • Page 4 2. Preparations TIS AW No. Print out error memory Disconnect battery 12 00 ... Dismantle decor strip on right by the side of the steering column 51 16 221 Dismantle decor strip above the glove box 51 16 221 Unclip flap of radio compartment (no longer required) 51 16 221 Dismantle radio (no longer required) 65 11 030...
  • Page 5: Preparations

    2. Preparations TIS AW No. Remove the multi-functional tray cover below the spare wheel Remove the top inside tailgate trim 51 49 056 Remove the side inside tailgate trim on both sides 51 49 053 Remove the rear spoiler from the tailgate at the top on the outside 51 71 412 EN/3 Retrofit/Installation kit No.
  • Page 6: Parts Overview

    3. Parts overview F 53 0712 B On-board monitor wiring harness Aerial extension for GPS aerial GPS aerial On-board monitor module holder, top On-board monitor module holder, bottom Spacer plate Plastic screw 3.5x10 (5x) Self-tapping screw 3.5x6.5 (3x) On-board monitor, complete 10 Double insulation-piercing connector (3x) 11 Speed nut 4.2 mm (2x) 12 Fillister self-tapping screw with washer 4.2x19 (2x)
  • Page 7 Parts overview F 53 0713 B 15 Holder for amplifier 16 Base holder, front 17 Base holder, rear 18 Navigation computer holder 19 Navigation computer 20 Hexagonal nut with washer M5 21 Hexagonal screw with washer M5x14 (9x) 22 Speed nut M5 (8x) 23 Hexagonal screw with washer M6x12 (3x) 24 Rubber grommet (2x) 25 Removal bar (2x)
  • Page 8: Connection Overview

    4. Connection overview F 53 0714 B Item Description Cable colour Connection site in the car On-board monitor wiring harness Blue 12-pin To blue 12-pin plug casing on the on-board monitor (9) socket casing White 12-pin To white 12-pin plug casing on the on-board monitor (9) socket casing Black 17-pin plug casing To radio connection plug X18126...
  • Page 9 Connection overview Cable colour Connection site in the car Item Description Coaxial plug casing black To the coaxial socket casing on the aerial amplifier above the left wheel arch Cable eyelet, 6 mm brown To earth post X13016 above the left wheel arch in diameter Angled coaxial socket casing black...
  • Page 10 Connection overview F 53 0803 B Item Description Cable colour Connection site in the car Aerial extension for GPS aerial To GPS aerial (3) Coaxial plug casing black To navigation computer (19) Coaxial socket casing black EN/8 Retrofit/Installation kit No. 65 90 0 025 169 Issue date: 10.2001 Installation instructions No.
  • Page 11: Installation Diagram For The On-Board Monitor Wiring Harness

    5. Installation diagram for the on-board monitor wiring harness A17+A18 X13016 F 53 0715 B The on-board monitor wiring harness A is to be laid along the audio or main wiring harness and secured with cable ties as shown in the figure. When installing the on-board monitoring wiring harness A start at the earth post X13016 above the left wheel arch.
  • Page 12 6. To prepare the module holder in the instrument panel for the installation of the on-board monitor Illustration shows functional support of the radio in the I-panel. Cut the functional support of the radio (40) at the places indicated with a compressed-air saw and remove the grey area (41) behind.
  • Page 13 To prepare the module holder in the instrument panel for the installation of the on-board monitor Place the bottom on-board monitor holder (5) into the cut out radio module holder (40) (push it right to the back). Mark the five mounting points (41) and remove the bottom on-board monitor holder (5) again.
  • Page 14: To Prepare The Module Holder In The Instrument Panel

    To prepare the module holder in the instrument panel for the installation of the on-board monitor Carefully cut the cross strut (40) off the radio module holder (41) along the top on-board monitor holder (4) using an oscillating saw. Ensure that you do not damage the top on-board monitor holder (4) as you cut the strut.
  • Page 15: To Install The On-Board Monitor Wiring Harness And On-Board Monitor

    To install the on-board monitor wiring harness and on-board monitor X13016 The figure shows the boot at the rear left above the left wheel arch. Screw branch A10, cable eyelet, 6 mm diameter on the on-board monitor wiring harness A, to A1-A6 earth post X13016 above the left wheel arch.
  • Page 16 To install the on-board monitor wiring harness and on-board monitor The figure shows the left footwell. Carefully cut the carpet (40), as shown in the figure, using a universal knife to make it easier to place it around the on-board monitor wiring harness A.
  • Page 17 To install the on-board monitor wiring harness and on-board monitor Connect branch A5, free cable end, brown/red cable, on the on-board monitor wiring harness A, X10114 to the DFAHL signal, brown/red cable, PIN1 on the connection plug X10114 using a double insulation-piercing connector (10).
  • Page 18 To install the on-board monitor wiring harness and on-board monitor Connect branch A1, blue 12-pin socket casing on the on-board monitor wiring harness A, to the on-board monitor (9). Connect branch A2, white 12-pin socket casing, to the on-board monitor (9). Then insert the cables into the radio module holder (42) and carefully slide the on-board monitor (9) into position until it engages.
  • Page 19 To install the on-board monitor wiring harness and on-board monitor Lay branch A11, angled coaxial socket casing on the on-board wiring harness A, along the standard wiring harness (40) to the right wheel arch, secure it with cable ties and tie it back (only to be connected if you are also installing a video module and the TV amplifier).
  • Page 20: To Install The On-Board Monitor Radio

    8. To install the on-board monitor radio The figure shows the multi-functional tray in the boot. If the two rubber grommets (40) are not fitted in the unit holder (41), the two rubber grommets (24) supplied in the retrofit/ installation kit must be fitted. Then insert the on-board monitor radio (14) into the rubber grommets (40/24) as shown in the figure.
  • Page 21: To Install The Audio Module Holder (Only Required For Cars Without An Audio Module Holder)

    9. To install the audio module holder (only required for cars without an audio module holder) The figure shows the rear left of the boot. Place the amplifier holder (15) on the two bottom stud bolts (40) and the two side stud bolts (41). F 53 0741 B Secure the amplifier holder (15) to the stud bolts (30) using two hexagonal nuts with washers...
  • Page 22: To Install The Navigation System

    10. To install the navigation system 40 42 The figure shows the tailgate under the rear spoiler from the outside. Connect the GPS aerial (3) to the two stud bolts (40) on the tailgate (41) and secure it with two hexagonal nuts with washers M6 (13). Thread the connection cable (42) for the GPS aerial (3) through the opening in the tailgate (41) into the interior of the car and fit the rubber...
  • Page 23 10. To install the navigation system Secure the navigation computer holder (18) using four hexagonal screws with washers M5x14 (21) to the speed nuts M5 (22) you fitted previously. Thread branches A22 and A24, blue 18-pin socket casing, and branch A23, Bordeaux 18-pin socket casing on the on-board monitor wiring harness A, from the rear through the navigation computer holder (18).Tie back branch A24, with...
  • Page 24: Coding And Concluding Work

    11. Coding and concluding work If the video module and the TV amplifier forTV function are also installed in the car, the coding and concluding work is not to be completed until after the video module and the TV amplifier forTV function have been installed (see section 12 for a description of the connections forTV function).
  • Page 25 11. Coding and concluding work The DSP amplifier must also be recoded on cars with a DSP amplifier. Procedure – Connect the DIS/MoDIC to the car – Switch the ignition "ON" – Select "Coding ZCS" – Enter the date and confirm with "Y" (MODIC only) –...
  • Page 26: Connection Description Fortv Function

    12. Connection description forTV function This section is only required if the car is also to be upgraded with the TV function. To complete the upgrade the required parts (video module,TV amplifier and small parts) must be ordered separately using the electronic parts catalogue (EPC) and installed. In addition the appropriate branches of the wiring harnesses A must be connected as follows: Release the tied back branch A8, angled coaxial socket casing on the on-board monitor wiring harness A and connect it to the TV amplifier installed previously above the left wheel...
  • Page 27: Circuit Diagram For On-Board Monitor Wiring Harness

    13. Circuit diagram for on-board monitor wiring harness On-board monitor wiring harness - I- EN/25 Retrofit/Installation kit No. 65 90 0 025 169 Issue date: 10.2001 Installation instructions No. 01 29 0 030 090...
  • Page 28 13. Circuit diagram for on-board monitor wiring harness On-board monitor wiring harness - II- EN/26 Retrofit/Installation kit No. 65 90 0 025 169 Issue date: 10.2001 Installation instructions No. 01 29 0 030 090...
  • Page 29 13. Circuit diagram for on-board monitor wiring harness radio X18126 on-board monitor VB I-bus A196 X18344 video module on-board monitor operating unit A197 X18801 diversity on-board monitor A421 X18802 amplifier,TV video module II A453 X18804 radio radio II X18805 VB R video module III X229 X18806...
