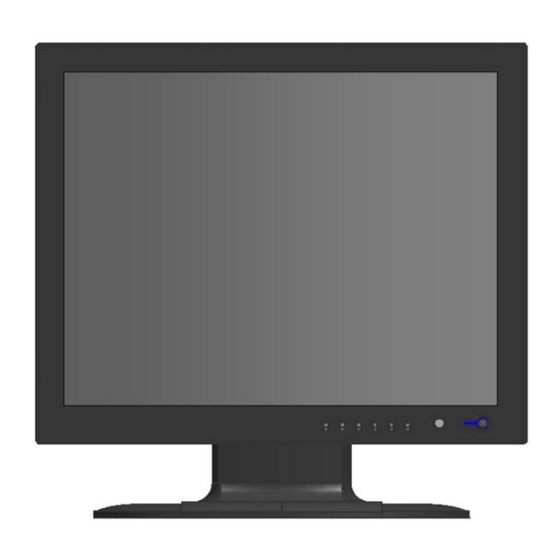

17/19-INCH VALUE
TFT-LCD MONITOR
INSTRUCTION MANUAL
Please read this manual thoroughly before use, and keep it handy for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 17-INCH and is the answer not in the manual?

Questions and answers

Summary of Contents for ViewZ 17-INCH

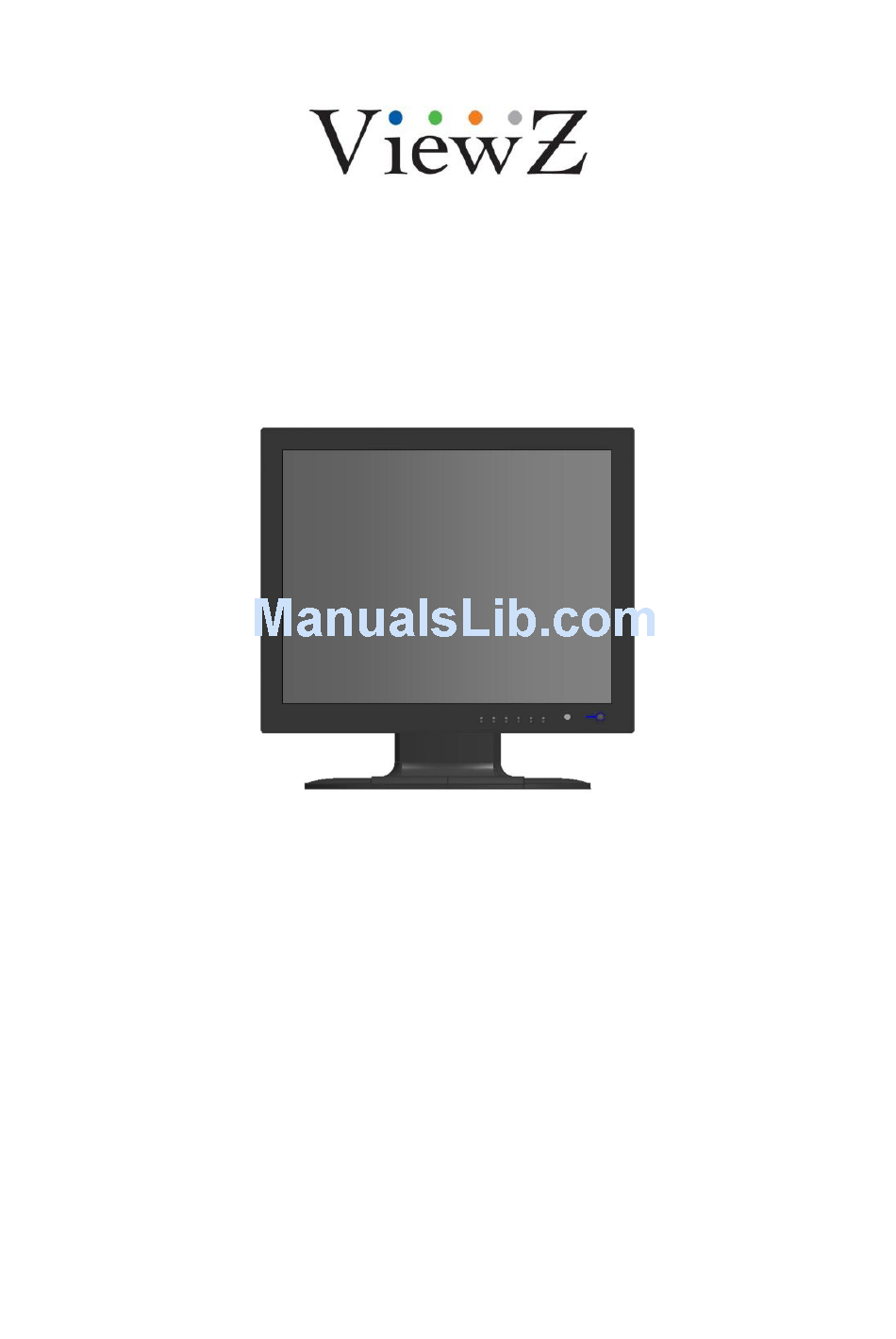

  • Page 1 17/19-INCH VALUE TFT-LCD MONITOR INSTRUCTION MANUAL Please read this manual thoroughly before use, and keep it handy for future reference.
  • Page 3 SAFETY INSTRUCTION ………………………………………………………………….. 2 ~ 3 CAUTIONS ………………………………………………………………......FCC RF INTERFERENCE STATEMENT ……………………………......CONNECTING WITH EXTERNAL EQUIPMENT ………………………………………. REMOTE FUNCTIONS …………………………………………………………………… CONTROLS AND FUNCTIONS ………………………………………………………….. 8 ~ 17 MOUNTING GUIDE ……………………………………………………………………….. D-SUB CONNECTOR PIN ASSIGNMENTS ……………………………………………. POWER MANAGEMENT …………………………………………………………………. SPECIFICATIONS …………………………………………………………………………. TROUBLE SHOOTING GUIDE …………………………………………………………...
  • Page 4: Important Safety Instruction

    Important Safety Instruction 1. Read these instructions. 2. Keep these Instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 5 - The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed no the apparatus. - Minimum distances(e.g. 10cm) around the apparatus for sufficient ventilation. “WARNING - To reduce the risk of fire or electric shock, do not expose the apparatus to rain or moisture.” “The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.”...
  • Page 6 CAUTION The power supply cord is used as the main disconnect device, ensure that the socket-outlet is located/installed near the equipment and is easily accessible. ATTENTIONN Le cordon d`alimentation est utillsé comme interrupteur général. La prise de courant doit être située ou installée à...
  • Page 7: Doc Compliance Notice

    NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 8 A. BOTTOM PANEL CONTROL 1. DC 12V IN 2. D-SUB IN PC Signal Input 3. VIDEO 1(AV1) IN Composite signal Input for AV1 4. VIDEO 1(AV1) OUT Video looping output for AV1 5. VIDEO 2(AV2) IN Composite signal Input for AV2 6.
  • Page 9: Remote Controller (Option)

    B. REMOTE CONTROLLER (Option) 1. POWER( Turns the power ON or OFF. There will be a few seconds delay before the display appears. 2. SOURCE Select pc or video( AV1 / AV2 / PC ) sources. 3. APC (Auto Picture Control) Select picture mode.
  • Page 10: Power Led

    C. FRONT KEY CONTROL 1. SOURCE / Select input source, and move the previous menu. 2. MENU Activates and exits the On Screen Display. This button can also be used to move previous menu or status. 3, 4. AUTO/▼, ▲ These buttons allow user to move the sub-menu of the activated function.
  • Page 11: Osd Menu Description

    OSD MENU DESCRIPTION A: PICTURE MENU (for AV1 & AV2 input) 1) Press the MENU button. 2) Press the up(▲) or down(▼) button to select the PICTURE. 3) Press the up(▲) or down(▼) button to select the PICTURE sub menu. 4) Press the left(◀) or right(▶) button to adjust the sub menu setting.
  • Page 12: Sound Menu

    B. SOUND MENU 1) Press the MENU button. 2) Press the up(▲) or down(▼) button to select the SOUND. 1. VOLUME 1) Press the right(▶) or enter button 2) Press the up(▲) or down(▼) button to select the Volume. 3) Press the left(◀) or right(▶) button to adjust the Volume. 10 …………………………………………………………………….
  • Page 13 2. Mute 1) Press the up(▲) or down(▼) button to select the MUTE. 2) Press the left(◀) or right(▶) button to select the ON or OFF. INSTRUCTION MANUAL ……………………………………………………………………. 11...
  • Page 14: Contrast & Brightness

    C. PC MENU(for PC input) 1) Press the MENU button. 2) Press the up(▲) or down(▼) button to select the PC. 1. CONTRAST & BRIGHTNESS 1) Press the up(▲) or down(▼) button to select the CONTRAST and BRIGHTNESS. 2) Press the left(◀) or right(▶) button to adjust the CONTRAST and BRIGHTNESS Setting. 12 …………………………………………………………………….
  • Page 15 2. H. POSITION, V. POSITION, CLOCK & PHASE 1) Press the up(▲) or down(▼) button to select the PC sub Menu. 2) Press the left(◀) or right(▶) button to adjust the PC image setting. • H. POSITION : Move image horizontally on screen right or left. •...
  • Page 16: Color Mode

    3. COLOR MODE 1) Press the up(▲) or down(▼) button to select the COLOR MODE. 2) Press the right(▶) or enter button. 3-1. AUTO COLOR 1) Press the up(▲) or down(▼) button to select the AUTO COLOR. 2) Press the right(▶) or enter button. •...
  • Page 17: Color Temp

    3-2. COLOR TEMP 1) Press the up(▲) or down(▼) button to select the COLOR TEMP. 2) Press left(◀) or right(▶) button to select the color temp mode. 3-3 COLOR TEMP - USER 1) Press left(◀) or right(▶) button to select the USER in the COLOR TEMP. 2) Press the up(▲) or down(▼) button to select the RED, GREEN and BLUE.
  • Page 18: Setup Menu

    D. SETUP MENU 1) Press the up(▲) or down(▼) button to select the SETUP. 2) Press the right(▶) or enter button. 1. LANGUAGE 1) Press the left(◀) or right(▶) button to select the OSD language. 16 ……………………………………………………………………. INSTRUCTION MANUAL...
  • Page 19 2. H. POSITION, V. POSITION, OSD TIMER, TRANSPARENT(for OSD control) 1) Press the up(▲) or down(▼) button to select the SETUP sub menu. 2) Press the left(◀) or right(▶) button to adjust the OSD Setting. • H. POSITION : Move OSD horizontally on screen right or left. •...
  • Page 20 Using the VESA standard wall mount design and the 100mm hole pattern on the back panel to install the LCD monitor to the wall. Wall-mount Installation (Option) 1. The Monitor fixing bracket to the monitor using the fixing screws provided. 2.
  • Page 21 ▶ PIN ASSIGNMENTS Pin 1 RED VIDEO GREEN VIDEO SIGNAL CABLE DETECT BLUE VIDEO GROUND GROUND SDA(for DDC) GROUND H-SYNC.(or H+V SYNC.) RED GROUND V-SYNC. GREEN GROUND SCL(for DDC) BLUE GROUND ▶ ACCESSORIES 1. Power cord 2. Power adaptor 3. User’s manual 4.
  • Page 22: Power Consumption

    This monitor features a power management system to “power down” upon receipt of the VESA DPMS(The display power management signaling) from a VESA DPMS video card. The VESA DPMS-compliant video card performs this signaling system through not sending horizontal, vertical, or sync signal. This monitor enters an appropriate mode through identifying each of the three modes of the signaling system.
  • Page 23 17’’ 19’’ 17˝ Diagonal AM-TFT(Active-Matrix) 19˝ Diagonal AM-TFT(Active-Matrix) Pixel pitch(mm) : 0.264(H) x 0.264(V) Pixel pitch(mm) : 0.294(H) x 0.294(V) BRIGHTNESS: 250cd/㎡(Typical) BRIGHTNESS: 250cd/㎡(Typical) LCD-Type CONTRAST RATIO: 1000:1(Typical) CONTRAST RATIO: 800:1(Typical) RESPONSE TIME: 5msec(Typical) RESPONSE TIME: 5msec(Typical) RESOLUTION (H x V) 1280X1024 @60Hz HORIZONTAL: 31~64KHz FREQUENCY...
  • Page 24: Weee Symbols

    WEEE Symbols Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.
  • Page 25 MEMO...
  • Page 26 MEMO...
  • Page 27 MEMO...
  • Page 28 P/N : L39ME0168 Rev.6...
