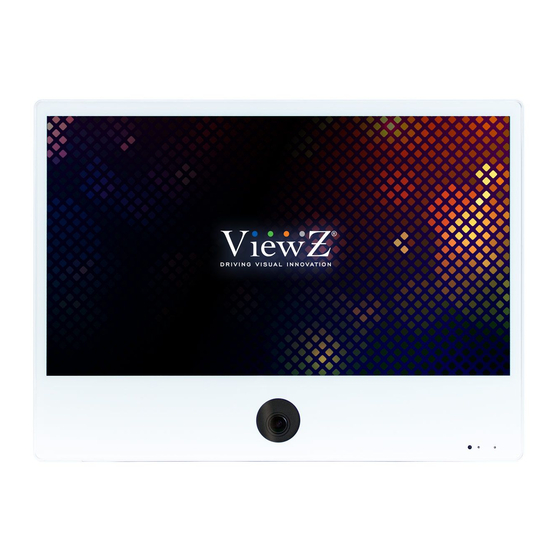

- Page 1 VZ-HD-PVMN SERIES 23", 27" & 32" HD PUBLIC VIEW MONITOR HD-PVM N USER MANUAL Please read this manual thoroughly before use, and keep it handy for future reference.
-
Page 2: Table Of Contents
CONTENTS Safety Instruction ....................................... 1. Mark Indication & Substance ............................... 2. Warning ........................................ 3. Caution ........................................5. Dot Defect (dead pixel) of TFT ..............................6. FCC RF INTERFERENCE STATEMENT ............................7. WIRING (DC 24V) ....................................Installation ........................................1. Package ........................................2. -
Page 3: Safety Instruction
SAFETY INSTRUCTION Important Safety Instruction 1. Read all warnings. 2. Follow all instructions to ensure longevity of monitor. 3. Do not place the monitor near water. 4. Clean only with dry cloth. 5. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 6. -
Page 4: Mark Indication & Substance
SAFETY INSTRUCTION Important Safety Instruction Mark Indication and Substance CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL This symbol is intended to alert the user to the presence of uninsulated & dangerous voltage within the monitor’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. -
Page 5: Caution
While most pixel faults occur in isolated regions, a cluster of dead pixels or sub-pixels can sometimes form for which a separate ruling applies. A cluster is defined as an area of 5x5 pixels. ViewZ’s policy on pixel failure: either as an isolated fault or in the form of a cluster is outlined on the website: www.viewzusa.com... -
Page 6: Fcc Rf Interference Statement
FCC RF INTERFERENCE STATEMENT Note This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 7: Wiring (Dc 24V)
Input : Power Source output terminal / Output : Set input terminal VZ-DC24-320 ( Power Transformer) Test Result 23” HD-PVM-N - MONITORS - VZ-PVM-Z2B3N & Z2W3N Cable Type - 18AWG (Current : 12~19 A) 1 Set of HD-PVM-N 2 Set of HD-PVM-N... -
Page 8: Installation
DC24V Connector (Qty 1) User Manual (Qty 1) Remote Controller (Qty 1) Mounting Option Your ViewZ monitor is compatible with ViewZ monitor mounts. For more information, please contact ViewZ USA at (888)-998-4399. Wall Mount • Part # WM05 • Part # WM11 •... -
Page 9: Interface
CONNECT EXTERNAL EQUIPMENTS Interface Input Ports The following image is the description of interface input ports q w e r t y u i 1. HDMI IN 2. AV ( BNC ) IN 3. VGA (15 Pin D-Sub) IN 4. AUDIO IN / OUT 5. -
Page 10: Remote Control Function
REMOTE FUNCTION Remote Controller Remote Controller 1. Power 2. Source - Select Input Source 3. Mute - Turn off the sound 4. Menu - Enter / Exit OSD 5. Exit - Exit OSD with saving current value 6. Left & Right ◄(VOL)►, Up & Down ▲▼ 7. -
Page 11: Function
CONTROL AND FUNCTION On Monitor, Front Area w e r 1. Built-in Camera / Motion Detection 4. Recording Indicator LED The monitor will display the built-in camera's video User can choose a blinking LED color - red, blue, Built-in camera has the motion detection function purple and no color. - Page 12 CONTROL AND FUNCTION On Monitor, Button Control 1. Source 5. Power To select an input source To turn the monitor power on / off 2. Menu To enter or exit the OSD / Select a menu on OSD ◄ (VOL) ► 3.
-
Page 13: Osd Control And Function
CONTROL AND FUNCTION Select Input Source Press 'SOURCE' button on monitor or 'INPUT' button on remote controller Press ▲ / ▼ button to change input source and then press ◄ / ► button to select input source on monitor Press ▲ / ▼ button to change input source and then press ◄ / ► button or Enter to select input source on remote HDMI controller CAMERA... - Page 14 CONTROL AND FUNCTION Picture FUNCTION VALUE 0 ~ 100 CONTRAST Adjust the contrast 0 ~ 100 BRIGHTNESS Adjust the brightness 0 ~ 100 Adjust the hue 0 ~ 100 SATURATION Adjust the color saturation 0 ~ 100 SHARPNESS Adjust the sharpness COLOR TEMP Adjust the color setting See table below...
- Page 15 CONTROL AND FUNCTION Sound ▲/▼ ◄/► MOVE SELECT(ADJUST) MENU RETURN FUNCTION VALUE VOLUME 0 ~ 100 Adjusts the volume 0 ~ 100 BALANCE Adjusts the balance SOUND MODE Selects one of the presets USER / MUSIC / MOVIE / STANDARD LOUDNESS Adjusts preset sound mode MODE 1 / MODE 2/ MODE 3 / MODE 4 / OFF...
- Page 16 CONTROL AND FUNCTION System - OSD SETUP ▲/▼ ◄/► MOVE SELECT(ADJUST) MENU RETURN FUNCTION VALUE OSD LANGUAGE Sets the language of the OSD menu English, Spanish, French Russian, Portuguese OSD DURATION Sets the OSD display time 0 ~ 60 sec RESTORE DEFAULT Resets the monitor settings to the factory default...
- Page 17 CONTROL AND FUNCTION Advance - Adjust Recording Indicator Color / Recording Text ▲/▼ ◄/► RECORDING TEXT Option Window MOVE SELECT(ADJUST) MENU RETURN FUNCTION VALUE RECORDING INDICATOR Sets the color of recording indicator LED OFF / RED / BLUE / PURPLE RECORDING TEXT See table below MOTION DETECTION...
- Page 18 CONTROL AND FUNCTION Advance - Adjust Motion Detection ▲/▼ ◄/► MOTION DETECTION Option Window MOVE SELECT(ADJUST) MENU RETURN FUNCTION VALUE DETECTION ENABLE Enables the MOTION DETECTION function OFF / ON DETECTION INPUT Selects the input source for Motion Detection CAMERA / AV / MEDIA / VGA / HDMI 3 ~ 100 sec DETECTION TIME Adjusts the time to display the swapped image...
- Page 19 CONTROL AND FUNCTION Advance - Adjust Auto Switching ▲/▼ ◄/► AUTO SWITCHING Option Window MOVE SELECT(ADJUST) MENU RETURN FUNCTION VALUE AUTO SWITCHING Enables the AUTO SWITCHING function OFF / ON 3 ~ 100 sec TIME Adjusts the time which the monitor displays one input source before switching to the other * Only selected two input sources can be displayed...
- Page 20 CONTROL AND FUNCTION FUNCTION VALUE Selects PIP or OFF See table below SUB SOURCE Selects PIP input source See table below PIP SIZE Adjusts PIP window size See table below PIP-POSITION Adjusts PIP position See table below SOUND SELECT Selects sound source input MAIN, SUB SWAP Swaps the main display...
-
Page 21: Camera Control And Function
CAMERA CONTROL & FUNCTION Set up the menu Setting can be modified by using the OSD keypad (switch) located on the backside of camera. Press the button to access the MAIN MENU mode. The MAIN MENU is displayed on the monitor. Please select any function you wish to activate by using the UP/DOWN selection. - Page 22 CAMERA CONTROL & FUNCTION Set up the menu - EXPOSURE D-WDR Off D-WDR On SENS-UP x2 SENS-UP x64 SENS-UP x128 FUNCTION VALUE SHUTTER Adjust shutter speed. AUTO & FLK level: 1/60 ~ 1/100000 / X2 ~ X60 AGC(Auto Gain Control) The higher the gain level, the brighter the 0 ~ 15 screen.
- Page 23 CAMERA CONTROL & FUNCTION Set up the menu - BACK LIGHT FUNCTION VALUE Possible to select two areas at AREA SEL & can control GAIN, expand or reduce a length area by HEIGHT and the width area by WIDTH, Move to a width direction by LEFT/RIGHT and the length direction by TOP/BOTTOM.
- Page 24 CAMERA CONTROL & FUNCTION Set up the menu - BACKLIGHT Before After FUNCTION VALUE HSBLC It cuts off the strong lighting like the “headlight”. According to user’s adjustment, zones & sensitivity can be adjustable. In case of the car surveillance, it remarkably performs recognizing License plate or subject HLC is a function to mask bright areas in order to prevent the target object from looking dark...
- Page 25 CAMERA CONTROL & FUNCTION Set up the menu - WHITE BALANCE White Balance Off White Balance On Bad AWB Good AWB FUNCTION VALUE MANUAL Select this to fine-tune White Balance BLUE (0 ~ 100) / RED (0 ~ 100) manually. Set White Balance first by using the ATW or AWC mode.
- Page 26 CAMERA CONTROL & FUNCTION Set up the menu - DAY & NIGHT FUNCTION VALUE DAY & NIGHT Useful in environments that restrict the use of artificial light. COLOR Use to maintain color mode all the time. Use to maintain B/W mode all the time. BURST Alters the color burst information passed to OFF / ON...
- Page 27 CAMERA CONTROL & FUNCTION Set up the menu - DAY & NIGHT FUNCTION VALUE DAY & NIGHT It is a mode to convert Day & Night by received external input signal. D → N (DELAY) Adjust the delay time which transmit 0 ~ 60 from Day mode to Night mode.
- Page 28 CAMERA CONTROL & FUNCTION Set up the menu -NR FUNCTION VALUE Improve S/N ratio and more clean the low illumination quality and can be monitoring at night clearly without the image drag and noise phenomenon. 2DNR Adjust the 2DNR level. OFF / LOW / MIDDLE / HIGH 2DNR is to analyze individual frames of video, using special algorithm filter to mitigate the...
- Page 29 CAMERA CONTROL & FUNCTION Set up the menu -SPECIAL Original Image Motion Detection On 8 Privacy Mask 4 Privacy Mask FUNCTION VALUE SPECIAL CAM TITLE Make a camera title. D-EFFECT FREEZE / MIRROR / NEG FREEZE Freeze the current display picture. MIRROR Reverse the picture vertically or horizontally OFF / V-FLIP / MIRROR / ROTATE...
- Page 30 CAMERA CONTROL & FUNCTION Set up the menu -SPECIAL FUNCTION VALUE SPECIAL LANGUAGE Select the language of OSD ENG / ARB / HEB / JRN / KOR / TUR / NED POR / RUS / POL / SPA / ITA / FRA / GER / CHR DEFECT Adjust the option of dead pixel correction LIVE DPC...
- Page 31 CAMERA CONTROL & FUNCTION Set up the menu - ADJUST FUNCTION VALUE Adjust Adjust the basic camera setup. SHARPNESS Adjust the sharpness. OFF / AUTO LEVEL Adjust the sharpness level. 0 ~ 100 START AGC Select the start point of AGC. 1 ~ 255 END AGC Select the end point of AGC.
-
Page 32: Media Player Control And Function
MEDIA PLAYER CONTROL Remote Controller Media Controller 1. Source - To enter / exit Media player OSD, select the 'Media' on the input source list 2. Menu - Enter / Exit Media player menu 3. Exit - Exit Media player menu 4. - Page 33 MEDIA PLAYER CONTROL Media Card Interface • HDMI OUT Media player looping out • Connect USB or SD card 1. Connect USB or SD card devices to USB or SD Card slot located at the back of the PVM SD Card •...
- Page 34 MEDIA PLAYER CONTROL File Manager File Manager Movies Photos Music Setup File Manger When you select on the entry menu of Media play: button and then press ◄ / ► / ▲ / ▼ buttons to select a file to play or display. 1.
- Page 35 MEDIA PLAYER CONTROL Photos File Manager Movies Photos Music Setup Photos When you select on the entry menu of Media play: button and then press ◄ / ► / ▲ / ▼ buttons to select a image file to display. 1.
- Page 36 MEDIA PLAYER CONTROL Setup File Manager Movies Photos Music Setup When you select Setup on the entry menu of Media play: 1. Press the ENTER button and then press ◄ / ► buttons to select between Video / Audio / System setup. 2.
- Page 37 MEDIA PLAYER CONTROL Setup - Audio When you select Setup on the entry menu of Media play: ENTER button and then press ◄ / ► buttons to select between Video / Audio / System setup. 1. Press the and then press ▲ / ▼ buttons to select the parameters to adjust. 2.
- Page 38 MEDIA PLAYER CONTROL Setup - System When you select Setup on the entry menu of Media play: ENTER button and then press ◄ / ► buttons to select the Video / Audio / System setup. 1. Press the and then press ▲ / ▼ button to select the parameters to adjust. 2.
-
Page 39: Mounting Guide
3. VZ-PVM-Z4B3N/Z4W3N : VESA WALL MOUNT 200mm x 200mm Attention! VZ-PVM-Z2B3N/Z2W3N (100x100) : You must use 4 * M4 x L10 screws to assemble this monitor and the wall mount bracket. VZ-PVM-Z3B3N/Z3W3N (100x100) : You must use 4 * M4 x L10 screws to assemble this monitor and the wall mount bracket. -
Page 40: Specification
SPECIFICATION Model No. VZ-PVM-Z2B3N/Z2W3N VZ-PVM-Z3B3N/Z3W3N VZ-PVM-Z4B3N/Z4W3N Size & Type 23.6" 27" 32" Panel Type 23.6'' LED Backlit Monitor 27'' LED Backlit Monitor 32'' LED Backlit Monitor Pixel Pitch 0.2715 (H) x 0.2715 (V) mm 0.31125 (H) x 0.31125 (V) mm 0.36375 (H) x 0.36375 (V) mm... - Page 41 SPECIFICATION Camera Specification Parameters Description Production Information Product Name 2MP HD Camera Module Main Chipset Sensor 1/2.8 CMOS MN34227 Lens Type Vari-Focal / F1.3 Fixed Iris with ICR Lens Focal Length of the Lens 2.7 ~ 12mm Resolution 1920 (W) x 1080(H) @30Hz CVBS (960H) / 1.0 Vp-p Composite (75Ω) Video System NTSC / PAL...
-
Page 42: Trouble Shooting
At start the current input source. If symptom persists, follow the instructions below. After following the instructions below, please contact us at 1-888-99-VIEWZ. - Make sure the power cable is correctly plugged into the outlet - Make sure the power cable is correctly plugged into the monitor No image or - Make sure the cable is correctly connected between monitor &... -
Page 43: Rma
- The warranty period for this monitor is 3 years. The warranty will be voided for the scenarios listed below. - You can also download the manual and information at VIEWZ web site: VIEWZUSA.COM When power feed to the monitor exceeds capacity and causes damage... -
Page 44: Warranty
What ViewZ USA Will Do At the sole discretion of ViewZ USA, ViewZ USA will repair or replace any product or product part that is defective. If ViewZ USA chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.
