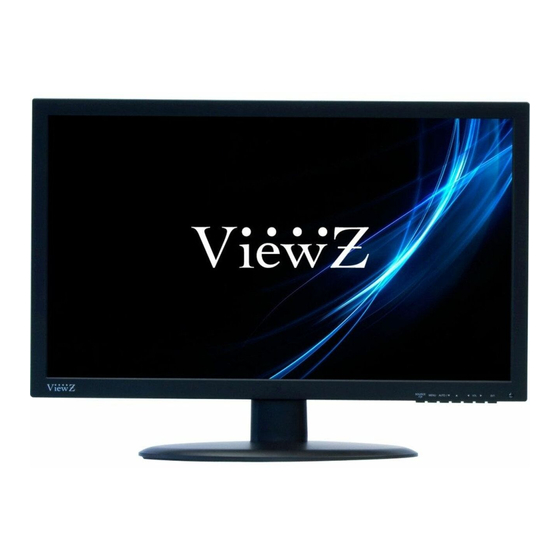

- Page 1 21.5” HD-SDI / 3G Broadcast Monitor 215LEDSN USER GUIDE(v1.0) Driving Visual Innovation Please read this manual carefully to ensure proper use, including connection and operation. Also, keep this manual for future use.
- Page 2 Class B Equipment (Broadcasting and Telecommunications Equipment for Home Use) This equipment is for home use (Class B) and granted a Certificate of Conformity for electromagnetic radiation. It is designed for home use and can be used in all regions. (These images are for illustrative purposes only.
- Page 3 Excessive bending of the power plug may cause disconnection or a short circuit. - Please note that disconnection may cause a fire or accident due to a short circuit. Do not remove the power cord while using the monitor. - An electric shock occurring during disconnection may damage the monitor. Installation Instructions If the monitor is to be installed and used in a special place rather than under normal conditions, the surroundings may cause serious quality problems.
- Page 4 To mount a wall-mount monitor on the wall, please consult an expert. - Installation by an unqualified person may cause personal injury. Make sure to use the designated mounting device. Cleaning and Use Instructions Do not spray a cleaning solution directly on the monitor. - Directly spraying on the monitor may significantly increase the risk of discoloration, cracks, or peeling of the LCD panel surface.
- Page 5 Do not cover the air vent. - Improper ventilation may cause monitor failure or a fire. If the product is not used for a long time, disconnect the power cord. - Dust buildup may result in an electric shock or short circuit or fire due to heat output, ignition or deteriorating insulation.
- Page 6 Checking Control Buttons / Names & Functions of I/O Port ……………………...… Checking Control Buttons Names & Functions of I/O Port Menu Tree & Control ………..................Menu Tree Menu Control To Get Started……………………...……………………………………………………… Menu Controls and Functions ………….……………..………………..……………..… Picture Settings. Color Settings Audio Settings Marker Settings System Settings...
- Page 7 Checking Control Buttons / Names & Functions of I/O Ports Checking Control Buttons 1. Power 2. Auto 3. Enter 4. Up 5. Down 6. Menu 7. Source 2. Names and Functions of I/O Ports 1. DC 12V In 6. YPbPr 2.
-
Page 8: Menu Tree & Control
1) Picture Settings 2) Color Settings 3) Audio Settings 4) Marker Setting 5) System Settings The picture above shows Picture Settings menus in ViewZ monitor. 2. Menu Control Menu control can be handled by front keys 1) Menu 2) Up... -
Page 9: To Get Started
To Get Started To get ViewZ monitor started, connect required power and choice of your input signal. Turn on the power button on the front. 1) To choose the input signal after cable connection, please use Source button on front. -
Page 10: Menu Controls And Functions
Aperture - used to control sharpness level from 0 to 24 (0 for smooth and 24 for edge) - ViewZ recommend to use internal pattern edge for easier selection NTSC Setup - used to control the difference black level when NTSCJ for Japan is used - used for component signal only ... - Page 11 Menu Controls and Functions 2. Color Settings Color Temp - used to control color temperature - users can choose 3200K, 6500K, 9300K, User 1, User 2, and User 3 - in user # mode, users can define RGB Gain and Bias values for own purpose ...
- Page 12 Menu Controls and Functions 3. Audio Settings Volume - used to control volume level of the internal speaker or audio out on the back of the monitor from 0 to 100 - shown in grey as it can be controlled by front knobs without entering the menu ...
- Page 13 Menu Controls and Functions 3. Audio Settings (Continued) Sound Channel (SDI) - used to set embedded audio channel for internal speaker or Audio Out - select from CH1, CH2, CH1+CH2, CH3, CH4, CH3+CH4, CH5, CH6, CH5+CH6, CH7, CH8, CH7+CH8, CH9, CH10, CH9+CH10, CH11, CH12, CH11+CH12, CH13, CH14, CH13+CH14, CH15, CH16, and CH15+CH16 - when CH1 is chosen, user can hear Ch1 from both speakers.
- Page 14 Menu Controls and Functions 4. Marker Settings Marker On/Off - used to activate the marker function - Marker should be ON to use any features in Marker Setting menu Line Marker - used to select user’s desired marker type - available in off, 16:9, 4:3, 4:3(on air), 15:9, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1 and 4:3 ...
- Page 15 Menu Controls and Functions 5. System Settings Scan - used to change the scan mode among zero scan, over scan, and pixel to pixel - wen pixel to pixel is on, turn the main jog to move the position - when system setting is in pixel to pixel, marker features don't work ...
- Page 16 Menu Controls and Functions 6. System Settings (Continued) Power Saving - select between off and DPMS - when DPMS is selected and there's no input signal for longer than 15sec, monitor takes sleep mode - LED light on front: red-power off, green-power on, orange blink-no input, orange- DPMS(sleep mode) ...
-
Page 17: Specification
Specification VZ-LEDSN Display Screen Size 21.5" Max Resolution 1920 X 1080 0.08265mm X 0.24795mm Pixel Pitch Brightness 250cd/㎡(Typical) 1000:1 Contrast Ratio Aspect Ratio 16:9 170°/160° Viewing Angle (H/V) Color Depth 16.7M Input Connector 1 x BNC SDI (SD/HD/3G) 3 x BNC COMPONENT Input 1 x HDMI HDMI Input... - Page 18 Dimensions 20.25" x 14.56” x 1.77" Outline Dimension (W x H x D) (514.5mm x 370mm x 45mm) Net Weight 8.4lbs (3800g) General Power DC 12V Power Consumption Operating Temperature 0~40℃ (32~104℉) - 13 -...
- Page 19 Memo - 14 -...
-
Page 20: Operation Manual
VZ-215LEDSN MODEL HD-SDI / 3G Broadcast Monitor OPERATION MANUAL © Aug. 2014 by Orion Technology Co., Ltd □ All rights reserved. Reproduction or duplication, without permission of Orion Technology of edition or contents in whole in part, any manner, is prohibited.
