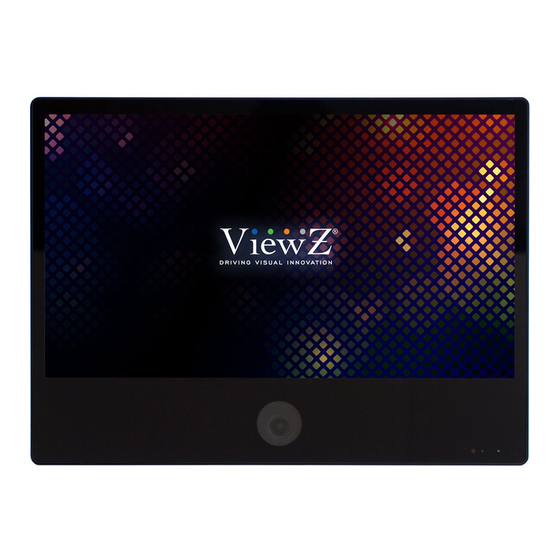

- Page 1 VZ-IP-PVMN SERIES 23", 27" & 32" IP PUBLIC VIEW MONITOR IP-PVM N USER MANUAL Please read this manual thoroughly before use, and keep it handy for future reference.
-
Page 2: Table Of Contents
2. Interface ........................................ 3. Remote Control Function ................................Function .......................................... 1. Monitor Button Function ................................2. OSD Control and Function ................................Mounting Guide ......................................Specification ........................................Trouble Shooting ................................................................................Warranty ........................................Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 3: Safety Instruction
The monitor shall not be exposed to dripping or splashing and objects containing liquids, such as vases shall not be placed near the monitor. The monitor should have ample distance (e.g. 10cm) from the wall for sufficient ventilation. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 4: Mark Indication & Substance
If your monitor does not operate normally – in particular, if there is any unusual sound or smell coming from the monitor – unplug it immediately and contact an authorized dealer or the service center. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 5: Caution
While most pixel faults occur in isolated regions, a cluster of dead pixels or sub-pixels can sometimes form for which a separate ruling applies. A cluster is defined as an area of 5x5 pixels. ViewZ’s policy on pixel failure: either as an isolated fault or in the form of a cluster is outlined on the website: www.viewzusa.com User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 6: Fcc Rf Interference Statement
► DOC COMPLIANCE NOTICE This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the radio interference regulation of Canadian Department of communications. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 7: Wiring (Dc 24V)
200 ft / 60.96 m tested tested tested tested tested tested 250 ft / 76.20 m 300 ft / 91.44 m Not Recommended 350 ft / 106.68 m User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 8: Installation
DC24V Connector (Qty 1) User Manual (Qty 1) Remote Controller (Qty 1) Mounting Option Your ViewZ monitor is compatible with ViewZ monitor mounts. For more information, please contact ViewZ USA at (888)-998-4399. Wall Mount • Part # WM05 • Part # WM11 •... -
Page 9: Interface
6. CAMERA IP(Ethernet) OUT 7. (Optional) Media Player HDMI OUT 8. (Optional) Media Player USB 9. (Optional) Media Player SD Card 10. AC 110V IN 11. DC 24V IN 12. DC 12V OUT User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 10: Remote Control Function
7. Without entering OSD MENU, press ◄ / ► buttons to adjust the audio volume 8. Press the 'MUTE' button to on / off audio - audio only works with VGA / AV input Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 11: Function
Built-in camera has the motion detection function purple and no color. 2. IR Sensor Sensor for the remote controller 3. LED Indicator Green color: monitor on Red color : monitor off User Manual Visit the ViewZ USA website at https://www.viewzusa.com... - Page 12 6. Press the MENU button to exit the sub-MENU and go back to the main-MENU 7. Press the MENU button to exit the OSD MENU Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
-
Page 13: Osd Control And Function
Press◄ / ► buttons to adjust volume on monitor Press◄ / ► buttons to adjust volume on remote controller Detect Source Signal Message If you connect any input source, monitor will display current input source resolution and frequency. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... - Page 14 2) AV-input support 3) HDMI-input support COLOR TEMP. WARM Give the white color a reddish tint NORMAL Give the white color a neutral tint COOL Give the white color a blue-ish tint Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 15 Adjusts preset sound mode MODE 1 / MODE 2/ MODE 3 / MODE 4 / OFF BASS Adjusts the bass level ON /OFF / 1 - 12 MUTE Mutes the sound ON / OFF User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 16 Sets the language of the OSD menu English, Spanish, French Russian, Portuguese OSD DURATION Sets the OSD display time 0 ~ 60 sec RESTORE DEFAULT Resets the monitor settings to the factory default Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 17 RED / GREEN / BLUE / BLACK / WHITE 1) PRESET TEXT - TEXT 1 : Recording / TEXT 2 : Recording in Progress / TEXT 3 : Surveillance in Progress User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 18 PIP of the current video input source. This PIP is set by PIP main menu. * See the PIP in page 19 FULL : Display the motion detection input as the full image/video on the monitor Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 19 OFF / ON switching display source Sets the AV input source as the switching OFF / ON display source MEDIA Sets the MEDIA input source as the switching OFF / ON display source User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 20 Display small, medium, large size PIP window on main display PIP-POSITION LEFT UP / LEFT DOWN Set the position of PIP window on main display RIGHT UP / RIGHT DOWN PIP MODE HDMI MEDIA (Optional) CAMERA HDMI MEDIA (Optional) CAMERA Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
-
Page 21: Mounting Guide
2. VZ-PVM-I4B3N/I4W3N : VESA WALL MOUNT 200mm x 200mm Attention! VZ-PVM-I2B3N/I2W3N (100x100) : You must use 4 * M4 x L10 screws to assemble this monitor and the wall mount bracket. VZ-PVM-I3B3N/I3W3N (100x100) : You must use 4 * M4 x L10 screws to assemble this monitor and the wall mount bracket. -
Page 22: Specification
SPECIFICATION Model No. VZ-PVM-I2B3N / I2W3N VZ-PVM-I3B3N / I3W3N VZ-PVM-I4B3N / I4W3N Size & Type 23.6" 27" 32" Panel Type 23.6'' LED Backlit Monitor 27'' LED Backlit Monitor 32'' LED Backlit Monitor Pixel Pitch 0.2715 (H) x 0.2715 (V) mm 0.31125 (H) x 0.31125 (V) mm... - Page 23 Two roles: administrator and common users. The administrator User Rights can assign common users different rights. Language English default WEB application Browser Windows IE6,7,8,9,11 / Firefox (broken layout) / chrome (error) User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 24: Troubleshooting Guide
At start the current input source. If symptom persists, follow the instructions below. After following the instructions below, please contact us at 1-888-99-VIEWZ. - Make sure the power cable is correctly plugged into the outlet - Make sure the power cable is correctly plugged into the monitor No image or - Make sure the cable is correctly connected between monitor &... -
Page 25: Rma
- The warranty period for this monitor is 3 years. The warranty will be voided for the scenarios listed below. - You can also download the manual and information at VIEWZ web site: VIEWZUSA.COM When power feed to the monitor exceeds capacity and causes damage... - Page 26 NOTE Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
-
Page 27: Warranty
What ViewZ USA Will Do At the sole discretion of ViewZ USA, ViewZ USA will repair or replace any product or product part that is defective. If ViewZ USA chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.
