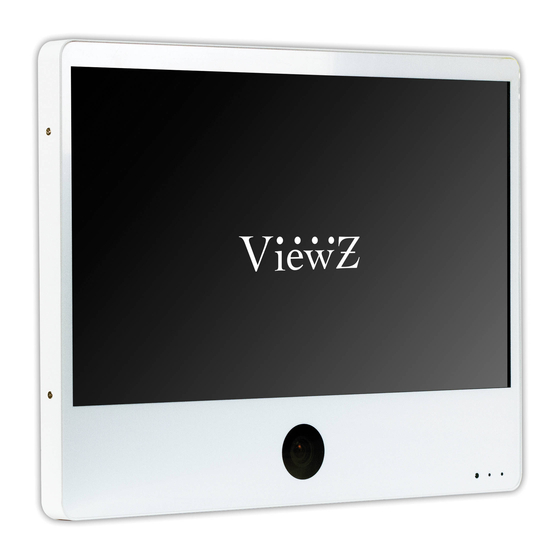

10" ip public view monitor
Hide thumbs
Also See for VZ-IP-PVMN SERIES:
- User manual (8 pages) ,
- User manual (120 pages) ,
- Installation & user manual (5 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
User Manual
Advertisement
Table of Contents
Related Manuals for ViewZ VZ-IP-PVMN SERIES
Summary of Contents for ViewZ VZ-IP-PVMN SERIES
- Page 1 VZ-IP-PVMN SERIES 10" IP PUBLIC VIEW MONITOR IP-PVM N USER MANUAL Please read this manual thoroughly before use, and keep it handy for future reference.
-
Page 2: Table Of Contents
Function .......................................... 1. Monitor Button Function ................................2. OSD Control and Function ................................3. Media Card Control and Function .............................. Mounting Guide ......................................Specification ........................................Trouble Shooting ................................................................................Warranty ........................................Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 3: Safety Instruction
The monitor shall not be exposed to dripping or splashing and objects containing liquids, such as vases shall not be placed near the monitor. The monitor should have ample distance (e.g. 10cm) from the wall for sufficient ventilation. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 4: Mark Indication & Substance
If your monitor does not operate normally – in particular, if there is any unusual sound or smell coming from the monitor – unplug it immediately and contact an authorized dealer or the service center. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 5: Caution
While most pixel faults occur in isolated regions, a cluster of dead pixels or sub-pixels can sometimes form for which a separate ruling applies. A cluster is defined as an area of 5x5 pixels. ViewZ’s policy on pixel failure: either as an isolated fault or in the form of a cluster is outlined on the website: www.viewzusa.com User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 6: Fcc Rf Interference Statement
► DOC COMPLIANCE NOTICE This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the radio interference regulation of Canadian Department of communications. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 7: Installation
Public View Monitor (Qty 1) User Manual CD (Qty 1) Remote Controller (Qty 1) Mounting Option Your ViewZ monitor is compatible with ViewZ monitor mounts. For more information, please contact ViewZ USA at (888)-998-4399. Wall Mount • Part # WM05 •... -
Page 8: Interface
CONNECT EXTERNAL EQUIPMENTS Interface Input Ports The following image is the description of interface input ports 1. SD CARD (MEDIA PLAYER) IN 2. USB (MEDIA PLAYER) IN 3. ETHERNET 10/100 (P.o.E) Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 9: Remote Control Function
7. Without entering OSD MENU, press ◄ / ► buttons to adjust the audio volume 8. Press the 'MUTE' button to on / off audio - audio only works with VGA / AV input User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 10: Function
Red color : monitor off 2. IR Sensor 4. Recording Indicator LED Sensor for the remote controller User can choose a blinking LED color - red, blue, purple and no color. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 11: Osd Control And Function
6. Press the MENU button to exit the sub-MENU and go back to the main-MENU 7. Press the MENU button to exit the OSD MENU User Manual Visit the ViewZ USA website at https://www.viewzusa.com... - Page 12 Press◄ / ► buttons to adjust volume on monitor Press◄ / ► buttons to adjust volume on remote controller Detect Source Signal Message If you connect any input source, monitor will display current input source resolution and frequency. Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 13 Give the white color a reddish tint NORMAL Give the white color a neutral tint COOL Give the white color a blue-ish tint USER Give the white color a manual tint User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 14 CONTROL AND FUNCTION Sound ▲/▼ ◄/► MOVE SELECT(ADJUST) MENU RETURN FUNCTION VALUE VOLUME Adjusts the volume 0 ~ 100 MUTE Mutes the sound OFF / ON Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 15 RESTORE DEFAULT Resets the monitor settings to the factory default 1) When key lock was enabled and remote controlller lost, please push 'MENU' button (3-5 sec.) to activate key buttons on monitor. User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 16 Set the alarm of PVM's camera block OFF / ON VIDEO LOSS Set the alarm of PVM's video signal loss OFF / ON DOOR OPEN Set the alarm of PVM's backside door open OFF / ON Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 17 RED / GREEN / BLUE / BLACK / WHITE 1) PRESET TEXT - TEXT 1 : Recording / TEXT 2 : Recording in Progress / TEXT 3 : Surveillance in Progress User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 18 If user selects '10', the monitor will keep showing the swapped image/videos for 10 seconds whether or not motion detected. If there is no motion detection for 10 seconds, monitor will display original image/videos. Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 19 * Only selected two input sources can be displayed MEDIA Sets the MEDIA input source as the switching OFF / ON display source CAMERA Sets the CAMERA input source as the OFF / ON switching display source User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 20: Media Card Control And Function
Displays image files from the SD Card or USB MUSIC Plays music files from the SD Card or USB MOVIE Plays video files from the SD Card or USB TEXT Plays text files from the SD Card or USB Visit the ViewZ USA website at https://www.viewzusa.com User Manual... - Page 21 *Note: If you have more than one music file, selected music files will play one by one. 3. Press ►║ button to pause playing music. ■ 4. Press the EXIT / button to return to the Media OSD MENU. User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 22 *Note: If you have more than one text file, selected text files will display one by one. 3. Press ►║ button to pause the text file. ■ 4. Press the EXIT / button to return to the Media OSD MENU Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
-
Page 23: Mounting Guide
Please use bolt of correct size and length as instructed. Mounting Safety ! At least two people are recommended to safely install the mount. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 24: Specification
RJ-45 for IP Camera & Power x 1, SD Card In x 1, USB In x 1 Safety & EMC Certification CE / FCC / ROHS Electrical P.o.E 37 - 52V 0.5A Ratings Power Consumption ≤ 24 W Accessories User’s Manual, Remote controller Visit the ViewZ USA website at https://www.viewzusa.com User Manual... - Page 25 10 users ( Maximum 3ch 1080P ) Two roles: Administrator and common users. The administrator User Rights can assign common users different rights. Language English default WEB application Browser Windows IE6,7,8,9,11 / Firefox User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 26: Trouble Shooting
At start the current input source. If symptom persists, follow the instructions below. After following the instructions below, please contact us at 1-888-99-VIEWZ. - Make sure the power cable is correctly plugged into the outlet - Make sure the power cable is correctly plugged into the monitor No image or - Make sure the cable is correctly connected between monitor &... -
Page 27: Rma
- The warranty period for this monitor is 3 years. The warranty will be voided for the scenarios listed below. - You can also download the manual and information at VIEWZ web site: VIEWZUSA.COM When power feed to the monitor exceeds capacity and causes damage... - Page 28 NOTE Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
-
Page 29: Warranty
What ViewZ USA Will Do At the sole discretion of ViewZ USA, ViewZ USA will repair or replace any product or product part that is defective. If ViewZ USA chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.
