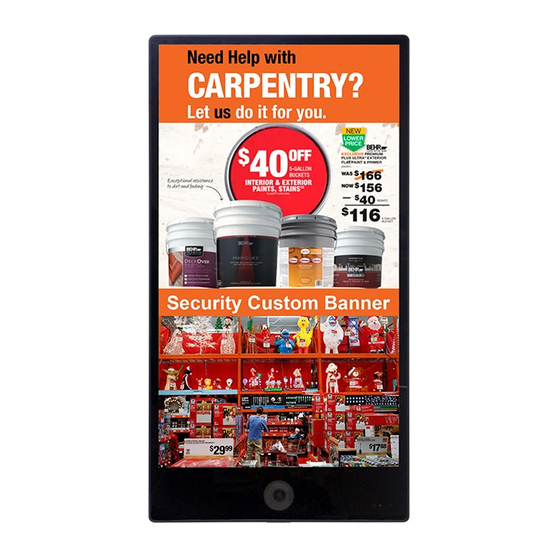

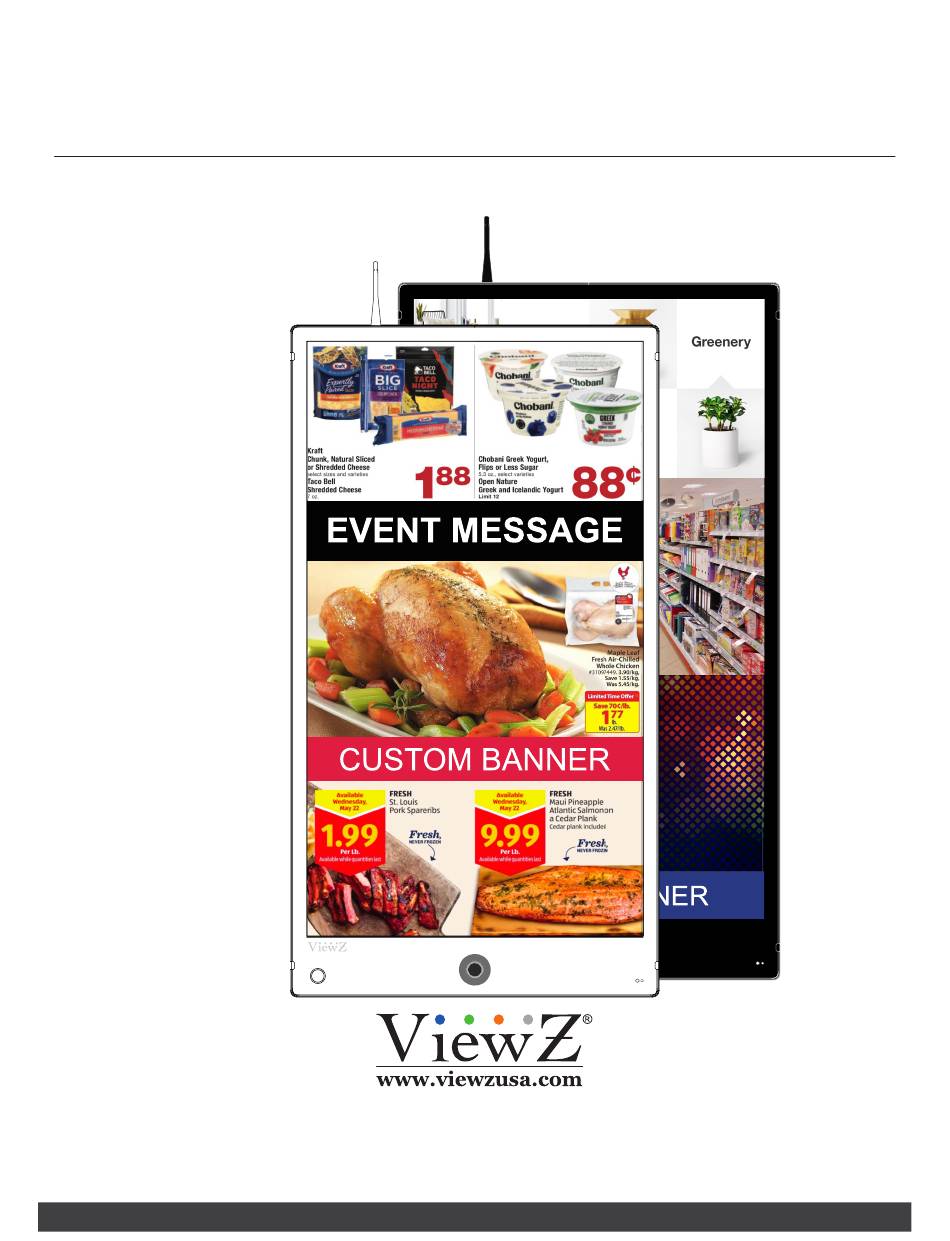

- Page 1 SMART AD PVM SERIES PUBLIC VIEW MONITOR ANDROID PORTRAIT IP PVM OSD USER MANUAL Please read this manual thoroughly before use, and keep it handy for future reference.
-
Page 2: Table Of Contents
3. Remote Control Function ................................Function .......................................... 1. Monitor Button Function ................................2. OSD Control and Function ................................Wireless Connection ....................................Mounting Guide ......................................Specification ........................................Trouble Shooting ................................................................................Warranty ........................................Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 3: Safety Instruction
The monitor shall not be exposed to dripping or splashing and objects containing liquids, such as vases shall not be placed near the monitor. The monitor should have ample distance (e.g. 10cm) from the wall for sufficient ventilation. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 4: Mark Indication & Substance
If your monitor does not operate normally – in particular, if there is any unusual sound or smell coming from the monitor – unplug it immediately and contact an authorized dealer or the service center. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 5: Caution
While most pixel faults occur in isolated regions, a cluster of dead pixels or sub-pixels can sometimes form for which a separate ruling applies. A cluster is defined as an area of 5x5 pixels. ViewZ’s policy on pixel failure: either as an isolated fault or in the form of a cluster is outlined on the website: www.viewzusa.com User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 6: Fcc Rf Interference Statement
► DOC COMPLIANCE NOTICE This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the radio interference regulation of Canadian Department of communications. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 7: Wiring (Dc 24V)
200 ft / 60.96 m tested tested tested tested tested tested 250 ft / 76.20 m 300 ft / 91.44 m Not Recommended 350 ft / 106.68 m User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 8: Installation
DC24V Connector (Qty 1) User Manual (Qty 1) (Qty 1) Remote Controller (Qty 1) Mounting Option Your ViewZ monitor is compatible with ViewZ monitor mounts. For more information, please contact ViewZ USA at (888)-998-4399. Mount • Part # CM-308 • Part # CMKiT-02 •... -
Page 9: Interface
When you plugin into the green terminal connector (DC24V), please be careful about the & sign. If you do not follow the & sign, it causes a serious damage to the monitor. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 10: Remote Control Function
6. Without entering OSD MENU, press ◄ / ► buttons to adjust the audio volume 7. Press the 'MUTE' button to on / off audio - audio only works with VGA / AV input Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 11: Function
2. Built-in Camera / Motion Detection User can choose a blinking LED color - red, blue, The monitor will display the built-in camera's video purple and no color. Built-in camera has the motion detection function User Manual Visit the ViewZ USA website at https://www.viewzusa.com... - Page 12 6. Press the EXIT button to exit the sub-MENU and go back to the main-MENU 7. Press the EXIT button to exit the OSD MENU Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
-
Page 13: Osd Control And Function
CONTROL AND FUNCTION Volume Press◄ / ► buttons to adjust volume on monitor Press◄ / ► buttons to adjust volume on remote controller User Manual Visit the ViewZ USA website at https://www.viewzusa.com... - Page 14 1) To set custom color temperature (R,G,B values), select "USER" to set color temperature. Keep pushing 'Down' button on the monitor or the remote controller, then you will see Red, Green and Blue option Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 15 USER / SPORTS / MUSIC / MOVIE / STANDARD 0 ~ 100 TREBLE Adjust the treble level 0 ~ 100 BASS Adjusts the bass level 0 ~ 100 BALANCE Adjust the balance User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 16 Set the standby mode screen as blue or black (default) color Blue, Black NO SIGNAL STANDBY Monitor will go into a standby mode when no input source is detected ON / OFF PREVENT BURN-IN Set periodic image retention ON / OFF Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
-
Page 17: Wireless Connection
WiFi range extenders, or any other device that emits a wireless signal for network access. Place your router near the center of the area where ViewZ Smart AD PVM operate or place the router in an elevated location, minimizing the number walls and ceilings between the router and ViewZ Smart AD PVM. -
Page 18: Mounting Guide
Please use bolt of correct size and length as instructed. Mounting Safety ! At least two people are recommended to safely install the mount. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 19: Specification
CE / FCC / ROHS AC IN AC 110-240V, 50/60Hz Electrical Ratings DC 24V IN 3.0A Power Consumption ≤ 50 W ≤ 68 W Accessories HDMI cable, Power Supply & Cable, User’s Manual, Remote controller User Manual Visit the ViewZ USA website at https://www.viewzusa.com... - Page 20 Two roles: administrator and common users. The administrator User Rights can assign common users different rights. Language English default WEB application Browser Windows IE6,7,8,9,11 / Firefox (broken layout) / chrome (error) Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
-
Page 21: Trouble Shooting
At start the current input source. If symptom persists, follow the instructions below. After following the instructions below, please contact us at 1-888-99-VIEWZ. - Make sure the power cable is correctly plugged into the outlet - Make sure the power cable is correctly plugged into the monitor No image or - Make sure the cable is correctly connected between monitor &... -
Page 22: Rma
- The warranty period for this monitor is 3 years. The warranty will be voided for the scenarios listed below. - You can also download the manual and information at VIEWZ web site: VIEWZUSA.COM When power feed to the monitor exceeds capacity and causes damage... - Page 23 NOTE User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 24: Warranty
What ViewZ USA Will Do At the sole discretion of ViewZ USA, ViewZ USA will repair or replace any product or product part that is defective. If ViewZ USA chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.
