ViewZ 9.7-INCH TFT-LED Instruction Manual

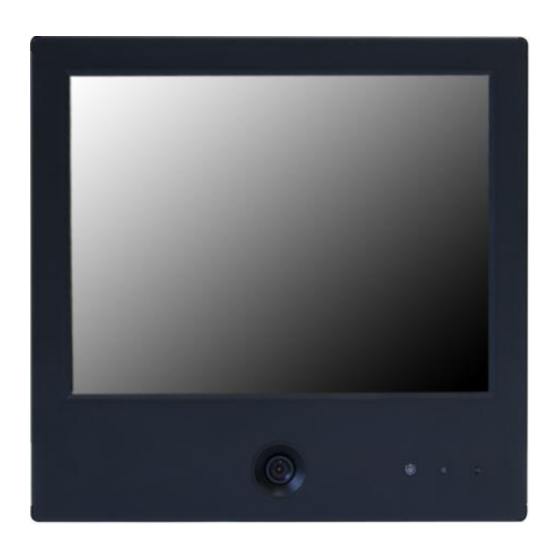

9.7-inch tft-led public view monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

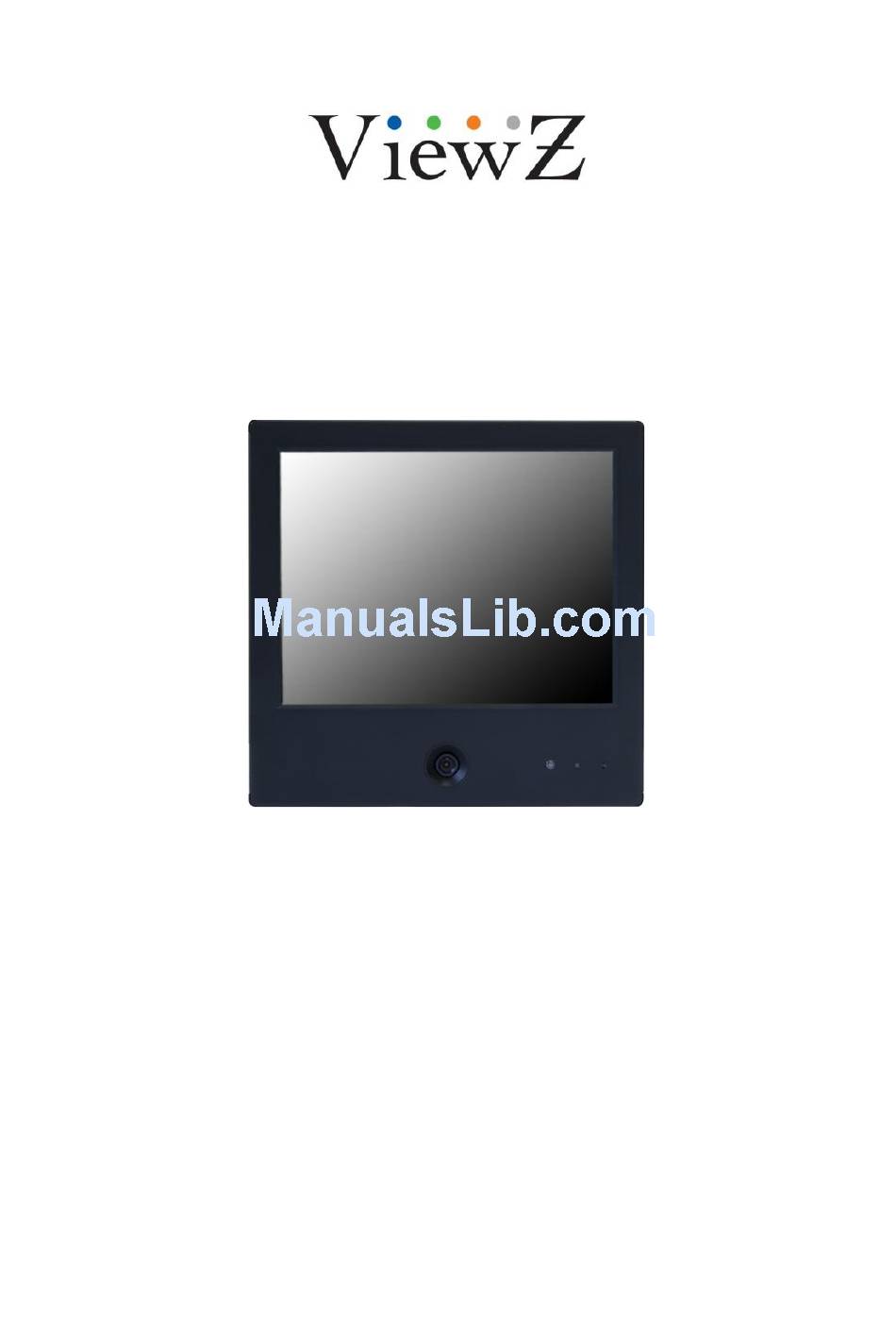

9.7-INCH TFT-LED
PUBLIC VIEW MONITOR
INSTRUCTION MANUAL
Please read this manual thoroughly before use, and keep it handy for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9.7-INCH TFT-LED and is the answer not in the manual?

Questions and answers

Related Manuals for ViewZ 9.7-INCH TFT-LED

Summary of Contents for ViewZ 9.7-INCH TFT-LED

  • Page 1 9.7-INCH TFT-LED PUBLIC VIEW MONITOR INSTRUCTION MANUAL Please read this manual thoroughly before use, and keep it handy for future reference.
  • Page 3 SAFETY INSTRUCTION ………………………………………………………….…… 2 ~ 3 CAUTIONS ……………………………………………………………......FCC RF INTERFERENCE STATEMENT ……………………………....... CONNECTING WITH EXTERNAL EQUIPMENT …………………………………… REMOTE FUNCTIONS ………………………………………………………………… 7 ~ 8 CONTROLS AND FUNCTIONS ……………………………………………………….. 9 ~ 25 MOUNTING GUIDE …………………………………………………………………….. POWER MANAGEMENT ……………………………………………………………… 27 ~ 28 SPECIFICATIONS ………………………………………………………………………...

  • Page 4: Important Safety Instruction

    Important Safety Instruction 1. Read these instructions. 2. Keep these Instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 5 - The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed no the apparatus. 14 Minimum distances(e.g. 10cm) around the apparatus for sufficient ventilation. “WARNING – To reduce the risk of fire or electric shock, do not expose the apparatus to rain or moisture.” “The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.”...
  • Page 6 CAUTION The power supply cord is used as the main disconnect device, ensure that the socket-outlet is located/installed near the equipment and is easily accessible. ATTENTIONN Le cordon d`alimentation est utillsé comme interrupteur général. La prise de courant doit être située ou installée à...

  • Page 7: Doc Compliance Notice

    NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 8: Back Panel Control

    A. BACK PANEL CONTROL 1. AC 24V IN 2. VGA IN 3. VIDEO(AV) IN 4. VIDEO (AV) OUT 5. CAM OUT 6. SD CARD READER (Optional) 7. USB 2.0 (Optional) - 6 -...

  • Page 9: Remote Controller(Optional)

    B. REMOTE CONTROLLER(Optional) B-1. NORMAL PVM 1. POWER( Turns the power ON or OFF. There will be a few seconds delay before the display appears. 2. SOURCE Selects an input source. 3. ARC (Aspect Ratio Control) Selects a screen ratio. 4.
  • Page 10 B-2. CARD READER PVM 1. POWER( Turns the power ON or OFF. There will be a few seconds delay before the display appears. 2. SOURCE Selects pc or video(Camera, AV, C/R) sources. 3. AUTO Auto geometry adjustment in PC Source. 4.
  • Page 11 C. FRONT & BACK KEY CONTROL 1. BUILT-IN CAMERA Image of camera. 2. IR Sensor Remote controller sensor. 3. POWER LED Turned on: Green color. Turned off: LED off. 4. RECORDING INDICATOR LED This LED indicates the recording status by blinking the LED light. User can choose the LED blink.

  • Page 12: Osd Menu Description

    OSD Menu Description All picture, sound settings and setup for the monitor can be adjusted in the OSD menu. (On Screen Display) To adjust the OSD screen: 1. Press the MENU button to enter the OSD menu. 2. Press the ▲/▼ buttons to select the desired option. The selected option is highlighted. 3.
  • Page 13 B. SOUND/FUNCTION Option Function Value VOLUME Not operating. MUTE Not operating. DATE TIME Sets the date time on the screen. See the table on Next page. RECORDING Sets the recording indication text. See the table on Next page. - 11 -...
  • Page 14 DATE TIME Option Function Value DATE TIME Activates the feature of Date Time. Off or On BLINK This function is for blinking Date & Time texts. Off or On POSITION Selects the location of Date Time text. Top, Bottom YEAR* Selects the wanted year.
  • Page 15 RECORDING Option Function Value INDICATOR LED Sets the light color of recoding LED Off or On TEXT DISPLAY Activates the feature of Recording Text. Off or On TEXT BLINK This function is for blinking Recording text. Off or On TEXT SIZE Selects the size of Recording text.
  • Page 16 C. PC (Only PC Mode) Option Function Value CONTRAST Adjusts intensity of the image. 0 ~ 100 BRIGHTNESS Adjusts brightness of the screen. 0 ~ 100 PC ADJUST Adjusts the PC Mode. See the table on Next page. COLOR MODE Adjusts the vertically picture position.
  • Page 17 PC ADJUST Option Function Value AUTO ADJUST Auto geometry adjustment. H POSITION Adjusts the horizontally picture position. 0 ~ 100 V POSITION Adjusts the vertically picture position. 0 ~ 100 CLOCK Adjusts the vertical noise of screen image. 0 ~ 100 PHASE Adjusts the number of horizontal picture elements.
  • Page 18 D.SETUP Option Function Value English, German, French, Language Sets the language of the OSD menu. Italian, Spanish, Nederlands and Korea Sets the OSD. See the table on Next page. Locks all buttons of the monitor. Key Lock Note: Use remote controller to Off or On unlock.
  • Page 19 Option Function Value H POSITION Move OSD horizontally on screen right or left. 0 ~ 100 V POSITION Move OSD vertically on screen up or down. 0 ~ 100 OSD TIMER Adjust OSD displaying time. 5 ~ 60 TRANSPARENT Adjust OSD transparent. Off or On MOTION DELECTION Option...
  • Page 20 Menu of the M/P (Media Player) • Connect USB & SD card devices 1. Connect USB & SD card devices to USB slot which are on the slide of the monitor set. • Removing the USB & SD card devices from Monitor 1.
  • Page 21 A. PHOTO JPEG File Viewing Options - When you select Photo in entry menu, 1. Press the USB button and then use ◀/▶ button to select the Photo. 2. Press the SEL button. 3. Press the ▲/▼ button to select photo file. 4.
  • Page 22 B. MUSIC - Purchased MP3/music files may contain copyright restrictions. 1. Press ◀/▶ button to select the Music. 2. Press the SEL button. 3. Press the ▲/▼ button to select desired music file. 4. Press the SEL button. Then the music starts. 5.
  • Page 23 C. MOVIE Select the Movie 1. Press ◀/▶ button to select the Movie 2. Press the SEL button. 3. Press the ▲/▼ button to select desired movie file. 4. Press the SEL button. Then the movie starts. 5. Press exit or press the ESC button to return to the USB menu. Using the remote control Playing selected movie file PLAY/PAUSE...
  • Page 24 D. PHOTO MUSIC -Playing slideshow with music. 1. Press the USB button and then use ◀/▶ button to select the PHOTO MUSIC. 2. Press the SEL button. 3. Press the ▲/▼ button to select photo file. 4. Press the SEL button for picture display for slideshow. 5.
  • Page 25 E. PHOTO Thumbnail mode - Thumbnail mode in photo. - Press ▶ button in Photo File list or ACT button in main menu ▲/▼/◀/▶ button to select desired photo file. 1. Press 2. Press SEL button to start Slideshow 3. Press exit or press the ESC button to return to the USB menu. Using the remote control Select desired photo file for slideshow playing PLAY/PAUSE...
  • Page 26 F. SETUP 1. SETUP- PHOTO Select Slideshow Effect -The picture display effect for the slide show. 1. Press ◀/▶ button to select the Setup. 2. Press the SEL button enter the Setup menu. 3. Press the ▶ and then use ▲/▼ button to select Slideshow EFFECT. 4.

  • Page 27: Setup-System

    2. SETUP-SYSTEM Select SUBTITLE LANG. - The menus can be shown on the screen in the selected language. First select your language. 1. Press ◀/▶ button to select the Setup. 2. Press the SEL button to enter the Setup menu. 3.
  • Page 28 Wall mount(Optional) 1) Using the 75 mm VESA holes. 2) Using the VESA standard wall mount design and the 75mm hole pattern on the back side to install the LCD monitor to the wall. M4x10 screws ※ Attention! You must use four M4x10 screws to assemble this monitor and the wall mount bracket. ▶...

  • Page 29: Power Off

    POWER CONSUMPTION MODE POWER CONSUMPTION < 16W POWER OFF < 0.5W LED INDICATOR The power management feature of the monitor is comprised of two stages: ON(GREEN) and POWER OFF(LED Off). MODE LED COLOR MONITOR OPERATION GREEN Normal Operation LED Off Not Operation POWER OFF - 27 -...

  • Page 30: Monitor Specification

    1. Monitor Specification 9.7" 9.7˝ Diagonal AM-TFT(Active-Matrix) Pixel pitch(mm) : 0.192(H) x 0.192(V) ² BRIGHTNESS: 300cd/m (Typical) LCD-Type CONTRAST RATIO: 600:1(Typical) VIEWING ANGLE: 178°/178°(H/V) RESPONSE TIME: 35msec(Typical) RESOLUTION 1024x768 @60Hz (H x V) HORIZONTAL: 31~48KHz, FREQUENCY VERTICAL: 56~60Hz CAMERA OUT INPUT/OUTPUT VIDEO (1ch input 1.0Vp-p, 75Ω...

  • Page 31: Camera Specification

    2. Camera Specification Built-in PIX CAMERA ITEM NTSC Image Sensor 1/3” Sony Supper HAD II CCD (ICX638/639AKA) Horizontal Resolution Color Mode: 620TVL; B/W Mode: 680TVL Effective Pixel 768(H) X 494(V) 752(H) X 582(V) Sync. System Internal Lens 4mm Fixed Lens Min.

  • Page 32: Weee Symbols

    WEEE Symbols Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.
  • Page 33 MEMO...
  • Page 34 MEMO...
