17/19-INCH VALUE
TTF-LCD MONITOR
INSTRUCTION MANUAL
Please read this manual thoroughly before use, and keep it handy for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 17/19-INCH VALUE TTF-LCD MONITOR and is the answer not in the manual?

Questions and answers

Related Manuals for ViewZ 17/19-INCH VALUE TTF-LCD MONITOR

Summary of Contents for ViewZ 17/19-INCH VALUE TTF-LCD MONITOR

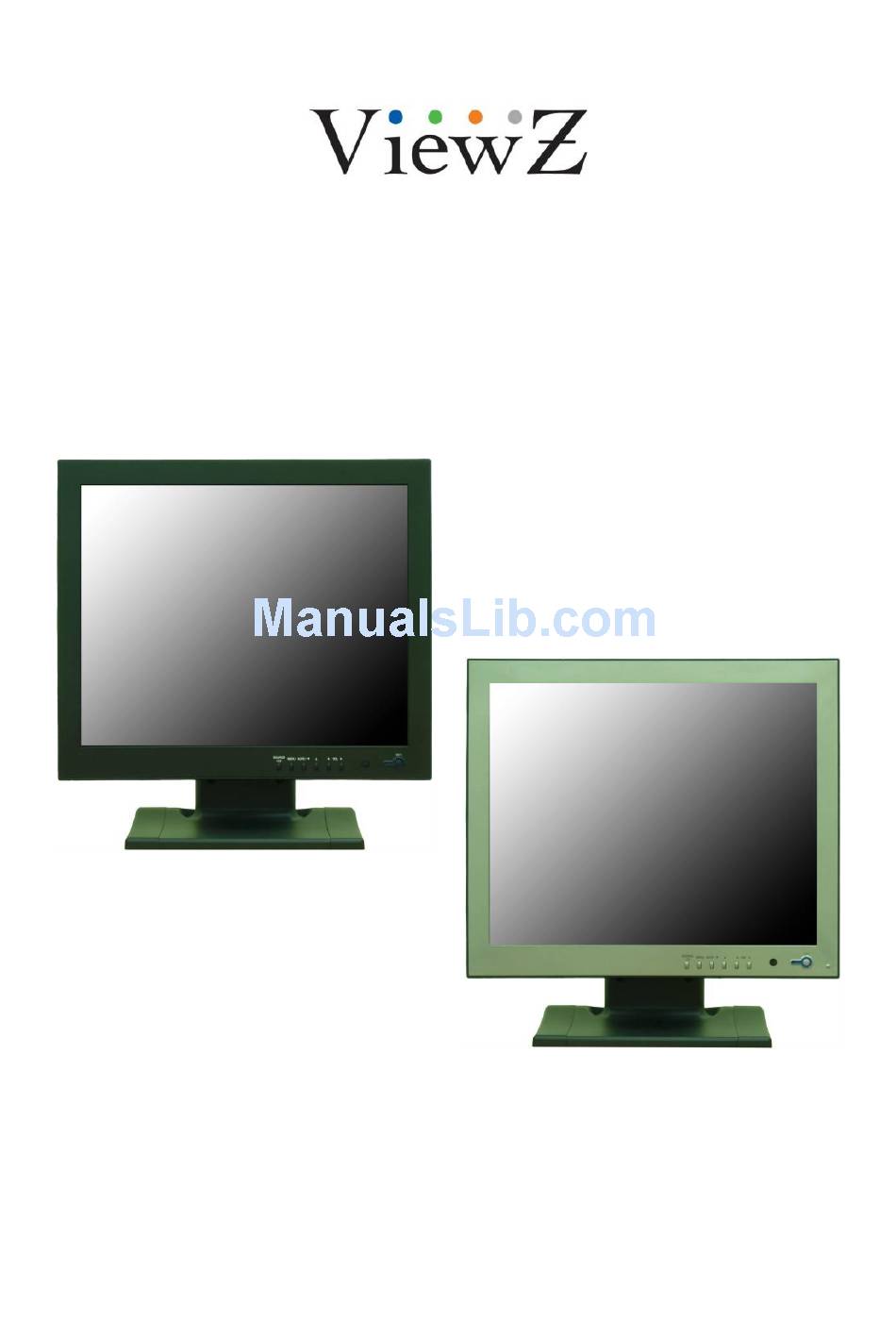

  • Page 1 17/19-INCH VALUE TTF-LCD MONITOR INSTRUCTION MANUAL Please read this manual thoroughly before use, and keep it handy for future reference.
  • Page 3 SAFETY INSTRUCTION ………………………………………………………………….. 2 ~ 3 CAUTIONS ………………………………………………………………......FCC RF INTERFERENCE STATEMENT ……………………………......CONNECTING WITH EXTERNAL EQUIPMENT ………………………………………. REMOTE FUNCTIONS …………………………………………………………………… CONTROLS AND FUNCTIONS ………………………………………………………….. 8 ~ 41 MOUNTING GUIDE ……………………………………………………………………….. D-SUB CONNECTOR PIN ASSIGNMENTS ……………………………………………. POWER MANAGEMENT …………………………………………………………………. SPECIFICATIONS …………………………………………………………………………. TROUBLE SHOOTING GUIDE …………………………………………………………...

  • Page 4: Important Safety Instruction

    Important Safety Instruction 1. Read these instructions. 2. Keep these Instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

  • Page 5: Instruction Manual

    - The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed no the apparatus. - Minimum distances(e.g. 10cm) around the apparatus for sufficient ventilation. “WARNING - To reduce the risk of fire or electric shock, do not expose the apparatus to rain or moisture.” “The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.”...
  • Page 6 CAUTION The power supply cord is used as the main disconnect device, ensure that the socket-outlet is located/installed near the equipment and is easily accessible. ATTENTIONN Le cordon d`alimentation est utillsé comme interrupteur général. La prise de courant doit être située ou installée à...

  • Page 7: Doc Compliance Notice

    NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 8 A. BOTTOM PANEL CONTROL 8, 9 10 11 1. DC 12V IN 2. HDMI IN 3. VGA(D-SUB) IN 4. VIDEO1(AV1) IN 5. VIDEO1(AV1) OUT 6. VIDEO2(AV2) IN 7. VIDEO2(AV2) OUT 8, 9. AUDIO IN(R+L) for AV1, AV2 10. PC STEREO IN 11.

  • Page 9: Remote Controller (Option)

    B. REMOTE CONTROLLER (Option) 1. POWER( Turn the power ON or OFF. There will be a few seconds delay before the display appears. 2. SOURCE Select pc or video(AV1/AV2/HDMI/PC) sources. 3. AUTO Auto geometry adjustment in PC Source. 4. HOLD Stop the Trigger &...

  • Page 10: Power Led

    C. FRONT KEY CONTROL 1. SOURCE/ Select input source, and move the previous menu. 2. MENU Activates and exits the On Screen Display. This button can also be used to move previous menu or status. 3, 4. AUTO/▼, ▲ These buttons allow user to move the sub-menu of the activated function. AUTO/▼...

  • Page 11: Osd Menu Description

    OSD MENU DESCRIPTION A: Custom Menu (Only Video Input) 1) Press the MENU button and then press the up(▲) or down(▼) button to select the Custom. 2) Press the up(▲) or down(▼) button to select the sub menu. 3) Press the left(◀) or right(▶) button to adjust the picture setting. 4) Press the MENU button to save.
  • Page 12 A: Custom Menu (For RGB-PC & HDMI Input) 1) Press the MENU button and then press the up(▲) or down(▼) button to select the Custom. 2) Press the up(▲) or down(▼) button to select the sub menu. 3) Press the left(◀) or right(▶) button to adjust the picture setting. 4) Press the MENU button to save.
  • Page 13 B. Picture / Sound Menu (Only Video Input) 1. Picture Mode 1) Press the MENU button and then press the up(▲) or down(▼) button to select the Picture / Sound. 2) Press the right(▶) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the Picture Mode. 4) Press the right(▶) or SOURCE/ button.
  • Page 14 2-1. Color Tone 1) Press the up(▲) or down(▼) button to select the Color Tone. 2) Press the right(▶) or SOURCE/ button. 3) Press the right(▶) or SOURCE/ button again. 4) Press the up(▲) or down(▼) button to select the Color Tone option. 5) Press the MENU button to save.
  • Page 15 2-2. Color Tone (User) 1) Press the up(▲) or down(▼) button to select the User. 2) Press the MENU button. 3) Press the up(▲) or down(▼) button to select the User option. 4) Press the left(◀) or right(▶) button to adjust the Red, Green or Blue setting. 5) Press the MENU button to save.
  • Page 16 3. Mute 1) Press the up(▲) or down(▼) button to select the Mute. 2) Press the right(▶) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the On or Off. 4) Press the MENU button to save. 14 …………………………………………………………………….
  • Page 17 4. Volume 1) Press the up(▲) or down(▼) button to select the Volume 2) Press the left(◀) or right(▶) button to adjust Volume setting. 3) Press the MENU button to save. INSTRUCTION MANUAL ……………………………………………………………………. 15...
  • Page 18 5. Size 1) Press the up(▲) or down(▼) button to select the Size 2) Press the right(▶) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the Size option. 4) Press the MENU button to save. 16 ……………………………………………………………………. INSTRUCTION MANUAL...
  • Page 19 6. NR (Noise Reduction) 1) Press the up(▲) or down(▼) button to select the NR. 2) Press the right(▶) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the On or Off. 4) Press the MENU button to save. INSTRUCTION MANUAL …………………………………………………………………….
  • Page 20 7. 3D Comb 1) Press the up(▲) or down(▼) button to select the 3D Comb. 2) Press the right(▶) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the On or Off. 4) Press the MENU button to save. 18 …………………………………………………………………….
  • Page 21 B. Picture / Sound Menu (For RGB-PC & HDMI Input) 1. Size 1) Press the up(▲) or down(▼) button to select the Size. 2) Press the right(▶) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the Size option. INSTRUCTION MANUAL …………………………………………………………………….
  • Page 22 Input 2. PC (Only RGB-PC 1) Press the up(▲) or down(▼) button to select the PC. 2) Press the right(▶) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the PC sub menu. 4) Press the right(▶) or SOURCE/ button.
  • Page 23 C. PIP Menu 1) Press the MENU button and then press the up(▲) or down(▼) button to select the PIP. 1. PIP 1) Press the right(▶) or SOURCE/ button. 2) Press up(▲) or down(▼) button to select the On or Off. 3) Press the MENU button to save.
  • Page 24 2. Input Source 1) Press the up(▲) or down(▼) button to select the Input Source. 2) Press the right(▶) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the Source option. 4) Press the MENU button to save. ※...

  • Page 25: Pip Mode

    3. PIP Mode 1) Press the up(▲) or down(▼) button to select the PIP Mode. 2) Press the right(▶) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the PIP Mode option. 4) Press the MENU button to save. ※...
  • Page 26 4. PIP Size 1) Press the up(▲) or down(▼) button to select the Size. 2) Press the right(▶) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the Size option. 4) Press the MENU button to save. 24 …………………………………………………………………….
  • Page 27 5. Position 1) Press the up(▲) or down(▼) button to select the Position. 2) Press the right(▶) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the Position option. 4) Press the MENU button to save. ※ RB: Right of Bottom, LB: Left of Bottom, LT: Left of Top & RT: Right of Top. INSTRUCTION MANUAL …………………………………………………………………….
  • Page 28 6. Swap 1) Press the up(▲) or down(▼) button to select the Swap. 2) Press the right(▶) or SOURCE/ button to swap the main image for the sub one. 26 ……………………………………………………………………. INSTRUCTION MANUAL...
  • Page 29 7. Sound Select 1) Press the up(▲) or down(▼) button to select the Sound Select. 2) Press the right(▶) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the Sound Select option. 4) Press the MENU button to save. INSTRUCTION MANUAL …………………………………………………………………….

  • Page 30: Setup Menu

    D. Setup Menu 1) Press the MENU button and then press the up(▲) or down(▼) button to select the Setup. 1. Reset 1) Press the right(▶) or SOURCE/ button 2) Press the right(▶) or SOURCE/ button again. 3) Press SOURCE/ button to execute the reset.
  • Page 31 2. Language 1) Press the up(▲) or down(▼) button to select the Language. 2) Press the right(▶) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select language. 4) Press the MENU button to save. INSTRUCTION MANUAL ……………………………………………………………………. 29...
  • Page 32 3. OSD Tone 1) Press the up(▲) or down(▼) button to select the OSD Tone. 2) Press the right(▶) or SOURCE/ button 3) Press the up(▲) or down(▼) button to select the OSD Tone option. 4) Press the MENU button to save. 30 …………………………………………………………………….
  • Page 33 4. Blue Screen 1) Press the up(▲) or down(▼) button to select the Blue Screen. 2) Press the right(▶) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the On or Off. 4) Press the MENU button to save. INSTRUCTION MANUAL …………………………………………………………………….
  • Page 34 5. Key Lock 1) Press the up(▲) or down(▼) button to select the Key Lock. 2) Press the right(▶) or SOURCE/ button 3) Press the up(▲) or down(▼) button to select the On or Off 4) Press the MENU button to save. 32 …………………………………………………………………….
  • Page 35 6. Trigger 1) Press the up(▲) or down(▼) button to select the Trigger. 2) Press the right(▶) or SOURCE/ button. 6-1. Trigger Enable 1) Press the up(▲) or down(▼) button to select the Trigger Enable. 2) Press the right(▶) or SOURCE/ button.
  • Page 36 6-2. Trigger Input 1) Press the up(▲) or down(▼) button to select the Trigger Input . 2) Press the right(▶) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the Trigger Input option. 4) Press the Menu button to save. 34 …………………………………………………………………….
  • Page 37 6-3. Buzzer 1) Press the up(▲) or down(▼) button to select the Buzzer. 2) Press the right(▶) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the On or Off. 4) Press the Menu button to save. INSTRUCTION MANUAL …………………………………………………………………….
  • Page 38 6-4. Trigger Time 1) Press the up(▲) or down(▼) button to select the Trigger Time. 2) Press left(◀) or right(▶) button to adjust Trigger Time setting. 3) Press the MENU button to save. 36 ……………………………………………………………………. INSTRUCTION MANUAL...
  • Page 39 6-5 Trigger Option 1) Press the up(▲) or down(▼) button to select the Trigger Option. 2) Press the right(▶) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the Trigger Option setting. 4) Press the Menu button to save. N/C(Normally Closed): The Trigger function is activated when the trigger cable is opened.
  • Page 40 6-6. Display Type 1) Press the up(▲) or down(▼) button to select the Display Type. 2) Press the right(▶) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the Display Type option. 4) Press the Menu button to save. ※...
  • Page 41 7. Auto switching 1) Press the up(▲) or down(▼) button to select the Auto switching. 2) Press the right(▶) or SOURCE/ button. 7-1. Auto switching On/Off 1) Press the right(▶) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the On or Off . 4) Press the Menu button to save.
  • Page 42 7-2. Auto switching Input enabled 1) Press the up(▲)or down(▼) button to select the Inputs enabled. 2) Press the right(▶) or SOURCE/ button. 3) Press the up(▲) or down(▼) button to select the Input. 4) Press the right(▶) or SOURCE/ button.
  • Page 43 7-3. Auto switching Time 1) Press the up(▲) or down(▼) button to select the Time. 2) Press the left(◀) or right(▶) button to adjust the Time setting. 3) Press the MENU button to save. INSTRUCTION MANUAL ……………………………………………………………………. 41...
  • Page 44 Using the VESA standard wall mount design and the 100×100mm hole pattern on the back panel to install the LCD monitor to the wall. Wall-mount Installation(Option) 1. The Monitor fixing bracket to the monitor using the fixing screws provided. 2. The monitor fixing bracket assembled with monitor ※...
  • Page 45 ▶ PIN ASSIGNMENTS Pin 1 RED VIDEO GREEN VIDEO SIGNAL CABLE DETECT BLUE VIDEO GROUND GROUND SDA(for DDC) GROUND H-SYNC.(or H+V SYNC.) RED GROUND V-SYNC. GREEN GROUND SCL(for DDC) BLUE GROUND ▶ ACCESSORIES 1. Power cord 2. Power adaptor 3. User’s manual 4.

  • Page 46: Power Consumption

    POWER CONSUMPTION POWER CONSUMPTION MODE 17” 19” < 40W < 45W POWER OFF < 1W LED INDICATOR The power management feature of the monitor is comprised of four stages: ON(GREEN) and POWER OFF(GREEN OFF). MODE LED COLOR MONITOR OPERATION GREEN Normal Operation GREEN OFF Not Operation...
  • Page 47 17’’ 19’’ 17˝ Diagonal AM-TFT(Active-Matrix) 19˝ Diagonal AM-TFT(Active-Matrix) Pixel pitch(mm) : 0.264(H) x 0.264(V) Pixel pitch(mm) : 0.294(H) x 0.294(V) LCD-Type BRIGHTNESS: 250cd/㎡(Typical) BRIGHTNESS: 250cd/㎡(Typical) CONTRAST RATIO: 1000:1(Typical) CONTRAST RATIO: 800:1(Typical) RESPONSE TIME: 5msec(Typical) RESPONSE TIME: 5msec(Typical) RESOLUTION (H x V) 1280X1024 @60Hz HORIZONTAL: 31~80KHz FREQUENCY...

  • Page 48: Weee Symbols

    WEEE Symbols Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.
  • Page 49 MEMO...
  • Page 50 MEMO...
  • Page 52 P/N : L39ME0196 Rev.4...
