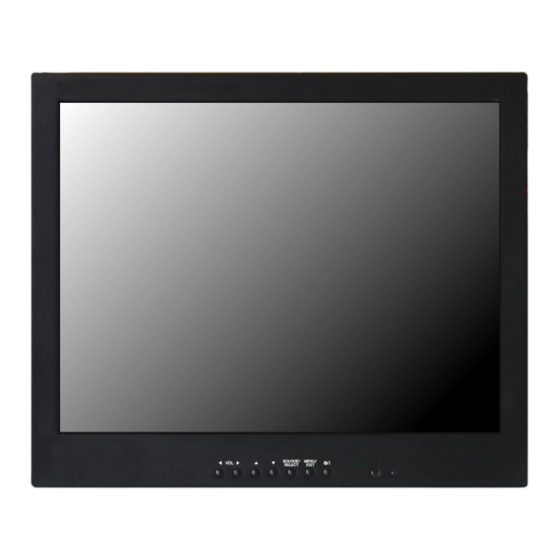

ViewZ 17-INCH PREMIUM User Manual

Tft-lcd monitor
Hide thumbs Also See for 17-INCH PREMIUM:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
17/19-INCH PREMIUM
TFT-LCD MONITOR
USER MANUAL
Please read this manual thoroughly before use, and keep it handy for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 17-INCH PREMIUM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ViewZ 17-INCH PREMIUM

Summary of Contents for ViewZ 17-INCH PREMIUM

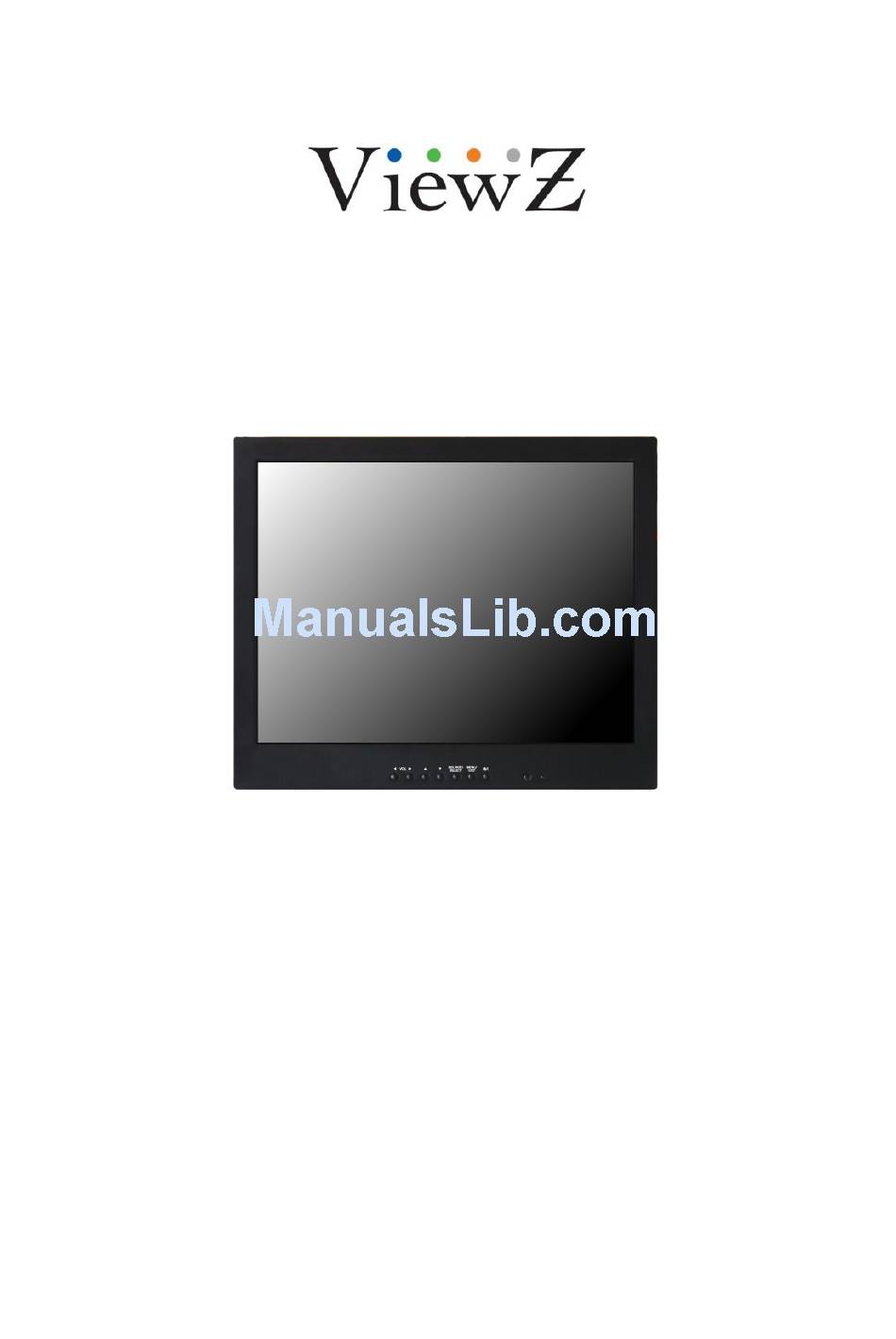

  • Page 1 17/19-INCH PREMIUM TFT-LCD MONITOR USER MANUAL Please read this manual thoroughly before use, and keep it handy for future reference.
  • Page 3 SAFETY INSTRUCTION ………………………………………………………….…… 2 ~ 3 CAUTIONS ……………………………………………………………......FCC RF INTERFERENCE STATEMENT ……………………………....... CONNECTING WITH EXTERNAL EQUIPMENT …………………………………… REMOTE FUNCTIONS ………………………………………………………………… CONTROLS AND FUNCTIONS ……………………………………………………….. 8 ~ 17 MOUNTING GUIDE …………………………………………………………………….. D-SUB CONNECTOR PIN ASSIGNMENTS ………………………………………… POWER MANAGEMENT ……………………………………………………………… SPECIFICATIONS ……………………………………………………………………… TROUBLE SHOOTING GUIDE …………………………………………………..

  • Page 4: Important Safety Instruction

    Important Safety Instruction 1. Read these instructions. 2. Keep these Instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 5 - The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed no the apparatus. 14 Minimum distances(e.g. 10cm) around the apparatus for sufficient ventilation. “WARNING – To reduce the risk of fire or electric shock, do not expose the apparatus to rain or moisture.” “The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.”...
  • Page 6 CAUTION The power supply cord is used as the main disconnect device, ensure that the socket-outlet is located/installed near the equipment and is easily accessible. ATTENTIONN Le cordon d`alimentation est utillsé comme interrupteur général. La prise de courant doit être située ou installée à...

  • Page 7: Doc Compliance Notice

    NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 8 A. BOTTOM PANEL CONTROL 1. HDMI2 IN 2. HDMI1 IN 3. DVI IN 4. VGA(D-SUB) IN 5. PC STEREO IN 6. AUDIO OUT(Speaker) 7. COMPONENT Y,Pb,Pr & SOUND L,R IN 8. DC 12V IN 9. TRIGGER IN B. SIDE PANEL CONTROL 1.

  • Page 9: Remote Controller(Optional)

    C. REMOTE CONTROLLER(Optional) 1. POWER( Turns the power ON or OFF. There will be a few seconds delay before the display appears. 2. SOURCE Selects an input source. 3. AUTO Auto geometry adjustment in the RGB PC source. 4. HOLD Stops the Motion Detection &...

  • Page 10: Power Led

    D. FRONT KEY CONTROL 1 / 2. ◀ VOL ▶ Adjust the volume and menu settings. 3 / 4. ▲ / ▼ These buttons allow user to enter the sub-menu of the activated function. The up(▲) button is HOLD function and stop the Trigger & Auto switching functions. 5.

  • Page 11: Osd Menu Description

    OSD MENU DESCRIPTION All picture, sound settings and setup for the monitor can be adjusted in the OSD menu. (On Screen Display) To adjust the OSD screen: 1. Press the Menu button to enter the OSD menu. 2. Press the ▲/▼ buttons to select the desired option. The selected option is highlighted. 3.
  • Page 12 B. Picture/Sound Option Function Value Picture Mode Sets picture mode. See table below Color Tone Sets color tone. See table below Mute Mutes speaker sound. Off or On Volume Adjust the level of audio volume. 0 ~ 100 Size Display picture size. See table below Reduces noise of the picture.
  • Page 13 Color Tone Cool Gives the white color a bluish tint. Normal Gives the white color a neutral tint. Warm Gives the white color a reddish tint. User To manually adjust the color tones(Red, Green, and Blue). Size Sets the image size to 4:3 Panorama Sets the image to panorama Zoom1...
  • Page 14 C. PIP Option Function Value Activates the PIP feature. Off or On Input Source Selects the input source for the PIP area. See table below Enables 3 screen size.4:3 side by corner, 4:3 side by 4: 3, PIP Mode PIP, PBP1 or PBP2 and full screen side by side.
  • Page 15 D. Setup Option Function Value Resets the monitor settings to their Reset factory default. English, French, Deutsch, Language Sets the language of the OSD menu. Italian, Spanish, Portuguese or Nederland Changes background of monitor menus. OSD Tone Transparency or On (e.g.
  • Page 16 1. Trigger Option Function Value Trigger Enable Activates the Trigger feature. Off or On AV1, AV2, S-Video, Trigger Input Selects the input source for the Trigger. RGB PC, DVI, HDMI1, HDMI2 and Component Activates an audible signal when the monitor Buzzer On or Off receives a Trigger signal.
  • Page 17 1.1 Trigger Option N/C(Normally Closed): The Trigger function is activated when the trigger cable is opened. N/O(Normally Opened): The Trigger function is activated when the trigger cable is closed. High: The Trigger function is activated when the trigger signal is DC 2~5[V]. Low: The Trigger function is activated when the trigger signal is DC 0~0.6[V].
  • Page 18 1.2 Display Type ※ PIP & FULL: When the condition is below, the Trigger Input image will be displayed as PIP. Main Trigger Input Video Video Video RGB PC, HDMI1, HDMI2 or Component RGB PC, HDMI1, HDMI2 or Component Video Otherwise, it will be displayed as full screen.
  • Page 19 2. Auto Switching Option Function Value Auto Switching Activates the Auto Switching feature. Off or On AV1, AV2, S-Video, RGB PC, Opens another menu and you can select the input Input Enable DVI, HDMI1, HDMI2 and sources to include in the Auto Switching cycle. Component Selects the amount of time, in seconds, that the Time...
  • Page 20 Using the VESA standard wall mount design and the 100mm hole pattern on the back panel to install the LCD monitor to the wall. Wall-mount Installation (Option) 1. The Monitor fixing bracket to the monitor using the fixing screws provided. 2.
  • Page 21 ▶ Pin Assignments Pin 1 RED VIDEO GREEN VIDEO SIGNAL CABLE DETECT BLUE VIDEO GROUND GROUND SDA(for DDC) GROUND H-SYNC.(or H+V SYNC.) RED GROUND V-SYNC. GREEN GROUND SCL(for DDC) BLUE GROUND D-SUB ▶ ACCESSORIES 1. Power cord 2. Power adaptor 3.

  • Page 22: Power Consumption

    POWER CONSUMPTION POWER CONSUMPTION MODE 17” 19” < 36W < 42W POWER OFF < 1W LED INDICATOR The power management feature of the monitor is comprised of two stages: ON(GREEN) and POWER OFF(RED). MODE LED COLOR MONITOR OPERATION GREEN Normal Operation POWER OFF Not Operation 20 ……………………………………………………………………….
  • Page 23 ” ” 17˝ Diagonal AM-TFT(Active-Matrix) 19˝ Diagonal AM-TFT(Active-Matrix) Pixel pitch(mm) : 0.264(H) x 0.264(V) Pixel pitch(mm) : 0.294(H) x 0.294(V) LCD-Type BRIGHTNESS: 250cd/㎡(Typical) CONTRAST RATIO: 1000:1(Typical) CONTRAST RATIO: 800:1(Typical) RESPONSE TIME: 5msec(Typical) RESOLUTION 1280X1024 @60Hz (H x V) HORIZONTAL: 31~80KHz FREQUENCY VERTICAL: 56~75Hz VIDEO (2ch input 1.0Vp-p, 75Ω...

  • Page 24: Weee Symbols

    WEEE Symbols Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.
  • Page 25 MEMO...
  • Page 26 MEMO...
  • Page 28 P/N : L39ME0275 Rev.0...
