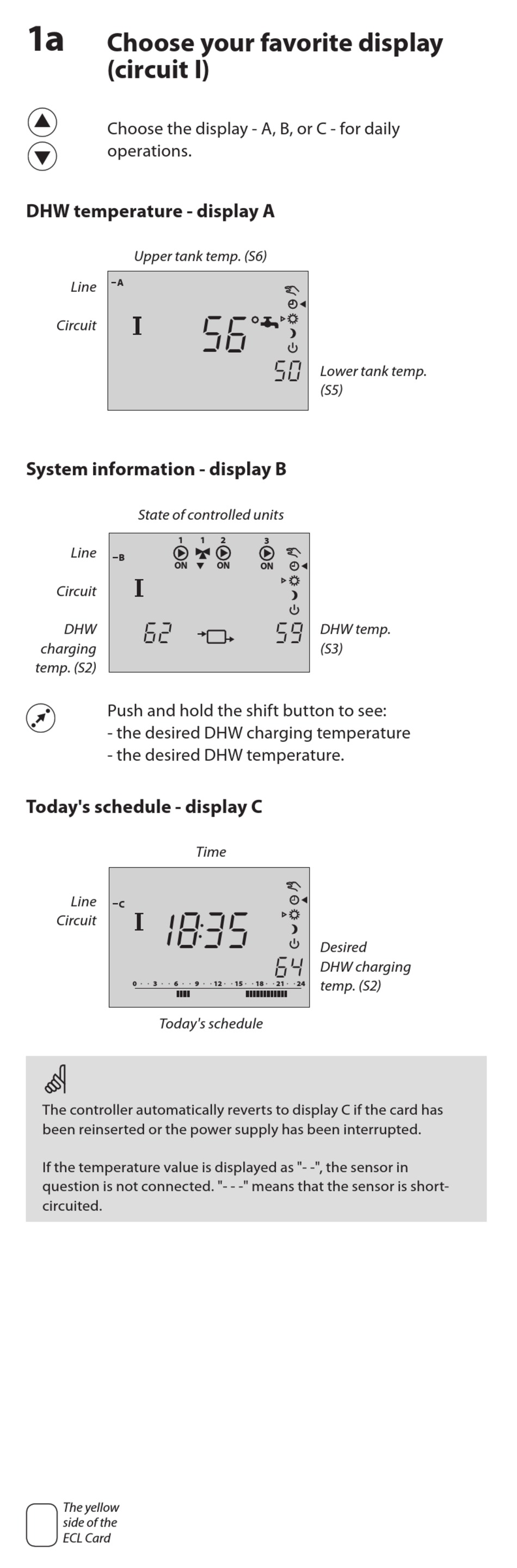

Choose your favorite display
(circuit I)
Choose the display - A, B, or C - for daily
operations.
DHW temperature - display A
Upper tank temp. (S6)
Line A
Circuit
System information - display B
Line
B
Circuit
DHW
charging
temp. (S2)
Push and hold the shift button to see:
- the desired DHW charging temperature
- the desired DHW temperature.
Today's schedule - display C
Line
C
Circuit
The controller automatically reverts to display C if the card has
been reinserted or the power supply has been interrupted.
If the temperature value is displayed as "- -", the sensor in
question is not connected. "- - -" means that the sensor is short-
circuited.
The yellow
side of the
ECL Card
5
6
State of controlled units
1 1 2
ON ON
6 2
Time
1 8 3 5
0 3 6 9 12
Today's schedule
5 0
Lower tank temp.
(S5)
3
ON
DHW temp.
5 9
(S3)
Desired
6 4
DHW charging
temp. (S2)
15 18 21 24
