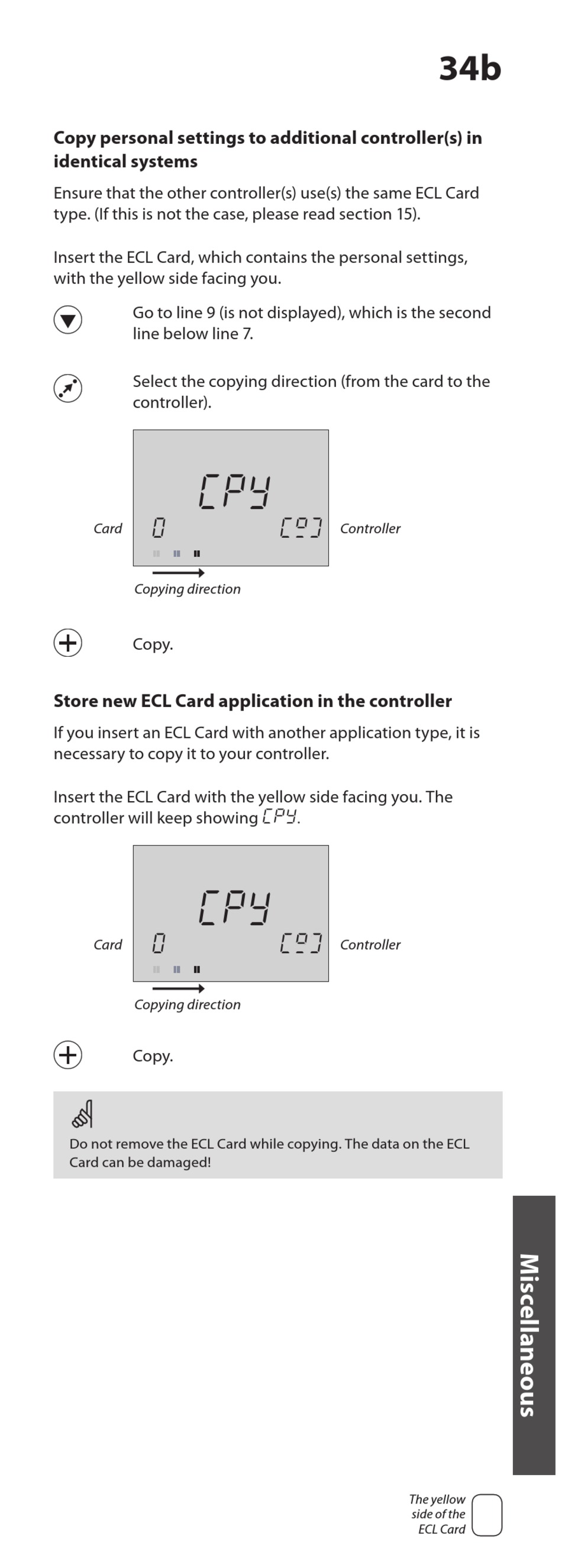

Danfoss C17 Installer's Manual page 51

Copy personal settings to additional controller(s) in
identical systems
Ensure that the other controller(s) use(s) the same ECL Card
type. (If this is not the case, please read section 15).
Insert the ECL Card, which contains the personal settings,
with the yellow side facing you.
Go to line 9 (is not displayed), which is the second
line below line 7.
Select the copying direction (from the card to the
controller).
0
Card
Copying direction
Copy.
Store new ECL Card application in the controller
If you insert an ECL Card with another application type, it is
necessary to copy it to your controller.
Insert the ECL Card with the yellow side facing you. The
controller will keep showing
0
Card
Copying direction
Copy.
Do not remove the ECL Card while copying. The data on the ECL
Card can be damaged!
C P Y
C 9 9
CPY.
C P Y
C 9 9
34b
Controller
Controller
The yellow
side of the
ECL Card
