- Page 1 MAKING MODERN LIVING POSSIBLE Danfoss Link™ RS Installation Manual Danfoss Heating...

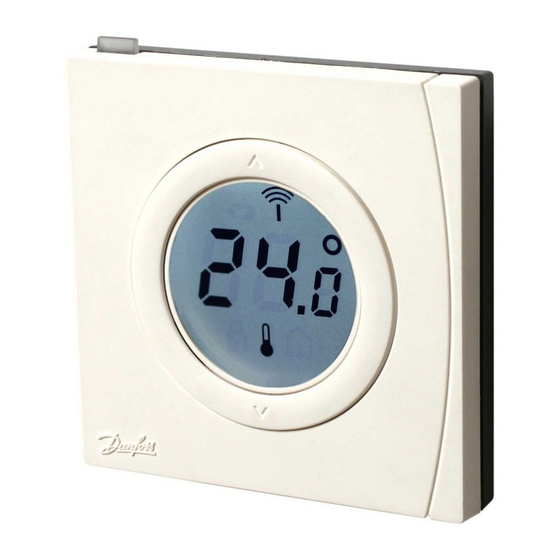

- Page 2 Danfoss Link™ RS The Danfoss Link™ RS (Room Sensor) has a built-in tem- perature sensor which measures the ambient temperature. It allows you to control the heating based on room tem- perature, in the room where installed. With the Danfoss Link™...
- Page 3 Placement of Danfoss Link™ RS Not on a wall where it will be subjected to direct sunlight. Installation height should typically be between 80-150 cm. In wet rooms it should be installed on an even surface, according to local building regulations.
- Page 4 Screw mount the RS 3. Mount batteries 4. Put front cover on by placing the top of the cover in place first and then gently press the bottom end in place. Configuration: See Step-by-Step guide in Danfoss Link™ CC instruction manual.
-
Page 5: Troubleshooting
Flash Limited by Danfoss Link ™ Factory reset a Danfoss Link™ RS: Take the front cover off . Take out one battery and hold the ON/OFF/Install button down while reinserting the battery. Keep holding down the install button until it... -
Page 6: Technical Specifications
Technical specifications Battery Alkaline 2xAA, 1.5V Battery lifetime Up to 4-5 years Backlight Green LED Ambient tempera- 0˚ to +40˚C ture Battery monitoring The sensor has a built-in monitoring circuit, which will detect low or critical battery level. Transmission 868.42MHz frequency Transmission range Up to 30m... -
Page 7: Warranty Certificate
Danfoss product, you will of the above. find that Danfoss offers a 2 year warranty from the The Danfoss Warranty shall not extend to equip- date of purchase on the following conditions: ment which has not been paid in full. - Page 8 Article No.: 088L8082 Version - 01.01 Danfoss A/S DK • 7100 Vejle Phone +45 7488 8500 +45 7488 8501 Danfoss Heating Solutions VIFZA102 © Danfoss 09/2009...
