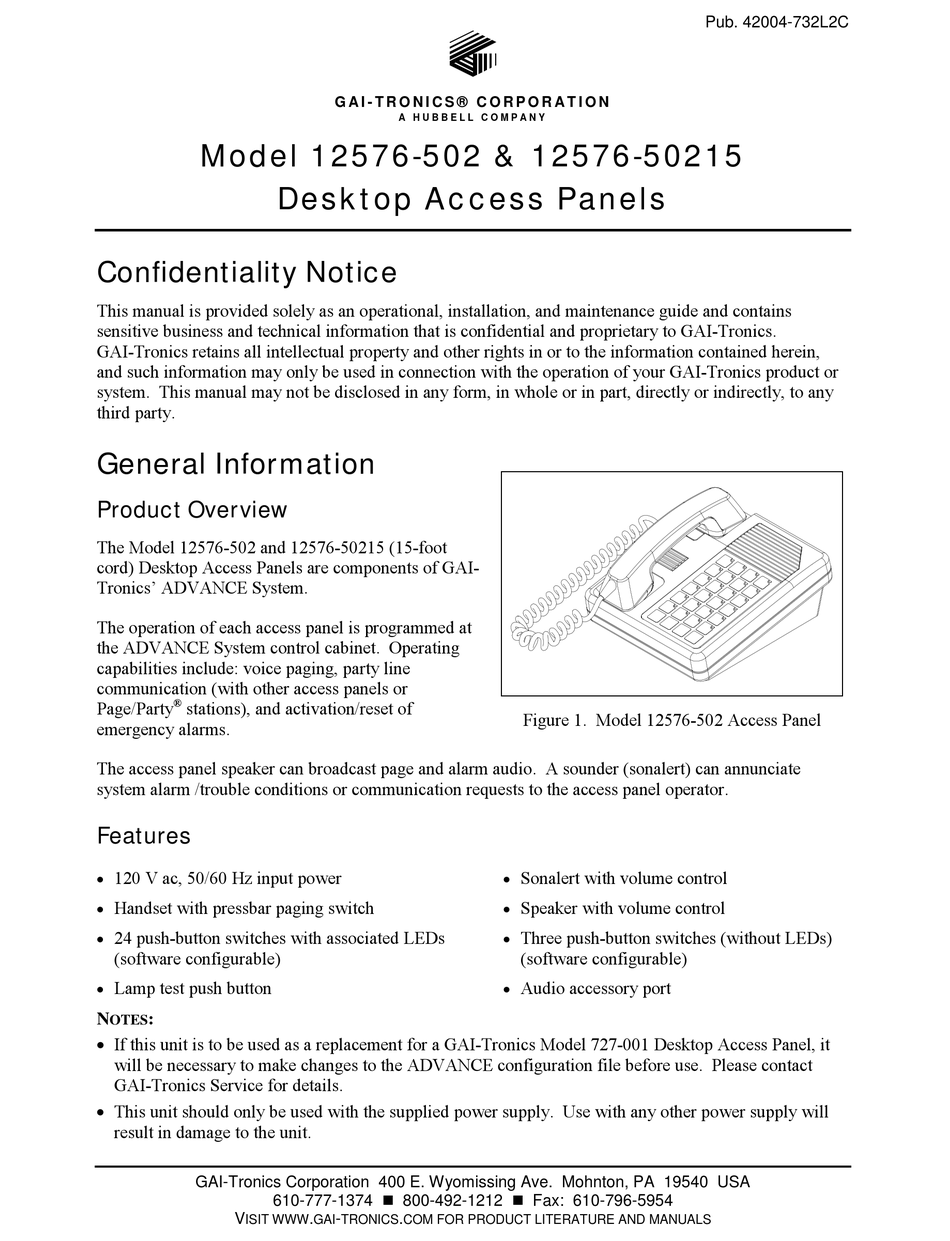

Model 12576-502 & 12576-50215
Confidentiality Notice
This manual is provided solely as an operational, installation, and maintenance guide and contains
sensitive business and technical information that is confidential and proprietary to GAI-Tronics.
GAI-Tronics retains all intellectual property and other rights in or to the information contained herein,
and such information may only be used in connection with the operation of your GAI-Tronics product or
system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any
third party.
General Information
Product Overview
The Model 12576-502 and 12576-50215 (15-foot
cord) Desktop Access Panels are components of GAI-
Tronics' ADVANCE System.
The operation of each access panel is programmed at
the ADVANCE System control cabinet. Operating
capabilities include: voice paging, party line
communication (with other access panels or
®
Page/Party
stations), and activation/reset of
emergency alarms.
The access panel speaker can broadcast page and alarm audio. A sounder (sonalert) can annunciate
system alarm /trouble conditions or communication requests to the access panel operator.
Features
120 V ac, 50/60 Hz input power
Handset with pressbar paging switch
24 push-button switches with associated LEDs
(software configurable)
Lamp test push button
N
:
OTES
If this unit is to be used as a replacement for a GAI-Tronics Model 727-001 Desktop Access Panel, it
will be necessary to make changes to the ADVANCE configuration file before use. Please contact
GAI-Tronics Service for details.
This unit should only be used with the supplied power supply. Use with any other power supply will
result in damage to the unit.
GAI-Tronics Corporation 400 E. Wyomissing Ave. Mohnton, PA 19540 USA
610-777-1374 800-492-1212 Fax: 610-796-5954
V
ISIT WWW
G A I - T R O N I C S ® C O R P O R A T I O N
A H U B B E L L C O M P A N Y
Desktop Access Panels
.
-
.
GAI
TRONICS
COM FOR PRODUCT LITERATURE AND MANUALS

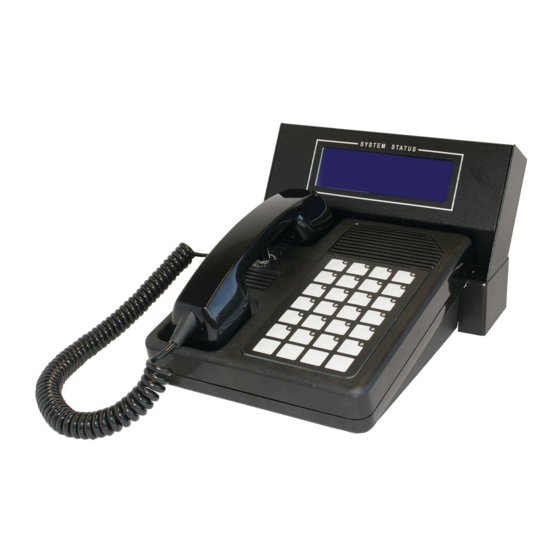

Figure 1. Model 12576-502 Access Panel
Sonalert with volume control
Speaker with volume control
Three push-button switches (without LEDs)
(software configurable)
Audio accessory port
Pub. 42004-732L2C
Advertisement
Table of Contents
Related Manuals for GAI-Tronics 12576-502
Summary of Contents for GAI-Tronics 12576-502
-
Page 1: General Information
Audio accessory port OTES If this unit is to be used as a replacement for a GAI-Tronics Model 727-001 Desktop Access Panel, it will be necessary to make changes to the ADVANCE configuration file before use. Please contact GAI-Tronics Service for details. -
Page 2: Installation
Pub. 42004-732L2C Model 12576-502 & 12576-50215 Desktop Access Panels Page 2 of 11 Installation Important Safety Instructions 1. Read, follow, and retain instructions – All safety and operating instructions should be read and followed before operating the unit. Retain instructions for future reference. -
Page 3: Field Wiring
ADVANCE control cabinet. WARNING The power supply included with the Model 12576-502 or 12576-50215 Access Panels is specifically designed for this unit and must not be used with any other 12576 series or 727 series Desktop Access Panels. - Page 4 Pub. 42004-732L2C Model 12576-502 & 12576-50215 Desktop Access Panels Page 4 of 11 Audio Accessory Port An eight-pin audio port (RJ45 jack) on the rear of the unit is available to connect the GAI-Tronics Model XAAB002A Audio Accessory Box to the access panel. Optional accessories, such as microphones, headsets, footswitches, etc.,...
-
Page 5: Settings And Adjustments
Pub. 42004-732L2C Model 12576-502 & 12576-50215 Desktop Access Panels Page 5 of 11 Settings and Adjustments User Adjustments Speaker Volume Adjustment The speaker volume control on the rear of the unit adjusts the volume level of the internal speaker. Clockwise rotation will increase the volume and counterclockwise rotation will decrease the volume. - Page 6 Pub. 42004-732L2C Model 12576-502 & 12576-50215 Desktop Access Panels Page 6 of 11 Potentiometer Adjustments External Audio Output R3 on No. 69862-xxx PCBA adjusts the external audio output level. Clockwise rotation increases the level. Default output level is 0.775 Vrms. Refer to Figure 7 for potentiometer location.
- Page 7 The keypad on the enclosure uses “slide-in” labels to identify the individual switch functions. Two sheets of blank labels are included with the access panel. (GAI-Tronics Part. No. 14919-113). The labels are printed by inserting the blank sheets into any laser jet or inkjet printer.
-
Page 8: Operation
Pub. 42004-732L2C Model 12576-502 & 12576-50215 Desktop Access Panels Page 8 of 11 Operation The access panel operator is capable of voice communication and system control functions. The following paragraphs provide a general overview of the available access panel features. Operation details for the access panel are determined by software programming at the ADVANCE System control cabinet. -
Page 9: Activating An Alarm
Pub. 42004-732L2C Model 12576-502 & 12576-50215 Desktop Access Panels Page 9 of 11 Page Timeout – This sets amount of time the access panel can generate a page. If the limit is exceeded, the page will cease and a busy tone is heard in the handset receiver. A trouble report will be sent to the control cabinet. -
Page 10: Maintenance
Pub. 42004-732L2C Model 12576-502 & 12576-50215 Desktop Access Panels Page 10 of 11 Maintenance Troubleshooting Symptom Possible Cause The access panel has lost data communication with the Access Panel Interface (API) card in the ADVANCE System Control Cabinet. Possible Causes: Access panel LEDs flash and ... -
Page 11: Specifications
Pub. 42004-732L2C Model 12576-502 & 12576-50215 Desktop Access Panels Page 11 of 11 Specifications DC Power Requirements Input voltage ............................12 V dc Minimum input current ........................600 mA Access Panel Cabling Twisted pair cable ......................Category 3 minimum Nominal cable characteristic impedance ..................100 ohms Frequency response ...................... -
Page 12: Warranty
If the services fail to meet the applicable industry standard, GAI-Tronics will re- perform such services at no cost to buyer to correct said deficiency to Company's satisfaction provided any and all issues are identified prior to the demobilization of the Contractor's personnel from the work site.
