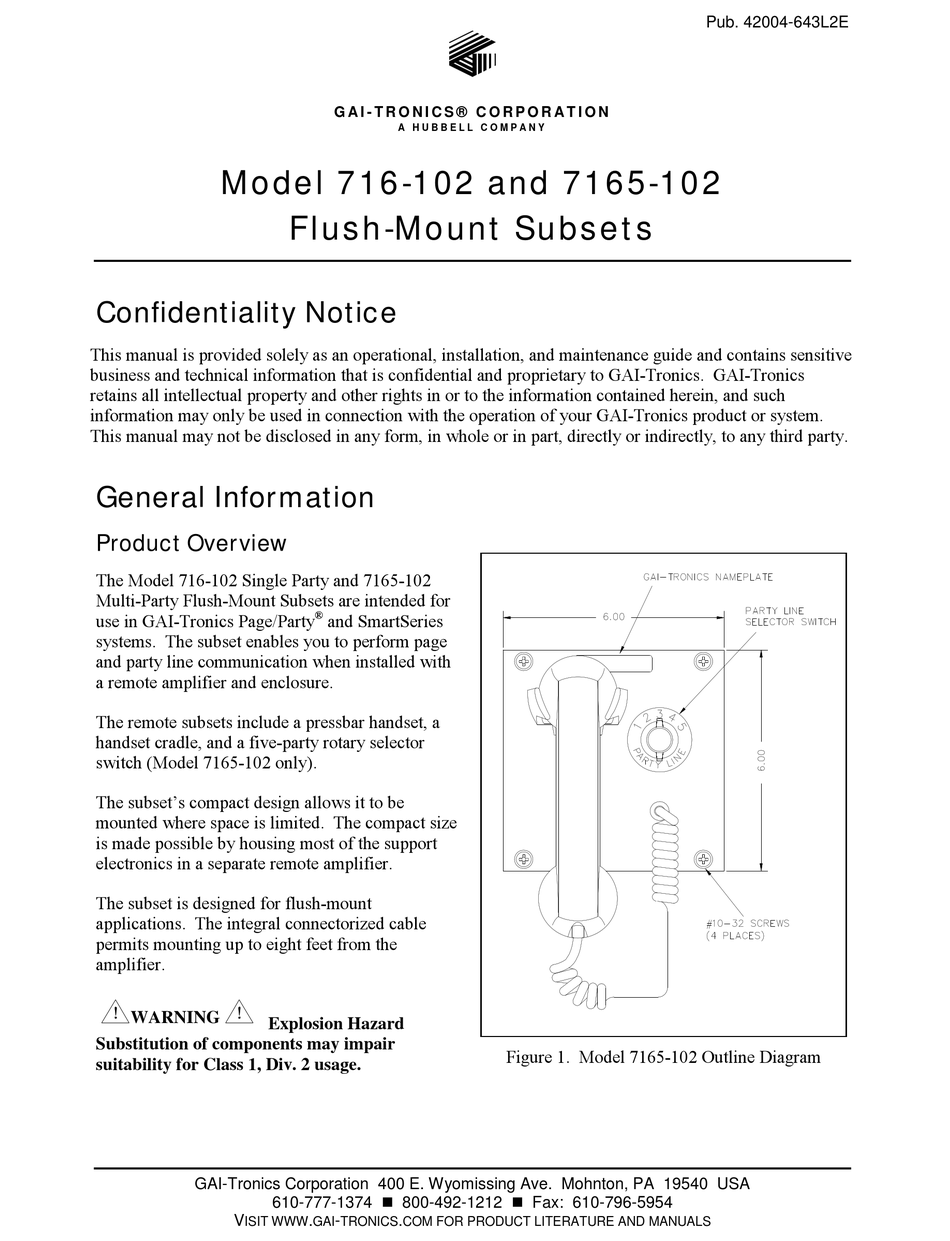

Model 716-102 and 7165-102
Confidentiality Notice
This manual is provided solely as an operational, installation, and maintenance guide and contains sensitive
business and technical information that is confidential and proprietary to GAI-Tronics. GAI-Tronics
retains all intellectual property and other rights in or to the information contained herein, and such
information may only be used in connection with the operation of your GAI-Tronics product or system.
This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any third party.
General Information
Product Overview

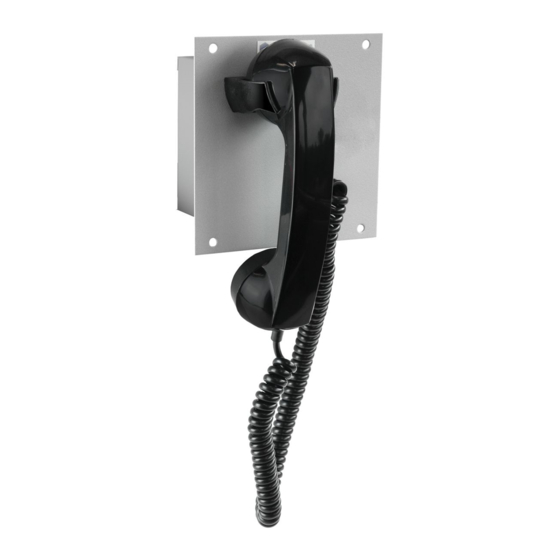

The Model 716-102 Single Party and 7165-102
Multi-Party Flush-Mount Subsets are intended for
use in GAI-Tronics Page/Party
systems. The subset enables you to perform page
and party line communication when installed with
a remote amplifier and enclosure.
The remote subsets include a pressbar handset, a
handset cradle, and a five-party rotary selector
switch (Model 7165-102 only).
The subset's compact design allows it to be
mounted where space is limited. The compact size
is made possible by housing most of the support
electronics in a separate remote amplifier.
The subset is designed for flush-mount
applications. The integral connectorized cable
permits mounting up to eight feet from the
amplifier.
WARNING
Explosion Hazard
Substitution of components may impair
suitability for Class 1, Div. 2 usage.
GAI-Tronics Corporation 400 E. Wyomissing Ave. Mohnton, PA 19540 USA
V
ISIT WWW
G A I - T R O N I C S ® C O R P O R A T I O N
A H U B B E L L C O M P A N Y
Flush-Mount Subsets
®
and SmartSeries
610-777-1374 800-492-1212 Fax: 610-796-5954
.
-
.
GAI
TRONICS
COM FOR PRODUCT LITERATURE AND MANUALS
Figure 1. Model 7165-102 Outline Diagram
Pub. 42004-643L2E
Advertisement
Table of Contents
Related Manuals for GAI-Tronics 716-102
Summary of Contents for GAI-Tronics 716-102
-
Page 1: General Information
GAI-Tronics product or system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any third party. -
Page 2: System Requirements And Limitations
Page 2 of 10 System Requirements and Limitations The Model 716-102 Single Party and 7165-102 Multi-Party Flush-Mount Subsets must be installed with a certified remote subset amplifier and a certified Model 7245 Enclosure for proper operation. Mount the subset in an indoor location within eight feet of the enclosure. -
Page 3: Description Of Major Components
Model 716-102 and 7165-102 Flush-Mount Subsets Page 3 of 10 Description of Major Components The Model 716-102 and 7165-102 Subsets contain external and internal components. Each major component is described below. External Components The Model 716-102 and 7165-102 Subsets contain the following subassemblies: Pressbar handset is used to perform full-duplex party line communication. -
Page 4: Block Diagram
Pub. 42004-643L2E Model 716-102 and 7165-102 Flush-Mount Subsets Page 4 of 10 Block Diagram As shown in Figure 4, the handset, hookswitch, party line switch (Model 7165-102 only), and auxiliary input (optional) signals connect to the Subset Termination PCBA. The Subset Termination PCBA then connects these signals to the appropriate terminals of the subset cable for connection to the amplifier/amplifier enclosure. -
Page 5: Installation
Pub. 42004-643L2E Model 716-102 and 7165-102 Flush-Mount Subsets Page 5 of 10 Installation WARNING Do not install this equipment in hazardous areas. Such installations may cause a safety hazard and consequent injury or property damage. 1. Refer to Figure 5 and Figure 6 for the multi-party and single party subsets cutout details, respectively. - Page 6 Pub. 42004-643L2E Model 716-102 and 7165-102 Flush-Mount Subsets Page 6 of 10 Figure 7. Subset Mounting Details (Model 7165-102 shown) Figure 8. Typical Flush Station Installation f:\standard ioms - current release\42004 instr. manuals\42004-643l2e.doc 04/13...
-
Page 7: Operation
Pub. 42004-643L2E Model 716-102 and 7165-102 Flush-Mount Subsets Page 7 of 10 Operation ® GAI-Tronics offers two types of Page/Party systems: Single party with one page line and one party line, and multi-party with one page line and five party lines allowing up to five simultaneous two-way conversations. -
Page 8: Maintenance
Handset Receiver Volume The handset receiver volume controls the receiver volume level. Other Controls The following additional controls affect system performance; therefore, only qualified GAI-Tronics personnel with the appropriate test equipment should make adjustments. Tampering with these controls may void your warranty. -
Page 9: Troubleshooting
Pub. 42004-643L2E Model 716-102 and 7165-102 Flush-Mount Subsets Page 9 of 10 Troubleshooting The following table lists some hints to aid technicians in troubleshooting: Problem Possible Solution Outgoing conversation level 1. Adjust the microphone gain at the remote amplifier. requires adjustment. -
Page 10: Specifications
Approvals NRTL certified for use in US and Canada ..........Class I, Div. 2, Groups A, B, C, D, when connected to a certified GAI-Tronics Model 7245 Amplifier Enclosure using a certified GAI-Tronics Model 723 Amplifier Temperature Code ..................T3C (Maximum ambient = 70º C) -
Page 11: Warranty
If the services fail to meet the applicable industry standard, GAI-Tronics will re- perform such services at no cost to buyer to correct said deficiency to Company's satisfaction provided any and all issues are identified prior to the demobilization of the Contractor's personnel from the work site.
