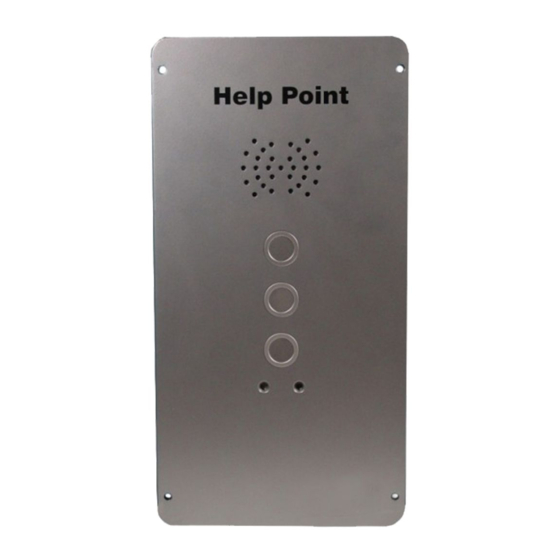

- Page 1 Installation and User Guide Hands-free telephones 1090/1099 models Vandal Resistant (VR) and Help Point GAI-TRONICS Doc. No. 502-20-0122-001 Iss1. October 2007 (CN22148)
-
Page 2: Table Of Contents
CONTENTS Safety and Care Information............... 3 Product Description ..................3 2.1. Changes from previous versions..........4 Operation / Testing ..................4 3.1. Making a Call ................4 3.2. Answering calls ................4 3.3. Ending the Call................5 3.4. Call timer ..................5 SMART features .................. -
Page 3: Safety And Care Information
Safety and Care Information ▲ The safety of the user/installer relies on the isolation of the telephone network and not on the earthing of the case ▲ Please read these instructions thoroughly before starting installation. These products must be installed by competent personnel familiar with telephone installation. -
Page 4: Changes From Previous Versions
Optional logic inputs (4) 2.1. Changes from previous versions This manual describes an updated range of products introduced in December 2007. For those familiar with GAI-Tronics’ products, the list of new or changed features is as follows: • New terminal layout (section 6). -
Page 5: Ending The Call
Call logs for calls made to and from the telephones These features are all available over standard, 2 wire telephone lines with no external power required at the phone. To use these features, GAI-Tronics provide a Telephone Management Application (TMA) available separately, see section 7.3. Installation 5.1. -
Page 6: Wall/Pole Mounting
Where the telephone faceplate is mounted into an enclosure or recess other than the standard GAI-Tronics backbox, then additional care must be taken that wiring and proximity to conducting surfaces complies with the requirements of the R&TTE Directive - 1999/5/EC. - Page 7 cable entry hole and tighten, so that its sealing washer is compressed against the enclosure surface. 4. Proceed with chosen mounting method below 5.2.1 Wall mounting 1. Using a suitable tool, punch out the 4 holes in the rear enclosure, taking care not to damage or dislodge the plastic bushes.
- Page 8 5.2.2 Pole mounting Kit No 100-02-0208-001 This accessory is for mounting GAI-Tronics telephones on to the side of round poles of 100mm to 200mm diameter, or on to square or rectangular section uprights of 100mm to 150mm across the mounting surface.
-
Page 9: Flush Mounting
5.3. Flush mounting To flush-mount the telephone to a wall: 1. Prepare a recess (at least 50mm deep) in the wall according to the dimensions shown. 2. Mark the wall with hole centres based on the dimensions shown (155 x 326mm). If necessary offer the faceplate up to the wall to check alignment. -
Page 10: Connections
Cabling must not infringe European Low Voltage Directive (LVD) 73/23/EEC. 6.2. Supplementary Power supply GAI-Tronics hands-free telephones can be equipped with a supplementary power supply, required to power the induction loop (if fitted), external relays (if fitted) and generally to provide increased audio output level. -
Page 11: Optional Relay Outputs
Note – these optional connections are only available if specifically ordered, and a supplementary power supply (see section 6.2) is required. Contact GAI-Tronics for details. The additional outputs are provided on HD9 & HD10 as shown and are isolated SELV outputs as defined by EN 60950-1:2001. -
Page 12: Programming And Option Settings
Programming and option setting is done remotely by sending commands down the telephone line to the unit. This can be done by either using a tone phone, or by using GAI-Tronics TMA - a PC software application. 7.1. Quick Programming Guide (using a tone phone). -
Page 13: Further Programming Options
*101 9 *1 12345 # 7.3. TMA GAI-Tronics TMA is a fully featured software application (Telephone Management Application) for Windows™ XP, offering the facilities to program, maintain, monitor and report on all types of GAI-Tronics SMART products. VR & Help Point... -
Page 14: Aftercare
Each package includes the TMA software (including comprehensive help documentation and installation instructions), external modem and dongle. Aftercare The purchase of your GAI-Tronics product does not end our commitment to you. In addition to our warranty obligations, GAI-Tronics are able to offer various levels of maintenance packages, installation and commissioning packages and technical support, from ad-hoc repairs to full maintenance contracts. -
Page 15: Technical Specifications
Technical Specifications Operational Requirements Systems. • Analogue Public Switched Telephone Network (PSTN) • Private Automatic Branch Exchange (PABX) Not suitable for • Payphone extensions connection to: • Public Emergency Telephone System (PETS) • Telephone line Ring Voltage: 40V to 100V rms, 20Hz to 50Hz parameters •... - Page 16 Operating: -20ºC to +60ºC Storing: -40ºC to +70ºC Relative Humidity Up to 95% (non-condensing) Ingress IP65 (from the front only unless fitted in the GAI-Tronics rear Protection enclosure) to EN60529:1992 – Degrees of protection provided by enclosures. Physical characteristics Faceplate / Aluminium.
- Page 17 Recycling The symbol shown here and on the product means that information the product is classed as Electrical or Electronic Equipment and should not be disposed with other household or commercial waste at the end of its working life. The Waste of Electrical and Electronic Equipment (WEEE) Directive has been put in place to recycle products using best available recovery and recycling techniques to minimise the impact on the environment,...
- Page 18 Compliance to standards European 1999/5/EC – European Radio & Telecommunications Directives Terminal Equipment Directive. 2002/96/EC - Waste Electrical and Electronic Equipment (WEEE) Directive 2002/95/EC - Restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS) EN55022:2006 – Information technology equipment. Radio disturbance characteristics.
-
Page 19: Ce Declaration
10. CE Declaration VR & Help Point... - Page 20 Brunel Drive Stretton Park Burton on Trent DE13 0BZ England Tel: 01283 500500 Fax: 01283 500400 www.gai-tronics.co.uk The policy of GAI-Tronics is one of continuous improvement, therefore the Company reserves the right to change specifications without notice VR & Help Point...
