  • Page 1 LE-376 3.5 Miniboard User’s Manual Edition 1.0 2010/08/03...
  • Page 2 Trademark All trademarks are the property of their respective holders. Any questions please visit our website at http://www.commell.com.tw...

  • Page 3: Packing List

    LE-376 User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: LE-376 “3.5 Miniboard” x 1 Cable Kit: SATA Cable x 1 DC Power Cable x 1 (OALSATA-L) (OALDC-2) Audio Cable x 1 (OALPJ-HDUNB USB Cable x 1 (OALUSBA-3) Dual COM PORT cable x 1...
  • Page 4 LE-376 User’s Manual Index Chapter 1 <Introduction> ..............5 1.1 <Product Overview> .................. 5 1.2 <Product Specification>................6 1.3 <Mechanical Drawing> ................8 1.4 <Block Diagram> ..................9 Chapter 2 <Hardware Setup> ............. 10 2.1 <Connector Location> ................10 2.2 <Jumper Reference>................12 2.3 <Connector Reference>...
  • Page 5 LE-376 User’s Manual Appendix A <I/O Port Pin Assignment> ......34 A.1 <LPT Port> ....................34 A.2 <CRT Port > .................... 34 A.3 <LAN Port>....................35 A.4 <IrDA Port>....................35 A.5 <SMBUS Port>..................35 A.6 <Serial Port> ................... 36 A.7 <DIO Port> ....................36 A.8 <PS2 Port>....................

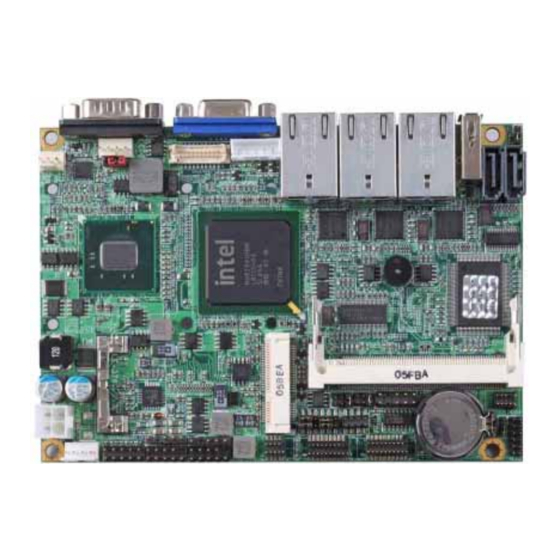

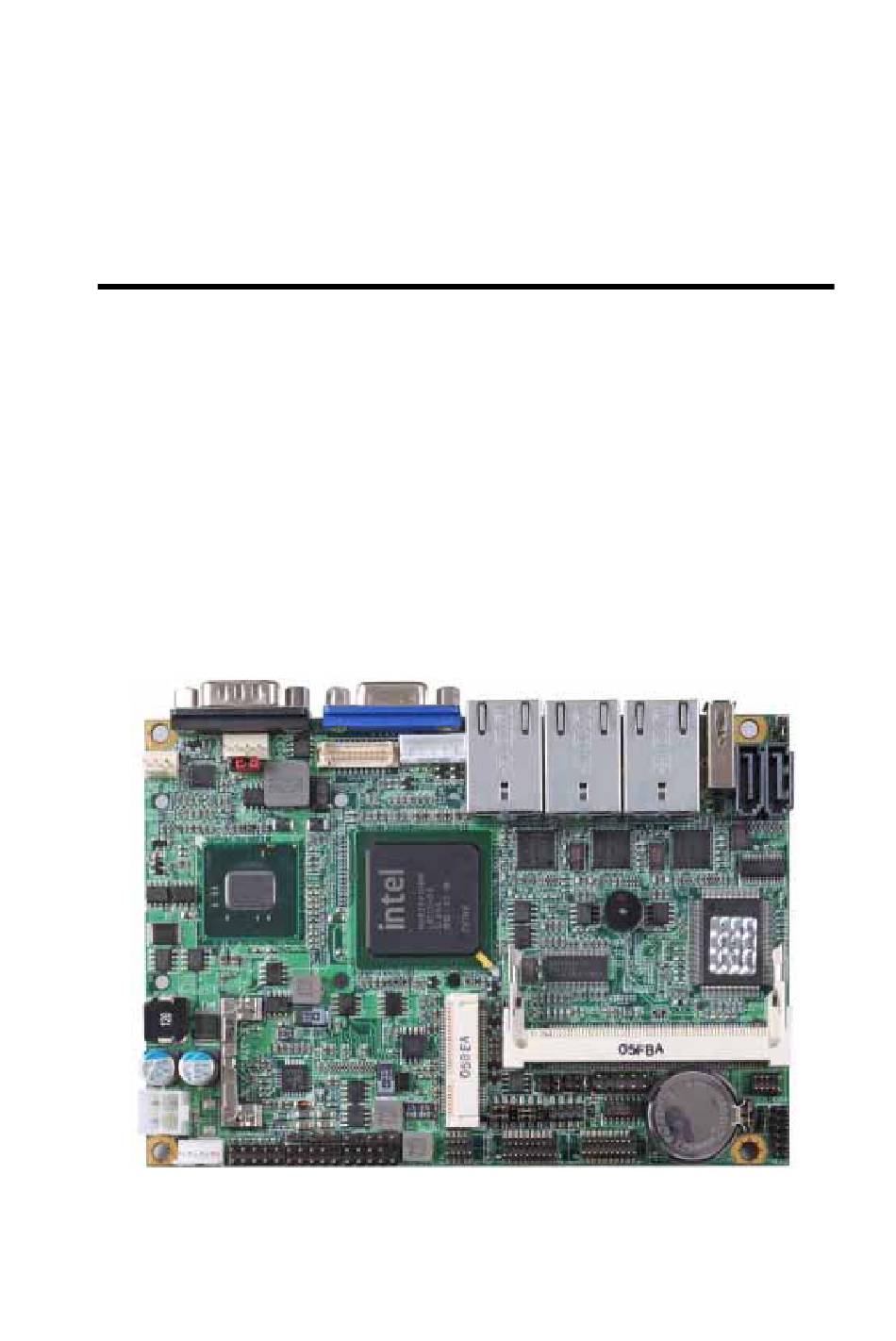

  • Page 6 LE-376 User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> LE-376G/H/A is the 3.5 miniboard, with Intel® Atom N450/D410/D510 processor, integrated GMA3150 graphics, Intel® ICH8M, DDR2 SO-DIMM memory, Realtek HD Audio, CF, SATAII, LVDS, LPT, IrDA, DIO, USB, CN_PS2, DC_OUT, SMBUS, CN_INV and Intel®...
  • Page 7 LE-376 User’s Manual 1.2 <Product Specification> General Specification Form Factor 3.5 miniboard Intel® Atom N450 processor 1.66GHz (LE-376G) Intel® Atom D410 processor 1.66GHz (LE-376H) Intel® Atom D510 processor 1.66GHz (LE-376A) Package type: FCBGA559 Memory 1 x 200-pin DDR2 SO-DIMM 667MHz SDRAM up to 2GB (LE-376G Only) 1 x 200-pin DDR2 SO-DIMM 667MHz SDRAM up to 4GB (LE-376H/A Only)
  • Page 8 LVDS for 18bit, Audio, Giga LAN, USB2.0, CF, PCIE mini card LE-376A Support Intel® Atom D510 processor with onboard VGA, LVDS for 18bit, Audio, Giga LAN, USB2.0, CF, PCIE mini card The specifications may be different as the actual production. For further product information please visit the website at http://www.commell.com.tw...
  • Page 9 LE-376 User’s Manual 1.3 <Mechanical Drawing> Unit: inch...
  • Page 10 LE-376 User’s Manual 1.4 <Block Diagram> VGA Interface Intel GMA 3150 Intel® Atom DDR2 SODIMM 667 MHz N450/D410/ up to 2G/ 4G/ 4G D510 18bit Single Channel LVDS 1 x Mini PCI 1 x PCIE mini card 2 x Serial ATA II 1 x Compact Flash ICH8M 5 x USB2.0...
  • Page 11 LE-376 User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location>...
  • Page 12 LE-376 User’s Manual LE-376G/H/A...
  • Page 13 LE-376 User’s Manual 2.2 <Jumper Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD Panel Voltage Setting Power mode select JCSEL1 CN_COM2 RS-232 RS422 RS485 Setting / CN_IR IrDA JCSEL2 Setting CN_COM3/4/5/6 RS-232...
  • Page 14 LE-376 User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connector> Connector Function Remark DDRII 200 –pin DDR2 SO-DIMM SDRAM slot SATA1/2 7-pin Serial ATA connector Compact Flash Type II socket MINI_CARD PCIE mini card socket CN_LVDS 10 x 2-pin LVDS connector CN_INV 5-pin LCD inverter connector CN_USB1/2...
  • Page 15 LE-376 User’s Manual 2.4 <CPU and Memory Setup> Non-ECC, unbuffered memory is supported only. LE-376G provides one 200-pin DDR2 SO-DIMM to support DDR2 667 memory modules support up to 2GB of capacity. Suggestion: DDR2 SO-DIMM Modules: –Raw Card A = 2 Ranks of x16 SDRAMs (Double-sided) –Raw Card C = 1 Rank of x16 SDRAMs (Single-sided) LE-376H/ A provides one 200-pin DDR2 SO-DIMM to support DDR2 667 memory modules support up to 4GB of capacity.
  • Page 16 LE-376 User’s Manual 2.5 <CMOS & ATX Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values.
  • Page 17 LE-376 User’s Manual 2.6 <CF Interface> The board has one Compact Flash Type II socket on the solder side.
  • Page 18 LE-376 User’s Manual 2.7 <Serial ATA Interface> Based on Intel ICH8M, the board provides one Serial ATAII interfaces with up to 300MB/s of transfer rate.
  • Page 19 LE-376 User’s Manual 2.8 <LAN Interface> The Intel® 82583v supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance.
  • Page 20 LE-376 User’s Manual 2.9 <Onboard Display Interface> Based on Intel® Atom N450/D410/D510 with built-in GMA (Graphic Media Accelerator) 3150 graphics, the board provides one DB15 on real external I/O port, and one 20-pin LVDS interface with 5-pin LCD backlight inverter connector. The board provides dual display function with clone mode and extended desktop mode for CRT and LVDS.
  • Page 21 LE-376 User’s Manual 2.9.2 <Digital Display> The board provides one 20-pin LVDS connector for 18 bit single channel panels, LE-376G supports 1280 x 800 (WUXGA) resolution displays. LE-376H/A supports 1366 x 768 (WUXGA) resolution displays, with one LCD backlight inverter connector and one jumper for panel voltage setting...
  • Page 22 LE-376 User’s Manual Connector: CN_INV Jumper: JVLCD Type: 5-pin Inverter power connector Type: 3-pin Power select jumper Connector model: molex_53261-5pin Description Description +12V +3.3V Default: 2-3 ENABKL Connector: CN_LVDS Type: onboard 20-pin connector for LVDS connector Connector model: HIROSE DF13-20DP-1.25V Signal Signal LCDVCC...
  • Page 23 LE-376 User’s Manual To setup the LCD, you need the component below: A panel with LVDS interfaces. An inverter for panel’s backlight power. A LCD cable and an inverter cable. For the cables, please follow the pin assignment of the connector to make a cable, because every panel has its own pin assignment, so we do not provide a standard cable;...
  • Page 24 LE-376 User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: LE-376 BIOS panel type selection form On board Single channel LVDS 18bit Output format 640 x 480 800 x 480 800 x 600...
  • Page 25 LE-376 User’s Manual 2.10 <Onboard Audio Interface> The board provides the onboard high definition audio with Realtek ALC888 Connector: CN_AUDIO Type: 10-pin (2 x 5) 1.27mm x 2.54mm-pitch header Description Description MIC2_L AGND MIC2_R AVCC FRO_R MIC2_JD F_IO_SEN FRO_L LINE2_JD CN_AUDIO...
  • Page 26 LE-376 User’s Manual 2.11 <USB2.0 Interface> Based on Intel® ICH8M , the board provides 4 USB2.0 ports. The USB2.0 interface provides up to 480Mbps of transferring rate. Interface USB2.0 Controller ICH8M Transfer Rate Up to 480Mb/s Output Current 500mA CN_USB1/2 Connector: CN_USB Type: 10-pin (5 x 2) header for USB Port Description...
  • Page 27 LE-376 User’s Manual 2.12 <Serial Port Jumper Setting > The board provides two RS232 serial ports, with jumper selectable RS422/485/IrDA for COM2. Connector: CN_COM1 Type: 9-pin D-sub male connector Description Description MDCD1- MDSR1- MSIN1- MRTS1- MSO1- MCTS1- MDTR1- MRI1- Ground Connector: CN_COM2 Type: 9-pin header connector (pitch = 2.54x1.27 mm) Description...
  • Page 28 LE-376 User’s Manual Connector: CN_COM3/4 Type: 20-pin (10 x 2) 1.27mm x 2.54mm-pitch header for COM3/4 Description Description HS_DCD1- HS_RXD1 HS_TXD1 HS_DTR1- HS_DSR1- HS_RTS1- HS_CTS1- COM39 HS_DCD2- HS_RXD2 HS_TXD2 HS_DTR2- HS_DSR2- HS_RTS2- HS_CTS2- COM49 Connector: CN_COM5/6 Type: 20-pin (10 x 2) 1.27mm x 2.54mm-pitch header for COM5/6 Description Description HS_DCD3-...
  • Page 29 LE-376 User’s Manual CN_COM3/4/5/6...
  • Page 30 LE-376 User’s Manual 2.13 <Power & FAN Connector > The board requires DC input with 4-pin header, the input voltage is 9V to 24V, for the input current, please take a reference of the power consumption report on appendix. 2.13.1 <Power Input> Connector: DC_IN Type: 4-pin header Description...
  • Page 31 LE-376 User’s Manual 2.13.2 <Power Output> Connector: DC_OUT Type: 4-pin connector for +5V/+12V output Description +12V Note: Maximum output current 12V/1A, 5V/1A...
  • Page 32 LE-376 User’s Manual 2.13.3 <Fan Connector> Connector: SYSFAN Type: 3-pin fan wafer connector Description Description Description Ground +12V CSFAN Connector: CPUFAN Type: 4-pin fan wafer connector Description Ground +12V P1FAN...
  • Page 33 LE-376 User’s Manual 2.14 <Indicator and Switch> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 10-pin (2 x 5) 2.54-pitch header Function Signal Signal...
  • Page 34 LE-376 User’s Manual Chapter 3 <BIOS Setup> The motherboard uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel® x86 and compatible CPU architecture based processors and computers.
  • Page 35 LE-376 User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <LPT Port> Connector: CN_LPT Type: 25-pin header for LPT Port Description Description -PSTB AFD- PRD0 ERR- PRD2 INIT- PRD2 SLIN- PRD3 Ground PRD4 Ground PRD5 Ground PRD6 Ground PRD7 Ground ACK- Ground BUSY...
  • Page 36 LE-376 User’s Manual A.3 <LAN Port> Connector: RJ45 Type: RJ45 connector with LED on rear panel Description TRD0+ TRD0- TRD1+ TRD2+ TRD2- TRD1- TRD3+ TRD3- A.4 <IrDA Port> Connector: CN_IR Type: 5-pin header for SIR Port Description IRRXD Ground IRTXD A.5 <SMBUS Port>...
  • Page 37 LE-376 User’s Manual A.6 <Serial Port> Connector: COM1 Type: 9-pin D-sub male connector on rear panel Description Description MDCD1- MDSR1- MSIN1- MRTS1- MSO1- MCTS1- MDTR1- MRI1- Ground A.7 <DIO Port> Connector: CN_DIO Type: 12-pin D-sub male connector on rear panel Description Description Ground...

  • Page 38: Bios Auto Flash Tool

    The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.award.com http://www.commell.com.tw/support/support.htm File name of the tool is “awdflash.exe”, it’s the utility that can write the data into the BIOS flash ship and update the BIOS.
  • Page 39 LE-376 User’s Manual Appendix C <System Resources> C.1 <Direct memory access(DMA)> (LE-376A) C.2<Input/output(IO)> (LE-376A)
  • Page 40 LE-376 User’s Manual...
  • Page 41 LE-376 User’s Manual C.3<Interrupt reguest(IRQ)> (LE-376A)
  • Page 42 LE-376 User’s Manual C.4<Memory> (LE-376A)
  • Page 43 LE-376 User’s Manual Appendix E <Watch Dog timer Setting > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range - 1 to 255 - Second or Minute Program Sample...

  • Page 44: Contact Information

    Taiwan Commate Computer Inc. Address 19 F No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is our trademark of industrial PC division...
