Summary of Contents for Commell LE-577KX

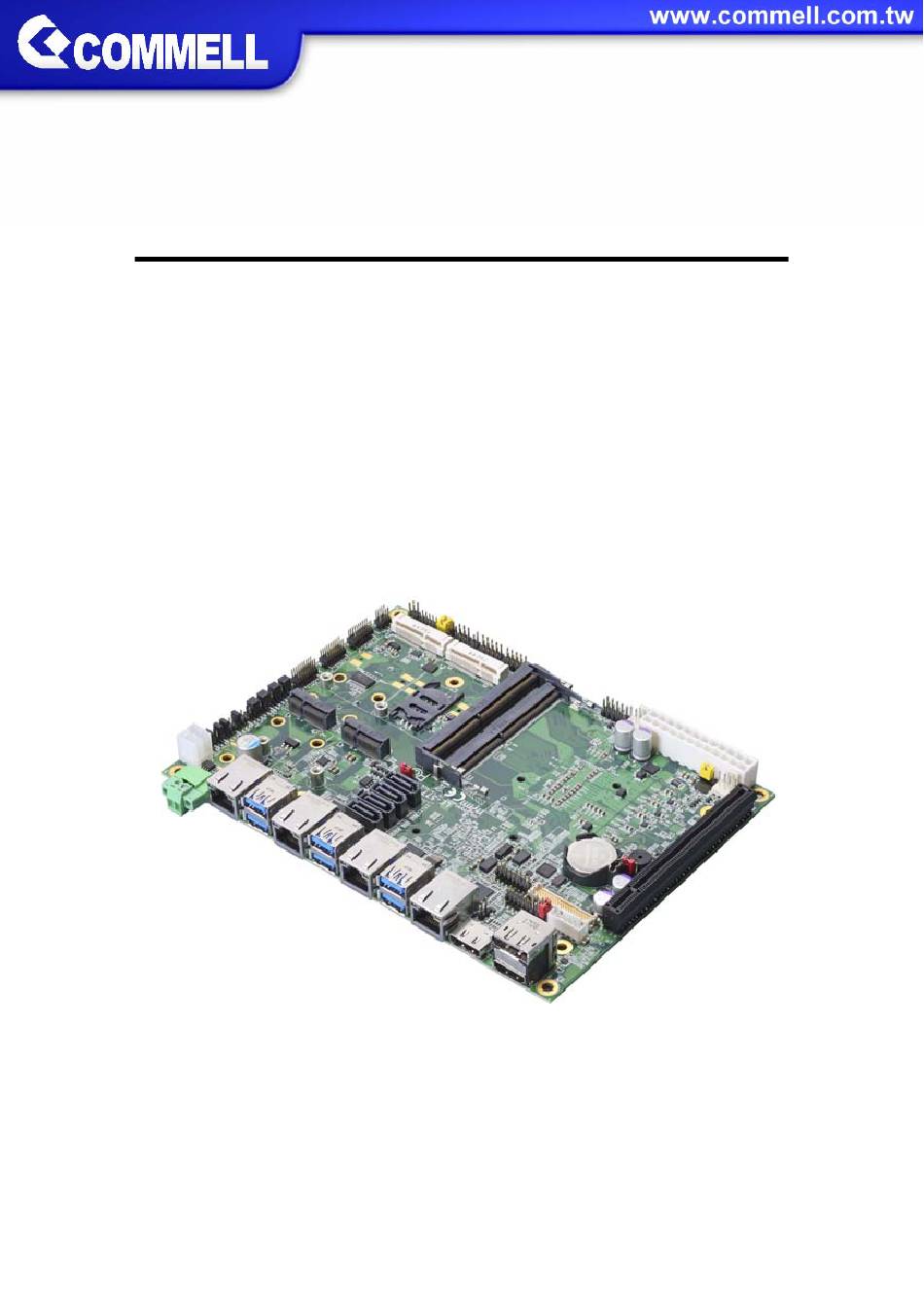

- Page 1 LE-577 5.25’’ Embedded Miniboard User’s Manual Edition 1.1 2017/11/28...
- Page 2 Trademark All trademarks are the property of their respective holders. Any questions please visit our website at h ttp://www.commell.com.tw...
- Page 3 LE-577 User’s Manual Packing List: Please check the package content before you starting using the board. 1 x LE-577_5.25’’ Embedded Miniboard 1 x Power Cable (include Cooler Fan) (OALATX-P3S2 / 1040058) 2 x SATA Cable 1 x VGA Cable (OALSATA3-L / 1040529) (OALVGA-SNB-7) / (1040557) 1 x Dual COM cable 1 x Audio cable...
-
Page 4: Table Of Contents
LE-577 User’s Manual Index Chapter 1 <Introduction> ..................4 1.1 <Product Overview>................. 4 1.2 <Product Specification> ................5 1.3 <Block Diagram>..................6 Chapter 2 <Hardware setup> ................. 7 2.1 <Connector Location and Reference> ............. 7 2.1.1 <Internal connectors list> ..............8 2.1.2 <External connectors list>..............8 2.2 <Memory Setup>.................. -
Page 5: Chapter 1

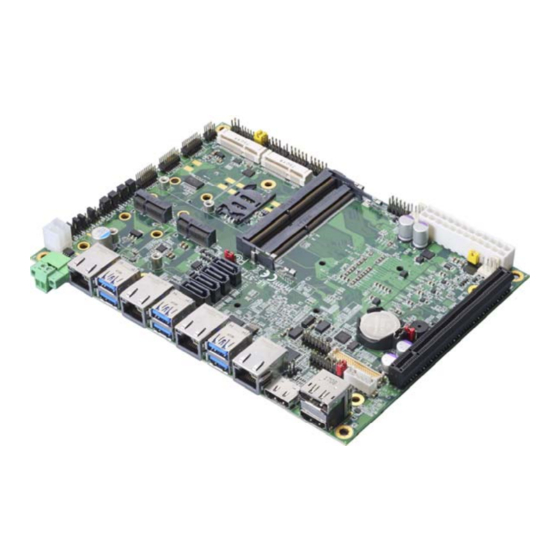

LE-577 User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> LE-577 is 5.25’’ Embedded Miniboard which supports Intel® 7th Gen Intel® Core™/ Xeon® H-series Processor with Intel® CM238 Chipset, integrated HD Graphics 530, DDR4 memory, Realtek High Definition Audio, Intel Gigabit LAN, Serial ATA3 The 7th Generation Intel®... -
Page 6: Product Specification
LE-577 User’s Manual 1.2 <Product Specification> System Intel® 7th Gen Intel® Core™/ Xeon® H-series Processor, Processor FCLGA1440 package Chipset Intel® CM238 2 x DDR4 SO-DIMM 2133 MHz up to 32GB, Memory Support Non-ECC, unbuffered memory only Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s Real Time Clock Chipset integrated RTC with onboard lithium battery 2 x M.2 (Key M)for PCIe NVMe 2242/2260/2280mm... -
Page 7: Block Diagram
LE-577 User’s Manual 1.3 <Block Diagram> 2 x HDMI Channel A DDR4 SO-DIMM 1.2V 1 x DisplayPort 7th Gen Channel B DDR4 SO-DIMM 1.2V PTN3355 Processor PCI Express X16 1 x VGA PTN3460 2 x M.2 (Key 1 x LVDS DMI GEN3 PCIe x3 3 x I210-AT... -
Page 8: Chapter 2
LE-577 User’s Manual Chapter 2 <Hardware setup> 2.1 <Connector Location and Reference> DC_IN CN_LPC SATA3-4 CN _INV SATA3-3 CN_LVDS SATA3-2 CN_CRT SATA3-1 M2-2 M2-1 CN_COM1/2 MINI_CARD1 MINI_CARD2 CN_COM3/4 PCI_E16X SIMM CN_COM5/6 SYSFAN CN_USB2-2 CPUFAN JFRNT CN_PS2 CN_DIO CN_USB2-1 M2-4 M2-3 CN_SMBUS... -
Page 9: Internal Connectors List
LE-577 User’s Manual I210-AT I219-LM DisplayPort LAN3 LAN4 LAN2 LAN1 DC_2P HDMI USB3.0 2.1.1 <Internal connectors list> Connector Function DDR4_A/B 260-pin DDR4 SO-DIMM slot SATA3-1/2/3/4 7-pin Serial ATA3 connector CN_AUDIO 5 x 2-pin audio pin header CN_LPC 6 x 2-pin LPC pin header CN_LVDS 20 x 2-pin LVDS connector CN_INV... -
Page 10: Memory Setup
LE-577 User’s Manual 2.2 <Memory Setup> In the process, the board must be powered off. 1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key. 2. Then press down till lock into the mounting notch. Press down Mounting notch 3. -
Page 11: Jumper Location And Reference
LE-577 User’s Manual 2.3 <Jumper Location and Reference> JVSATA3-1 JVLCD JCSEL11 JCSEL21 JCSEL12 JCSEL22 JRTC JMATA2 JMATA1 2.3.1 <Jumper list> Jumper Function Power mode select JRTC CMOS Normal/Clear Setting JVLCD Panel Voltage Setting JMSATA MiniCard 2 MSATA Setting COM1 Voltage Setting (For Pin 9) COM2 Voltage Setting (For Pin 9) JCSEL11/21 COM1/2 RS-232 RS422 RS485 Setting... -
Page 12: Clear Cmos And Power On Type Selection
LE-577 User’s Manual 2.3.2 <Clear CMOS and Power on type selection> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 13: Ethernet Interface
LE-577 User’s Manual 2.4.2 <Ethernet interface> The board provide I219-LM PHY Gigabit Ethernet and I210-AT Gigabit Ethernet on rear I/O.Intel I219-LM and I210 supports operation at 10/100/1000 Mb/s data rates, with IEEE802.3 compliance and Wake-On-LAN supported. I210-AT I219-LM LAN3 LAN4 LAN2 LAN1 2.4.3 <Display interface>... - Page 14 LE-577 User’s Manual JVLCD CN_INV CN_CRT CN_LVDS CN_CRT: VGA 16-pin connector (Pitch 2.00 mm) Signal Signal IOGND1 IOGND1 IOGND1 IOGND1 IOGND1 5VCDA 5HSYNC 5VSYNC 5VCLK -13-...
- Page 15 LE-577 User’s Manual CN_LVDS: LVDS 40-pin connector ( Model: HIROSE DF13-40DP-1.25V compatible Signal Signal Set by JVLCD Set by JVLCD Detect (Active low) A_LVDS_0- B_LVDS_0- A_LVDS_0+ B_LVDS_0+ A_LVDS_1- B_LVDS_1- A_LVDS_1+ B_LVDS_1+ A_LVDS_2- B_LVDS_2- A_LVDS_2+ B_LVDS_2+ A_LVDS_CLK- B_LVDS_3- A_LVDS_CLK+ B_LVDS_3+ A_LVDS_3- B_LVDS_CLK- A_LVDS_3+ B_LVDS_CLK+...
-
Page 16: Serial Port Interface
LE-577 User’s Manual 2.4.4 <Serial Port interface> JCSEL11 JCSEL12 CN_COM1/2 JCSEL21 JCSEL22 CN_COM3/4 CN_COM5/6 COM1/2: RS232/422/485 20-pin header (Pitch 1.27mm x 2.54mm) Signal Signal DCD/ 422TX-/ 485- RXD/ 422TX+/ 485+ TXD/ 422RX+ DTR/ 422RX- Set by JP2 DCD/ 422TX-/ 485- RXD/ 422TX+/ 485+ TXD/ 422RX+ DTR/ 422RX-... - Page 17 LE-577 User’s Manual COM3/4: COM 20-pin header (Pitch 2.54 x 1.27mm) Signal Signal DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 DCD2 RXD2 TXD2 DTR2 DSR2 RTS2 CTS2 COM5/6: COM 20-pin header (Pitch 2.54 x 1.27mm) Signal Signal DCD1 RXD1 TXD1 DTR1 DSR1 RTS1...
- Page 18 LE-577 User’s Manual JCSEL12/22, JCSEL11/21: For configure COM1 &COM2 communication mode Function JCSEL12/ JCSEL22 JCSEL11/ JCSEL21 RS232 (Default) RS485 RS422 RS-485 Com1 RTX- Data- : short Pin1& Pin4 Com1 RTX+ Data+ : short Pin2& Pin3 Com2 RTX- Data- : short Pin1& Pin4 Com2 RTX+ Data+ : short Pin2&...
-
Page 19: Usb Interface
LE-577 User’s Manual 2.4.5 <USB interface> USB1 USB2 USB3 USB3.0 CN_USB2-2 CN_USB2-1 CN_USB 2-1/2-2: USB2.0 10-pin header Signal Signal 5VSB 5VSB DATA0- DATA1- DATA0+ DATA1+ Install USB3.0 Driver If you want to use CN_USB 2-1/2-2 in Windows7. -18-... -
Page 20: Audio Interface
LE-577 User’s Manual 2.4.6 <Audio interface> CN_AUDIO CN_AUDIO: Front panel audio 10-pin header (Pitch 2.54mm) Signal Signal MIC_L MIC_R FP_OUT_R MIC_DETECT SENSE FP_OUT_L FP_OUT_DETECT -19-... -
Page 21: Expansion Slot
LE-577 User’s Manual 2.4.7 <Expansion slot> M2-1 M2-2 PCI_E16X SIMM MINI_CARD1 MINI_CARD2 JMSATA2 JMSATA1 M2-4 M2-3 -20-... -
Page 22: M.2 Interface
LE-577 User’s Manual 2.4.7.1 < M.2 interface > M2-1 (Key E) with 2x PCI Express x1 support WI-FI and Bluetooth Module. M2-2 and M2-3 (Key M) with 4x PCI Express x1 3.0 / 2.0 bandwidth, up to 32Gbit / s data transfer speed, support NVMe SSD. -
Page 23: Simm Setup
LE-577 User’s Manual 2.4.7.4 < SIMM Setup> This is for 3G miniPCIe card which doesn’t have SIM slot. Slide the direction of the arrow open the cover. Then press down and slide the Insert the SIM card and make direction of the arrow close the sure the direction is correct SIMM: (3G MiniPcie Mode) Signal... -
Page 24: Front Panel Switch And Indicator
LE-577 User’s Manual 2.4.8 <Front panel switch and indicator> JFRNT JFRNT: Front panel switch and indicator 14-pin header (Pitch 2.54mm) Signal Signal Power_ON- Power_ON+ Speaker- Speaker+ HDD_LED- HDD_LED+ Power_LED- Power_LED+ Reset+ Reset- 2.4.9 <GPIO and Other interface> When using GPIO function, please note: As Output: Open-drain, most applications need use an external pull up resistor. - Page 25 LE-577 User’s Manual CN_LPC SYSFAN CPUFAN CN_PS2 CN_DIO CN_SMBUS -24-...
- Page 26 LE-577 User’s Manual CN_DIO: GPIO 12-pin header (Pitch 2.00mm) Signal Signal GPIO0 GPIO4 GPIO1 GPIO5 GPIO2 GPIO6 GPIO3 GPIO7 CN_LPC: LPC 12-pin header (Pitch 2.00mm) Signal Signal -LFRAME LAD3 LAD2 LAD1 LAD0 3.3V SERIRQ 3.3VSB CN_SMBUS: SMBus 5-pin connector (Pitch 2.54mm) Signal SMBDAT SMBCLK...
-
Page 27: Power Supply
LE-577 User’s Manual 2.5 <Power supply> 2.5.1 <Power input> DC_IN Plug DC_2P -26-... - Page 28 LE-577 User’s Manual The DC_4P and DC_2P are CO-LAY design, support 9 ~ 35V wide voltage input. Note that the DC_4P and ATX do not use at the same time, it will certainly cause damage. DC_4P: ATX12V 4-pin connector Signal Signal 9~35V 9~35V...
-
Page 29: Power Output
LE-577 User’s Manual 2.5.1 <Power Output> It is supply to the HDD, CD-ROM or other device. If using DC_IN as input, that ATX will be the output. ATX: main power 24-pin connector (As output) Signal Signal 3.3V 3.3V 3.3V 3.3V -28-... -
Page 30: Appendix A
LE-577 User’s Manual Appendix A <Flash BIOS> A.1 <Flash tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: FPT TOOL The tool’s file name is “fpt.exe”, it’s the utility that can write the data into the BIOS flash chip and update the BIOS. - Page 31 LE-577 User’s Manual BIOS panel type selection form (BIOS Version:1.0) Single / Dual channel Single / Dual channel Type Type VBIOS DEFAULT 1366 x 768 640 x 480 1680 x 1050 800 x 600 1920 x 1200 1024 x 768 1400 x 900 1280 x 1024 1600 x 900...
-
Page 32: Appendix C
LE-577 User’s Manual Appendix C <Programmable Watch Dog Timer> The watchdog timer makes the system auto-reset while it stops to work for a period.The integrated watchdog timer can be setup as system reset mode by program.You can select Timer setting in the BIOS, after setting the time options, the system will reset according to the period of your selection. -
Page 33: Appendix D
LE-577 User’s Manual -o 4F 01 ; activate WDTO# function -o 4E F0 -o 4F 00 ;set “00” is second mode, set “08” is minute mode -o 4E F1 -o 4F 05 ;00h: Timeout Disable ;01h: Timeout occurs after 1 minute only ;02h: Timeout occurs after 2 second/minute ;03h: Timeout occurs after 3 second/minute ;FFh: Timeout occurs after 255 second/minute... -
Page 34: Appendix E
LE-577 User’s Manual Appendix E <Programmable GPIO > The GPIO’ can be programmed with the MS-DOS debug program using simple IN/OUT commands. The DC characteristics please refer to GPIO paragraph (Page20). GPIO -o 4E 87 ;enter configuration -o 4E 87 -o 4E 07 -o 4F 07 ;select Logical Device... -
Page 35: Appendix F
LE-577 User’s Manual Appendix F <RAID Setting> When use RAID function, it need to enter the BIOS set RAID mode first. [Advanced] [Intel Advanced Menu] [PCH-IO Configuration] [SATA Configuration] [SATA Mode Selection] If this screen stop time is too short, it can be set in the BIOS. [Advanced] ... -
Page 36: Appendix G < Setup Adp-3355,Adp-3460
Taiwan Commate computer Inc. 19F., NO.94, Sec. 1, Xintai 5 Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan. +886-2-26963909 +886-2-26963911 Website www.commell.com.tw info@commell.com.tw (General infomation) E-mail tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate computer Inc. -35-...
