Installation and
Operation Manual
FIRE DECK AUTOMATIC

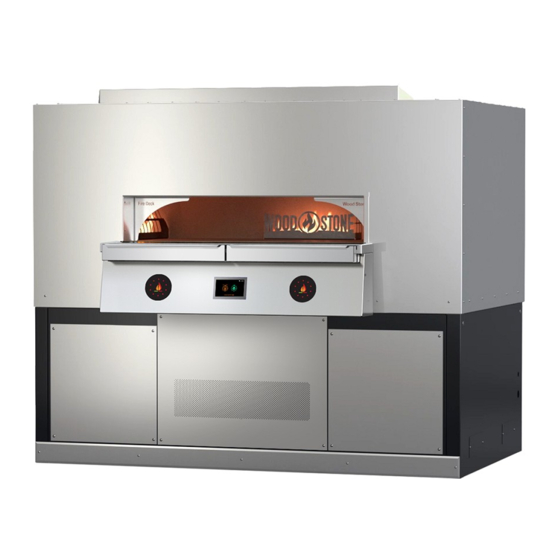

Stone Hearth Oven
Gas-Fired Automatic Model
FIRE DECK AUTOMATIC 9660 WS-FA-9660
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
www.woodstone-corp.com
Toll Free 800.988.8103
Tel 360.650.1111
Fax 360.650.1166
DOC NO M0294.00
REVISED JUNE 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS-FA-9660 and is the answer not in the manual?

Questions and answers

Summary of Contents for Wood Stone WS-FA-9660

  • Page 1 Installation and Operation Manual FIRE DECK AUTOMATIC Stone Hearth Oven Gas-Fired Automatic Model FIRE DECK AUTOMATIC 9660 WS-FA-9660 Toll Free 800.988.8103 WOOD STONE CORPORATION 1801 W. Bakerview Rd. Tel 360.650.1111 Bellingham, WA 98226 USA Fax 360.650.1166 www.woodstone-corp.com DOC NO M0294.00...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Fire Deck Automatic WS-FA-9660 Installation and Operation Manual TABLE OF CONTENTS Fire Deck FA-9660 � � � � � � � � � � � � � � � � � � 3 Cautions & Warnings � � � � � � � � � � � � � � � � 4 FA-9660 Specifications �...
  • Page 3: Fire Deck Fa-9660

    FIRE DECK AUTOMATIC FA-9660 Fire Deck Automatic WS-FA-9660 Installation and Operation Manual INSTALLATION AND OPERATION MANUAL FOR THE WOOD STONE FIRE DECK-AUTOMATIC STONE HEARTH COOKING EQUIPMENT WS-FA-9660 ADDITIONAL COPIES AVAILABLE UPON REQUEST 800.988.8103 info@woodstone-corp.com M0294.00 JUNE 2021 WOOD STONE CORPORATION...
  • Page 4: Cautions & Warnings

    CAUTIONS & WARNINGS Fire Deck Automatic WS-FA-9660 Installation and Operation Manual WOOD STONE WS-FD-9660-A FIRE DECK INSTALLATION AND OPERATING INSTRUCTIONS RETAIN THIS MANUAL FOR FUTURE REFERENCE Additional copies of this manual at woodstone-corp�com� For prompt responses to service/maintenance questions, call us at @ 1-800-988-8103�...
  • Page 5 This product must be installed by a licensed plumber or gas fitter when installed within the Commonwealth of Massachusetts� CAUTION: DISCONNECT POWER TO THE OVEN BEFORE SERVICING OR CLEANING. Wood Stone Fire Deck ovens have been tested and approved by Intertek Testing Services and conform to ANSI Z83.11 and...
  • Page 6: Fa-9660 Specifications

    FD-9660 SPECIFICATIONS Fire Deck Automatic WS-FA-9660 Installation and Operation Manual Plan view 95 3/4" 2430mm Air intake: Do not facade or cover over Must be left 6" 150mm removable for service 71 1/4" Shipping weight: 6,000 lbs. 1810mm 59 3/4"...
  • Page 7: Unloading & Moving The Oven

    USING A FORKLIFT. The Wood Stone Fire Deck Automatic FA-9660 weighs approximately 6,000 lbs�, and is top heavy� Use a forklift with adequate fork lengths and lifting capacity� When using a forklift, always use the forklift pockets� Lifting the oven any other way with a forklift may result in damage�...
  • Page 8: Optional Temporary Caster Install

    WARNING: Failure to follow these instructions may result in severe injury or death. If you have any questions call Wood Stone at 800.988.8103. NOTE: The casters will add 3" to the total height of the oven, for a total of 84-3/4".
  • Page 9: Placing & Installation

    PLACING & INSTALLATION Fire Deck Automatic WS-FA-9660 Installation and Operation Manual PLACING THE OVEN The oven must be installed on a smooth flat level surface� The weight of the oven is carried by the full perimeter of the oven stand�...
  • Page 10: Installation Clearances

    1. The Wood Stone Fire Deck oven must have a minimum 1-inch clearance to combustibles from all sides, and 14-inch clearance to combustibles from the top� If building materials will contact the oven, they must be completely non-combustible�...
  • Page 11: Facade Requirements

    Tile that butts directly to a piece of steel risks breaking or popping loose as it expands� 3. The number one cause of damage to tiles is poor ventilation� Always ensure that your Wood Stone oven is properly exhausted, as insufficient exhaust will cause extra heat to exit via the oven door and potentially cause damage to tile�...
  • Page 12: Venting

    350 °F� Use a stack or curb mounted fan� Wood Stone does not recommend the use of an in-line fan� A field built grease duct installed and constructed according to the requirements spelled out in NFPA 96, or the International Mechanical Code may also be used�...
  • Page 13: Flue Adapter Installation

    FLUE ADAPTER INSTALLATION Fire Deck Automatic WS-FA-9660 Installation and Operation Manual FA-9660 OVENS: FLUE ADAPTER INSTALLATION The flue adapter unit is designed to facilitate connection to a round duct� Use the provided stainless steel screws and sealant provided to attach the flue adapter to the exhaust outlet on the oven (12" ID) Note: If using a Selkirk or other modular-type duct, attach according to the manufacturer’s instructions�...
  • Page 14: Hood Installation

    Listed Type 1 hood� 1. To mount Wood Stone hood, determine the center line of the hood and place it on the oven in line with the center line of the oven “A”�...
  • Page 15: Hood Specifications

    HOOD SPECIFICATIONS Fire Deck Automatic WS-FA-9660 Installation and Operation Manual FA-9660 HOOD - PLAN VIEW Wood Stone Hoods by Gaylord Specifications Required CFM: 1050 CFM Static Pressure: 0.80" W.C. Duct Collar: 9" x 9" I.D. 800.988.8103 info@woodstone-corp.com M0294.00 JUNE 2021...
  • Page 16 HOOD SPECIFICATIONS Fire Deck Automatic WS-FA-9660 Installation and Operation Manual FA-9660 HOOD - SIDE VIEW Wood Stone Hoods by Gaylord Specifications Required CFM: 1050 CFM Static Pressure: 0.80" W.C. Duct Collar: 9" x 9" I.D. 800.988.8103 info@woodstone-corp.com M0294.00 JUNE 2021...
  • Page 17: Interlock Diagram

    Any interruption of the power to the oven will cause the oven (including all burners and pilots) to shut off, and it will be necessary to restart the oven by pressing the start switch once power is restored� For additional interlock options, see the Wood Stone Interlock Options supplement in the Manuals section on the website, woodstone-corp.com, or contact Wood Stone for additional information�...
  • Page 18: Gas Specifications

    GAS SPECIFICATIONS Fire Deck Automatic WS-FA-9660 Installation and Operation Manual FACTORY SPECIFIED MAXIMUM HOURLY BTU INPUT RATES / BURNER MANIFOLD PRESSURES Valve Outlet Pressure (W.C.) Maximum Models BTU/hr Input WS-FA-9660-RFG-LR-IR 295,000 WS-FA-9660-RFG-LR-IR-DF 310,000 This oven requires no modifications or adjustments for use at high altitudes.
  • Page 19 Wood Stone recommends that the Fire Deck be installed with a manual, individual shutoff valve, located between the oven and the main gas supply, and that this shutoff valve (supplied by others) be left readily accessible� Wood Stone also recommends that inspection and maintenance of the burners and gas piping connections of this appliance be performed at regularly scheduled intervals and only by professional gas appliance service agencies�...
  • Page 20: Electrical Specifications

    ELECTRICAL SPECIFICATIONS Fire Deck Automatic WS-FA-9660 Installation and Operation Manual ELECTRICAL CONNECTION Have a licensed electrician provide the oven with appropriate 120 VAC circuit, in accordance with all relevant local and national codes� Current requirement is less than 2A� Electrical diagrams are located on the electrical junction box inside the oven as well as at the end of this manual�...
  • Page 21: Cooking Controls

    COOK BUTTONS TOUCHSCREEN The Touchscreen located below the oven door is flanked on The Wood Stone Fire Deck FA-9660 features a user-friendly the left and right by circular Cook Buttons� After the cooking control system� The touchscreen is an 8�5-...
  • Page 22: Initial Start-Up

    COLD OVEN START-UP Fire Deck Automatic WS-FA-9660 Installation and Operation Manual  11:47AM The Welcome Screen shown here will be W E L C O M E ! displayed when the Fire Deck Autromatic is It appears this oven is either new (Congratulations!), or has been off...
  • Page 23: Preset Settings

    PRESET SETTINGS Fire Deck Automatic WS-FA-9660 Installation and Operation Manual PRESET OVEN HEAT PROFILES The FA-9660 is designed to store up to six user-adjustable Preset Oven Heat Profiles with these cooking parameters: SETPOINT temperature of the oven floor COOK TIME time (in minutes) that the radiant flames will remain at their programmed COOK FLAME % before returning to IDLE FLAME %when the oven is at or above its SETPOINT�...
  • Page 24 PRESET AND OTHER SETTINGS Fire Deck Automatic WS-FA-9660 Installation and Operation Manual Select Setpoint temperature by pressing up/down arrows Select Left and Right Cook Flame with up/down arrows Wood Stone >EDIT>Presets>Preset 9:04AM >Edit>Presets>Preset 9:04AM Wood Stone EDIT PRESET EDIT PRESET...
  • Page 25: Other Settings

    OTHER SETTINGS Fire Deck Automatic WS-FA-9660 Installation and Operation Manual SETTING DATE AND TIME SETTING TEMPERATURE UNITS Access Settings screen with passcode, then select Access Settings screen with passcode (1990), then select Set Up option� Clock option� 9:04AM 9:04AM >Settings >Settings...
  • Page 26: Daily Oven Operation

    22 of this manual carefully! IMPORTANT: If at any time you feel that the burners are not operating properly, turn the oven OFF and call Wood Stone for service� Before servicing, disconnect the electrical supply at the breaker and turn off the gas supply at the appliance’s individual gas shutoff valve�...
  • Page 27 NOTE: Small “crazing” cracks may occur with normal heating and cooling� They will not affect the performance or durability of the oven� If cracks of 1/8” or more develop, contact Wood Stone for evaluation� 800.988.8103 info@woodstone-corp.com...
  • Page 28: Maintenance & Cleaning

    OVEN INTERIOR Wood Stone recommends the use of long-handled brushes for sweeping up surface debris that will accumulate on the floor of the oven during use� Use a natural fiber brush, always brushing away from the Radiant Burner well� For deeper cleaning, use a brass bristled brush�...
  • Page 29: Decorative Flame Burner

    DECORATIVE FLAME BURNER Fire Deck Automatic WS-FA-9660 Installation and Operation Manual OPTIONAL DECORATIVE FLAME BURNER For Fire Deck ovens equipped with a Decorative Flame Burner; the Decorative Flame turns on automatically when the oven Controller is turned ON� IMPORTANT: TAKE CARE NOT TO BRUSH DEBRIS INTO THE DECORATIVE FLAME BURNER WELL.
  • Page 30: Troubleshooting Guide

    4. Gas pressure issue, bad igniter or gas valve� Contact Wood Stone for assistance� Please contact Wood Stone at 1-800-988-8103 should service be necessary, or if you have any questions about your oven. Our normal service hours are Mon�–Fri�, 8am–5pm Pacific time� If calling after hours, follow the recorded instructions for emergency service and a Wood Stone technician will get back to you promptly�...
  • Page 31 Fire Deck Automatic WS-FA-9660 Installation and Operation Manual Blank page 800.988.8103 info@woodstone-corp.com M0294.00 JUNE 2021 WOOD STONE CORPORATION TOLL FREE E-MAIL 1801 W. Bakerview Rd. 360.650.1111 woodstone-corp.com An ongoing program of product improvement may Bellingham, WA 98226 USA 360.650.1166 require us to change specifications without notice.
  • Page 32: Electrical Diagrams

    ELECTRICAL DIAGRAMS Fire Deck Automatic WS-FA-9660 Installation and Operation Manual FA-9660 WIRE DIAGRAM "Fire Deck A WIRING D POWER SUPPLY ENCL. WH0074 24VDC PWR SUPPLY 7000-1877 WH0063 7000-1328 110-120/ 220-240 VAC BK-WH (by others) BK-WH V. SELECT MANTLE WH006 ON/OFF...
  • Page 33 ELECTRICAL DIAGRAMS Fire Deck Automatic WS-FA-9660 Installation and Operation Manual FA-9660 WIRE DIAGRAM Sheet: 1 of 1 Automatic" MOD VALVE +SIG 7000-1846 DIAGRAM V2P1 WH0073 CONTROL ENCL. IGNIT MOD A6P2 7000-1912 ALARM Right Radiant WH0069 POWER RESET H0064 J2 24VDC...
  • Page 34 Blank page...
  • Page 35: Limited Warranty

    LIMITATIONS OF LIABILITY In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement, at the option of Wood Stone, of the appliance or component or part thereof� Such repair or replacement shall be at the expense of Wood Stone with the exception of travel over 100 miles or two hours, overtime, and holiday charges which shall be at the expense of the purchaser�...
  • Page 36 Toll Free 800.988.8103 WOOD STONE CORPORATION 1801 W. Bakerview Rd. Tel 360.650.1111 Bellingham, WA 98226 USA Fax 360.650.1166 www.woodstone-corp.com An ongoing program of product improvement may require us to change specifications without notice. M0294.00 JUNE 2021...
