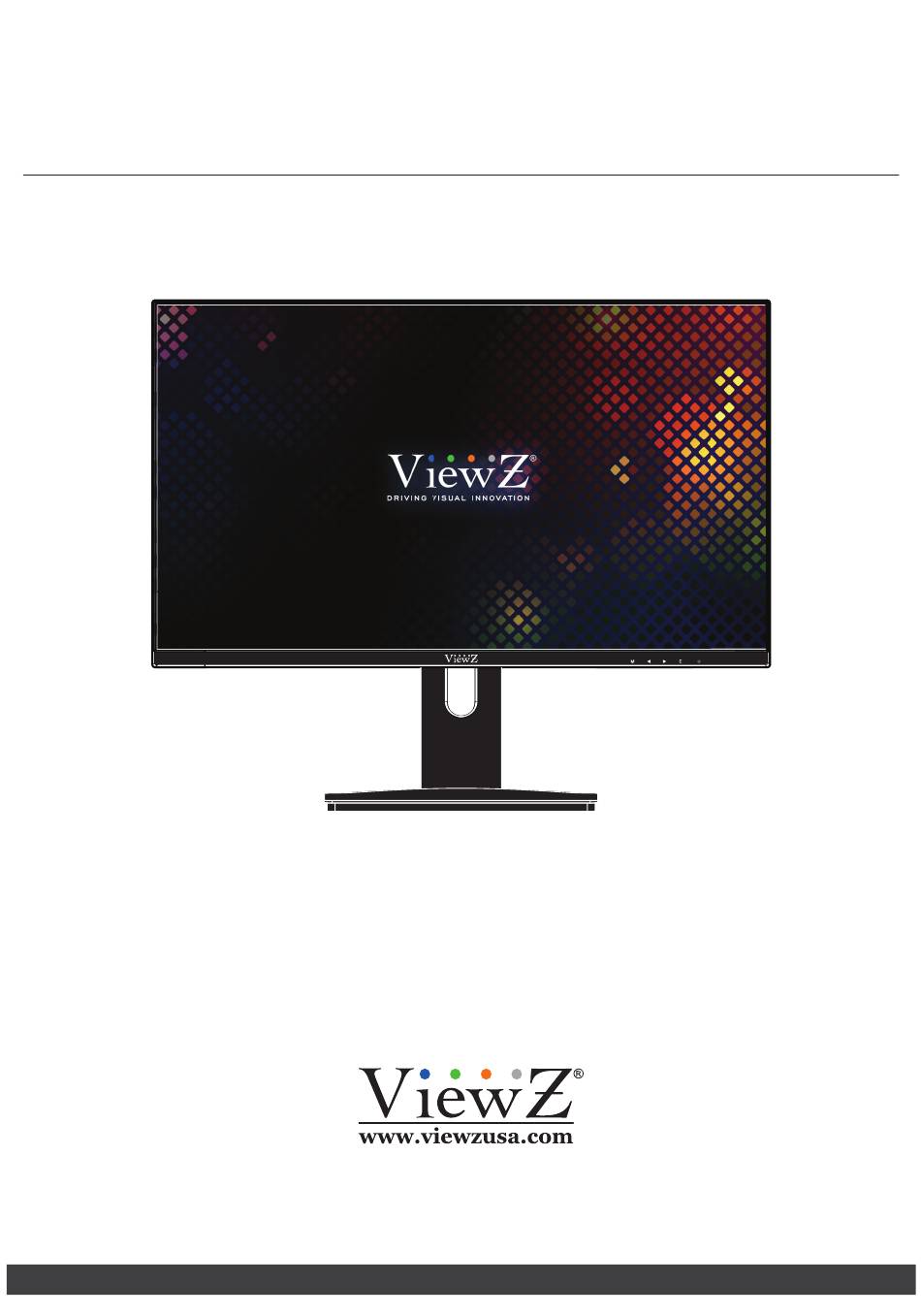

- Page 1 VZ-IPM SERIES 24" PROFESSIONAL IP INPUT MONITOR USER MANUAL Please read this manual thoroughly before use, and keep it handy for future reference. 12262023-Rev. A...
-
Page 2: Table Of Contents
6. FCC RF INTERFERENCE STATEMENT ............................Installation ........................................1. Package ........................................2. Interface ........................................ Function .......................................... 1. Monitor Button Function ................................2. Control and Function ..................................Mounting Guide ......................................Specification ..................................................................................Warranty ........................................Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 3: Safety Instruction
The monitor shall not be exposed to dripping or splashing and objects containing liquids, such as vases shall be placed near the monitor. The monitor should have ample distance (e.g. 10cm) from the wall for sufficient ventilation. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 4: Mark Indication & Substance
If your monitor does not operate normally – in particular, if there is any unusual sound or smell coming from the monitor – unplug it immediately and contact an authorized dealer or the service center. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 5: Caution
While most pixel faults occur in isolated regions, a cluster of dead pixels or sub-pixels can sometimes form for which a separate ruling applies. A cluster is defined as an area of 5x5 pixels. ViewZ’s policy on pixel failure: either as an isolated fault or in the form of a cluster is outlined on the website: www.viewzusa.com User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 6: Fcc Rf Interference Statement
If some company or product trademark is not particularly stated, the use of trademark has been fully recognized. Do not alter, decompile, disassemble, decode or conduct reverse engineering to the software installed in the product, or it can be deemed as breach of the law. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 7: Installation
Monitor Stand (Qty 1) DC 12V Power Supply (Qty 1) (Without battery (AAA)) Mounting Option Your ViewZ monitor is compatible with ViewZ monitor mounts. For more information, please contact ViewZ USA at (888)-998-4399. Wall & Pole Mount • Part # WM05 VESA 75, 100 •... -
Page 8: Interface
2. Reset 7. USB (Type C) In 3. HDMI Out 8. USB 3.0 (Type A) In 4. MICRO SD 9. USB 2.0 (Type A) In 5. Audio Out 10. DC 12V In Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 9: Function
5. Press the ▲ / ▼ / ◄ / ► buttons to select the desired sub-menu 6. Press the 'OK' button to select 7. Press the 'Volume Up & Down' button to up / down audio volume User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 10: Monitor Button Function
◄ 5. Power 2. Right (Right Move) Monitor power on / off Move the selection to the right 3. L-C (Left Click Function of Mouse) Same function of mouse left click Visit the ViewZ USA website at https://www.viewzusa.com User Manual... - Page 11 CONTROL AND FUNCTION Initial Setup - Launch Onvif IP Cam Viewer • Click on the desktop, you will see ViewZ's ONVIF IP Cam Viewer App. The App will be looks like below; User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 12 Device Recordings - not support in this status. User can record a live video on multiview or sequential viewing mode • Set as startup device - setup the selected device (camera) as the initial view when launching App Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 13 App on the VMS shortcut icon folder • On the 'Settings', if user (administer) select an App and click & hold, user will see the selected App is added on VMS shortcut icon folder. User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 14 Settings window. User (administrator) need to enter ID / PWD. • The default ID / PWD is 'root / root'. • On 'Settings', user can install App, export saved screenshots & recorded videos and change android setup. Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 15 When user click these buttons, user can see • Click to go back to previous menu. • Click to go back the home screen. • Click to see multi windows which show running apps. User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 16 1. If user want to change the desktop background image, user needs to click & hold empty area of screen. 2. On 'Wallpapers' popup menu, click 'Wallpapers' 3. 'Wallpapers' window show background images. 4. Select and double click it. Then, the selected image will be displayed in the background. Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 17 ONVIF DEVICE (Recommended) - Recommended choice if your device is ONVIF conformant because it has full functionality. • GENERIC RTSP - RTSP streams have both video and audio, but no built-in PTZ control. The ViewZ's ONVIF IP Cam Viewer has custom commands that can be used potentially for PTZ. •...
- Page 18 This function requires IPM monitor and IP cameras (or ONVIF devices) should be grouped in the same network. • This function allows user to select a device and easily fill up the address field. Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 19 Click "SET UP" to configure by retrieving information from the device. Click "TEST (Video)" to allow ONVIF IP Cam Viewer to select the best transport protocol and validate the video streaming. • User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 20 Click "Set Up" to configure by retrieving information from the device. • Click "Test Video" to allow ONVIF IP Cam Viewer to select the best transport protocol and validate the video streaming. Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 21 Most non-ONVIF NVTs support. • RTSP streaming supports both audio and video signal. Click "Validate" to allow ONVIF IP Cam Viewer to select the best transport protocol and validate the video streaming. • User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 22 This function is using for streaming an MJPEG URL. • The oldest NVTs support • MJPEG streaming has video signal only. • Click "Validate" to allow ONVIF IP Cam Viewer to validate the video streaming. Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 23 Click to start sequential view which show all registered camera streaming based on interval time. • Click to set the interval time of sequential view or see the current streaming information. User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 24 • Click to play & stop the sequential streaming. • Click to on & off the sound. • Click to take a snapshot. Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 25 • Click buttons to control PTZ, if the selected camera support PTZ. Note • The function of full screen view is applied for both sequence view and multiview User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 26 Flick (i.e. swipe, fling or drag) on the touchscreen to pan/tilt. • You can also tap the arrows to pan/tilt. • Pinch to zoom. You can also click button "+" to zoom in, click button "-" to zoom out. Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 27 User can set multiview screens as 1 / 2 / 3 / 4 / 6 / 9 / 12 / 16 channel. • • When user access the multiview viewing mode at the first time, user should set up a multiview mode. User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 28 Sequence Interval - setup the sequential time between 5 and 30 sec. When user switch the sequential viewing mode from multiview viewing mode, the interval time of sequential viewing mode is done by this 'Sequence Interval'. • User can also add several multiview viewing modes. Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 29 The sequence multi-view is running by the order of multi-view list (refer to page 27). For example, if user setup 3 multi-view viewing modes, user will sequentially see these 3 multi-view modes. User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 30 If user click one of devices, then user can choose the streaming resolution. OICV (ONVIF IP Cam Viewer) App supports • 1080p resolution on each screen of 16x16 channel viewing mode. • Select the profile and click 'OK' to apply it. Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 31 Click to set the lens focus with people. Click to set the lens focus with background. • Click buttons to control PTZ, if the selected camera support PTZ. User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 32 Media Files - See the saved screenshots, recorded video files and other files • • Help - Open the ViewZ's ONVIF IP Cam Viewer user manual • About - Display ViewZ's ONVIF IP Cam Viewer version info Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 33 Video File Retention Time (day) - video files older than the retention time are deleted. Value 0 means no deletion (0 ~ 60 days) Control Overlay Display Time (sec) - setup the OSD display time (0 ~ 60 seconds) User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 34 Lock App - setup the automatic lockdown time of ONVIF IP Cam Viewer App if there are no actions • Launch App Button in Multi-view - when user enable this option, ONVIF IP Cam Viewer App will automatically show multiview screen on launching App Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 35 A. Contact the manufacturer of the camera and try to restore factory default of camera. Then, try again. • The screen freeze suddenly A. Check the network connection or camera/device status. User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 36: Mounting Guide
If user uses screws longer than M4 x L8 mm for VZ-24IPM, it may cause damage to the unit. Please use bolt of correct size and length as instructed. Mounting Safety ! At least two people are recommended to safely install the mount. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 37: Specification
CE / FCC / KCC / RoHS Electrical Ratings 12V DC, 4A (AC 100-240V, 50/60Hz (with DC Adaptor)) Power Consumption ≤ 32 W Accessories Power Supply & Cable, User’s Manual, Remote Controller User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 38: Rma
- The warranty period for this monitor is 3 years. The warranty will be voided for the scenarios listed below. - You can also download the manual and information of VIEWZ web site: VIEWZUSA.COM When power feed to the monitor exceeds capacity and causes damage... - Page 39 12262023-Rev. A NOTE User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 40: Warranty
What ViewZ USA Will Do At the sole discretion of ViewZ USA, ViewZ USA will repair or replace any product or product part that is defective. If ViewZ USA chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.
