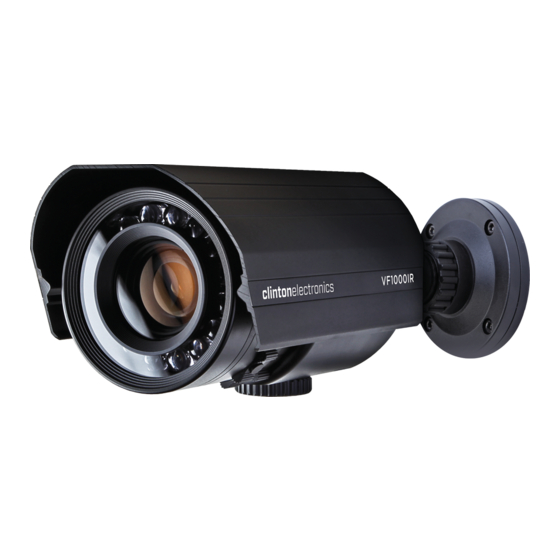

Summary of Contents for Clinton Electronics VF1000IR
- Page 7 • •...
- Page 10 mounting plate Sunshield mounting screws cable routing: center or side camera arm screws Remote port focus zoom & IR LED dial...
-
Page 11: Setup Menu
SETUP Menu LENS • DC EXPOSURE • BRIGHTNESS • SHUTTER • AGC • SENS-UP • RETURN • ATW • OUTDOOR • INDOOR WHITE BALANCE • MANUAL • AWC SSDR • OFF • ON BACKLIGHT • OFF • BLC • HLC DNR3 • OFF • ON • AUTO • COLOR • B/W DAY / NIGHT • EXTERN • IMAGE ADJ. • MONITOR • CAM TITLE • SYNC • MOTION DET • PRIVACY SPECIAL • COMM ADJ • LANGUAGE... - Page 12 Power input BNC output to test monitor plug-in remote connection...
- Page 14 ...
- Page 15 ...
- Page 16 ...
- Page 17 ...
- Page 19 ...
- Page 20 ...
- Page 21 • •...
- Page 22 • •...
- Page 23 ...
- Page 24 • • • • • ...
- Page 25 ...
- Page 26 ...
- Page 27 ...
- Page 28 ...
- Page 29 ...
- Page 30 If you have trouble operating your camera, refer to the following table. If the guidelines do not enable you to solve the problem, contact Clinton Electronics Technical Support at 1-800-549-6393 or 815-633-1444. Problem Solution Nothing appears on • Check the power connection. the screen. • Check the video signal line connection. • Check the Brightness of Auto Iris lens. The video image is not clear. • Check if the lens is clean. Clean the lens with a clean cloth or brush. • Adjust the contrast feature of the monitor. • Make sure that the screen is not exposed directly to a bright light. Move the camera if necessary. The screen is dark. • Adjust the contrast feature of the monitor. • If you have an intermediate device, set the 75Ω/Hi-z properly, and check the terminals. •...
- Page 31 Problem Solution The MOTION DETECTION • Check if ‘MOTION DETECTION’ mode is function is not working. turned on. • Check if the MD LEVEL is too low. • Check the setting of the MD AREA. Colors are not quite right. • Check the ‘WHITE BAL’ setting. The screen is flickering. • Check if the camera is facing directly into sunlight or fluorescent light. L/L mode isn’t able to be • Have you connected your camera to DC selected. power source? Connect it to AC power source.
- Page 32 Camera CE-VF1000IR Image Sensor 1/3 Inch SONY Super HAD CCD Resolution 600 TV Lines IR LEDs 15 pcs of Giant IR LEDs Effective Pixels 768 (H) x 494 (V) Scanning System 2:1 Interlace S/N Ratio 52dB (AGC Off, Weight On) Sync System Internal / Line Lock Scanning Frequency 15.734 KHz (H), 59.94 Hz (V) Minimum Illumination 0.000006 Lux (Sense-Up *258x & IR LEDs On) Shutter Speed 1/60 ~ 1/100,000 sec. Dynamic Range 62dB (Max.) Lens 5.0 ~ 50mm Lens Vari-Focal (Externally Adjustable) Video Output 1.0 Vp-p, 75Ω...
