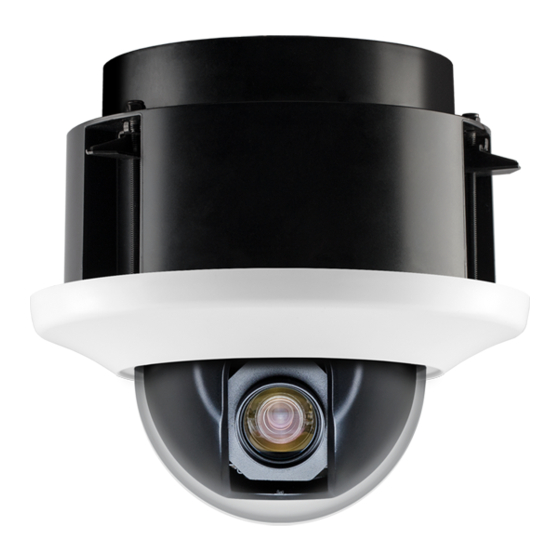

- Page 1 PTZ User Manual CE-PTZ10XHD CE-PTZ10XHD-RM CE-PTZ20XHDR CE-PTZ30XHD-IN CE-PTZ30XHDR CE-PTZ30XHDRS Actual product may vary slightly from the images shown in this manual. Clinton reserves the right, without notification, to make changes in product design & specification.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Safeguards Camera Menu Zoom Initialization Focus White Balance Main Menu Navigation Auto Exposure Motion Menu Special Preset Special Sub Tour Aperture Gain Group Back Light Scan 10~13 DNR Level Pattern 14~15 Defog Area 16~17 Flickerless Alarm 18~19 Sharpness Privacy... -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS 11. Objects and Liquids Never push objects of any kind through openings of this equipment as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the equipment. 12. -
Page 4: Initialization
STARTUP - MAIN MENU - MOTION MENU Initialize Upon power-up you will first see the initialize screen which displays: INITIALIZE • PTZ ID number PTZ ID : 001 VERSION : X. XX • Firmware Version D-OUTPUT : 1080p30/NTSC • Video Output Resolution •... -
Page 5: Motion Menu
MOTION MENU Preset Preset Add a preset to allow the camera to recall a defined position, and quickly access these positions by entering a preset number. A maximum of 220 preset positions can be defined. NOTE: Some preset numbers are allocated to other functions, or are preset as factory set shortcuts. -
Page 6: Preset
MOTION MENU PRESET 3. Select the focus mode for the preset. Choose from Auto, Manual, or One Shot. Auto- Camera focuses initially upon reaching the preset PRESET MENU point, as well as whenever when the camera detects a scene change such as change in color, movement, etc. NUMBER : 001 Manual- Set the focus point manually within the... -
Page 7: Tour
MOTION MENU TOUR Tour A tour is a set of preset points which is toured through at a defined movement speed between points, and dwell time at each preset. One tour can consist of 16 separate preset points. A maximum of 8 tours can be configured. A tour will play continuously until interrupted by a keyboard button press or joystick movement. - Page 8 MOTION MENU TOUR 3. Select the preset points to include in the Tour. One tour can store 16 preset points. Tour Point Number Corresponds to Preset Number Currently Selected Tour Number TOUR EDIT <01> TOUR MENU PRESET SPEED DWELL Tour Point Number (1~16) <...
-
Page 9: Tour
MOTION MENU TOUR 5. Select Time Display option. Turning Time Display ON will show a countdown time until the the tour moves to the next preset point. TOUR MENU NUMBER : 01 TITLE : TOUR SET TIME DISPLAY : OFF SAVE BACK EXIT... -
Page 10: Group
MOTION MENU GROUP Group A group is a set of tours which is cycled through. One group can consist of 6 separate tours. A maximum of 6 groups can be configured. A group will play continuously until interrupted by a keyboard button press or joystick movement. MOTION MENU MAIN MENU PRESET... - Page 11 MOTION MENU GROUP 3. Select the tours to include in the group. One group can store 6 tours. Tour Placeholder Number Corresponds to Tour Number Currently Selected Group Number GROUP EDIT <06> GROUP MENU Tour Placeholder TOUR <001> Number (1~6) NUMBER : 01 TITLE : GROUP SET...
-
Page 12: Scan
MOTION MENU SCAN Scan A scan is a repeating horizontal (pan) or vertical (tilt) movement between two set points at a defined movement speed between points, and dwell time at each point. A maximum of 8 scans can be configured. A scan will play continuously until interrupted by a keyboard button press or joystick movement. - Page 13 MOTION MENU SCAN 3. Edit the speed and dwell time for the scan. Speed is the movement speed between tour points. Dwell Time is the number of seconds the camera will pause on a selected preset point. SCAN MENU SCAN MENU Default speed and dwell NUMBER NUMBER...
- Page 14 MOTION MENU SCAN 5. Choose a movement direction for the scan. Clockwise and Counter-Clockwise Pan movements are oriented as if you are looking from the top of the PTZ. Set the appropriate direction to have the camera scan the desired horizontal portion of the surveillance area.
- Page 15 MOTION MENU SCAN Choose a Start and End Position...continued. SCAN MENU END POSITION NUMBER : 06 TITLE SPEED : NONE DWELL : NONE MOTION TYPE : NONE DIRECTION : NONE START POS END POS ▶ < EXIT FOCUS NEAR > SAVE BACK EXIT...
-
Page 16: Pattern Area Alarm Privacy
MOTION MENU PATTERN Pattern A pattern is a memorized path of movement with defined zoom controls. A maximum of 4 patterns can be configured, with a maximum of 65 seconds of recording time for each pattern. A pattern will play continuously until interrupted by a keyboard button press or joystick movement. - Page 17 MOTION MENU PATTERN 3. Record a movement pattern. Press “Far” button to start recording. Use the joystick to define zoom and movement path. Press “Near” to set the pattern and return to the previous menu. PATTERN RECORD PATTERN MENU NUMBER : 04 TITLE RECORD ▶...
-
Page 18: Area
MOTION MENU AREA Area Setting an Area will display a defined name between two programmed pan positions in order to better identify an area of surveillance. A maximum of 16 areas can be configured. MOTION MENU MAIN MENU PRESET TOUR MOTION ▶... - Page 19 MOTION MENU AREA 5. Select a Start (S Pan Pos.), and End (E Pan Pos.) pan position to set the display direction for the area. Clockwise and Counter-Clockwise area segments are oriented as if you are looking from the top of the PTZ. Set the appropriate direction to have the area label appear in the desired horizontal portion of the surveillance area.
-
Page 20: Alarm
MOTION MENU ALARM Alarm Programming an alarm will move the camera to a preset position when an external alarm is triggered. Refer to the PTZ installation instructions for more information on wiring an alarm. Number of alarms will vary based on PTZ model. MAIN MENU MOTION MENU PRESET... - Page 21 MOTION MENU ALARM 3. Choose preset position for the camera to go to when alarm is triggered. Currently selected Preset digit ALARM MENU PRESET SELECT: 006 Up/Down= change digit Left/Right= change digit position 001 002 003 004 005 P006 NUMBER : 02 007 008 009 010 011 012 List of preset numbers TITLE...
-
Page 22: Privacy
MOTION MENU PRIVACY Privacy A privacy mask is a block of color that appears over a defined area to prevent the camera from viewing. A maximum of 8 privacy masks can be configured. MOTION MENU MAIN MENU PRESET TOUR MOTION ▶... - Page 23 MOTION MENU PRIVACY 3. Save or Clear the Privacy settings and exit. SAVE- Saves the privacy settings PRIVACY MENU CLR- Clear the settings for the current privacy mask BACK- Go back to the previous menu EXIT- Exit the menu NUMBER : 05 MASK SET ▷...
-
Page 24: Home Position
MOTION MENU HOME POSITION Home Position If a camera loses power, or reboots, the camera will return to the home position. If a home position is not defined, the camera will return to the last position that the in which it was pointed. MOTION MENU MAIN MENU PRESET... -
Page 25: Dome Menu
DOME MENU TITLE , SPEED by ZOOM Dome Menu In the Dome menu, you can adjust the mechanical features and OSD settings. MAIN MENU MOTION DOME ▶ CAMERA CLEAR FACTORY SET PTZ RESET EXIT < NEAR / RIGHT ▷ DOME > Enter= Move Cursor= Title... -
Page 26: Osd On/Off
DOME MENU OSD ON/OFF OSD ON / OFF Customize the type of labels that are shown on the On Screen Display. O indicates OSD selection is ON, X indicates selection is OFF. DOME MENU CLEAR MENU PATTERN TITLE <X> TITLE PRIVACY ZOOM SPEED BY ZOOM... -
Page 27: Park Mode
DOME MENU PARK, TEMPERATURE Park Mode Park Mode is a programmed action that will take place if the camera remains idle for a defined time period. This action can be moving to a preset, or calling a tour, group, scan or pattern. DOME MENU PARK MENU TITLE... -
Page 28: Special
DOME MENU SPECIAL Special Change video output, user interface, and dome operation options within the Special menu. DOME MENU SPECIAL MENU : 1080p30 HDSDI FORMAT TITLE TILT LIMIT : OFF SPEED BY ZOOM : ON POWER UP : OFF OSD ON/OFF AUTO FLIP : OFF PARK MODE... -
Page 29: Zero Position
DOME MENU ZERO POS, DOME RESET Zero Pos With this function you can set the horizontal (pan) zero position to one of your choice. Vertical (Tilt) zero position will not be effected. DOME MENU ZERO POS MENU TITLE ON/OFF : OFF SPEED BY ZOOM : ON POSITION SET... -
Page 30: External Ir Set
DOME MENU EXTERNAL IR SET NOTE: This function only applies to PTZ models equipped with IR LEDs External IR Set Modify the settings of Infrared (IR) Lights. NOTE: With some PTZ models it may be necessary to select the next page of the Dome Menu settings to see this option. -
Page 31: Wiper Setting
DOME MENU WIPER NOTE: This function only applies to PTZ models equipped with a wiper Wiper Setting Set the operation of the lens wiper. NOTE: With some PTZ models it may be necessary to select the next page of the Dome Menu settings to see this option. -
Page 32: Camera Menu
CAMERA MENU ZOOM Camera Menu In the Camera menu, you can define camera operation settings. MAIN MENU MOTION DOME CAMERA ▶ CLEAR FACTORY SET PTZ RESET EXIT < NEAR / RIGHT ▷ DOME > Zoom Mode Set zoom speed and options for the PTZ. CAMERA MENU ZOOM MENU ZOOM MODE... -
Page 33: Focus
CAMERA MENU FOCUS, WHITE BALANCE Focus Mode Set focus speed and options for the PTZ. CAMERA MENU FOCUS MENU ZOOM MODE FOCUS SPD : USER FOCUS MODE FOCUS MODE : AUTO WHITE BAL. NEAR LIMIT : 1M AUTO EXP. AF MODE : NORMAL WDR MODE SPECIAL... -
Page 34: Auto Exposure
CAMERA MENU AUTO EXPOSURE Auto Exposure Auto Exposure settings allow you to configure the concentration of light used to produce an image. You can configure a custom exposure or let the camera determine the exposure automatically. CAMERA MENU AUTO EXPO. MENU ZOOM MODE AE MODE : AUTO... -
Page 35: Wdr
CAMERA MENU WDR Mode Wide Dynamic Range Mode is used to correct the harsh contrast between bright and dark areas of the camera image. CAMERA MENU WDR MODE MENU ZOOM MODE WDR MODE : AUTO FOCUS MODE WDR GAIN : 07 WHITE BAL. -
Page 36: Special
CAMERA MENU SPECIAL Special Configure other special settings. CAMERA MENU SPECIAL MENU ZOOM MODE SPECIAL SUB FOCUS MODE APERTUREGAIN : 05 WHITE BAL. BACK LIGHT : OFF AUTO EXP. DNR LEVEL : AUTO WDR MODE DEFOG : OFF SPECIAL FLICKERLESS : OFF STABILIZER PRESET FREEZE... -
Page 37: Stabilizer
CAMERA MENU STABILIZER, CAMERA RESET Stabilizer This function electronically compensates for an unstable camera image due to areas that are exposed to wind or vibration. CAMERA MENU STABILIZER MENU ZOOM MODE MODE : OFF FOCUS MODE RANGE : - - - - WHITE BAL. -
Page 38: Clear
MAIN MENU CLEAR, FACTORY SET, PTZ RESET Clear Choose to clear data for specific functions. Press the Tele button to clear the data of the highlighted function. The icon will change from X to O when selected. MAIN MENU CLEAR MENU ALARM PRESET <X>... -
Page 39: Keyboard Shortcuts
KEYBOARD KEYBOARD SHORTCUTS Keyboard Shortcut Guide FUNCTION BUTTON PRESS ICR AUTO (ON) 240 + ICR DAY (ON) 241 + ICR NIGHT (ON) 242 + WIPER- 10 MIN. TIME SET MODE (ON/OFF TOGGLE) 243 + WIPER (ON/OFF) 244 + (HOLD 3 SEC.) HEATER (ON/OFF) 245 + IR ZOOM (AUTO/MANUAL TOGGLE) - Page 40 PTZ User Manual CE-PTZ10XHD CE-PTZ10XHD-RM CE-PTZ20XHDR CE-PTZ30XHD-IN CE-PTZ30XHDR CE-PTZ30XHDRS Clinton Electronics 6701 Clinton Road Loves Park, IL 61111 Technical Support: 1-800-549-6393 Monday~Friday 8am~5pm (Central Standard Time) www.clintonelectronics.com Actual product may vary slightly from the images shown in this manual. Clinton reserves the right, without notification, to make changes in product design & specification.
