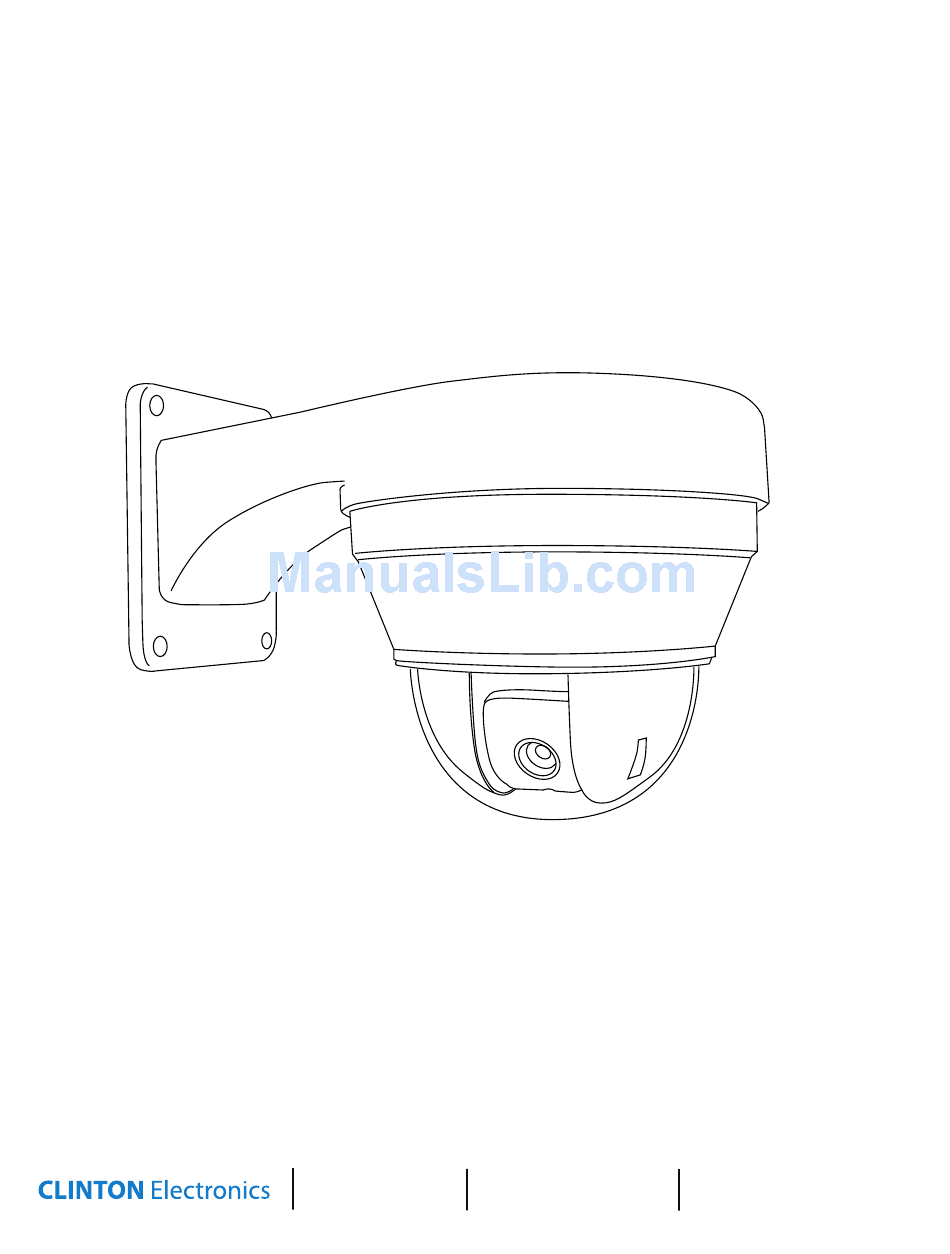

- Page 1 High Speed Dome Camera CE-PTZ10X User Manual CLINTON Electronics 1.800.447.3306 Sales 6701 Clinton Road 1.800.549.6396 Support www.clintonelectronics.com Loves Park, IL 61111 1.800.633.8712 Fax v.04.05.10...
-
Page 3: Table Of Contents
Table of Contents Intro Introduction ..............Contents, Installation &... -
Page 4: Introduction
Introduction Congratulations on the purchase of your new High Speed Dome Camera. This camera is a full-functional, high-speed pan-tilt-zoom camera in a compact size, enclosed in a dome housing. It is designed for professional surveillance applications, and can be integrated into any surveillance system. Construction: •... -
Page 5: Contents, Installation & Set-Up, Dimensions
PACKAGE CONTENTS DC 24VAC Set Screw CE-PTZ10x Camera User Manual Wall Mount Power extra) Supply Installation and Set up Unpacking your camera Your PTZ camera comes with a power supply, as well as a wall mount and a small screw to attach the camera to the wall mount (plus one extra screw). -
Page 6: Precautions & Warnings
Precautions For all service or installation needs, please refer to qualified service personnel or system installers Do not attempt to disassemble the device To prevent electric shock, do not remove screws or cover. There are no user-serviceable parts inside. Contact qualified service personnel for maintenance Handle the device with care Do not strike or shake, as this may damage the device. -
Page 7: Fcc Compliance Statement
WARNING TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, SO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit. -
Page 8: Safety Instructions
Installation Safety Instructions before starting - Do not install and operate this appliance in a flammable and explosive environment. - Make sure that the installation is done according to the local electricity safety regulations of your country. - Before installation and maintenance, make sure that the appliance is disconnected from the power source. -
Page 9: Connection Schematic, Rs485
Installation Connection Schematic The high speed dome camera series can be connected to various optional accessories through the standard connector types, which simplify the cable handling and avoids possible errors. All accessories are tested for maximum compatibility and best performance. This dome has jumperless design, meaning protocol, baud-rate, and ID are to be set in OSD. -
Page 10: Distribution, Cable Type
Installation Star-Connection- The star-form connection is most commonly used. It enables the connection of different dome cameras with longer cable runs. It is recommended to use an RS485 distributor to ensure the RS 485+ telemetric data transmission. RS 485- The advantage of the star-connection is that every channel can work independently and can take a cable length up to 3,280 feet (1000 meters) (depending on cable quality). -
Page 11: Basic Operation: Initial Test, Osd Menu, Keyboard Navigation
Basic Operation- Initial Screen and Self-Testing After powered on, the dome starts the self-testing by slowly rotating and panning. After the self- test completes the initial information will be displayed on the screen. The initial information will S/N:XXXXXXXXXXXXXXX S/N of the PTZ remain on the screen until a CLINTON V2.42 Software Version... -
Page 12: Initial Info, Display Setup, Motion Control
INITIAL INFO INITIAL INFO - - - - - - - - - - - - - - - - - - Shows the serial number, current firmware version and other settings. S/N: XXXXXXXXXXXXXXX CLINTON V2.42 [BACK]: Move to previous screen PROTOCOL: CLINTON DOME ADDRESS: 001 COMM 9600, N, 8, 1... -
Page 13: Clearing Functions, Password Setup
CLEAR The CLEAR function resets the stored settings and controls back to factory default. CLEAR - - - - - - - - - - - - - - - - - - *NOTE: Pressing Right with the joystick will activate the following functions. CLEAR ALL ZONES There are no sub menus to these functions. -
Page 14: Clock, Communication Setting
CLOCK SETTING The system is equipped with a RTC (Real-Time Clock) and can be used to display the CLOCK SETTING date/time information on the screen, or operated via schedule (see pg.18; “Time - - - - - - - - - - - - - - - - - - Running”). -
Page 15: Preset
Function Settings In the function settings, user can setup the automated PTZ functions, such as MAIN MENU - - - - - - - - - - - - - - - - - - preset position, tours, scan, etc. These functions may become very useful for SYSTEM SETTING -->... -
Page 16: Scan, Pattern
SCAN A Scan-Tour is an automated Pan movement between 2 defined positions with SCAN speed setting. The scan will move from the defined Left limit, to the defined Right - - - - - - - - - - - - - - - - - - SCAN NUMBER limit in a straight path, and back again. -
Page 17: Tour, Zones
TOUR A Tour is an automated cruising through selected preset positions with individual TOUR speed settings and dwell times. This PTZ supports up to 4 tours with 24 positions - - - - - - - - - - - - - - - - - - each. -
Page 18: Time Running
TIME RUNNING TIME RUNNING The time running function is a scheduled start for predefined action, such as preset - - - - - - - - - - - - - - - - - - tour, scan tour, etc. This PTZ supports up to 4 schedules. Before setting this function, TIME CHANNEL START TIME 00:00... -
Page 19: Osd Map
MAIN MENU OSD Map - - - - - - - - - - - - - - - - - - SYSTEM SETTING --> CAMERA SETTING --> FUNCTION SETTING --> WINDOW BLANKING --> OSD MENU INDEX EXIT SYSTEM SETTING - - - - - - - - - - - - - - - - - - CAMERA SETTING FUNCTION SETTING... -
Page 20: Specifications
Specifications Model CE-PTZ10X Signal Format PAL / NTSC Scanning Progressive Image Sensor 1/4 inch Ex-View CCD H. Resolution 540 TVL Viewing Angle 46.0 º (Wide end) 4.6 º (Tele end) Zoom 10 x Optical / 12 x Digital Min. Illumination 1.0Lx (typical) - (F1.8, 50 IRE) - Page 22 v.01.25.10...
