Clinton Electronics CE-T100HD Install Manual

CE-T100HD Install Guide

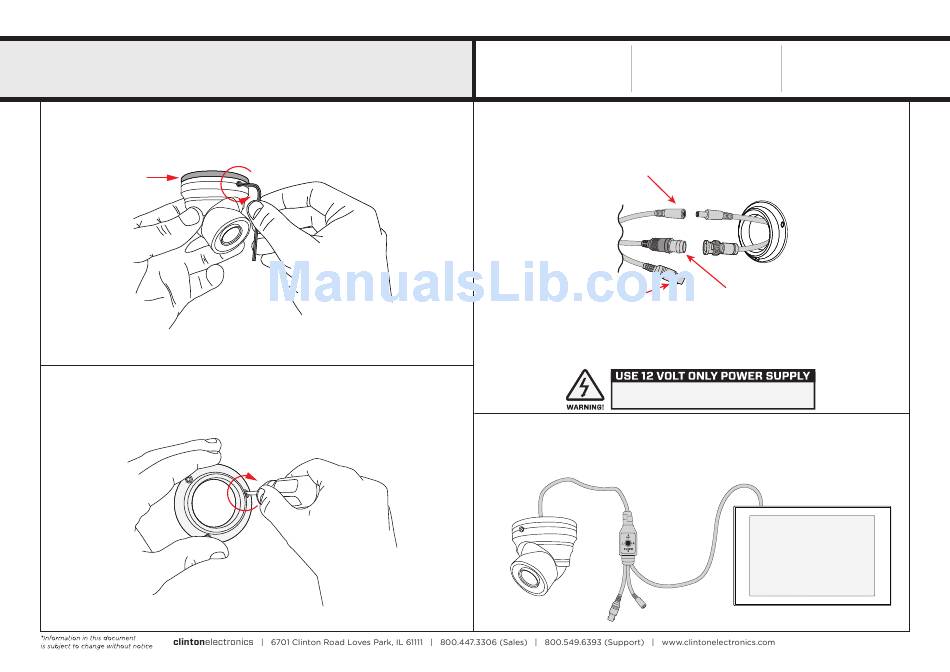

1. DISASSEMBLE CAMERA

With the supplied 2mm Allen Wrench, loosen the two set screws located near the base, on the outer
camera housing. Remove mounting plate from the camera housing.
Mounting Plate

2. ATTACH MOUNTING PLATE

Attach the mounting plate to the desired surface with the three provided 3x13mm Phillips head screws.
Drill a 3/4" hole in the opening of the mounting plate if running the cable through the mounting surface.

Included Items:

Required Items

CE-T100HD x 1
• • Phillips Head Screwdriver x1
• 3x13mm Phillips Head Screws x3
• Drill x1
• 2mm Allen Wrench x1
• 3/4" Drill Bit x1
• OSD Manual x1

3. CONNECT POWER SUPPLY

Feed the cables through the center of the mounting plate. Make connections to the BNC cable and the
power connection. To ensure quality operation, verify proper BNC and power termination; along with
proper voltage at camera.
12V POWER
CONNECTION
TO CAMERA
ANALOG BNC
CONNECTION (YELLOW)
Inferior quality coax cable or excessively long runs of cable will cause the HD-SDI video signal to be poor or not viewable. It is
recommended to test all coax cable to be used as HD-SDI with a HD-SDI Cable Tester
USING A 24 VOLT POWER SUPPLY WILL CAUSE DAMAGE
TO THE CAMERA AND CAN CAUSE POTENTIAL FIRE OR
ELECTRIC SHOCK HAZARDS.

4. OSD MENU

Camera settings can be adjusted by using the Built-in Joystick located on the cable. Connect your test
monitor to either the analog or HD-SDI BNC connection located on the CE-T100HD cable. Refer to OSD
Manual for detailed instructions on adjusting camera settings.

Optional Items:

• Test Monitor
TO DVR
OR
MONITOR
HD-SDI BNC
CONNECTION (BLACK)
Test Monitor
v.04.13.15
