Clinton Electronics CE-VFCD918-WD User Manual

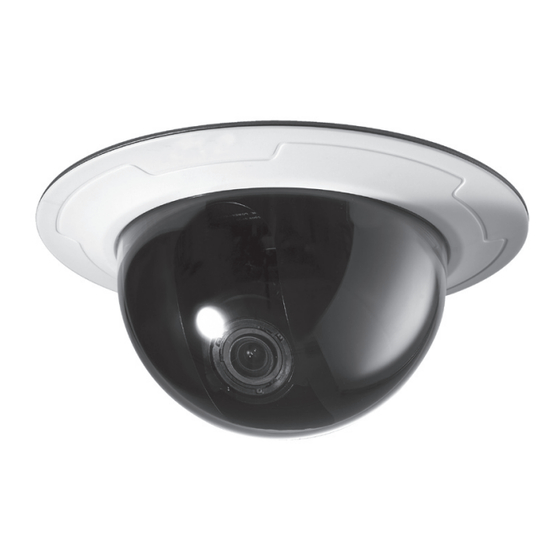

High resolution color wide dynamic dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CE-VFCD918-WD and is the answer not in the manual?

Questions and answers

Related Manuals for Clinton Electronics CE-VFCD918-WD

Summary of Contents for Clinton Electronics CE-VFCD918-WD

  • Page 3 Please read the following instructions carefully before installation and operation.

  • Page 4: Table Of Contents

    Table of Contents 1. Precautions ......................1 2. Limitation of liability .................... 2 3. Disclaimer of warranty ..................2 4. Package ......................3 5. Installation ......................4-7 5-1. Opening the dome 5-2. Removing the dome 5-3. Varifocal lens adjustment 5-4. Tool-free 3-Axis mounting mechanism 5-5.
  • Page 11 applying the desired...

  • Page 13: On Screen Display (Osd) Menu

    On Screen Display (OSD) Menu Setting up the OSD Menu...

  • Page 14: Osd Menu Functions

    8. OSD Menu Functions Setup Page Menu SETUP PRESETS NORMAL.. INDOOR.. OUTDOOR.. CUSTOM.. LENS DC.. BIAS, LIMIT MANUAL WHITE BAL. ATW.. LOWLIMIT, HIGHTLIMIT ATWDes.. LOWLIMIT, HIGHTLIMIT MANUAL.. RED, BLUE MIDDLE HIGH SPECIAL.. EXIT...
  • Page 15 8. OSD Menu Functions Special Page Menu SPECIAL CAMERA ID ON.. MIRROR BACKLIGHT ON.. ID, Position RESOLUTION NORMAL HIGH ADVANCED.. SAVE / RESTORE.. RETURN...
  • Page 16 8. OSD Menu Functions Advanced Page Menu ADVANCED SETUP VIDEO STANDARD NTSC SETUP VIDEO LEVEL COLOR BAR VIDEO LEVEL COLOR BAR SYNC LINELOCK V PHASE SHARPNESS -8 --------------------- 8 RS485 SETUP VERSION (D15-1.1) RETURN...

  • Page 17: Agc; Exit

    8. Setup Page Menu PRESETS SETUP PRESETS NORMAL INDOOR OUTDOOR CUSTOM LENS WHITE BAL MIDDLE SPECIAL.. AUTO EXIT Normal : Normal environment. Indoor : Indoor environment. ■ ■ NORMAL PRESET (ONE) INDOOR PRESET (TWO) H-Normal/Shutter Pri S-Normal/Shutter Pri Preference = Highlights Preference = Shadows Max DR = 14 bits...

  • Page 18: White Balance

    8. Setup Page Menu LENS Lens SETUP ■ Choose the lens type DC PRESETS NORMAL and set BIAS using the selector button. LENS DC.. MANUAL DC MODE WHITE BAL BIAS ---------- MIDDLE LIMIT ---------- SPECIAL.. AUTO PREVIOUS PAGE EXIT WHITE BALANCE White Balance is a function which compensates different colors of light being emitted from different light sources.
  • Page 19 8. Setup Page Menu ATWDesat (ATW Desaturating) ■ When WB is set to ATWDesat, the Extended Color temperature is desaturated i.e when there is a excess of light temperature, ATWDesat Function is used as well as it reduces the Noise. The limits of the color temperature setting remain 2000K and 11,000K AWC (Auto White Balance) ■...

  • Page 20: Special Page Menu

    8. Special Page Menu CAMERA ID User can enter a unique name for the respective camera. The maximum length of the ID is ten characters. SPECIAL You can choose the ON and OFF ■ CAMERA ID with the selector. If you select ON, the entered camera ID is displayed at the selected position in the video MIRROR...

  • Page 21: Mirror; Backlight

    8. Special Page Menu MIRROR Select "OFF" to show the image as normal. Select "ON" to reflect image horizontally. SPECIAL CAMERA ID MIRROR BACKLIGHT MIRROR ON MIRROR OFF RESOLUTION NORMAL ADVANCED.. SAVE / RESTORE RETURN BACKLIGHT Backlight is feature of a Camera which compensates when there is a large amount of background light.
  • Page 22 8. Special Page Menu RESOLUTION Choose resolution between high and normal with the selector (RIGHT/LEFT) SPECIAL CAMERA ID The high resolution supports MIRROR ■ Progressive Rate video up to BACKLIGHT 540 TV Line and normal resolution RESOLUTION NORMAL supports 480 TV Line. HIGH ADVANCED..
  • Page 23 8. Advanced Page Menu VIDEO STANDARD Choose video system between PAL and NTSC by moving the selector. NTSC ADVANCED SETUP SETUP ------------ VIDEO STANDARD NTSC VIDEO LEVEL COLOR BAR SYNC PREVIOUS PAGE SHARPNESS -8 ------------ 8 RS485 SETUP VERSION (D15-1.1) ------------ VIDEO LEVEL RETURN...
  • Page 24 8. Advanced Page Menu SHARPNESS The outline of the video image becomes cleaner and more distinctive as the level of SHARPNESS increases. If the level gose up excessively, however, it may affect the video image and generate noise. ADVANCED SETUP VIDEO STANDARD NTSC The available range of level is - 8 ~ 8...

  • Page 25: Dimension (Inches)

    inches 7.09” 4.72”...

  • Page 27: Specifications

    Specifications Camera CE-VFCD918-WD Image Sensor 1/3 Inch C-MOS Resolution 540 TVL (High Resolution Mode) Effective Pixels 720 (H) x 540 (V) Scanning System 525 Lines, Interlace S/N Ratio More than 48dB (AGC Off ) Sync System Internal (12VDC) / Line-lock (24VAC) Scanning Frequency 15.734 KHz (H), 59.94 Hz (V)
