< VCR Section >
Note:
If a mechanical malfunction occurs, the power is turned off. Turn the power back on by pressing [STANDBY-
ON] button and an error message will be displayed on the TV screen for 5 seconds
MODE
When reel or capstan mechanism is not
functioning correctly
When tape loading mechanism is not
functioning correctly
When cassette loading mechanism is not
functioning correctly
When the drum is not working properly
P-ON Power safety detection
TV screen
When reel or capstan mechanism is not functioning
correctly
A R
SP 0 : 00 : 00
Recording mode
When tape loading mechanism is not functioning
correctly
A T
SP 0 : 00 : 00
Recording mode
When cassette loading mechanism is not functioning
correctly
A C
SP 0 : 00 : 00
Recording mode

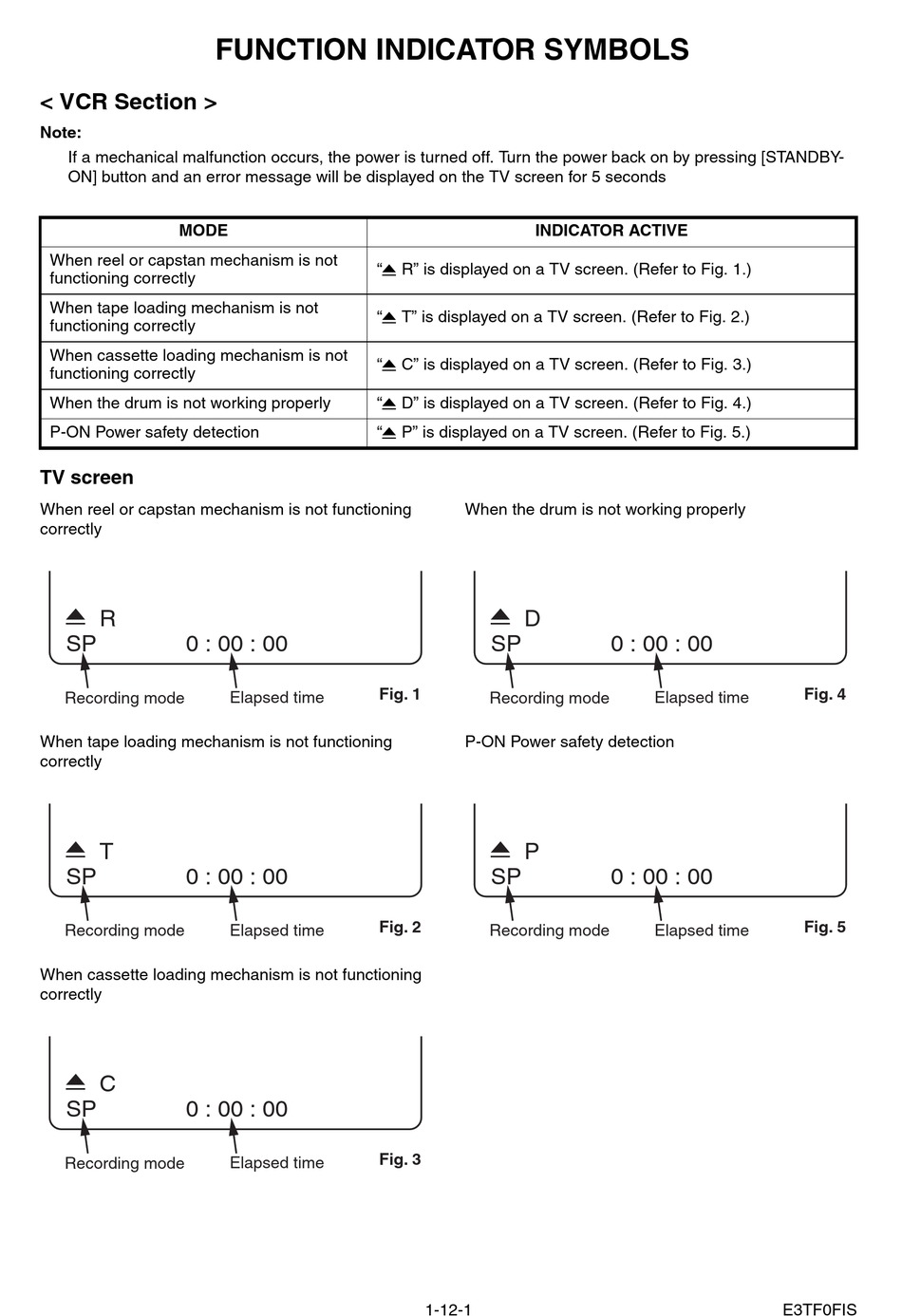

FUNCTION INDICATOR SYMBOLS

"A R" is displayed on a TV screen. (Refer to Fig. 1.)
"A T" is displayed on a TV screen. (Refer to Fig. 2.)
"A C" is displayed on a TV screen. (Refer to Fig. 3.)
"A D" is displayed on a TV screen. (Refer to Fig. 4.)
"A P" is displayed on a TV screen. (Refer to Fig. 5.)
Fig. 1
Elapsed time
Fig. 2
Elapsed time
Fig. 3
Elapsed time
INDICATOR ACTIVE
When the drum is not working properly
A D
SP
Recording mode
P-ON Power safety detection
A P
SP
Recording mode
1-12-1
0 : 00 : 00
Elapsed time
0 : 00 : 00
Elapsed time
Fig. 4
Fig. 5
E3TF0FIS
