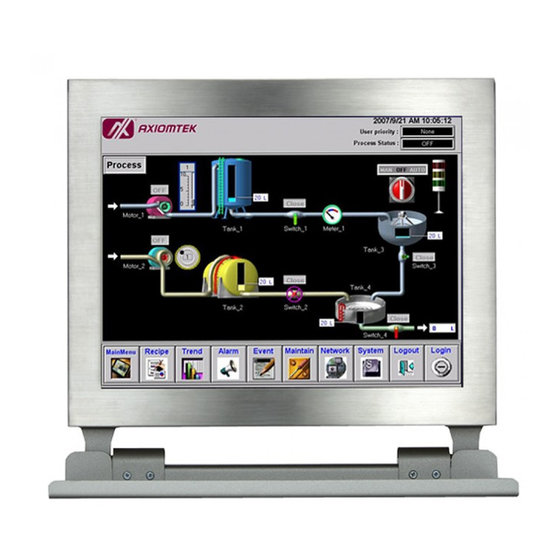

12.1" XGA/SVGA TFT IP66-rating Touch
Panel Computer
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GOT-812 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AXIOMTEK GOT-812 Series

Summary of Contents for AXIOMTEK GOT-812 Series

  • Page 1 GOT-812 Series 12.1" XGA/SVGA TFT IP66-rating Touch Panel Computer User’s Manual...
  • Page 2 AXIOMTEK does not warrant or assume any legal liability or responsibility for the accuracy, completeness or usefulness of any information in this document. AXIOMTEK does not make any commitment to update the information in this manual.

  • Page 3: Safety Approvals

    4. Consult the dealer or an experienced radio/TV technician for help. Shielded interface cables must be used in order to comply with the emission limits. NOTE The GOT-812 series is compliant by IEC60945, it configures with GOT-812, +12VDC power adapter, COM and USB by Keyboad and Mouse.

  • Page 4: Safety Precautions

    Safety Precautions Before getting started, please read the following important safety precautions. The GOT-812 Series does not come equipped with an operating system. An operating system must be loaded first before installing any software into the computer. Be sure to ground yourself to prevent static charge when installing the internal components.
  • Page 5 When handling boards and components, wear a wrist- grounding strap, available from most electronic component stores. Trademarks Acknowledgments AXIOMTEK is a trademark of AXIOMTEK Co., Ltd. IBM, PC/AT, PS/2, VGA are trademarks of International Business Machines Corporation. ® ™...

  • Page 6: Table Of Contents

    Table of Contents   Disclaimers................ ii   Safety Approvals ............. iii   Safety Precautions ............iv CHAPTER 1 INTRODUCTION......... 1      General Description.......... 1     Specifications ........... 2     1.2.1 Main CPU Board............2     1.2.2 I/O System ..............
  • Page 7     System ............. 55     Touch Screen ..........56     4.2.1 Specification ........... 56     4.2.2 Driver Installation- Windows XP ......56     Embedded O.S..........60     4.3.1 Windows XP Embedded......... 60...
  • Page 8 MEMO viii...

  • Page 9: Chapter 1 Introduction

    GOT-812 Series User’s Manual CHAPTER 1 INTRODUCTION This chapter contains general information and detailed specifications of the GOT-812 Series. Chapter 1 includes the following sections: General Description Specification Dimensions I/O Outlets Package List General Description The GOT-812 Series is a fan-less and compact-size touch panel computer, equipped with a 12.1”...

  • Page 10: Specifications

    GOT-815 Series supports CompactFlash and 2.5” SSD device. Industrial-grade Product Design The GOT-812 Series has an incredible design to be used in different industrial environments. The whole enclasure meets the IP66 standard. For connecting other devices, the GOT-812 Series also features several interfaces: USB, Ethernet, and RS-232/422/485.

  • Page 11: I/O System

    GOT-812 Series User’s Manual Maximum memory up to 2GB 1.2.2 I/O System Standard I/O One RS-232 and one RS-232/422/485 Four USB 2.0 Ethernet One RTL81111b Gigabit Ethernet Expansion One Mini PCI-E card Storage One CF slot One SATA 1.2.3 System Specification 12.1”...
  • Page 12 5 to 500 Hz, 2.0 G for SSD NOTE All specifications and images are subject to change without notice. NOTE The GOT-812 series is suited on serious environment; please choose the wide temperature DRAM and SSD. Warning According the warrantee is adopt for the IP66 guarantee, please choose CF,SSD and RAM by Axiomtek, also please kindly don’t disassemble the system by youself.

  • Page 13: Dimensions

    GOT-812 Series User’s Manual Dimensions This diagram shows you dimensions and outlines of the GOT-812 Series. Introduction...
  • Page 14 GOT-812 Series User’s Manual Introduction...

  • Page 15: I/O Outlets

    GOT-812 Series User’s Manual I/O Outlets Please refer to the following illustration for I/O locations of the GOT- 812 Series. Function Backlight ON/OFF Brightness Adjust Power Switch(ATX) DC power connector COM1(configure RS422/485) COM2 Ethernet USB2.0 × 2 Introduction...

  • Page 16: Package List

    GOT-812 Series User’s Manual Package List When you receive the GOT-812 Series, the bundled package should contain the following items: GOT-812 x 1 Driver CD x1 DC cable x1 Power Adapter (optional) Water-proof cables (optional) VESA ARM(optional) Suspension Kit (optional)

  • Page 17: Chapter 2 System Configurations

    Water-proof cables (Optional) Hanging and VESA mounting (Optional) I/O Pin Assignment The GOT-812 Series has two serial ports, COM1 (RS-232/ 422/ 485) and COM2 (RS-232), Ethernet, USB, and DC-in 12V/24V connecter. 2.1.1 Serial Port Interface The following table shows you the pin assignments of this connector:...
  • Page 18 GOT-812 Series User’s Manual In addition, COM1 can be set for RS-232/422/485 by jumper. The jump setting is listed as below: COM1 JP11 JP12 JP13 RS-232 (default) 3-5, 4-6 3-5, 4-6 RS-422 1-3, 2-4 1-3, 2-4 3-4, 7-8 RS-485 1-3, 2-4...

  • Page 19: Ethernet

    No connector No connector 2.1.2 Ethernet The GOT-812 Series is equipped with a high performance Plug and Play Ethernet interface, full compliant with IEEE 802.3 standard, and can be connected with a RJ-45 LAN connector. Please refer to detailed pin assignment list below:...

  • Page 20: Water-Proof Cables

    GOT-812 Series User’s Manual Water-proof Cables GOT-800 series uses specific M12 connector for water-proof. Therefore you will order each cable base on application. There are four kind cables of GOT-812, by the optional, if you will apply the USB, COM or Etherent then you can select a cable for the package.
  • Page 21 GOT-812 Series User’s Manual 2.2.2 Power adapter If you order the power adapter, you should choose the power cord type for your location. The power adapter is +12VDC(5A), 110-240V which is combined M12 connector. 2.2.3 COM There are two COM cables which are combined M12 connector. Also, you can refer 2.1.1 for the Series port pin assignement.
  • Page 22 GOT-812 Series User’s Manual 2.2.4 USB cables The USB cable is combined M12 connector for water-proof. It is extended two USB ports for applicaton. Hardware Installation...

  • Page 23: Mounting Method

    GOT-812 Series User’s Manual Mounting Method There are two mounting ways for the GOT-812 Series. One is suspension, the other is VESA mount. 2.3.1 VESA mounting The GOT-812 can accept both VESA 75 and VESA 100. VESA 100 VESA 75 2.3.2 VESA-ARM Mounting...

  • Page 24: Suspension Mounting

    GOT-812 Series User’s Manual Step 2 Assemble the VESA-ARM to the back side of the chassis, and fix the screws. Step 3 VESA mounting Installation completed. 2.3.3 Suspension Mounting Step 1 Find out the 2 handle and a suspension holder in the package.
  • Page 25 GOT-812 Series User’s Manual Step 2 Assemble the handle to the right and left side of the holder, and fix the screws. Step 3 Suspension mounting Installation completed. Hardware Installation...
  • Page 26 GOT-812 Series User’s Manual Hardware Installation...

  • Page 27: Keyboard Kit

    GOT-812 Series User’s Manual Keyboard Kit Step 1 Find out the IP54 keyboard, a chassis and 4 screws in the package. Step 2 Assemble the chassis to the right and left side of back cover, and fix the screws. Hardware Installation...
  • Page 28 GOT-812 Series User’s Manual Step 3 Keyboard mounting Installation completed. Hardware Installation...
  • Page 29 GOT-812 Series User’s Manual MEMO Hardware Installation...

  • Page 30: Chapter 3 Ami Bios Setup Utility

    GOT-812 Series User’s Manual CHAPTER 3 AMI BIOS SETUP UTILITY This chapter provides users with detailed description how to set up basic system configuration through the AMI BIOS setup utility. Starting To enter the setup screens, follow the steps below: Turn on the computer and press the <Del>...

  • Page 31: Main Menu

    GOT-812 Series User’s Manual The <F10> key allows you to save any changes you have made and exit Setup. Press the <F10> key to save your changes. The <Esc> key allows you to discard any changes you have made and exit the Setup. Press the <Esc>...

  • Page 32: Advanced Menu

    GOT-812 Series User’s Manual System Time or System Date using the <Arrow> keys. Enter new values through the keyboard. Press the <Tab> key or the <Arrow> keys to move between fields. The date must be entered in MM/DD/YY format. The time is entered in HH:MM:SS format.
  • Page 33 GOT-812 Series User’s Manual Configure advanced CPU settings This screen shows the CPU Configuration, and you can change the value of the selected option. Max CPUID Value Limit You can enable this item to let legacy operating systems boot even without support for CPUs with extended CPU ID functions.
  • Page 34 GOT-812 Series User’s Manual Use this item to enable or disable the C-State technology. Enhanced C-States This item allows you to enable or disable any available enhanced C-states (C1E, C2E, C3E, C4E and Hard C4E). IDE Configuration You can use this screen to select options for the IDE Configuration, and change the value of the selected option.
  • Page 35 GOT-812 Series User’s Manual installed in the system by pressing <Enter> for more options. SuperIO Configuration You can use this screen to select options for the SuperIO Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 36 GOT-812 Series User’s Manual Serial Port2 IRQ This item specifies the IRQ used by the serial port 2. Serial Port3 Address This item specifies the base I/O port address and Interrupt Request address of serial port 3. Serial Port3 IRQ This item specifies the IRQ used by the serial port 3.
  • Page 37 GOT-812 Series User’s Manual Hardware Health Configuration This screen shows the Hardware Health Configuration, and a description of the selected item appears on the right side of the screen. System Temperature/CPU Temperature These items display the temperature of CPU and System, Vcore, etc.
  • Page 38 GOT-812 Series User’s Manual ACPI Settings You can use this screen to select options for the ACPI Settings, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 39 GOT-812 Series User’s Manual APM Configuration You can use this screen to select options for the APM Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 40 GOT-812 Series User’s Manual expired. The default setting is Suspend. This setting prevents the BIOS from initiating Disabled any power saving modes concerned with the video display or monitor. This option places the monitor into suspend mode after the specified period of display inactivity has expired.
  • Page 41 GOT-812 Series User’s Manual default setting is On/Off. Pushing the power button turns the computer On/Off on or off. This is the default setting. This is the default setting. Pushing the power button places the computer Suspend in Suspend mode or Full On power mode.
  • Page 42 GOT-812 Series User’s Manual MPS Configuration This screen shows the MPS (Multi Processor Specification) Configuration, and you can change its value. A description of the selected item appears on the right side of the screen. MPS Revision Use this item to select MPS (Multi Processor Specification) Revision 1.1 or 1.4.
  • Page 43 GOT-812 Series User’s Manual PCI Express Configuration This screen shows the PCI Express Configuration, and you can change its value. A description of the selected item appears on the right side of the screen. Active State Power-Management Use this item to enable or disable the function of Active State Power-Management to provide you with lower power consumption.
  • Page 44 GOT-812 Series User’s Manual SB PCIE Ports Configuration Scroll to this item and press <Enter> to view the SB PCIE Ports Configuration sub menu, which contains several options for your configuration. AMI BIOS Setup Utility...
  • Page 45 GOT-812 Series User’s Manual USB Configuration You can use this screen to select options for the USB Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.

  • Page 46: Pci Pnp Menu

    GOT-812 Series User’s Manual PCI PnP Menu The PCI PnP menu allows users to change the advanced settings for PCI/PnP devices. AMI BIOS Setup Utility...
  • Page 47 GOT-812 Series User’s Manual Clear NVRAM Use this item to clear the data in the NVRAM (CMOS). Here are the options for your selection, No and Yes. Plug & Play O/S When the setting is No, Use this item to configure all the devices in the system.
  • Page 48 GOT-812 Series User’s Manual and Yes. Palette Snooping Some old graphic controllers need to “snoop” on the VGA palette, and then map it to their display as a way to provide boot information and VGA compatibility. This item allows such snooping to take place. Here are the options for your selection, Disabled and Enabled.

  • Page 49: Boot Menu

    GOT-812 Series User’s Manual Boot Menu The Boot menu allows users to change boot options of the system. You can select any of the items in the left frame of the screen to go to the sub menus: Boot Settings Configuration...
  • Page 50 GOT-812 Series User’s Manual Boot Settings Configuration Quick Boot Enabling this item lets the BIOS skip some power on self tests (POST). The default setting is Enabled. Quiet Boot Set this item to allow the computer system Disabled to display the POST messages.
  • Page 51 GOT-812 Series User’s Manual IRQ. Here are the options for your selection, Auto, Enabled and Disabled. Wait For ‘F1’ If Error If this item is enabled, the system waits for the F1 key to be pressed when error occurs. The default setting is Enabled.
  • Page 52 GOT-812 Series User’s Manual Removable Drives Use this screen to view the removable drives in the system. The BIOS will attempt to arrange the removable drive boot sequence automatically. You can also change the booting sequence. AMI BIOS Setup Utility...
  • Page 53 GOT-812 Series User’s Manual Lan Boot Settings Configuration The Lan Boot Settings Configuration can enable or disable Lan Boot ROM to allow the system boot on LAN. AMI BIOS Setup Utility...

  • Page 54: Security Menu

    GOT-812 Series User’s Manual Security Menu The Security menu allows users to change the security settings for the system. Supervisor Password This item indicates whether a supervisor password has been set. If the password has been installed, Installed displays. If not, Not Installed displays.
  • Page 55 GOT-812 Series User’s Manual password. Boot Sector Virus Protection This option is near the bottom of the Security Setup screen. The default setting is Disabled. Set this item to prevent the Boot Sector Virus Disabled Protection. This is the default setting.

  • Page 56: Chipset Menu

    GOT-812 Series User’s Manual Chipset Menu The Chipset menu allows users to change the advanced chipset settings. You can select any of the items in the left frame of the screen to go to the sub menus: North Bridge Configuration South Bridge Configuration For items marked with “...
  • Page 57 GOT-812 Series User’s Manual North Bridge Configuration DRAM Frequency This item allows you to control the Memory Clock. Configure DRAM Timing by SPD This item can enable or disable DRAM timing by SPD (Serial Presence Detect) device, which is a small EEPROM chip on...
  • Page 58 GOT-812 Series User’s Manual AMI BIOS Setup Utility...
  • Page 59 GOT-812 Series User’s Manual South Bridge Configuration AMI BIOS Setup Utility...
  • Page 60 GOT-812 Series User’s Manual USB Function This item allows you to enable or disable USB function. USB 2.0 Controller This item allows you to enable or disable the USB 2.0 controller. Audio Controller This item allows you to enable or disable the audio support.

  • Page 61: Exit Menu

    GOT-812 Series User’s Manual Exit Menu The Exit menu allows users to load your system configuration with optimal or failsafe default values 0 Save Changes and Exit When you have completed the system configuration changes, select this option to leave Setup and reboot the computer so the new system configuration parameters can take effect.
  • Page 62 GOT-812 Series User’s Manual It automatically sets all Setup options to a complete set of default settings when you select this option. The Optimal settings are designed for maximum system performance, but may not work best for all computer applications. In particular, do not use the Optimal Setup options if your computer is experiencing system configuration problems.

  • Page 63: Chapter 4 Drivers Installation

    GOT-812 Series User’s Manual CHAPTER 4 DRIVERS INSTALLATION System GOT-812 Series supports Windows 2000/XP. To facilitate the installation of system driver, please carefully read the instructions in this chapter before start installing. Insert Driver CD and select the “\GOT-812 Series\Driver\XP”.

  • Page 64: Touch Screen

    Active: 24.6mA / Idle Mode: 13.4mA 4.2.2 Driver Installation- Windows XP The GOT-812 Series provides a touch screen driver that users can install it under the operating system Windows XP. To facilitate installation of the touch screen driver, you should read the instructions in this chapter carefully before you attempt installation.
  • Page 65 GOT-812 Series User’s Manual Follow the installing procedure and press OK. Drivers Installation...
  • Page 66 GOT-812 Series User’s Manual Click Start menu and select “PenMount Utilities”; and then, a “PenMount Control Panel” pops out. Drivers Installation...
  • Page 67 GOT-812 Series User’s Manual Select the “Standard Calibrate” tab. Calibration: To adjust the display with touch panel, click “Calibration” and follow the calibrate point to do calibration; there are five points on screen for calibration. Press OK. Drivers Installation...

  • Page 68: Embedded O.s

    GOT-812 Series User’s Manual Embedded O.S. The GOT-812 provides the Windows XP Embedded. The O.S. is supported devices which are listed below. 4.3.1 Windows XP Embedded Here are supported onboard devices: Onboard Multi I/O SATA Hard Drive PS2 Keyboard and mouse...
