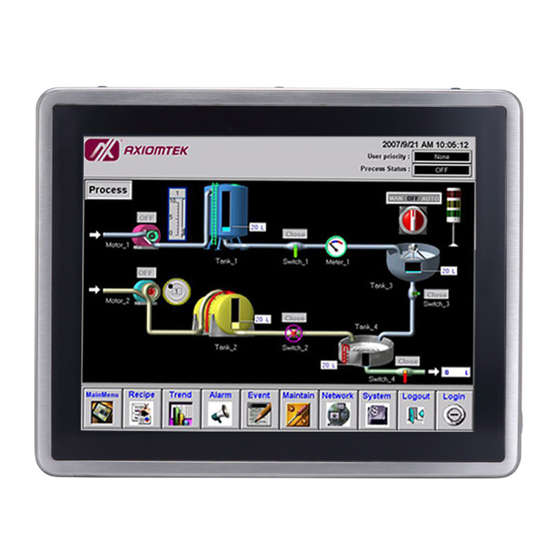

GOT817L-511
17" SXGA TFT
Touch Panel Computer
User's Manual
IP69K certification distinguishes the highest level of
reliability.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GOT817L-511 and is the answer not in the manual?

Questions and answers

Related Manuals for AXIOMTEK GOT817L-511

Summary of Contents for AXIOMTEK GOT817L-511

  • Page 1 GOT817L-511 17” SXGA TFT Touch Panel Computer User’s Manual IP69K certification distinguishes the highest level of reliability.
  • Page 2 Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice.

  • Page 3: Safety Precautions

     When handling boards and components, wear a wrist-grounding strap, available from most electronic component stores. Trademarks Acknowledgments Axiomtek is a trademark of Axiomtek Co., Ltd. IBM, PC/AT, PS/2, VGA are trademarks of International Business Machines Corporation. ® ™...

  • Page 4: Table Of Contents

    USB Port ......................10 2.1.4 DC Power Jack w/ M12 connector ..............11 Water-proof Cables ..............11 2.2.1 Power cable ..................... 11 2.2.2 Power adapter for GOT817L-511 ..............12 2.2.3 COM ......................... 12 2.2.4 USB cables ...................... 13 Mounting Method ..............13 2.3.1 VESA mounting ....................

  • Page 5: Chapter 1 Introduction

    OS, such as W indows® 10 IoT embedded. For storage device, the GOT817L-511 supports 2.5” SSD or 2.5” SATA HDD device.  Industrial-grade Product Design The GOT817L-511 has an incredible design to be used in different industrial environments.  The whole enclosure meets the IP66 standard.

  • Page 6: Specifications

    GOT817L-511 User’s Manual Specifications 1.2.1 Main CPU Board  ®  Intel Core i5-7300U 3.5GHz processor onboard (Kaby Lake)  System Memory  One 260-pin DDR4-2133 SO-DIMM socket  Maximum memory up to 16GB  BIOS  America Megatrends UEFI BIOS 1.2.2 I/O System...
  • Page 7  5 to 500 Hz, 1.0 G, random for 2.5” SSD 1. All specifications and images are subject to change without notice. 2. The GOT817L-511 is suited on serious environment; please choose the wide temperature DRAM and SSD. Note 3. If the operation temperature is higher than 35℃, the wide temperature HDD is recommended to be used on the device.

  • Page 8: Dimensions

    GOT817L-511 User’s Manual Dimensions This diagram shows you dimensions and outlines of the GOT817L-511. Introduction...

  • Page 9: I/O Outlets

    GOT817L-511 User’s Manual I/O Outlets Please refer to the following illustration fo r I/O locations of the GOT817L-511. Function Backlight ON/OFF Brightness Adjust +/- Power ON/OFF DC Power Connector Ethernet COM1 (RS-232/422/485, default RS-232) COM2 (RS-232/422/485, default RS-232) USB 2.0 x 2 USB 2.0 x 2...

  • Page 10: Antenna Installation (Optional)

    GOT817L-511 User’s Manual Antenna Installation (Optional) If you have the optional wireless module, you will find the antenna in the accessory box. The installation instructions are as follows : 1. If you add optional 2T2R W IFI module, the ANT1 is MAIN wifi antenna, the ANT2 is AUX wifi antenna.

  • Page 11: Package List

     Water-proof Power / USB / LAN / RS-232 cables (optional)  Water-proof Antenna for Wifi or UMTS/HSPA+ (optional)  VESA ARM(optional) If you can not find the package or any items are missing, please contact Axiomtek distributors immediately. Introduction...
  • Page 12 GOT817L-511 User’s Manual This page is intentionally left blank. Introduction...

  • Page 13: Chapter 2 System Configurations

    GOT817L-511 User’s Manual CHAPTER 2 System Configurations The GOT817L-511 provides rich I/O ports and flexible expansions for you to meet different demand. The chapter will show you how to install the hardware. It includes:  I/O Pin Assignment  Hard Disk and DRAM ...

  • Page 14: Ethernet

    2.1.2 Ethernet The GOT817L-511 is equipped with a high performance Plug and P lay Ethernet interface, full compliant with IEEE 802.3 standard , and can be connected with a M12 LAN connector.

  • Page 15: Dc Power Jack W/ M12 Connector

    GOT817L-511 User’s Manual 2.1.4 DC Power Jack w/ M12 connector Signal +9 ~ 36V +9 ~ 36V Earth Ground Water-proof Cables GOT800 series uses specific M12 connector for water-proof. Therefore you will order each cable base on application. There are four kind cables of GOT800 series, by the optional, if you will apply the USB, COM or Ethernet then you can select a cable for the package.

  • Page 16: Power Adapter For Got817L-511

    GOT817L-511 User’s Manual 2.2.2 Power adapter for GOT817L-511 If you order the power adapter, you should choose the power cord type for your location. The power adapter is 110-240V which is combined M12 connector. 2.2.3 COM There are two COM cables which are combined M12 connector. Also, you can refer 2.1.1 for the Series port pin assignment.

  • Page 17: Usb Cables

    The USB cable is combined M12 connector for water-proof. It is extended two USB ports for application. Mounting Method There are two mounting ways for the GOT817L-511. One is suspension, the other is VESA mount. 2.3.1 VESA mounting The GOT817L-511 can accept VESA 100...

  • Page 18: Vesa-Arm Mounting

    GOT817L-511 User’s Manual 2.3.2 VESA-ARM Mounting Step 1 Find out the 4 screws as marked on the back side of chassis. Step 2 Assemble the VESA-ARM to the back side of the chassis, and fix the screws. Step 3 VESA mounting Installation completed.

  • Page 19: Chapter 3 Ami Bios Setup Utility

    GOT817L-511 User’s Manual CHAPTER 3 AMI BIOS Setup Utility This chapter provides users with detailed description how to set up basic system configuration through the AMIBIOS8 BIOS setup utility. Navigation Keys The BIOS setup/utility uses a key-based navigation system called hot keys. Most of the BIOS setup utility hot keys can be used at any time during the setup navigation process.

  • Page 20: Main Menu

    GOT817L-511 User’s Manual Main Menu  BIOS and EC Information Display BIOS and EC firmware information.  System Date/Time Use this option to change the system time and date. Highlight System Time or System Date using the keys. Enter new values through the keyboard. Press the key or the keys to move between fields.

  • Page 21: Advanced Menu

    GOT817L-511 User’s Manual Advanced Menu The Advanced menu allows users to set configuration of the CPU and other system devices. You can select any of the items in the left frame of the screen to go to the sub menus: ...
  • Page 22 GOT817L-511 User’s Manual Hardware Monitor This screen monitors hardware health status. This screen displays the temperature of system and CPU, system voltages (VBAT, +3.3V, +3.3V_SBY and +5V). AMI BIOS Setup Utility...
  • Page 23 GOT817L-511 User’s Manual Utility Configuration ACPI Settings AMI BIOS Setup Utility...
  • Page 24 GOT817L-511 User’s Manual ACPI Sleep State The setting is S3 (Suspend to RAM); this option selects ACPI sleep state the system will enter when suspend button is pressed. CPU Configuration This screen shows the CPU Configuration and you can change the value of the selected option.
  • Page 25 GOT817L-511 User’s Manual SATA Configuration Use this screen to select options for the Super IO Configuration, and change the value of the selected option SATA mode selection The SATA mode is set to AHCI. mSATA Enable or disable mSATA feature.
  • Page 26 GOT817L-511 User’s Manual PCH-FW Configuration This screen displays ME Firmware information. USB Configuration AMI BIOS Setup Utility...
  • Page 27 GOT817L-511 User’s Manual USB Devices Display all detected USB devices. BIOS Flash Utility BIOS flash utility configuration. For more detailed information, please refer to Appendix D. AxiomType3 Super IO Configuration A description of selected item appears on the right side of the screen. For items marked with...

  • Page 28: Chipset Menu

    GOT817L-511 User’s Manual Chipset Menu The Chipset menu allows users to change the advanced chipset settings. You can select “System Agent (SA) Configuration in the left frame of the screen to go to the sub menus: AMI BIOS Setup Utility...
  • Page 29 GOT817L-511 User’s Manual Graphics Configuration Use this item to open graphics configuration sub screen. Memory Configuration Use this item to refer to information related to system memory. AMI BIOS Setup Utility...

  • Page 30: Security Menu

    GOT817L-511 User’s Manual Security Menu The Security menu allows users to change the security settings for the system. Setup Administrator Password Use this item to set setup administrator password. User Password Use this item to set user password. AMI BIOS Setup Utility...

  • Page 31: Boot Menu

    GOT817L-511 User’s Manual Boot Menu The Boot menu allows users to change boot options of the system. Bootup NumLock State Use this item to select the power-on state for the keyboard NumLock. AMI BIOS Setup Utility...
  • Page 32 GOT817L-511 User’s Manual Quiet Boot Select to display either POST output messages or a splash screen during boot-up. Launch Pxe OPROM Use this item to enable or disable the boot ROM function of the onboard LAN chip when the system boots up.

  • Page 33: Save & Exit Menu

    GOT817L-511 User’s Manual Save & Exit Menu Save Changes and Exit When you have completed the system configuration changes, select this option to leave Setup and return to Main Menu. Select Save Changes and Exit from the Save & Exit menu and...
  • Page 34 GOT817L-511 User’s Manual Discard Changes Select this option to discard changes done so far and load previous values. Select Discard Restore Defaults It automatically sets all Setup options to a complete set of default settings when you select this Save as User Defaults Select this option to save system configuration changes done so far as User Defaults.

  • Page 35: Chapter 4 Drivers Installation

    CHAPTER 4 Drivers Installation System GOT817L-511 supports only Windows 10-64. To facilitate the installation of system driver, please carefully read the instructions in this chapter before start installing. Insert Driver CD and select the “\Drivers”. Select all files and follow the installing procedure.

  • Page 36: Touch Screen

    Power Consumption 4.2.2 Driver Installation- Windows 10 The GOT817L-511 provides a touch screen driver that users can install it under the operating system W indows 10. To facilitate installation of the touch screen driver, you should read the instructions in this chapter carefully before you attempt installation.
  • Page 37 GOT817L-511 User’s Manual Select the “Standard Calibrate” tab. Calibration: To adjust the display with touch panel, click “Calibration” and follow the calibrate point to do calibration; there are five points on screen for calibration. Press OK. Drivers Installation...

  • Page 38: Embedded O.s

    GOT817L-511 User’s Manual Embedded O.S. ® The GOT817L-511 provides the W indows 10 Embedded. The O.S. is supported devices which are listed below. W ES 10 Here are supported onboard devices: Onboard Multi I/O  SATA HDD   LCD display ...
