AXIOMTEK GOT710-837 User Manual

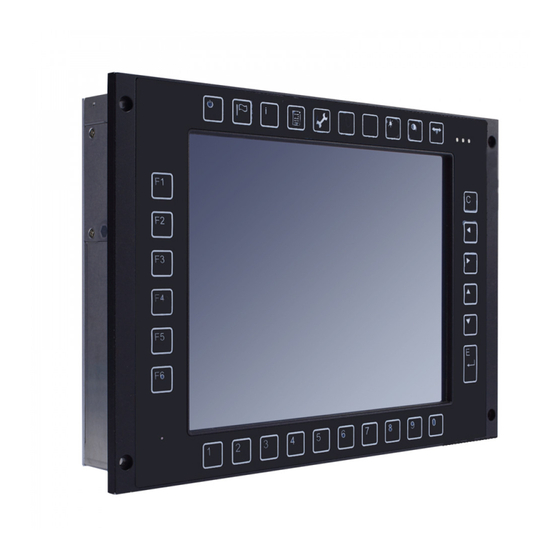

Railway 10.4” svga tft slim panel pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GOT710-837
Railway
10.4" SVGA TFT Slim
PANEL PC
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GOT710-837 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AXIOMTEK GOT710-837

Summary of Contents for AXIOMTEK GOT710-837

  • Page 1 GOT710-837 Railway 10.4” SVGA TFT Slim PANEL PC User’s Manual...

  • Page 2: Disclaimers

    Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Axiomtek Co., Ltd.

  • Page 3: Safety Precautions

     When handling boards and components, wear a wrist-grounding strap, available from most electronic component stores. Trademarks Acknowledgments Axiomtek is a trademark of Axiomtek Co., Ltd. ® Windows is a trademark of Microsoft Corporation. IBM, PC/AT, PS/2, VGA are trademarks of International Business Machines Corporation.

  • Page 4: Table Of Contents

    Table of Contents Disclaimers ..................... ii Safety Precautions ..................iii Chapter 1 Introduction ..........1 General Description ................1 Specifications ..................2 Dimensions and Outlines ..............4 I/O Outlets .................... 5 Packing List ..................6 Chapter 2 Hardware and Installation ...... 7 Open back cover .................
  • Page 5 Starting ....................23 Menu Bar .................... 24 Navigation Keys ................24 Main Menu ..................25 Advanced Menu ................. 26 Chipset Menu ..................31 Security Menu ..................34 Boot Menu ..................35 Exit Menu ................... 36 Chapter 4 Drivers Installation ......37 System ....................
  • Page 6 This page is intentionally left blank.

  • Page 7: Chapter 1 Introduction

    Package List General Description GOT710-837 is used to keep the train driver informed about the status of the train’s functions. Its design allows it to be deployed in environment with an extended temperature (-25°C ~ 70°C) and it also complies with the EMC, shock and vibration test requirements of European standard EN50155 for railway applications.

  • Page 8: Specifications

    GOT710-837 User’s Manual Specifications Main CPU Board  ®  Intel Atom E3827 1.75GHz / E3845 1.91GHz processor onboard  System Memory  DDR3 4 GB (default) or 8 GB memory onboard  BIOS  America Megatrends Inc BIOS I/O System ...
  • Page 9 GOT710-837 User’s Manual System Specification  10.4” SVGA(800 X 600)LCD  5 wired resistive Touch or glass  IP65/NEMA4 aluminum front bezel  IP65 aluminum front bezel  Net Weight  2.4 Kgs (12.35 lb)  Dimension (Main Body Size) ...

  • Page 10: Dimensions And Outlines

    GOT710-837 User’s Manual Dimensions and Outlines The following diagrams show the dimensions and outlines of GOT710-837. Introduction...

  • Page 11: I/O Outlets

    GOT710-837 User’s Manual I/O Outlets Please refer to the following illustration for I/O locations of the GOT710-837. 1 2 3 4 5 6 Function DC for power input with isolated 1.5KV CAN Bus with isolated 1.5KV Audio (Line out, Line in, speaker out) DIO (6 input/2 output with isolated 1.5KV)

  • Page 12: Packing List

    When you receive the GOT710-837, the bundled package should contain the following items:  GOT710-837 unit x 1  Driver CD x1  Power cable x 1  Phoenix Connector x 1 If you can not find the package or any items are missing, please contact Axiomtek distributors immediately. Introduction...

  • Page 13: Hardware And Installation

    GOT710-837 User’s Manual Chapter 2 Hardware and Installation The GOT710-837 provides rich I/O ports and flexible expansions for you to meet different demand. The chapter will show you how to install the hardware. It includes:  Open back cover ...

  • Page 14: Open

    GOT710-837 User’s Manual Open back cover This section tells users how to open back cover. Please follow the steps below. Step 1 Unscrew 10 screws on the back cover. Please refer the photo below. Serial Ports Interface This system supports RS-232/422/485 isolated 1.5KV on COM1~COM2 ports. The pin assignments are listed in table below.

  • Page 15: Usb Ports

    USB_DP2_C Ethernet The GOT710-837 is equipped with two high performance plug and play Ethernet interfaces with X-coded which are fully compliant with the IEEE 802.3 standard. Connection can be established by plugging one end of the Ethernet cable into this RJ-45 connector and the other end to a 1000/100/10-Base-T hub with isolated 1.5KV.

  • Page 16: Dio

    GOT710-837 User’s Manual 2.5.1 Digital I/O Specification This system supports one DIO (6 input and 2 output) with isolated 1.5KV. The pin assignments are listed in table below. Digital Input: Input channels: 4, sink/source type Input voltage: 0 to 30VDC at 25Hz...

  • Page 17: Digital I/O Software Programming

    GOT710-837 User’s Manual 2.5.2 Digital I/O Software Programming  I2C to GPIO PCA9554PW GPIO Group0[3:0] is Output, Group0[7:4] is Input.  I2C address: 0b0100100x.  Registers: Register 0: Input Group0 register. Register 2: Output Group0 register. Hardware and Installation...

  • Page 18: Digital Input Wiring

    GOT710-837 User’s Manual 2.5.3 Digital Input Wiring DRY contact Logic level 0: close to ground Logic level 1: open WET contact Logic level 1: +/-3VDC max. Logic level 0: +/- 10VDC min. to +/-30VDC max Hardware and Installation...

  • Page 19: Digital Output Wiring

    GOT710-837 User’s Manual 2.5.4 Digital Output Wiring Audio This system supports one Audio (Line out, Line in, speaker out) with isolated 1.5KV. The pin assignments are listed in table below. Definition SPEK_OUTA+ SPEK_OUTA- AUDIO_GND AUDIO_OUT_L AUDIO_OUT_R FRONT-JD AUDIO_GND AUDIO_LIN_IN_L AUDIO_LIN_IN_R...

  • Page 20: Canbus Connector (Can1)

    GOT710-837 User’s Manual CANBUS connector (CAN1) This system supports one CANBus with isolated 1.5KV. The pin assignments are listed in table below. Definition CAN_LO ISO3_GND ISO3_GND CAN_HO DC Power connector (CN7) The system supports one DC for power input with isolated 1.5KV. The pin assignments are listed in table below.

  • Page 21: Mini Card Installation

    Mini card Installation 2.9.1 Wireless LAN Card Installation The GOT710-837 provides two Mini card slots for user to install wireless LAN cards. You can choose either slot 1 or slot 2 to install the wireless LAN card and refer to the following.

  • Page 22: Msata Card Installation

    GOT710-837 User’s Manual 2.9.2 mSATA Card Installation The GOT710-837 provides one Mini card slot for user to install mSATA. Please choose the slot 2 when installing the mSATA card and refer to the following instructions and illustration: Step 1 Open the back cover and find out the mini-card slot on main board.

  • Page 23: System Jumper Setting

    GOT710-837 User’s Manual 2.10 System jumper setting Please see the jumper setting as below for your requirement. Jumper ★ Default Setting Jumper Setting ★LVDS Panel Power : 3.3V Short 1-2 LVDS Panel Power : 5V Short 3-4 ★ COM5 normal mode...

  • Page 24: System Panel Header

    GOT710-837 User’s Manual 2.11 System Panel Header Please see the panel header as below table. Definition Buzzer - Buzzer + RESET# HDLED- HDLED+ ★ Jumper Default Setting Jumper Setting ★ MCU I2C Power : 3.3V Short 1-2 MCU I2C Power : 5V Short 3-4 ★...

  • Page 25: Hard Keys On Front Bezel

    GOT710-837 User’s Manual 2.12 Hard keys on front bezel Hard Keys on front bezel:  UIC 612-01 compliant  Keys for pre-defined functions  Key backlighting: dimmable 2.12.1 Definition of hard keys Front panel hard keys definition is as below table: NOTE 1.

  • Page 26: Api Programming Library

    DVD to call the API DLL. GOT710_API.dll: AXIOMTEK API DLL file GOT710_API_V1_2.pdf: AXIOMTEK API programming library user manual for CAN BUS, Light / Temperature sensor, Backlight & Dimming control. Hardware and Installation...

  • Page 27: Led Indicators

    GOT710-837 User’s Manual 2.13 LED indicators LED lights make sure that whether the MCU is working properly and facilitating to debug in the phrase of research and development. It is not necessarily the actual system mounting LED lights. The following table summarizes the buzzer and LED indication of the device: 2.14...
  • Page 28 GOT710-837 User’s Manual This page is intentionally left blank. Hardware and Installation...

  • Page 29: Starting

    GOT710-837 User’s Manual Chapter 3 AMI BIOS Setup Utility The AMI UEFI BIOS provides users with a built-in setup program to modify basic system configuration. All configured parameters are stored in a flash chip to save the setup information whenever the power is turned off. This chapter provides users with detailed description about how to set up basic system configuration through the AMI BIOS setup utility.

  • Page 30: Menu Bar

    GOT710-837 User’s Manual Menu Bar The top of the screen has a menu bar with the following selections: Menu Bar Description Main To set up the system time/date information. Advanced To set up the advanced BIOS features. H/W Monitor To display current hardware status.

  • Page 31: Main Menu

    GOT710-837 User’s Manual Main Menu When you first enter the setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. System Time/Date can be set up as described below.

  • Page 32: Advanced Menu

    GOT710-837 User’s Manual Advanced Menu The Advanced menu also allows users to set configuration of the CPU and other system devices. You can select any of the items in the left frame of the screen to go to the sub menus: ...
  • Page 33 GOT710-837 User’s Manual  NCT6106D Super IO Configuration Use this screen to select options for the Super IO Configuration, and change the value of the selected option. Serial Port 1-2 configuration 1. Serial port: This option used to enable or disable the serial port.
  • Page 34 GOT710-837 User’s Manual  NCT6106D H/W Monitor This screen shows the Hardware Health Configuration.  CPU Configuration This screen shows the CPU Configuration and Intel virtualization technology enable/disable selected AMI BIOS Setup Utility...
  • Page 35 GOT710-837 User’s Manual  IDE Configuration You can use this screen to select options for the SATA Configuration, and change the value of the selected option.  SATA Mode Use this item to choose the SATA operation mode. Here are the options for your selection, IDE Mode, AHCI Mode.
  • Page 36 GOT710-837 User’s Manual  CSM Configuration Enable is Legacy mode, Disable is UEFI mode.  USB Configuration Display USB Device Configuration AMI BIOS Setup Utility...

  • Page 37: Chipset Menu

    GOT710-837 User’s Manual Chipset Menu In this section, it will display the available devices on your system for you to configure the boot settings and the boot priority.  North Bridge This screen shows the North Bridge memory information. You can use this screen to select options for the LVDS Configuration.
  • Page 38 GOT710-837 User’s Manual  South Bridge AMI BIOS Setup Utility...
  • Page 39 GOT710-837 User’s Manual  USB Configuration Only support USB2.0(EHCI). AMI BIOS Setup Utility...

  • Page 40: Security Menu

    GOT710-837 User’s Manual Security Menu In this section, you may set, change or clear the supervisor/user password for the system. AMI BIOS Setup Utility...

  • Page 41: Boot Menu

    GOT710-837 User’s Manual Boot Menu The Boot menu allows users to change boot options of the system. You can select any of the items in the left frame of the screen to go to the sub menus: Setup Prompt Timeout...

  • Page 42: Exit Menu

    GOT710-837 User’s Manual Exit Menu NOTE Load default before updating g TXE firmware and restart. AMI BIOS Setup Utility...

  • Page 43: Chapter 4 Drivers Installation

    GOT710-837 User’s Manual Chapter 4 Drivers Installation System GOT710-837 supports Windows 7and WES 7. To facilitate the installation of system driver, please carefully read the instructions in this chapter before start installing. Insert Driver CD and select the “\Drivers”. Step 1 Step 2 Select all files and follow the installing procedure.
  • Page 44  Driver Installation- Windows 7 The GOT710-837 provides a touch screen driver that users can install it under the operating system Windows 7. To facilitate installation of the touch screen driver, you should read the instructions in this chapter carefully before you attempt installation.
  • Page 45 GOT710-837 User’s Manual Select the “Standard Calibrate” tab. Step 4 Step 5 Calibrations: To adjust the display with touch panel, click “Calibration” and follow the calibrate point to do calibration; there are five points on screen for calibration. Step 6 Press OK.

  • Page 46: Embedded O.s

    GOT710-837 User’s Manual Embedded O.S. The GOT710-837 provides the Windows 7 Embedded. The O.S. is supported devices which are listed below.  WES 7 Here are supported onboard devices:  Onboard Multi I/O  SATA HDD   PS2 Keyboard and mouse ...
