Classic Organ Works CMK-1 User Manual

Classic midi keyboard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Dmbttjd!Pshbo!Xpslt!
CMK-1
Classic MIDI Keyboard
User Manual
Version 1.00.05
Div. of:
ARTISAN CLASSIC ORGAN INC.

Advertisement

Table of Contents
loading

Related Manuals for Classic Organ Works CMK-1

Summary of Contents for Classic Organ Works CMK-1

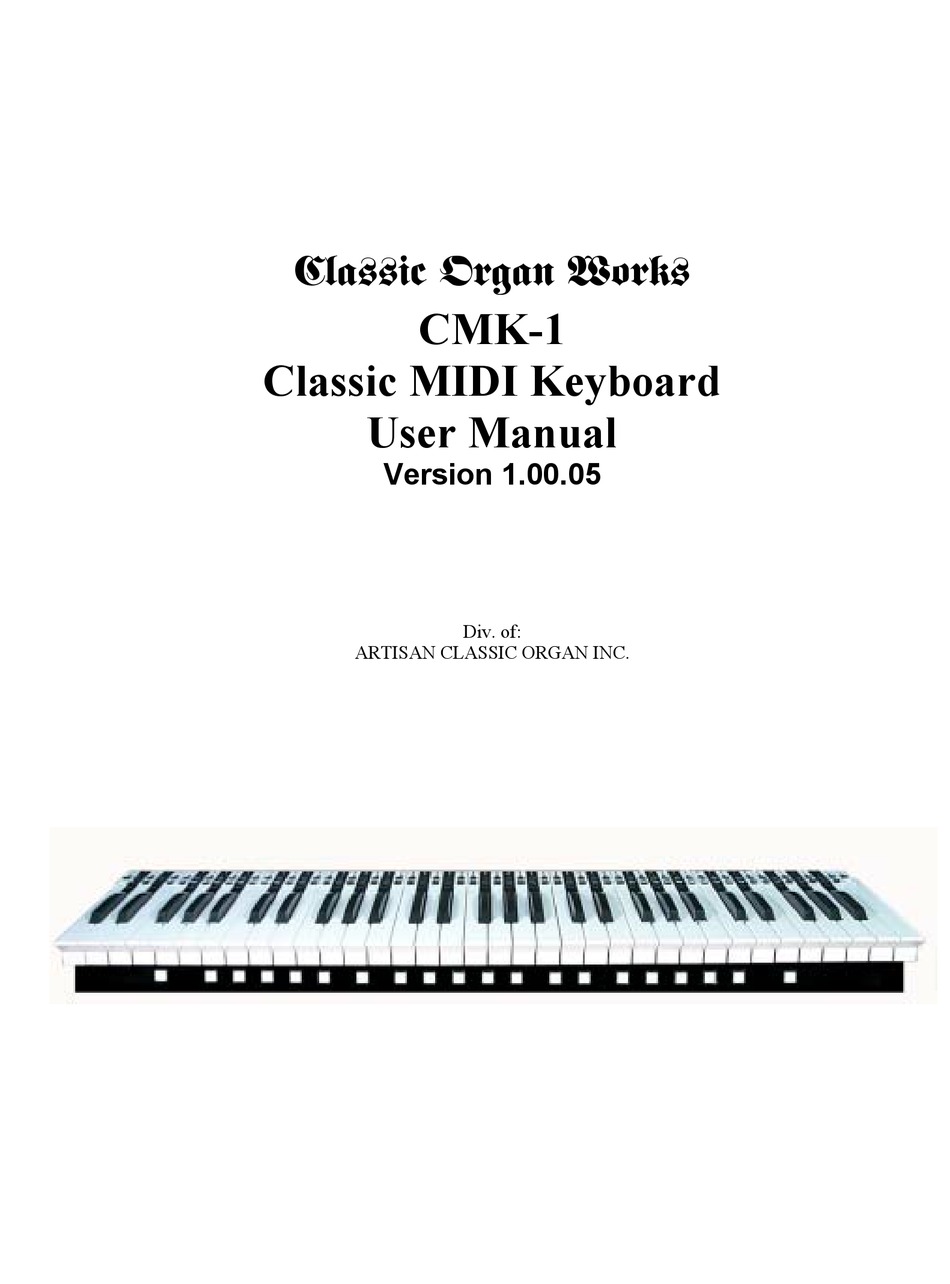

  • Page 1 Dmbttjd!Pshbo!Xpslt! CMK-1 Classic MIDI Keyboard User Manual Version 1.00.05 Div. of: ARTISAN CLASSIC ORGAN INC.

  • Page 3: Table Of Contents

    Table 4: General MIDI Program Numbers for MIDI Channels 1-9 and 11-16 ............24 Table 5: General MIDI Percussion Key Map for MIDI Channel 10................25 Ahlborn..................................25 Table 6: Classic Module ............................25 _________________________________________________________________________________________________________ Page-3 CMK-1 Manual (Issue-1) October 20, 2004...
  • Page 4 Figure 28: Window confirms the loading of pre-configuration data from the CMK to the PC........39 Load a previously saved CMK configuration ................40 Figure 29: Configuration File selection window....................... 40 Figure 30: Program window............................. 40 _________________________________________________________________________________________________________ Page-4 CMK-1 Manual (Issue-1) October 20, 2004...
  • Page 5 Table 15: Expanded Status Bytes List........................61 Table 16: Control Changes and Mode Changes ...................... 64 Table 17: Registered Parameter Numbers....................... 67 APPENDIX C: ......................69 SYSTEM EXCLUSIVE MESSAGE LAYOUTS ............69 _________________________________________________________________________________________________________ Page-5 CMK-1 Manual (Issue-1) October 20, 2004...
  • Page 6 Figure 61: CMK Piston Rail circuit board mounting rail mechanical drawing............99 Figure 62: CMK Side mounting bracket mechanical drawing (treble end) ............100 Figure 63: CMK Side mounting bracket mechanical drawing (bass end).............. 101 _________________________________________________________________________________________________________ Page-6 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 7: Cmk-1 Manual (Issue-1)

    Figure 64: CMK End clamp mechanical drawing....................102 Figure 65: CMK two-manual mounting bracket mechanical drawing ..............103 Figure 66: CMK three-manual mounting bracket mechanical drawing..............104 DISCLAIMER ......................105 _________________________________________________________________________________________________________ Page-7 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 9: Limited Warranty

    15 days for insurance claim purposes. For all other defects, Classic Organ Works agrees to repair or replace all defective parts of said products which are returned, transportation prepaid, for inspection at its service centre within the period of the warranty.

  • Page 11: Introduction

    Configurations that are saved on the CMK will not be lost when power is turned off because the memory is non- volatile. These configurations may be selected using DIP-switches on the CMK. Eventually, users may inexpensively upgrade their software as well as configurations by visiting the Classic Organ Works website at http://www.organworks.com.

  • Page 12: Table 1: Parts/Components List

    Figure 1: CMK components (from L-R, Top to Bottom): A) Keyboard B) 2-manual side mounting brackets (sold separately) C) 3-manual side mounting brackets (sold separately) D) 12V DC wall adaptor E) 6-Ft. MIDI cable F) Mounting screw. _________________________________________________________________________________________________________ Page-12 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 13: Figure 2: Cmk Connections

    Figure 2: CMK connections _________________________________________________________________________________________________________ Page-13 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 15: Installation

    (For internal access, ensure the unit is disconnected from all power sources.) Springs The keyboard contact springs are installed at Classic Organ Works. However, the nature of these contacts makes them sensitive to movements during shipping. A visual inspection of the keyboard should be performed upon receiving to determine if any of these springs have become displaced.

  • Page 16: Figure 4: Single-Manual Stand-Alone

    Figures 8 and 9. The entire two/three keyboard configuration with mounting brackets may be installed in a console using #6 screws. The electronics are accessible by flipping the keyboards as shown in Figure 10. Figure 6: Two manual setup _________________________________________________________________________________________________________ Page-16 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 17: Figure 7: Three Manual Setup

    Figure 7: Three manual setup Figure 8: Two/Three-manual setup mounted level (Note the pivoting screw positions on each end bracket are different) _________________________________________________________________________________________________________ Page-17 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 18: Connections

    The CMK requires between +9V and +15V DC power at a minimum current of 400mA. If the CMK is to be used as a standalone unit, the most convenient method of providing power would be to use the supplied 2.1mm Co-axial DC adaptor. _________________________________________________________________________________________________________ Page-18 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 19: Midi

    These can be controlled through the general pistons on the CMK. Thus, additional stops and sounds on multiple Ahlborn Archive modules may be controlled as though they were part of the organ. _________________________________________________________________________________________________________ Page-19 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 20: Analog Inputs

    DIN 5-pin socket 180° Standard MIDI signals Optional Connections Analog Input Pins, 0.025” Square, ‘Analog Input 1’ is used for 0.3” long, 0.1” pitch crescendo and ‘Analog Input 2’ is used for volume/expression. _________________________________________________________________________________________________________ Page-20 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 21: Software Installation (Windows Users Only)

    Note: To use the software, the CMK must be connected to a computer via MIDI. If a MIDI port is not available on your computer, a commercial MIDI adapter for the game port, USB port, or parallel port may be used. Windows is a registered Trademark of the Microsoft Corporation. _________________________________________________________________________________________________________ Page-21 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 22: Midi Specification

    Note numbers on the ‘key-based’ percussion sounds of MIDI Channel 10 represent different percussion instruments. It should be noted that although sounds may have the same label, they may _________________________________________________________________________________________________________ Page-22 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 23: Table 3: Sound Set Groups

    17-24 Organ 25-32 Guitar 33-40 Bass 41-48 Strings 49-56 Ensemble 57-64 Brass 65-72 Reed 73-80 Pipe 81-88 Synthesizer Lead 89-96 Synthesizer Pad 97-104 Synthesizer Effects 105-112 Ethnic 113-120 Percussive 121-128 Sound Effects _________________________________________________________________________________________________________ Page-23 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 24: Table 4: General Midi Program Numbers For Midi Channels 1-9 And 11-16

    Lead 1 (square) Bird Tweet Synth Bass 1 Lead 2 (sawtooth) Telephone Ring Synth Bass 2 Lead 3 (calliope) Helicopter Violin Lead 4 (chiff) Applause Viola Lead 5 (charang) Gunshot Cello Lead 6 (voice) _________________________________________________________________________________________________________ Page-24 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 25: Ahlborn

    Bombarde 16’ Cymbale III Div. B to Ped. Harmonic Trumpet 8’ Tremulant Corno di Bassetto 8’ Div. A to Div. B Festival Trumpet 8’ Clarion 4’ Tremulant Div. B to Div. A _________________________________________________________________________________________________________ Page-25 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 26: Table 7: Romantic Module

    Div. A to Ped. Scharff III Clarion 4’ Div. B to Ped. Bombarde 16’ Tremulant Trompette 8’ Div. A to Div. B Tuba Mirabilis 8’ Chimes Tremulant Div. B to Div. A _________________________________________________________________________________________________________ Page-26 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 27: Hauptwerk Tm

    SCPOP requires a Roland Sound Canvas MIDI Expander module and is only compatible with Roland hardware containing the ‘Sound Canvas’ label [9]. The messages used to control SCPOP can be found in Appendix E. _________________________________________________________________________________________________________ Page-27 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 28: Midi Hardware Specification

    3. Maximum cable length is fifty feet (15 meters), terminated at each end by a 5-pin 180º DIN male plug (e.g. SWITCHCRAFT 05GM5M). 4. Cable is shielded twisted-pair, with shield connected to pin 2 at both ends. _________________________________________________________________________________________________________ Page-28 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 29: Cmk Hardware Configuration

    MIDI channels as outlined in Table 11. In multi-manual CMK setups, the range for the Expression control can be set by attaching a Volume control to one of the keyboards and attaching an Expression control to another keyboard. _________________________________________________________________________________________________________ Page-29 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 30: Programming

    The change in velocity level between adjacent white keys is approximately 3. Note that in the event multiple keys are pressed, only the last one released will be registered by the software. _________________________________________________________________________________________________________ Page-30 CMK-1 Manual (Issue-1) October 20, 2004...
  • Page 31 (SET) the analog input will not be transmitted on any MIDI ANALOG and the 7 black key channel. INPUT - from the left (D#2). EXPRESSION Afterwards, release the SET piston. _________________________________________________________________________________________________________ Page-31 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 32: Cmk Software Configuration

    3. Locate and click on a file named ‘CMK_Setup.exe’. 4. Follow the instructions in the software installation wizard (screen captures are shown below). Windows is a registered Trademark of the Microsoft Corporation. _________________________________________________________________________________________________________ Page-32 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 33: Figure 15: Upon Clicking On The 'Cmk_Setup.exe' File, The Above Window Will Appear

    Figure 15: Upon clicking on the ‘CMK_Setup.exe’ file, the above window will appear. Figure 16: Allows the user to select a directory to install the CMK program file _________________________________________________________________________________________________________ Page-33 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 34: Figure 17: Setup Adds An Icon To The Start Menu For Convenient Access

    Figure 17: Setup adds an icon to the start menu for convenient access Figure 18: Setup provides the option of creating an icon on the Windows desktop _________________________________________________________________________________________________________ Page-34 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 35: Figure 19: Confirmation Window

    Figure 19: Confirmation window Figure 20: Setup progress window _________________________________________________________________________________________________________ Page-35 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 36: Figure 21: Confirms Installation Was Successful

    Figure 21: Confirms installation was successful _________________________________________________________________________________________________________ Page-36 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 37: Software Startup

    Software Startup After installation, a shortcut titled ‘CMKConfig’ will be created in the ‘Classic Organ Works’ folder (Start menu→ Programs→ Classic Organ Works→ CMKConfig). To start using the software, click your left mouse button on this ‘CMKConfig’ shortcut. You should see a screen as shown below: Figure 22: CMKConfig software startup screen.

  • Page 38: Configure A Cmk From Scratch

    If a connection is not made, the following window appears: Figure 25: CMKConfig software unable to connect If a connection is made, the CMKConfig software will indicate the number of keyboards connected. Figure 26: CMKConfig software successfully connected to the CMK. _________________________________________________________________________________________________________ Page-38 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 39: Figure 27: Successful Connection Between Cmkconfig Software And Cmk

    When the user has specified the configuration number, CMKConfig software will load data from the CMK to start the configuration process. Figure 28: Window confirms the loading of pre-configuration data from the CMK to the PC. The user can then design a custom configuration to the required specification. _________________________________________________________________________________________________________ Page-39 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 40: Load A Previously Saved Cmk Configuration

    After selecting the appropriate file, click on the ‘Open’ button. A window should appear like the one shown below: Figure 30: Program window At this point, the user may customize each of the drop-down menus to their specifications. _________________________________________________________________________________________________________ Page-40 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 41: Functions Of The Toolbars

    ‘.cmk’ extension. Icon: Keyboard shortcut: Ctrl+S To save a configuration file to the PC, go to File → Save Program Data File, or use the Keyboard shortcut or icon shown above. _________________________________________________________________________________________________________ Page-41 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 42: Figure 33: Save Program Data To File Window

    MIDI devices to computers). Then go to File → Load Program Data From CMK, or use the keyboard shortcut or icon as shown above. A window appears attempting to make a connection with the CMK as shown in Figure 35. _________________________________________________________________________________________________________ Page-42 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 43: Figure 35: Software Attempting To Make A Connection With The Cmk

    If a connection is not available, a window will appear as a reminder to make connections to the CMK: Figure 36: Software unable to make a connection with the CMK If a connection is made, a window will appear to confirm the communication. Figure 37: Software detecting number of keyboards _________________________________________________________________________________________________________ Page-43 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 44: Figure 38: Successful Connection Between Cmk And Pc Software

    To save a configuration to the CMK, go to File → Write Program Data to CMK or, use the keyboard shortcut or icon as shown above. The Software attempts to make a connection to the CMK. Figure 40: Software attempting to communicate with CMK _________________________________________________________________________________________________________ Page-44 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 45: Options Menu

    Figure 42: Confirms configuration written to CMK from CMKConfig software. 2. Options Menu • MIDI I/O Setup – This function sets the MIDI input and output ports on your PC. Icon: Keyboard shortcut: Ctrl+M Figure 43: MIDI Input Output Setup window _________________________________________________________________________________________________________ Page-45 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 46: Help Menu

    These numbers correspond to the MIDI Channels from 1-16 since the keyboard can send on multiple channels. Clicking on a selected numbered button again will deselect it. _________________________________________________________________________________________________________ Page-46 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 47: Figure 45: Clicking On The Keys Of The Keyboard Invokes A Midi Channel Select Menu

    Figure 46: Clicking on an individual piston invokes the Piston function select drop-down menu. _________________________________________________________________________________________________________ Page-47 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 48: Table 12: Customizable Functions For Each Piston

    Ahlborn SFZ: activates all stops of the organ Hauptwerk/Program Change: Allows users to control Hauptwerk functions or send program change commands using the pistons Any Program Change number from 1 to 128 _________________________________________________________________________________________________________ Page-48 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 49: Configuring Multiple Keyboards

    MIDI sound modules. Using the software for setup of multiple keyboards is exactly the same as for the single-manual. For more details on correct installation, please see Figure 2 in the ‘Introduction’ section. _________________________________________________________________________________________________________ Page-49 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 51: References

    [13] R. Sung, System Exclusive Message layouts, Classic Organ Works, Markham, Canada: 2002 [14] H. Wemekamp, Classic MIDI Keyboard Interface System Software, Classic Organ Works, Markham, Canada: 2002 [15] B. Tubb, “General MIDI Pipe Organ Emulation” [Online Document], 1998, [cited 2002 December 12], Available by contacting author at: brtubb@cybertron.com...
  • Page 52 _________________________________________________________________________________________________________ Page-52 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 53: Dip Switch Configuration Table

    DIP SWITCH CONFIGURATION TABLE Table 13: DIP Switch settings and their corresponding Configuration numbers Configuration Switch Switch Switch Switch Switch Switch Switch Switch Number Note: DIP-Switch settings: Off = 0, On = 1 _________________________________________________________________________________________________________ Page-53 CMK-1 Manual (Issue-1) October 20, 2004...
  • Page 54 Table 13: DIP Switch settings and their corresponding Configuration numbers (cont’d) Configuration Switch Switch Switch Switch Switch Switch Switch Switch Number Note: DIP-Switch settings: Off = 0, On = 1 _________________________________________________________________________________________________________ Page-54 CMK-1 Manual (Issue-1) October 20, 2004...
  • Page 55 Table 13: DIP Switch settings and their corresponding Configuration numbers (cont’d) Configuration Switch Switch Switch Switch Switch Switch Switch Switch Number Note: DIP-Switch settings: Off = 0, On = 1 _________________________________________________________________________________________________________ Page-55 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 56: Midi Protocol Specification

    These messages allow expansion of the number of controllers available via MIDI. Registered Parameters are numbers assigned for functions like control pitch bend sensitivity and master tuning. Non-Registered Parameters are those which can be assigned by manufacturers to handle other functions. _________________________________________________________________________________________________________ Page-56 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 57: System Messages

    On’ message is utilized for both ‘Note on’ and ‘Note off’ functions. Since the ‘Note On’ and ‘Note Off’ messages have differing status bytes, by making use of a ‘velocity = 0’ command in place of the ‘Note Off’ command, running status is utilized. _________________________________________________________________________________________________________ Page-57 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 58: Table 14: Midi 1.0 Specification Message Summary

    Center (no pitch change) is 2000H. Sensitivity is a function of the transmitter. (lllllll) are the least significant 7 bits. (mmmmmmm) are the most significant 7 bits. _________________________________________________________________________________________________________ Page-58 CMK-1 Manual (Issue-1) October 20, 2004...
  • Page 59 = 126, v = M: Mono Mode On (Poly Off) where M is the number of channels (Omni Off) or 0 (Omni On) c = 127, v = 0: Poly Mode On (Mono Off) (Note: These four messages also cause All Notes Off) _________________________________________________________________________________________________________ Page-59 CMK-1 Manual (Issue-1) October 20, 2004...
  • Page 60 (non-active sensing) operation. 11111111 Reset. Reset all receivers in the system to power-up status. This should be used sparingly, preferably under manual control. In particular, it should not be sent on power-up. _________________________________________________________________________________________________________ Page-60 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 61: Table 15: Expanded Status Bytes List

    " " 10101001 Chan 10 " " " 10101010 Chan 11 " " " 10101011 Chan 12 " " " 10101100 Chan 13 " " " 10101101 Chan 14 " " " _________________________________________________________________________________________________________ Page-61 CMK-1 Manual (Issue-1) October 20, 2004...
  • Page 62 " " 11011000 Chan 9 " " " 11011001 Chan 10 " " " 11011010 Chan 11 " " " 11011011 Chan 12 " " " 11011100 Chan 13 " " " _________________________________________________________________________________________________________ Page-62 CMK-1 Manual (Issue-1) October 20, 2004...
  • Page 63 " 11111110 Active Sensing " " 11111111 System Reset " " Note: System Exclusive (data dump) 2nd byte= Vendor ID (or Universal Exclusive) followed by more data bytes and ending with EOX. _________________________________________________________________________________________________________ Page-63 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 64: Table 16: Control Changes And Mode Changes

    0-127 00101001 LSB for Control 9 (Undefined) 0-127 00101010 LSB for Control 10 (Pan) 0-127 00101011 LSB for Control 11 (Expression Controller) 0-127 00101100 LSB for Control 12 (Effect control 1) 0-127 _________________________________________________________________________________________________________ Page-64 CMK-1 Manual (Issue-1) October 20, 2004...
  • Page 65 01010000 General Purpose Controller 5 0-127 01010001 General Purpose Controller 6 0-127 01010010 General Purpose Controller 7 0-127 01010011 General Purpose Controller 8 0-127 01010100 Portamento Control 0-127 01010101 Undefined 01010110 Undefined _________________________________________________________________________________________________________ Page-65 CMK-1 Manual (Issue-1) October 20, 2004...
  • Page 66 [Channel Mode Message] Poly Mode On (+ mono off +all notes off) Note: This equals the number of channels or zero if the number of channels equals the number of voices in the receiver. _________________________________________________________________________________________________________ Page-66 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 67: Table 17: Registered Parameter Numbers

    Tuning Bank Number Select 00H = 0 05H = 5 Modulation For GM2, defined in GM2 Specification. Depth Range For other systems, defined by (see MMA manufacturer General MIDI Level 2 Specification) _________________________________________________________________________________________________________ Page-67 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 69: System Exclusive Message Layouts

    (21-bit address) of the config block (packed 7 bits). ss ss: number of bytes of original data to be retrieved (packed 14 bits) _________________________________________________________________________________________________________ Page-69 CMK-1 Manual (Issue-1) October 20, 2004...
  • Page 70 Provides an identification number for each keyboard to identify the number of keyboards and configure each one separately. The first device is set to 0 and increments this number before passing the message to the next device. dd: not used in this command. ii: device identification. _________________________________________________________________________________________________________ Page-70 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 71: Appendix D

    -24 to +31. Ahlborn modules respond only in the range - kk = 30-99 (1Eh to 63h) for A and B divisions and kk = 30-70 (1Eh to 46h) for the Pedal division. _________________________________________________________________________________________________________ Page-71 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 72: Table 19: Ahlborn Archive 'Romantic' Sound Module Commands For Stops And Couplers

    B to Aux coupler NOTES: n = Channel number used by Ahlborn stop On/Off messages; defaults to 16 (Fh). Controls "A" or "B" division Tremulant on corresponding channel number used by Ahlborn divisions. _________________________________________________________________________________________________________ Page-72 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 73: Table 20: Ahlborn Archive 'Classic' Sound Module Commands For Stops And Couplers On

    Bn 4A 2D Flute Harmonique NOTES: n = Channel number used by Ahlborn stop On/Off messages; defaults to 16 (Fh). Controls "A" or "B" division Tremulant on corresponding channel number used by Ahlborn divisions. _________________________________________________________________________________________________________ Page-73 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 74: Table 21: Ahlborn Archive '202' Sound Module Commands For Stops And Couplers

    Bn 4A 41 Clarion NOTES: n = Channel number used by Ahlborn stop On/Off messages; defaults to 16 (Fh). Controls "A" or "B" division Tremulant on corresponding channel number used by Ahlborn divisions. _________________________________________________________________________________________________________ Page-74 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 75: Table 22: Ahlborn Archive '201' Sound Module Commands For Stops And Couplers

    Bn 5C 00 Choir Tremulant NOTES: n = Channel number used by Ahlborn stop On/Off messages; defaults to 16 (Fh). Controls "A" or "B" division Tremulant on corresponding channel number used by Ahlborn divisions. _________________________________________________________________________________________________________ Page-75 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 76: Table 23: Ahlborn Archive Sound Module Piston And Crescendo Input Functions For All Four Units

    2) Ahlborn Archive Modules have 6 Programmable Presets on 5 Memory levels, accessed by sending Prog#1-30 (01h - 1Eh). 3) These functions are presumed to be connected to a "shade roller" Crescendo switch, which provides sequential switch closures and releases. These messages can also be generated by an analog input. _________________________________________________________________________________________________________ Page-76 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 77: Table 24: Ahlborn Archive Sound Module Additional Piston Input Commands

    1) "ss" is the Crescendo stage, where Off=64h, Stage#1=65h, #2=66h, etc., #11=6Fh, #12=77h, #13=78h, etc., #20=7Fh. Ahlborn modules use Controller #7 for expression. Outputs on Ahlborn channels (1-4) must be configurable, connecting to analog inputs 2-5. aa = volume value from an analog input, where 0<aa<127. _________________________________________________________________________________________________________ Page-77 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 79: Appendix E

    Volume Panning Reverb Key Shift Flauti 8-4 GM Patch Volume Panning Reverb Key Shift Fondi 16-2 GM Patch Volume Panning Reverb Key Shift Fondi 8-2 GM Patch Volume Panning Reverb Key Shift _________________________________________________________________________________________________________ Page-79 CMK-1 Manual (Issue-1) October 20, 2004...
  • Page 80 Key Shift Ripieno Leggero GM Patch Volume Panning Reverb Chorus Key Shift Ripieno forte GM Patch Volume Panning Reverb Chorus Key Shift Grand Jeux GM Patch Volume Panning Reverb Chorus Key Shift _________________________________________________________________________________________________________ Page-80 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 81: Table 27: General Midi Pipe Organ Emulation Lower Manual Scpop

    Lower Manual [using Parts 7-11] Flauto Camino 8 GM Patch Volume Panning Reverb Key Shift Quintadena 8 GM Patch Volume Panning Reverb Key Shift Flauti 8-4 GM Patch Volume Panning Reverb Key Shift _________________________________________________________________________________________________________ Page-81 CMK-1 Manual (Issue-1) October 20, 2004...
  • Page 82 GM Patch Volume Panning Reverb Key Shift Sesquialtera GM Patch Volume Panning Reverb Key Shift Pienino Flauti GM Patch Volume Panning Reverb Key Shift Ripieno I GM Patch Volume Panning Reverb Key Shift _________________________________________________________________________________________________________ Page-82 CMK-1 Manual (Issue-1) October 20, 2004...
  • Page 83 Key Shift Jeux Doux GM Patch Volume Panning Reverb Key Shift Vox Umana 8 GM Patch Volume Panning Reverb Chorus Key Shift Flauto 4 in GM Patch Tremolo Volume Panning Reverb Key Shift _________________________________________________________________________________________________________ Page-83 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 84: Table 28: General Midi Pipe Organ Emulation Pedals Scpop

    Panning Reverb Key Shift Ripieno I GM Patch Volume Panning Reverb Key Shift Ripieno II GM Patch Volume Panning Reverb Key Shift Tutte le Ancie GM Patch Volume Panning Reverb Key Shift _________________________________________________________________________________________________________ Page-84 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 85: Appendix F

    CLASSIC MIDI KEYBOARD CMK-1 APPENDIX F: CIRCUIT BOARD SCHEMATICS Figure 47: CMK1-1 Classic MIDI Keyboard Circuit board 1 Silk Screen _________________________________________________________________________________________________________ Page-85 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 86: Figure 48: Cmk1-1 Classic Midi Keyboard Circuit Board 1 Schematic

    Figure 48: CMK1-1 Classic MIDI Keyboard Circuit board 1 schematic _________________________________________________________________________________________________________ Page-86 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 87: Figure 49: Cmk1-2 Classic Midi Keyboard Circuit Board 2 Silk Screen

    Figure 49: CMK1-2 Classic MIDI Keyboard Circuit board 2 Silk Screen _________________________________________________________________________________________________________ Page-87 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 88: Figure 50: Cmk1-2 Classic Midi Keyboard Circuit Board 2 Schematic

    Figure 50: CMK1-2 Classic MIDI Keyboard Circuit board 2 schematic _________________________________________________________________________________________________________ Page-88 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 89: Figure 51: Cmkpr1-1 Classic Midi Keyboard Piston Rail Board 1 Silk Screen

    Figure 51: CMKPR1-1 Classic MIDI Keyboard Piston Rail board 1 Silk Screen _________________________________________________________________________________________________________ Page-89 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 90: Figure 52: Cmkpr1-1 Classic Midi Keyboard Piston Rail Board 1 Schematic

    Figure 52: CMKPR1-1 Classic MIDI Keyboard Piston Rail board 1 schematic _________________________________________________________________________________________________________ Page-90 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 91: Figure 53: Cmkpr1-2 Classic Midi Keyboard Piston Rail Board 2 Silk Screen

    Figure 53: CMKPR1-2 Classic MIDI Keyboard Piston Rail board 2 Silk Screen _________________________________________________________________________________________________________ Page-91 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 92: Figure 54: Cmkpr1-2 Classic Midi Keyboard Piston Rail Board 2 Schematic

    Figure 54: CMKPR1-2 Classic MIDI Keyboard Piston Rail board 2 schematic _________________________________________________________________________________________________________ Page-92 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 93: Appendix G

    CLASSIC MIDI KEYBOARD CMK-1 APPENDIX G: MECHANICAL DRAWINGS Figure 55: Two-manual CMK mounted level _________________________________________________________________________________________________________ Page-93 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 94: Figure 56: Two-Manual Cmk Mounted Tilted-Up

    Figure 56: Two-manual CMK mounted tilted-up _________________________________________________________________________________________________________ Page-94 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 95: Figure 57: Three-Manual Cmk Mounted Level

    Figure 57: Three-manual CMK mounted level _________________________________________________________________________________________________________ Page-95 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 96: Figure 58: Three-Manual Cmk Mounted 'Tilt-Up

    Figure 58: Three-manual CMK mounted ‘tilt-up’ _________________________________________________________________________________________________________ Page-96 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 97: Figure 59: Cmk Piston Rail Front Panel Mechanical Drawing

    Figure 59: CMK Piston Rail front panel mechanical drawing _________________________________________________________________________________________________________ Page-97 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 98: Figure 60: Cmk Piston Rail Mounting Rail Mechanical Drawing

    Figure 60: CMK Piston Rail Mounting rail mechanical drawing _________________________________________________________________________________________________________ Page-98 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 99: Figure 61: Cmk Piston Rail Circuit Board Mounting Rail Mechanical Drawing

    Figure 61: CMK Piston Rail circuit board mounting rail mechanical drawing _________________________________________________________________________________________________________ Page-99 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 100: Figure 62: Cmk Side Mounting Bracket Mechanical Drawing (Treble End)

    Figure 62: CMK Side mounting bracket mechanical drawing (treble end) _________________________________________________________________________________________________________ Page-100 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 101: Figure 63: Cmk Side Mounting Bracket Mechanical Drawing (Bass End)

    Figure 63: CMK Side mounting bracket mechanical drawing (bass end) _________________________________________________________________________________________________________ Page-101 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 102: Figure 64: Cmk End Clamp Mechanical Drawing

    Figure 64: CMK End clamp mechanical drawing _________________________________________________________________________________________________________ Page-102 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 103: Figure 65: Cmk Two-Manual Mounting Bracket Mechanical Drawing

    Figure 65: CMK two-manual mounting bracket mechanical drawing _________________________________________________________________________________________________________ Page-103 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 104: Figure 66: Cmk Three-Manual Mounting Bracket Mechanical Drawing

    Figure 66: CMK three-manual mounting bracket mechanical drawing _________________________________________________________________________________________________________ Page-104 CMK-1 Manual (Issue-1) October 20, 2004...

  • Page 105: Disclaimer

    ARTISAN CLASSIC ORGAN INC. Information contained in this manual does not constitute any legal contract. Although thoroughly edited for correctness, neither Classic Organ Works nor any of their employees makes any warranty, express or implied, or assumes any legal responsibility for the accuracy, completeness, or usefulness of any information.

Table of Contents
